Sterndrive - Drives - SSM SIX/NXT1 SSM/SSM SEVEN/DRY SUMP SIX [ALL & Up] - USA - Cat.# 90-853693

> Mercury Marine [Updated: Oct. 1, 2021] > Sterndrive > Drives > SSM VI > [ALL & Up] - USA - Cat.# 90-853693

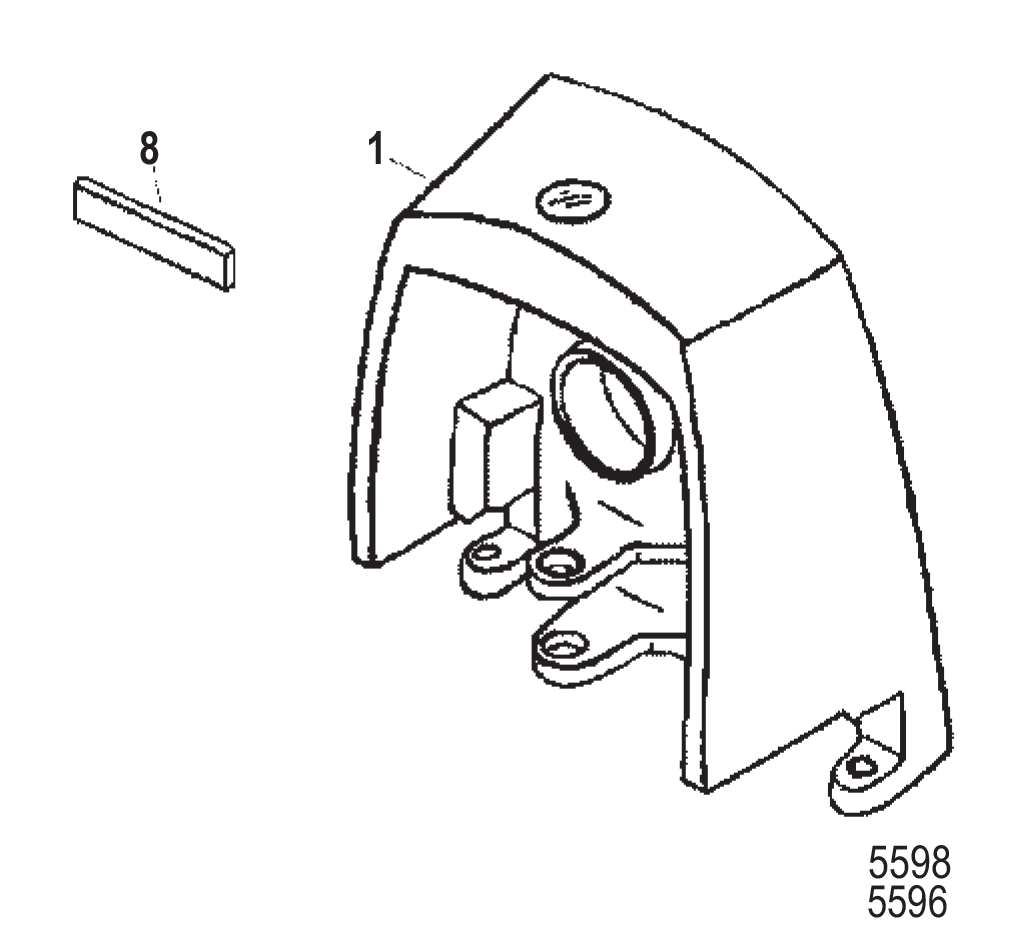

Gimbal Housing Assy Close Couple, (Wet and Dry Sump) Diagram 5598

1 0000 846817A1 PLATE ASSEMBLY Outer

8 847333 EMBLEM MerCruiser - Early Models
8 0037 840359 DECAL Mercury Racing [0M965835] & Below
8 0037 8M0048257 DECAL Mercury Racing [0M965836] & Up

Gimbal Housing Assy Driveline, (Wet and Dry Sump) Diagram 5596

1 846604A1 PLATE ASSEMBLY Outer

8 847333 EMBLEM MerCruiser Early Models
8 0037 840359 DECAL Mercury Racing [0M965835] & Below
8 0037 8M0048257 DECAL Mercury Racing [0M965836] & Up

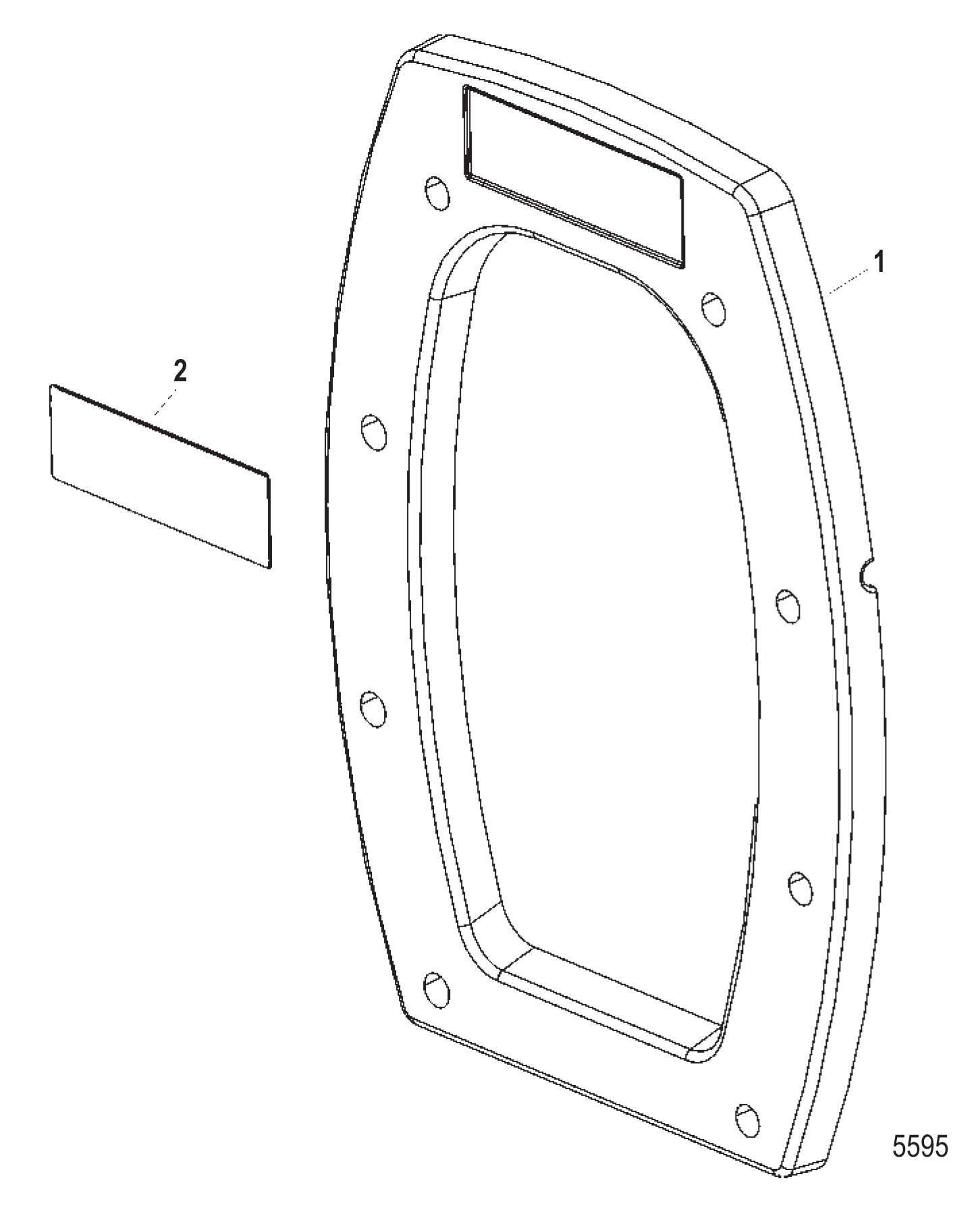

Inner Transom Plate Dry Sump Six Diagram 5595

1 840358A1 PLATE ASSEMBLY Inner Transom

2 0037 840359 DECAL Mercury Racing [0M965835] & Below
2 0037 8M0048257 DECAL Mercury Racing [0M965836] & Up

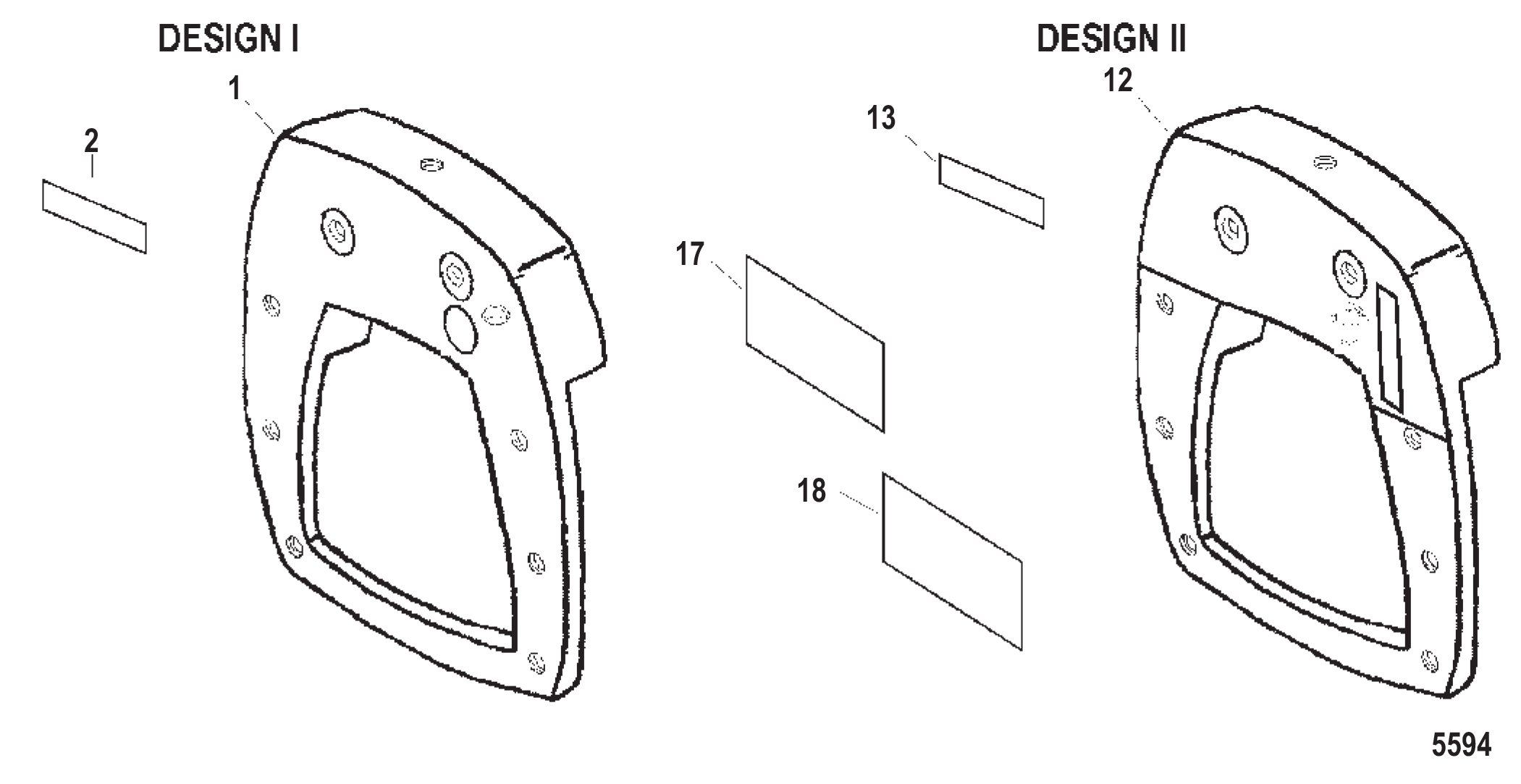

Inner Transom Plate Wet-Sump SSM VI and VII (Pre-1998) Diagram 5594

12 0000 849182A1 PLATE ASSEMBLY Inner Transom - Design II

13 0037 840359 DECAL Mercury Racing [0M965835] & Below
13 0037 8M0048257 DECAL Mercury Racing [8M965836] & Up
17 0037 840165 DECAL Oil Filling Instructions
18 0037 849347 DECAL Drive Oil Level

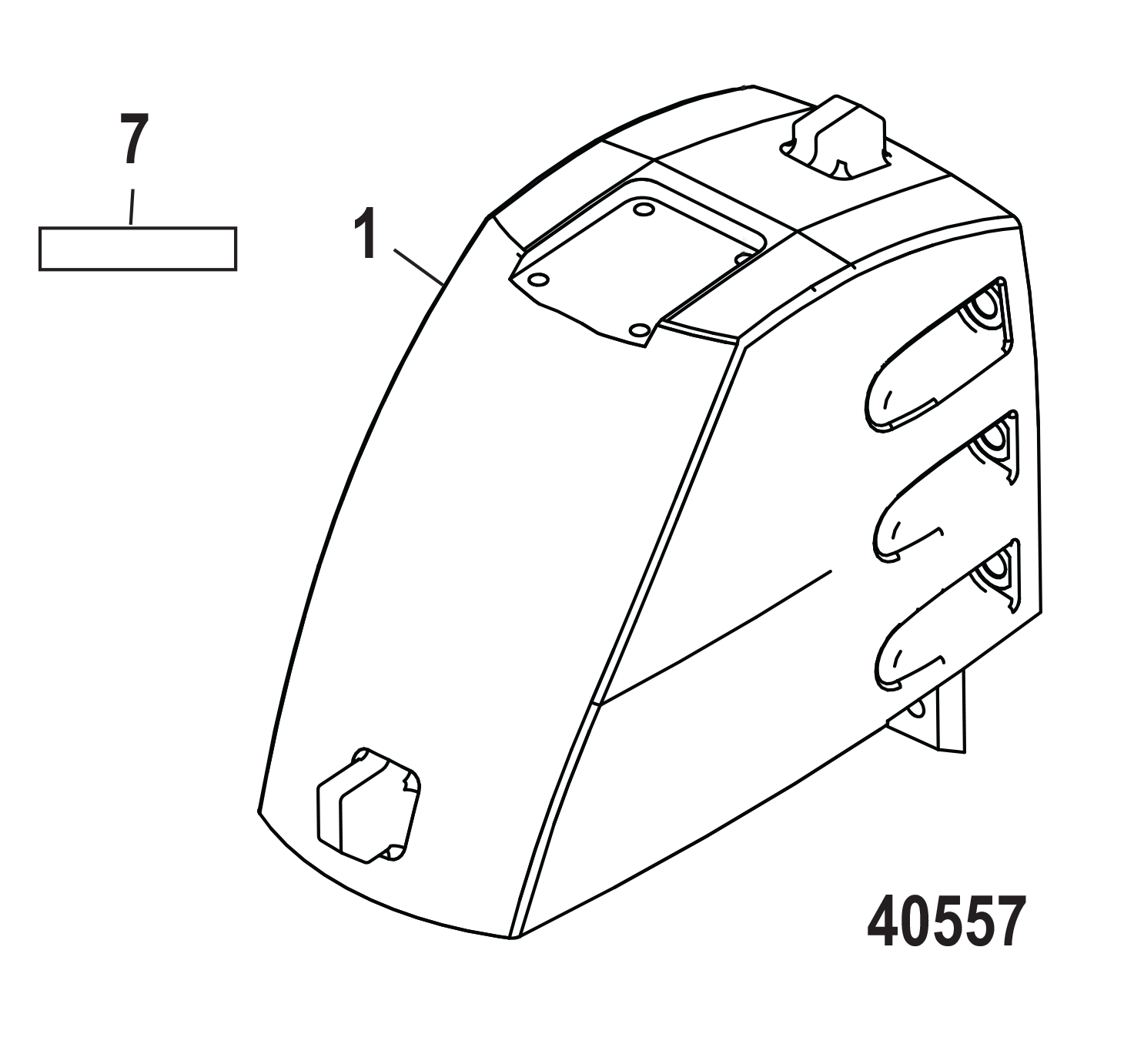

U Joint Housing Dry Sump Six/NXT6 SSM Diagram 40557

1 3524 848236A23 HOUSING ASSEMBLY Driveshaft

7 0037 840359 DECAL Mercury Racing [0M965835] & Below - Order 2
7 8M0048257 DECAL Mercury Racing [0M965836] & Up - Order 2

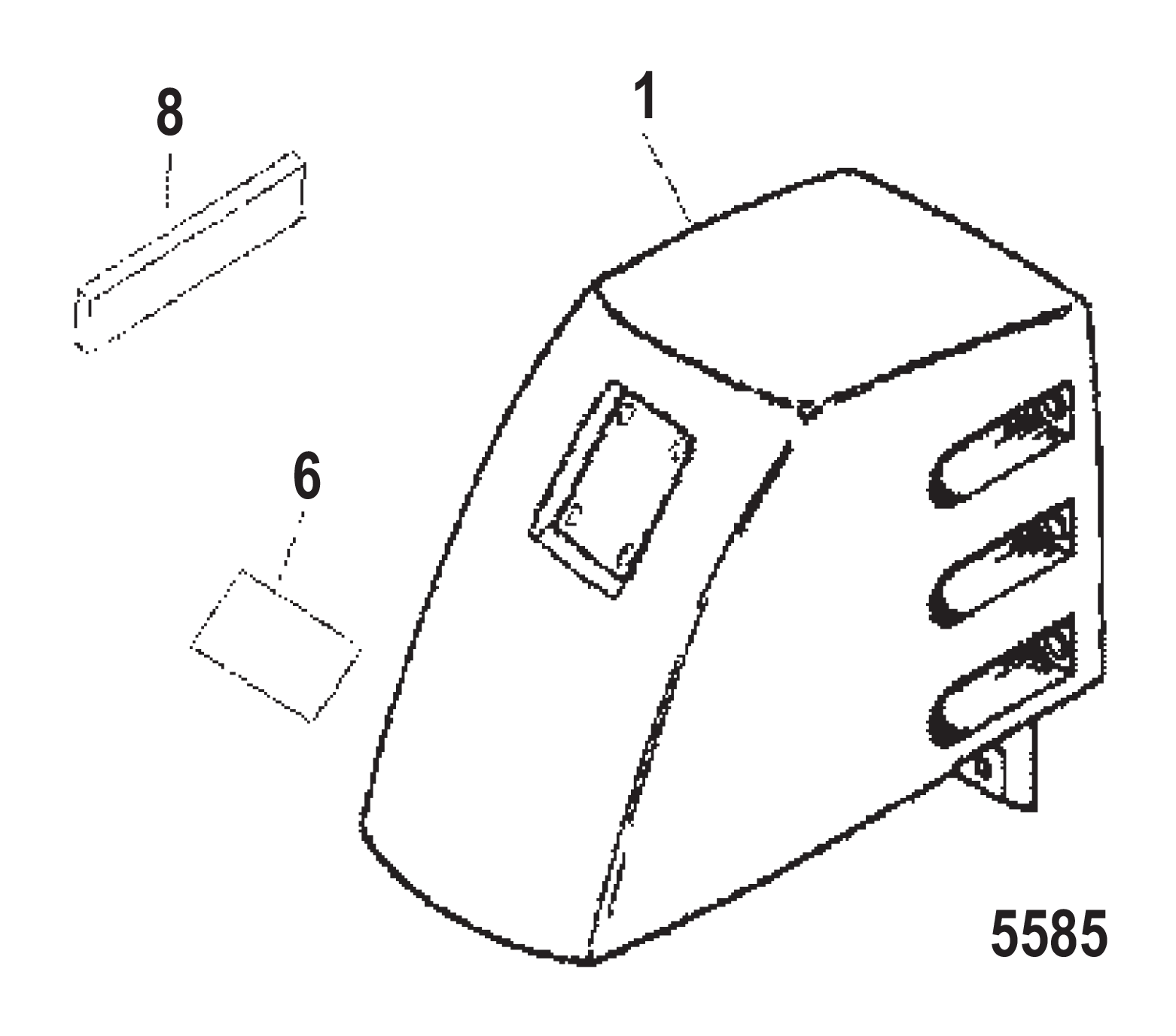

U Joint Housing Wet Sump SSM VI (Early Style Pre-1998) Diagram 5585

1 3522 846303A1 HOUSING ASSEMBLY Driveshaft

6 0037 846655 DECAL (Warning)
8 847333 EMBLEM MerCruiser

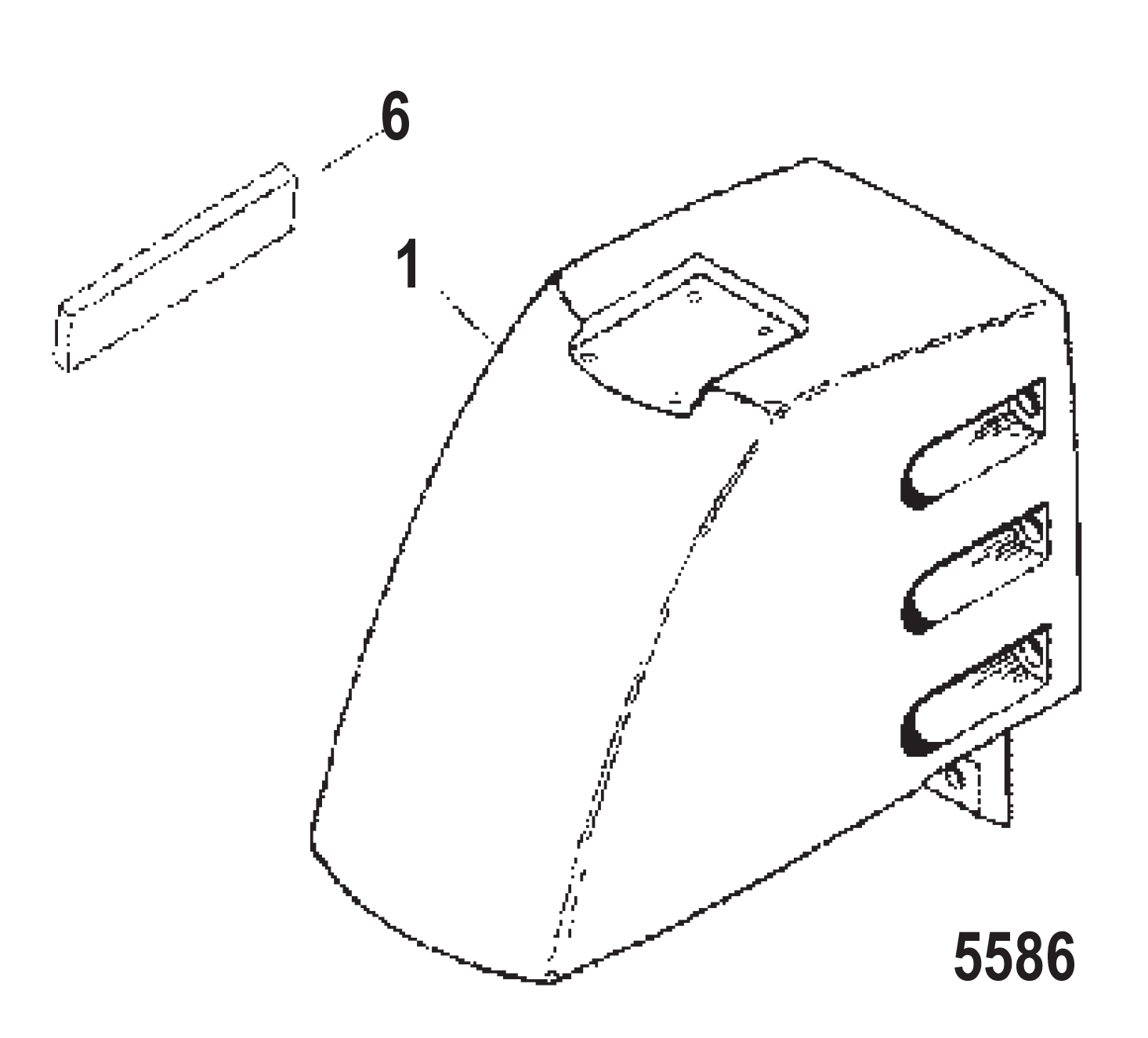

U Joint Housing Wet Sump SSM VI (Late Style Pre-1998) Diagram 5586

1 3524 848236A13 HOUSING ASSEMBLY Driveshaft
6 847333 EMBLEM MerCruiser - Order 2

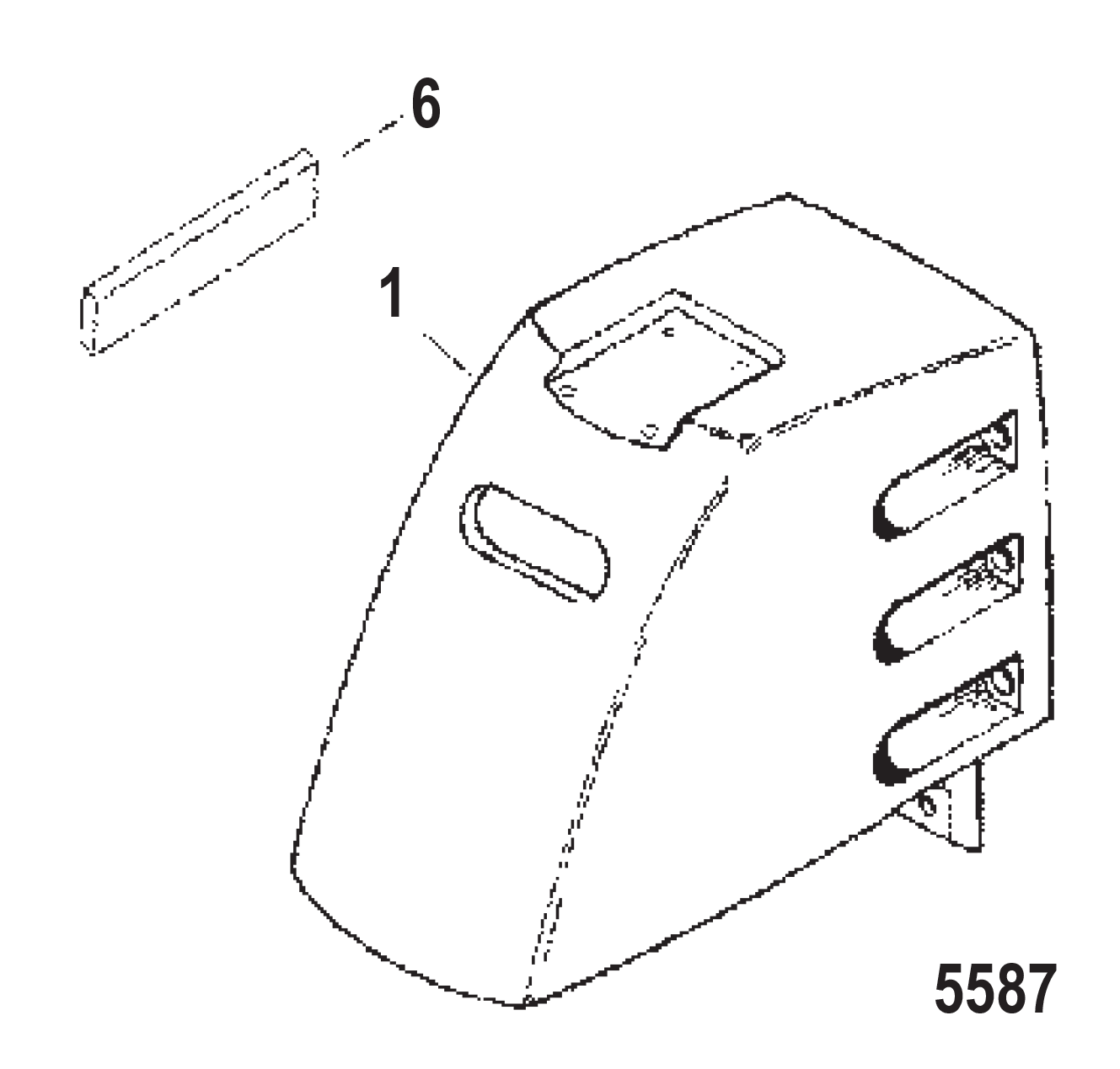

U Joint Housing Wet Sump SSM VII (Pre-1998) Diagram 5587


1 3524 847212A12 HOUSING ASSEMBLY Driveshaft
6 847333 EMBLEM MerCruiser - Order 2



Paint Color Chart (Dry Sump)

  • Dandy Candy Red Metallic -   PPG DEL FLEET # FDGH77111 -    Primer DP90LF - Catalyst DP401LF
  • Red Non-Metallic -                PPG DEL FLEET # FDGH707710 -  Primer DP90LF - Catalyst DP401LF
  • Joyze Poypole Metallic -         PPG DEL FLEET # FDGH502416 -  Primer DP90LF - Catalyst DP401LF
  • Hulkin Green Pearl -              PPG DEL FLEET # FDGH918116 -  Primer DP48LF - Catalyst DP401LF
  • Fire Orange -                        PPG DEL FLEET # FDGH915041 -  Primer DP48LF - Catalyst DP401LF
  • Nanner Yellow -                     PPG DEL FLEET # FDGH915040 -  Primer DP48LF - Catalyst DP401LF
  • Slate Gray Metallic -               PPG DEL FLEET # FDGH303310 -  Primer DP40LF - Catalyst DP401LF
  • Raven Black Non-Metallic -      PPG DEL FLEET # FDGH9000 -     Primer DP90LF - Catalyst DP401LF
  • Super Silver Metallic -             PPG DEL FLEET # FDGH301810 - Primer DP40LF - Catalyst DP401LF
  • Mercury Racing Blue Metallic - PPG DEL FLEET # FDGH19281 -    Primer DP90LF - Catalyst DP401LF
  • Bling-Bling Black Metallic -      PPG DEL FLEET # FBC918828 -    Primer DP90LF - Catalyst DP401LF
  • Soft White -                           PPG DEL FLEET # FDGH92115 -   Primer DP48LF - Catalyst DP401LF

Serial Number: 0D457748 - Model: 6050130DH - Model Version: D/L
HIGH PERFORMANCE SSM6 D/L

SERIAL NUMBER
[0D457748]
MERCRUISER
MERCURY
PERFORMANCE PRODUCTS
OSHKOSH WI
54901 U.S.A.
MERCURY MARINE
DIV OF BRUNSWICK CORP
