> Mercury Marine [Updated: Apr. 8, 2019] > Outboard > 4 Stroke > 350SCi Verado > [1B716557 THRU 2B143542] - Cat.# 90-889246101
> Mercury Marine [Updated: Apr. 20, 2018] > Outboard > 4 Stroke > 350SCi Verado > [1B716557 THRU 2B143542] - Cat.# 90-889246101

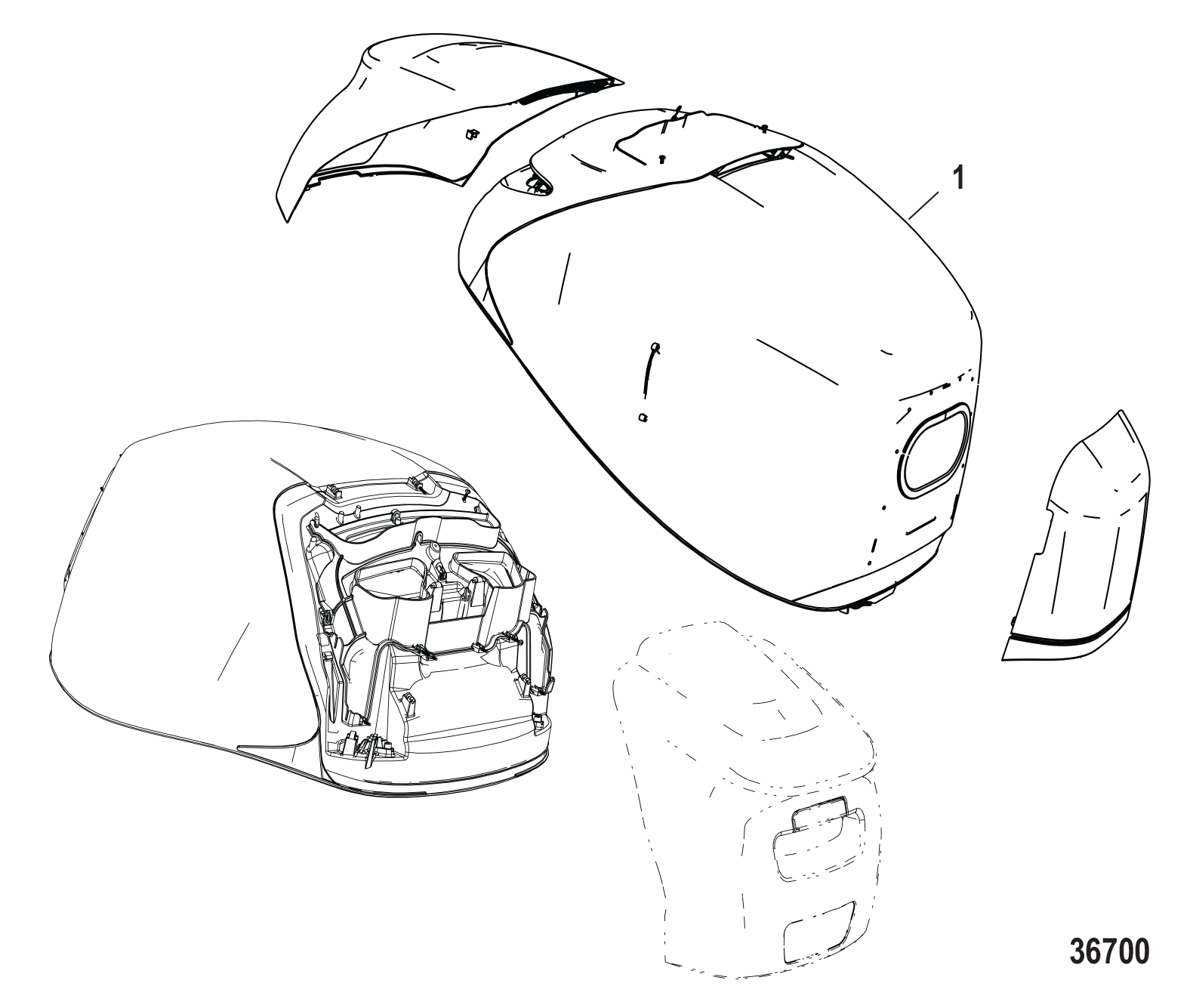

TOP COWL DIAGRAM 36700

885355T06 TOP COWL ASSEMBLY
885354T02 COVER Top Cowl-Rear

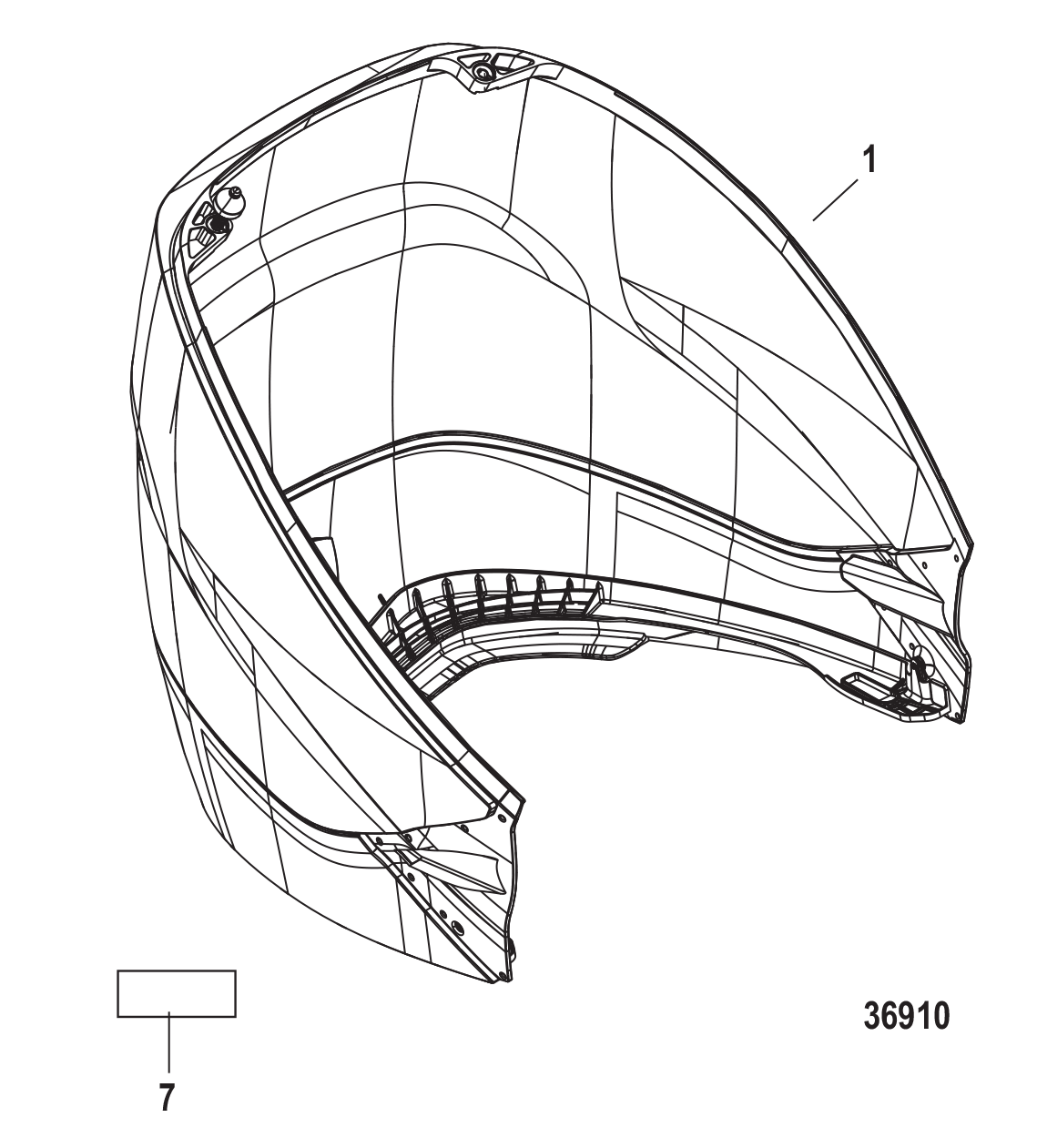

Rear Cowl Diagram  36910

885358T04 COWL ASSEMBLY Rear, Black (WITHOUT DECALS)

885355T06, 885354T02, 885358T04
885355T06 885354T02 885358T04

MERCURY DECALS

892565A10 DECAL SET Top

809693A01 DECAL SET Rear

OTHER MERCURY DECALS

895282A08 DECAL EPA Label Information (2008)
NSS NOT SOLD SEPARATE DECAL, EPA (2009 & Up) (Contact Mercury Marine Warranty Administration for Replacement-Service Bulletin 2009-18)

2008 MERCURY 4 STROKE 350SCi Verado

Serial Number: 1B979111 - Model: 19V1AESHH - Model Version: CL
2011 MERCURY RACE OUTBOARD 350 VERADO  HIGH PERFORMANCE 350SCI CL 350 4S CL

Serial Number: 1B979716 - Model: 19V1AFRHH - Model Version: XL
2011 MERCURY RACE OUTBOARD 350 VERADO  HIGH PERFORMANCE 350SCI XL 350 4S XL

Serial Number: 1B979677 - Model: 19V1AGRHH - Model Version: XXL
2011 MERCURY RACE OUTBOARD 350 VERADO  HIGH PERFORMANCE 350SCI XXL 350 4S XXL

Serial Number: 1B979716 - Model: 19V1AFRHH - Model Version: XL
2011 MERCURY RACE OUTBOARD 350 VERADO  HIGH PERFORMANCE 350SCI XL 350 4S XL

Serial Number: 1B979107 - Model: 19V1AERHH - Model Version: L
2011 MERCURY RACE OUTBOARD 350 VERADO  HIGH PERFORMANCE 350SCI L 350 4S L

> Mercury Marine [Updated: Mar. 23, 2023] > Outboard > 4 Stroke > 75 HP Carb > [0G960500 THRU 0T800999] - USA - Cat.# 90-80485100
> Mercury Marine [Updated: Nov. 16, 2022] > Outboard > 4 Stroke > 90 HP Carb > [0G960500 THRU 0T800999] - USA - Cat.# 90-80485100
> Mercury Marine [Updated: Mar. 25, 2019] > Outboard > 4 Stroke > 90 (4-STROKE) > [0G960500 THRU 0T800999] - USA - Cat.# 90-80485100
> Mercury Marine [Updated: Apr. 18, 2018] > Outboard > 4 Stroke > 90 (4-STROKE) > [0G960500 THRU 0T800999] - USA - Cat.# 90-80485100

75/90 (4-STROKE) - Cat.# 90-80485100

TOP COWL DIAGRAM 2075

827328T9 TOP COWL ASSEMBLY (BLACK)
827328T10 TOP COWL ASSEMBLY (SILVER)

827328T9, 827328T10
827328T9 827328T10

MERCURY DECALS

804855A00 DECAL SET (Mercury 75)(2000 and Up)(Tracker 2002 and Up)
804857A00 DECAL SET (Mercury 90)(Long)(2002 and Up)(Tracker 2002 and Up)
881841A01 DECAL SET (Mercury 90)(XLong)( Saltwater)(2001/2002)
881841A03 DECAL SET (Mercury 90 Saltwater)

MARINER DECALS

804856A00 DECAL SET (Mariner 75)(2000)
804856A01 DECAL SET (Mariner 75)(2001/2002)
804856A03 DECAL SET (Mariner 75)(2003)
804858A01 DECAL SET (Mariner 90)(2000 thru 2002)
804858A03 DECAL SET (Mariner 90)(2003)

TRACKER DECALS

804859A00 DECAL SET (Tracker 75)(2000/2001)
804860A00 DECAL SET (Tracker 90)(2000/2001)

OTHER DECALS

827887 DECAL Unleaded Fuel - Bodensee

804656A00 DECAL EPA Label Information (2000)
804656A01 DECAL EPA Label Information (2001)
804656A02 DECAL EPA Label Information (2002)
804656A03 DECAL EPA Label Information (2003)

Read more: 75/90 (4-STROKE) - Cat.# 90-80485100

> Mercury Marine [Updated: Apr. 12, 2018] > Outboard > 2 Stroke Carb > 15 > [0T980000 THRU 0T999999] - USA - Cat.# 90-803024001 > Cowls

Top Cowl Diagram 4943

9420T10 TOP COWL ASSEMBLY (Black)
9420T12 TOP COWL ASSEMBLY (Silver)
8M0107153 COWL-TOP, SILVER

9420T10, 9420T12, 8M0107153
9420T10 9420T12 8M0107153

MERCURY DECALS

808526A00 DECAL SET (2005) (Black 8)
12836A00 DECAL SET (2005) (Black 9.9)
13478A00 DECAL SET (2005) (Black 15)(All)

830155A00 DECAL SET (2005) (Black 13.5-Spain-Export Only)

897506A01 DECAL SET (Mercury) 9.9 (2006 and up)
897506A02 DECAL SET (Mercury) 15 (2006 and up)
897506A04 DECAL SET (Mercury) 13.5 (2006 and up)
8M0085774 DECAL SET ME 2 STROKE 9.9/15 [2B105826] & Up

MARINER DECALS

808545A03 DECAL SET (2005) (Gray 8)
808525A03 DECAL SET (Gray 9.9)
808546A03 DECAL SET (Gray 15)
808560A03 DECAL SET (2005) (8 Sailmate)

830156A03 DECAL SET (Gray 13.5-Spain-Export Only)

TRACKER DECALS

824740A96 DECAL SET (2005) (Tracker 9.9)

OTHER DECALS

804659A05 DECAL EPA Label Information (2005) (8)
804662A05 DECAL EPA Label Information (2005) (9.9/15)
804662A06 DECAL EPA Label Information (2006) (9.9/15)

> Mercury Marine [Updated: Feb. 17, 2024] > Outboard > 2 Stroke DFI (OptiMax) > 250 HP Pro XS 6 CYL (3.0L) > [1B752547 THRU 2B535608] - Cat.# 90-898103231
> Mercury Marine [Updated: Aug. 24, 2021] > Outboard > 2 Stroke DFI (OptiMax) > 250 PRO XS (3.0L DFI) > [1B752547 THRU 2B535608] - Cat.# 90-898103231
> Mercury Marine [Updated: Mar. 25, 2021] > Outboard > 2 Stroke DFI (OptiMax) > 250 PRO XS (3.0L DFI) > [1B752547 THRU 2B535608] - Cat.# 90-898103231
> Mercury Marine [Updated: May. 1, 2018]  > Outboard > 2 Stroke DFI (OptiMax) > 250 PRO XS (3.0L DFI) > [1B752547 & Up] - USA - Cat.# 90-898103231

Top cowl diagram 1646

1

881288T66 TOP COWL ASSEMBLY (Black) (Includes all Decals except HP and Strips)[1B934307] & Below
+ 8M0063392 ORD 100-8M0075372
++ 8M0075372 TOP COWL ASSEMBLY (Includes all Decals except HorsePower) SN# 1B446999 & Below
8M0070604 TOP COWL ASSEMBLY (Black) (Includes all Decals except HP and Belt Line)[1B934308] & Up
+ 8M0083585 TOP COWL
++ 8M0075372 TOP COWL ASSEMBLY (Includes all Decals except HorsePower) SN# 1B446999 & Below

881288T58 TOP COWL ASSEMBLY (Includes all Decals except HorsePower) SN# 1B446999 & Below
8M0075372 TOP COWL ASSEMBLY (Includes all Decals except HorsePower) SN# 1B446999 & Below

881288T66, 8M0063392, 8M0070604, 8M0083585, 8M0075372, 881288T58
881288T668M0063392 8M0070604 8M0083585 8M0075372 881288T58

MERCURY DECALS

897136A07 DECAL SET, 250 ProXS , HP decal not included [1B934307] & Below

889246A28 DECAL SET, 250 ProXS  [1B934307] & Below
+ 897136A07 DECAL SET ProXS, HP decal not included

892564006 DECAL Horsepower 225 [1B934307] & Below
+ 8M0061186 DECAL

892564007 DECAL, Horsepower 250 [1B934307] & Below
+ 8M0061187 DECAL, Horsepower 250

8M0063389 DECAL Strips [1B934307] & Below
+ 8M0135962 DECAL STRIP

- - - - - - - - - - - - - - - - - - - - - -

8M0073125 DECAL SET ProXS, HP Decal not included [1B934308] & Up
+ 8M0083586 DECAL SET
++ 8M0114996 DECAL-SERVICE KIT

8M0065747 DECAL Horsepower 225 [1B934308] & Up
8M0062029 DECAL Horsepower 250 [1B934308] & Up

8M0072981 DECAL Belt Line [1B934308] & Up

Lower cowl diagram 40540

1-  850302A07 BOTTOM COWL, Port 3-  850301A07 BOTTOM COWL, Starboard

854700 DECAL Bottom Cowl (Strip of 5) [1B913348] & Below
8M0063389 DECAL Strips [1B934307] & Below
+ 8M0135962 DECAL STRIP

854700, 8M0063389, 8M0072981,8M0135962
854700 8M0063389 8M0072981 8M0135962

8M0072981 DECAL Belt Line [1B934308] & Up

Read more: 225/250 PRO XS (3.0L DFI) - Cat.# 90-898103231
