> Mercury Marine [Updated: May. 4, 2021] > Outboard > 4 Stroke > 115 HP EFI > [1B227000 THRU 1B366822] - USA - Cat.# 90-881838006

TOP COWL DIAGRAM 2075

827328T9 TOP COWL ASSEMBLY (Black)
827328T10 TOP COWL ASSEMBLY (Silver)

827328T9, 827328T10
827328T9 827328T10

MERCURY DECALS

881649A06 DECAL SET (Mercury)

This 881649A06 DECAL SET (Mercury)) is used on these models:
2006 MERCURY 115 HP: 1115F13FF, 1115F13FN, 1115F13FY, 1115F23FF, 1115F23FY, 7115F13UF, 7115F13UY.

MARINER DECALS

881650A03 DECAL SET (Mariner) Supersedes: 881650A01

This 881650A03 DECAL SET (Mariner) is used on these models and components:
2001 1115F13YD, 1115F13YN, 1115F23YY, 7115F13KD, 7115F23KY.
2002 1115F13ZD, 1115F13ZN, 1115F23ZY, 7115F13LD, 7115F23LY.
2003 1115F133D, 1115F133N, 1115F13AC, 1115F13AD, 1115F13AN, 1115F13AY, 1115F233Y, 1115F23AY, 7115F133D, 7115F13MD, 7115F23MY.
2004 1115F13CC, 1115F13CD, 1115F13CE, 1115F13CN, 1115F13CY, 1115F23CE, 1115F23CY, 7115F13RD.
2005 1115F13D3, 1115F13D4, 1115F13DC, 1115F13DD, 1115F13DN, 1115F13DY, 1115F23D4, 1115F23DX, 1115F23DY, 7115F13TD.
2006 1115F13FF, 1115F13FN, 1115F13FY, 1115F23FF, 1115F23FY, 7115F13UF, 7115F13UY.

Serial Number: 1B252595 - Model: 1115F23FF - Model Version: EXLPT 4

Serial Number:
1B252595
2006 115 EXLPT
Max RPM 6000
HP 115 KW 84.5
LB 386 KG 176
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA
from US and foreign
components
CE 0575 [05]

 > Mercury Marine [Updated: Mar. 6, 2018] > Outboard > 2 Stroke Carb > 25, 25 MARATHON, SUPER 15 (2 CYL.) > [0B238464 THRU 0G044026] - USA - Cat.# 90-18583 > Service/Support Material

Cat.# 90-18583 - 20 H.P /25 H.P. SEA PRO /MARATHON 25 SUPER 15

Cowl Diagram 21807

1
8869A23 TOP COWL ASSEMBLY (Black-Design I)
9163T19 TOP COWL ASSEMBLY

6
9163A19 TOP COWL ASSEMBLY (BLACK) DESIGN II
9163T19 TOP COWL ASSEMBLY

9163A15 TOP COWL ASSEMBLY (GRAY) DESIGN II
9163A21 TOP COWL ASSEMBLY (SILVER) DESIGN II
9163T21 TOP COWL ASSEMBLY

9163A20 TOP COWL ASSEMBLY (TRACKER) DESIGN II
9163T20 COWL ASSY-TOP-TRA

8869A23, 9163T19, 9163A19, 9163A15, 9163A21, 9163T21, 9163A20, 9163T20

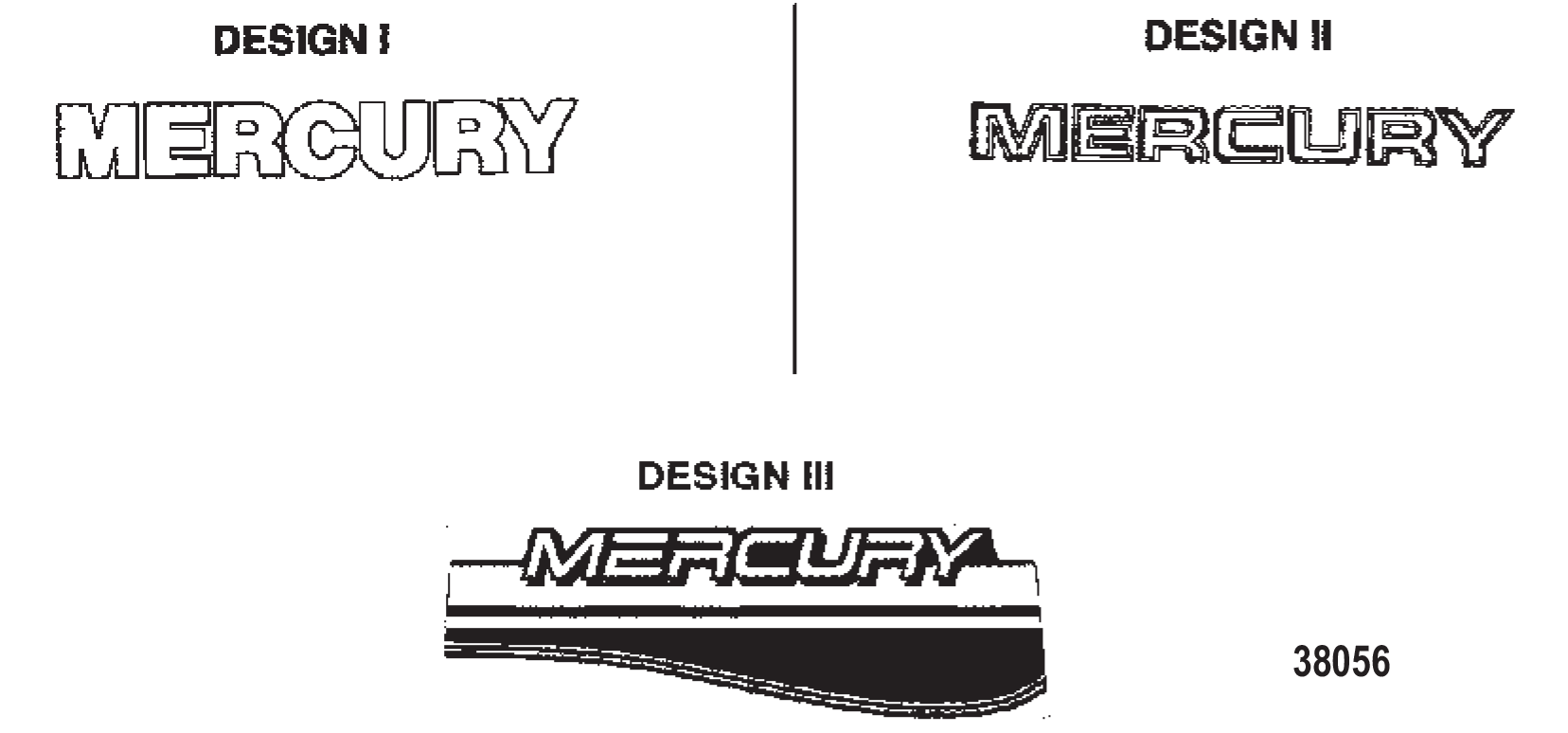

MERCURY DECALS

Service/ Support Material Diagram 21806

13480A88 DECAL SET (BLACK-20) DESIGN I

13239A88 DECAL SET (BLACK-25) DESIGN I

821574A94 DECAL SET (BLACK-SUPER 15) DESIGN II
826307A95 DECAL SET Black - Super 15/Seapro 15 XD - Supersedes: 821574A94

821574A92 DECAL SET (Black-Super 15)

824091A94 DECAL SET (BLACK-20) DESIGN II
824091A00 DECAL SET (Black 20/Jet 20) - Supersedes: 824091A96, 824091A94, 824091A95

08499A94 DECAL SET (BLACK-25) DESIGN II
808499A00 DECAL SET (BLACK-25) DESIGN II - Supersedes: 808499A96, 808499A94

811304A94 DECAL SET (BLACK SEA PRO 25) DESIGN II
811304A00 DECAL SET (Black Seapro 25) - Supersedes: 811304A95, 811304A94

811304A91 DECAL SET (SeaPro 25) DESIGN I

13480A93 DECAL SET (25 AMERICA)

MARINER DECALS

810461A92 DECAL SET (Gray 20/25) Note: When stock of Design I decal Sets is depleted, you must order the respective HP decal set in the Design II series. - Supersedes: 810461A91, 810460A90, 11181A85, 810461A90, 11627A85

824092A94 DECAL SET (GRAY-20) DESIGN II
824092A03 DECAL SET (Gray 20) - Supersedes: 824092A01, 824092A97, 824092A94

824088A94 DECAL SET (GRAY-25) DESIGN II
824088A03 DECAL SET (Gray 25) - Supersedes: 824088A01, 824088A97, 824088A94

811305A91 DECAL SET (MARATHON 25)
821401A92 DECAL SET (GRAY-SUPER 15)
8588361 DECAL SET Gray - Super 15/Marathon 15 XD/Marathon 25

TRACKER DECALS

824731A94    DECAL SET (TRACKER 25)

MERCURY - ( 20  H.P. (1994 )) - Serial No: 0G034758    Model No: 1020201PD
Catalog No: 18583  - 20 H.P /25 H.P. SEA PRO /MARATHON 25 SUPER 15
1988-1994 MERCURY 20 MH - MERCURY - ( 20  H.P. (1994 ))

Manufacturer Mercury Year 1994 (6) 1993 (6) 1992 (6) 1991 (6) 1990 (6) 1989 (6) 1988 (6)
Horsepower 25 (3) 20 (3)

Model 1020201BC MH (6) 1020201BD MH (6) 1020201GC MH (6) 1020201GD MH (6) 1020201JC MH (6) 1020201JD MH (6) 1020201LD MH (6) 1020201MD MH (6) 1020201ND MH (6) 1020201PD MH (6) 1020211BC MLH (6) 1020211BD MLH (6) 1020211GC MLH (6) 1020211GD MLH (6) 1020211JC MLH (6) 1020211JD MLH (6) 1020211LD MLH (6) 1020211MD MLH (6) 1020211ND MLH (6) 1020211PD MLH (6) 1020211PT MLH (6) 1020312MD EL (6) 1020312ND EL (6) 1020312PD EL (6) 1025201BC MH (6) 1025201BD MH (6) 1025201GC MH (6) 1025201GD MH (6) 1025201JC MH (6) 1025201JD MH (6) 1025201LD MH (6) 1025201MD MH (6) 1025201ND MH (6) 1025201PD MH (6) 1025211BC MLH (6) 1025211BD MLH (6) 1025211GC MLH (6) 1025211GD MLH (6) 1025211JC MLH (6) 1025211JD MLH (6) 1025211LD MLH (6) 1025211MD MLH (6) 1025211ND MLH (6) 1025211PD MLH (6) 1025213JD MLH-ALT (6) 1025301BD EH (6) 1025301GD EH (6) 1025301JD EH (6) 1025301LD EH (6) 1025301MD EH (6) 1025301ND EH (6) 1025301PD EH (6) 1025302BC E (6) 1025302BD E (6) 1025302GC E (6) 1025302GD E (6) 1025302JD E (6) 1025302LD E (6) 1025302MD E (6) 1025302ND E (6) 1025302PD E (6) 1025311BD ELH (6) 1025311GD ELH (6) 1025311JD ELH (6) 1025311LD ELH (6) 1025311MD ELH (6) 1025311ND ELH (6) 1025311PD ELH (6) 10253124T EL (6) 1025312BC EL (6) 1025312BD EL (6) 1025312GD EL (6) 1025312JD EL (6) 1025312LD EL (6) 1025312MD EL (6) 1025312ND EL (6) 1025312PD EL (6)

Serial Number: 0C280419 - Model: 7025201SD - Model Version: MH
MARINER 25 MH - MARINER 1990 25
20 H.P /25 H.P. SEA PRO /MARATHON 25 SUPER 15
MARINER > 20 (2 CYL.)
MARINER > 25, 25 MARATHON, SUPER 15 (2 CYL.)
MERCURY > 25, 25 SEA PRO, SUPER 15 (2 CYL.)

TOP COWL DIAGRAM 21807 Cat.# 90-18583 20 H.P /25 H.P. SEA PRO /MARATHON 25 SUPER 15

1992 MERCURY 25 MH - serial Number: 0D105476 - Model: 1025201MD - Model Version : MH
Cat.# 90-18583 - 20 H.P /25 H.P. SEA PRO /MARATHON 25 SUPER 15

serial Number: 0B256052 - Model: 1025312BD - Model Version: EL
1998 MERCURY 25 EL

> Mercury Marine [Updated: Jun. 1, 2021] > Outboard > 2 Stroke Carb > XR-6 / MAGNUM III > [0G960500 THRU 1B226999] - USA - Cat.# 90-80317000
> Mercury Marine [Updated: Apr. 26, 2021] > Outboard > 2 Stroke Carb > XR-6 / MAGNUM III > [0G960500 THRU 1B226999] - USA - Cat.# 90-80317000
> Mercury Marine [Updated: May. 28, 2018] > Outboard > 2 Stroke Carb > V-140 (INTERNATIONAL) > [0T178500 THRU 1B226999] - USA - Cat.# 90-80317000
> Mercury Marine [Updated: Jun. 20, 2018] > Outboard > 2 Stroke Carb > V-150 > [0G960500 THRU 1B226999] - USA - Cat.# 90-80317000
> Mercury Marine [Updated: Jun. 6, 2018] > Outboard > 2 Stroke Carb > V-200 > [0G960500 THRU 1B226999] - USA - Cat.# 90-80317000

MERCURY 140 JET - MERCURY V-135 - MERCURY V-140 (INTERNATIONAL) - MERCURY V-200 - MERCURY XR-6
MARINER MAGNUM III - MARINER V-150

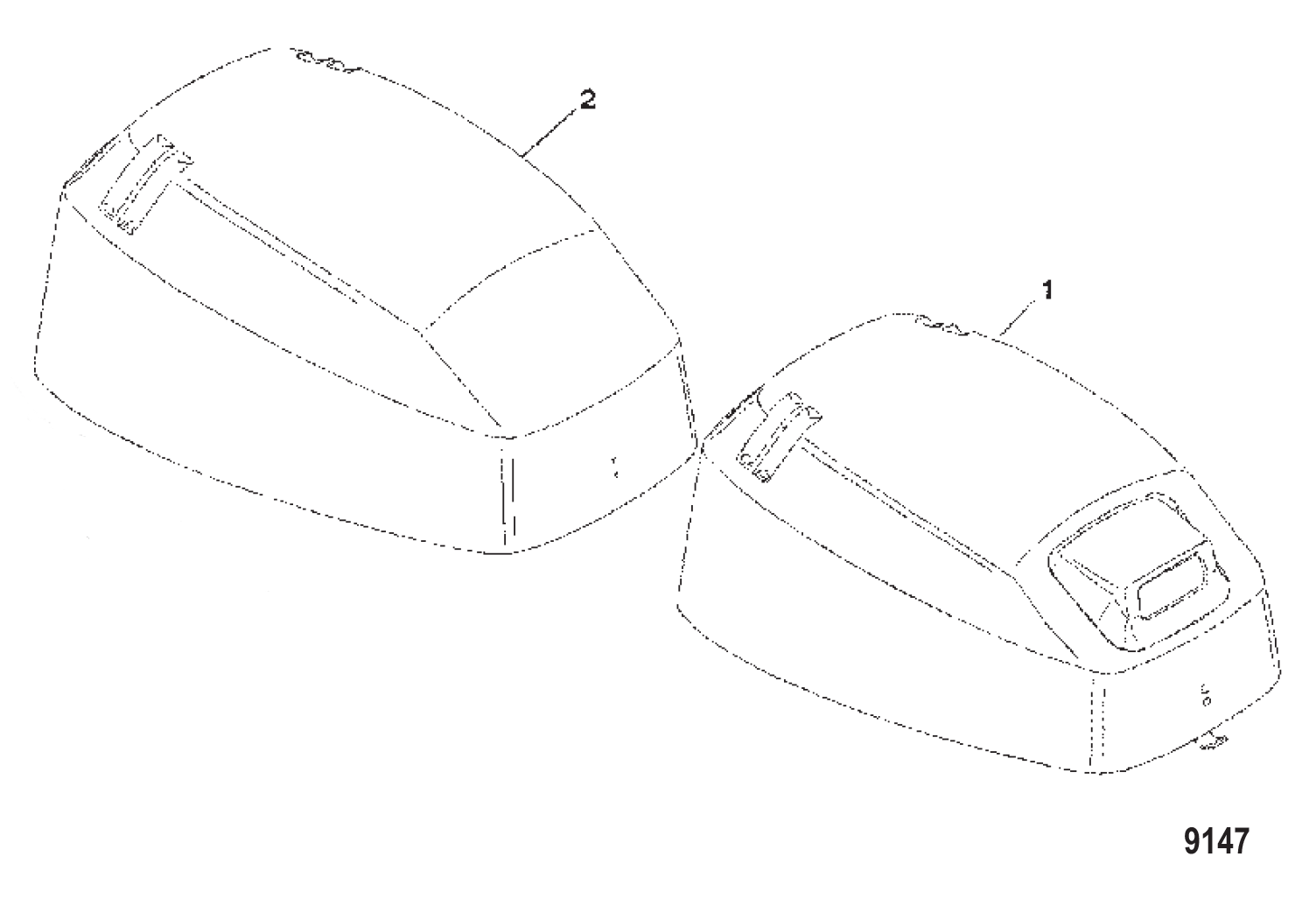

TOP COWL DIAGRAM 5226

827328T7 TOP COWL ASSEMBLY Black (BLACK)
+ 8M0107145 COWL-TOP, BLACK

827328T8 TOP COWL ASSEMBLY Silver (SILVER)

827328T7, 8M0107145, 827328T8
827328T7 8M0107145 827328T8

MERCURY DECALS

813220A00 DECAL SET (135 BLACK LONG)(2000)

830169A00 DECAL SET (135 BLACK XL/CXL)(2000) Supersedes: 830169A99, 830169A96

879759A01 DECAL SET (BLACK 140 LONG)
879760A01 DECAL SET (BLACK 140 XL/CXL)(2001/2002)
879760A03 DECAL SET (BLACK 140 XL/CXL)(2003 AND ABOVE)

891807A04 DECAL SET (140 RETRO - WARRANTY ONLY)

804696A03 DECAL SET (150 BLACK SALTWATER)

808552A00 DECAL SET (XR6) Supersedes: 808552A96

812563A00 DECAL SET (200 BLACK LONG) Supersedes: 808554A96, 812563A96

808562A00 DECAL SET (200 XL/CXL/SALTWATER)(2000-2002)
808562A03 DECAL SET (200 SALTWATER)(2003 AND ABOVE) Supersedes: 808562A00, 808558A99, 808558A96, 808562A99, 808562A96

826333A00 DECAL SET (BLACK140 JET) Supersedes: 826333A96

MARINER DECALS

813036A97 DECAL SET (GRAY 135 LONG) ALSO ORDER STRIPING DECAL LISTED BELOW Supersedes: 813036A96

850397A00 DECAL SET (GRAY 135 XL/CXL) ALSO ORDER STRIPING DECAL LISTED BELOW Supersedes: 850397A97, 824106A96

879758A03 DECAL SET (GRAY 140) Supersedes: 879758A01

813034A97 DECAL SET (MAGNUM III) (1997-2000) ALSO ORDER STRIPING DECAL LISTED BELOW
813034A01 DECAL SET (GRAY 150 XL/CXL/MAG III)(2000-2002) Supersedes: 804694A00, 813034A97, 813034A96
813034A03 DECAL SET (GRAY 150 MAGNUM III)(2003 AND ABOVE)

888753A03 DECAL SET (GRAY 150)(2003 AND ABOVE)

815630A97 DECAL SET (GRAY 200 LONG)(2000) ALSO ORDER STRIPING DECAL LISTED BELOW
808563A01 DECAL SET (GRAY 200 LONG/XL/CXL)(2001/2002)
808563A03 DECAL SET (GRAY 200 LONG/XL/CXL)(2003 AND ABOVE) Supersedes: 808563A01, 808563A00, 808563A97, 808563A96, 815630A97, 815630A96

826334A97 DECAL SET (GRAY 140 JET) ALSO ORDER STRIPING DECAL LISTED BELOW Supersedes: 826334A96

824911A25 DECAL Striping (ROLL OF 25 FT. - NEED 6 FT.) Supersedes: 824911

TRACKER DECALS

809846A96 DECAL SET (XR6 BY MERCURY)(TRACKER)
808681A01 DECAL SET (TRACKER 200) Supersedes: 808681A96

OTHER DECALS

24 NSS Decal-Starting Procedure
804668A00 DECAL EPA Label Information (135)(2000)
804669A00 DECAL EPA Label Information (150/XR6/MAG.III/200)(2000)
804669A01 DECAL EPA Label Information (2001)
804669A02 DECAL EPA Label Information (2002)
804669A03 DECAL EPA Label Information (2003)
804669A04 DECAL EPA Label Information (2004)
804669A05 DECAL EPA Label Information (2005)

MARINER 2.0L 135HP REPLACEMENT FOR INT 140 L - MARINER 2005 140
Serial Number: 1B159467 - Model:7140412TF - Model Version: L

Serial Number:
1B159467
2005
140L CARB
Max RPM 5600
HP 140 KW 103
LB 402 KG 183
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
from US and foreign
components [05]

MARINER 2.0L 135HP REPLACEMENT FOR INT 140 XL - MARINER 2004 140
Serial Number: 0T946191 - Model:7140422RF - Model Version: XL

Serial Number:
0T946191
2004
140XL SWR
Max RPM 5600
HP 140 KW 103
LB 402 KG 183
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
from US and foreign
components [04]

Serial Number: 0T700444 - Model: 1150462AY - Model Version: XL SW
2003 MERCURY CARBURETED SALTWATER 150 XL SW

Serial Number: 0T365409 - Model: 1200422YD - Model Version: XL
2001 MERCURY 2.5L CARBURETED 200 XL

This Mercury Marine 879758A03 DECAL SET (GRAY 140)(MARINER) is used on these models:

2000 135 HP: 1135412WD, 1135412WD, 1135412WD, 1135412WD, 1135422WD, 1135422WD, 1135422WD, 1135422WD, 1135425WD, 1135425WD, 1135425WD, 1135425WD, 7135412JD, 7135412JD, 7135412JD, 7135422JD, 7135422JD, 7135422JD, 7135425JD, 7135425JD, 7135425JD.
2001 135 HP: 1135412YD, 1135412YD, 1135412YD, 1135412YD, 1135422YD, 1135422YD, 1135422YD, 1135422YD, 1135425YD, 1135425YD, 1135425YD, 1135425YD, 7135412KD, 7135412KD, 7135412KD, 7135422KD, 7135422KD, 7135422KD, 7135425KD, 7135425KD, 7135425KD.

2001 140 HP: 1140412YD, 1140412YD, 1140412YD, 1140412YD, 1140412YF, 1140412YF, 1140412YF, 1140412YF, 1140425YF, 1140425YF, 1140425YF, 1140425YF, 7140412KF, 7140412KF, 7140412KF, 7140422KF, 7140422KF, 7140422KF, 7140425KF, 7140425KF, 7140425KF, 7140454KF, 7140454KF, 7140454KF, 7140462KD, 7140462KD, 7140462KD.
2002 140 HP: 1140412ZF, 1140412ZF, 1140412ZF, 1140412ZF, 1140425ZF, 1140425ZF, 1140425ZF, 1140425ZF, 7140412LF, 7140412LF, 7140412LF, 7140422LF, 7140422LF, 7140422LF, 7140425LF, 7140425LF, 7140425LF.
2003 140 HP: 1140412AF, 1140412AF, 1140412AF, 1140412AF, 1140422AF, 1140422AF, 1140422AF, 1140422AF, 1140425AF, 1140425AF, 1140425AF, 1140425AF, 7140412MF, 7140412MF, 7140412MF, 7140422MF, 7140422MF, 7140422MF, 7140425MF, 7140425MF, 7140425MF.
2004 140 HP: 1140412CF, 1140412CF, 1140412CF, 1140412CF, 1140422CF, 1140422CF, 1140422CF, 1140422CF, 1140425CF, 1140425CF, 1140425CF, 1140425CF, 1140R12CF, 1140R12CF, 1140R12CF, 1140R12CF, 1140R22CF, 1140R22CF, 1140R22CF, 1140R22CF, 7140412RF, 7140412RF, 7140412RF, 7140422RF, 7140422RF, 7140422RF, 7140425RF, 7140425RF, 7140425RF.
2005 140 HP: 1140412DF, 1140412DF, 1140412DF, 1140412DF, 1140422DF, 1140422DF, 1140422DF, 1140422DF, 1140425DF, 1140425DF, 1140425DF, 1140425DF, 7140412TF, 7140412TF, 7140412TF, 7140422TF, 7140422TF, 7140422TF, 7140425TF, 7140425TF, 7140425TF.

2000 150 HP: 1150454WD, 1150454WD, 1150454WD, 1150454WD, 1150454WT, 1150454WT, 1150454WT, 1150454WT, 1150454WY, 1150454WY, 1150454WY, 1150454WY, 1150462WD, 1150462WD, 1150462WD, 1150462WD, 1150465WD, 1150465WD, 1150465WD, 1150465WD, 7150454JD, 7150454JD, 7150454JD, 7150454JT, 7150454JT, 7150454JT, 7150462JD, 7150462JD, 7150462JD, 7150465JD, 7150465JD, 7150465JD.
2001 150 HP: 1150454YD, 1150454YD, 1150454YD, 1150454YD, 1150454YT, 1150454YT, 1150454YT, 1150454YT, 1150454YY, 1150454YY, 1150454YY, 1150454YY, 1150462YD, 1150462YD, 1150462YD, 1150462YD, 1150465YD, 1150465YD, 1150465YD, 1150465YD, 7150454KD, 7150454KD, 7150454KD, 7150462KD, 7150462KD, 7150462KD, 7150465KD, 7150465KD, 7150465KD.
2002 150 HP: 1150454ZD, 1150454ZD, 1150454ZD, 1150454ZD, 1150454ZT, 1150454ZT, 1150454ZT, 1150454ZT, 1150454ZY, 1150454ZY, 1150454ZY, 1150454ZY, 1150462ZY, 1150462ZY, 1150462ZY, 1150462ZY, 1150465ZY, 1150465ZY, 1150465ZY, 1150465ZY, 7150454LD, 7150454LD, 7150454LD, 7150462LY, 7150462LY, 7150462LY.
2003 150 HP: 1150454AD, 1150454AD, 1150454AD, 1150454AD, 1150454AT, 1150454AT, 1150454AT, 1150454AT, 1150454AY, 1150454AY, 1150454AY, 1150454AY, 1150462AY, 1150462AY, 1150462AY, 1150462AY, 1150465AY, 1150465AY, 1150465AY, 1150465AY, 7150462MY, 7150462MY, 7150462MY.
2004 150 HP: 1150454CD, 1150454CD, 1150454CD, 1150454CD, 1150454CE, 1150454CE, 1150454CE, 1150454CE, 1150454CY, 1150454CY, 1150454CY, 1150454CY, 1150462CY, 1150462CY, 1150462CY, 1150462CY, 1150465CY, 1150465CY, 1150465CY, 1150465CY, 7150454RD, 7150454RD, 7150454RD, 7150462RY, 7150462RY, 7150462RY.
2005 150 HP: 1150454DD, 1150454DD, 1150454DD, 1150454DD, 1150454DT, 1150454DT, 1150454DT, 1150454DT, 1150454DY, 1150454DY, 1150454DY, 1150454DY, 1150462DY, 1150462DY, 1150462DY, 1150462DY, 1150465DY, 1150465DY, 1150465DY, 1150465DY, 7150454TD, 7150454TD, 7150454TD, 7150462TY, 7150462TY, 7150462TY.

2000 175 HP: 1175412WD, 1175412WD, 1175412WD, 1175412WD, 1175422WD, 1175422WD, 1175422WD, 1175422WD, 1175425WD, 1175425WD, 1175425WD, 1175425WD, 7175412JD, 7175412JD, 7175412JD, 7175422JD, 7175422JD, 7175422JD, 7175425JD, 7175425JD, 7175425JD.

2000 200 HP: 1200412WD, 1200412WD, 1200412WD, 1200412WD, 1200412WG, 1200412WG, 1200412WG, 1200412WG, 1200412WT, 1200412WT, 1200412WT, 1200412WT, 1200412WY, 1200412WY, 1200412WY, 1200412WY, 1200422WD, 1200422WD, 1200422WD, 1200425WD, 1200425WD, 1200425WD, 1200472WD, 1200472WD, 1200472WD, 7200412JD, 7200412JD, 7200412JD, 7200412JT, 7200412JT, 7200412JT, 7200422JD, 7200422JD, 7200422JD, 7200425JD, 7200425JD, 7200425JD, 7200472JD, 7200472JD, 7200472JD.
2001 200 HP: 1200412YD, 1200412YD, 1200412YD, 1200412YD, 1200412YG, 1200412YG, 1200412YG, 1200412YG, 1200412YT, 1200412YT, 1200412YT, 1200412YT, 1200412YY, 1200412YY, 1200412YY, 1200412YY, 1200422YD, 1200422YD, 1200422YD, 1200425YD, 1200425YD, 1200425YD, 7200412KD, 7200412KD, 7200412KD, 7200422KD, 7200422KD, 7200422KD, 7200425KD, 7200425KD, 7200425KD.
2002 200 HP: 1200412ZD, 1200412ZD, 1200412ZD, 1200412ZD, 1200412ZT, 1200412ZT, 1200412ZT, 1200412ZT, 1200412ZY, 1200412ZY, 1200412ZY, 1200422ZY, 1200422ZY, 1200422ZY, 1200425ZY, 1200425ZY, 1200425ZY, 7200412LD, 7200412LD, 7200412LD, 7200422LY, 7200422LY, 7200422LY.
2003 200 HP: 1200412AD, 1200412AD, 1200412AD, 1200412AD, 1200412AT, 1200412AT, 1200412AT, 1200412AT, 1200412AY, 1200412AY, 1200412AY, 1200412AY, 1200422AY, 1200422AY, 1200422AY, 1200425AY, 1200425AY, 1200425AY, 7200412MD, 7200412MD, 7200412MD, 7200422MY, 7200422MY, 7200422MY.
2004 200 HP: 1200412CD, 1200412CD, 1200412CD, 1200412CD, 1200412CT, 1200412CT, 1200412CT, 1200412CT, 1200412CY, 1200412CY, 1200412CY, 1200412CY, 1200422CY, 1200422CY, 1200422CY, 1200425CY, 1200425CY, 1200425CY, 7200412RD, 7200412RD, 7200412RD, 7200422RY, 7200422RY, 7200422RY.
2005 200 HP: 1200412DD, 1200412DD, 1200412DD, 1200412DD, 1200412DT, 1200412DT, 1200412DT, 1200412DT, 1200412DY, 1200412DY, 1200412DY, 1200412DY, 1200422DY, 1200422DY, 1200422DY, 1200425DY, 1200425DY, 1200425DY, 7200412TD, 7200412TD, 7200412TD, 7200422TY, 7200422TY, 7200422TY.

Serial Number: 1B026650 - Model: 1150454DT - Model Version: L
2005 MERCURY TRACKER 150XR6 L

Serial Number: 0T631388 - Model: 1150465AY - Model Version: CXL SW
2003 MERCURY CARBURETED SALTWATER 150 CXL SW

Serial Number: 0T144200 - Model: 1150454WD - Model Version: L
2000 MERCURY 2.5L CARBURETED XR6 150XR6 L

Serial Number: 0T665717 - Model: 1150454AD - Model Version: L
2003 MERCURY 2.5L CARBURETED XR6 150XR6 L

Serial Number:
0T665717
2003
150L XR6
Max RPM 5600
HP 150 KW 112
LB 402 KG 182
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA
from US and foreign
components
CE [02]

Serial Number:4099159

Model: HP/Displacement 850 (4 CYL.)

Serial Range
850 (4 CYL.) USA 3493913 THRU 4366801
850 (4 CYL.) CAN 7010108 THRU 7071372
850 (4 CYL.) 8005440 THRU 8043774
850 (4 CYL.) BEL 9011604 THRU 9110013

Cat.# 63271 85, 850 (4 CYL.)

TOP COWL AND SUPPORT BRACKETS DIAGRAM 63271-P6-OBJ-290

1
3806 COWL,TOP

18
60204 DECAL, TIMING - TOP COWL FRAME UNITED STATES 3865694 AND BELOW AUSTRALIA 8017139 AND BELOW BELGIUM 9053363 AND BELOW CANADA 7033027 AND BELOW

65601 DECAL, TIMING - TOP COWL FRAME UNITED STATES 3865695 THRU 4092964 AUSTRALIA 8017140 THRU 8025614 BELGIUM 9053364 THRU 9069878 CANADA 7033028 THRU 7044107

30
65077A3 BRACKET, SUPPORT - FRONT UNITED STATES 3865694 AND BELOW AUSTRALIA 8017139 AND BELOW BELGIUM 9053363 AND BELOW CANADA 7033027 AND BELOW

66521A2 BRACKET, SUPPORT - FRONT UNITED STATES 3865695 AND UP AUSTRALIA 8017140 AND UP BELGIUM 9053364 AND UP CANADA 7033028 AND UP

COWLING AND FRONT COVER DIAGRAM 63271-P8-OBJ-22

1
2654A31 1 COWL FRONT COVER ASSEMBLY
UNITED STATES 4092964 AND BELOW AUSTRALIA 8025614 AND BELOW BELGIUM 9069878 AND BELOW CANADA 7044107 AND BELOW

2104-5642A1 1 COWL FRONT COVER ASSEMBLY
UNITED STATES 4092965 AND UP AUSTRALIA 8025615 AND UP BELGIUM 9069879 AND UP CANADA 7044108 AND UP

9
3248A6 WRAP AROUND COWL ASSEMBLY

MISCELLANEOUS PARTS/ACCESSORIES

MERCURY DECALS

64308A73 DECAL SET
UNITED STATES 3865694 AND BELOW AUSTRALIA 8017139 AND BELOW BELGIUM 9053363 AND BELOW CANADA 7033027 AND BELOW

66314A74 DECAL SET
UNITED STATES 3865695 THRU 4092964 AUSTRALIA 8017140 THRU 8025614 BELGIUM 9053364 THRU 9069878 CANADA 7033028 THRU 7044107

70002A75 DECAL SET
UNITED STATES 4092965 AND UP AUSTRALIA 8025615 AND UP BELGIUM 9069879 AND UP CANADA 7044108 AND UP

OTHER DECALS

FLYWHEEL ASSEMBLY AND STATOR DIAGRAM 63271-P10-OBJ-29

4

2494A27 1 FLYWHEEL ASSEMBLY, COMPLETE UNITED STATES 3865694 AND BELOW AUSTRALIA 8017139 AND BELOW BELGIUM 9053363 AND BELOW CANADA 7033027 AND BELOW

2494A30 1 FLYWHEEL ASSEMBLY, COMPLETE UNITED STATES 3865695 AND UP AUSTRALIA 8017140 AND UP BELGIUM 9053364 AND UP CANADA 7033028 AND UP
