Mercury Outboard Decals

Mercury M-Icons decal, emblem or Domed decals

Organized per size for cross-reference

8592711 DECAL M-Icon - NLA (No longer Available) - Probably Black
8M0085745 DECAL-M-ICON - Probably Black

12MM - 0.4557 Inches
8M6001063 DECAL M-ICON

8M0121129 DECAL M-Icon Large Race - Decal - Racing - FVD - Blue
8M6003948 DECAL M-ICON Race - JEWEL BLUE

19MM - 0.748031 Inches
8M0090016 DECAL M-Icon Mercury Racing (19 mm)

29MM - 1.14173 Inches
8M0080152 DECAL M-ICON, 29 mm - EMBLEM - BLACK

39MM - 1.53543 Inches
8M0050645 DECAL M-icon - Decal size: 1.68" x 1.53" Flat Vinyl Decal FVD - Black
8M0188626 DECAL M-ICON, Red, 39 mm - SMALL 25PK
8M0043700 DECAL M-Icon, Red, 39mm EMBLEM
8M0157240 M-ICON - 39MM
8M0179371 M-ICON 39 MM Small - INTAKE V12 - BLACK
8M0043701 M-ICON 39MM - Small - EMBLEM - BLACK
8M0188625 DECAL M-ICON, 39 MM Small - BLACK - 4S 25/30 SP25
8M0080154 DECAL M-ICON, Blue - FRONT 60R - 1.5" 39MM

53MM - 2.08661 Inches
8M0043707 DECAL M-Icon, 53mm Red - EMBLEM
8M0043702 DECAL M-Icon, 53mm Black - EMBLEM

60MM - 2.3622 Inches
8M0043705 DECAL M-Icon, 60 MM Black - EMBLEM
8M0043706 DECAL M-Icon, 60mm Black
8M0085373 DECAL M-Icon, 60mm Red

66MM - 2.59843 inches
8M0043703 DECAL M-Icon, 66 MM, Black - EMBLEM
8M0043699 DECAL M-Icon, 66mm Red
8M0080153 DECAL M-ICON 66 MM Racing - BLUE

8M0214840 DECAL M-Icon (Door) - Service Door Top decal FVD - Red 200-400HP V8 - 175/200 V6 PROXS - 4.25 Inches
8M0178226 DECAL M-ICON, Red DECAL - TOP - 115 PROXS - 5 inches



 1983-1984 Chrysler 140 HP Outboard - ARCHIVE CAT FOB3855

 > Mercury Marine [Updated: Sep. 13, 2023] > Outboard > Chrysler > 140 HP > ARCHIVE CAT FOB3855 - Revision 11-21-1995

140 H.P. SERIAL NUMBER
140 (1983): 1408B3E, 1408H3E
140 (1984): 1401C4B, 1401H4B, 1408C4F, 1408C4G, 1408H4G


ENGINE COVER AND SUPPORT PLATE Diagram OB 3855

6) FA552944 COVER, ENGINE W/ILLUS. 2, 31 AND 33
6) F3C624944 COVER, ENGINE - COMPLETE INCLUDES ITEMS MARKED WITH AN ASTERISK (*). ORDER NUMERAL SEPARATE

CHRYSLER DECALS

10) FA624397 DECAL, ENGINE COVER - PORT W/LITERATURE W/LITERATURE
10) FA624396 DECAL, ENGINE COVER - STARBOARD W/LITERATURE W/LITERATURE
11) FA566386 DECAL, NUMERAL W/LITERATURE (Order 2)
38) FA606892 DECAL, ENGINE COVER FRONT
39) FA606528 DECAL, ENGINE COVER REAR

Mercury Racing Outboard 4 Stroke 500R 4.6L V8 Verado - Cat.# 90-8M0211036

 > Mercury Marine [Updated: Aug. 4, 2023] > Outboard > 4 Stroke > 500R 4.6L V8 Verado > [1E099432 & Up] - Cat.# 90-8M0211036

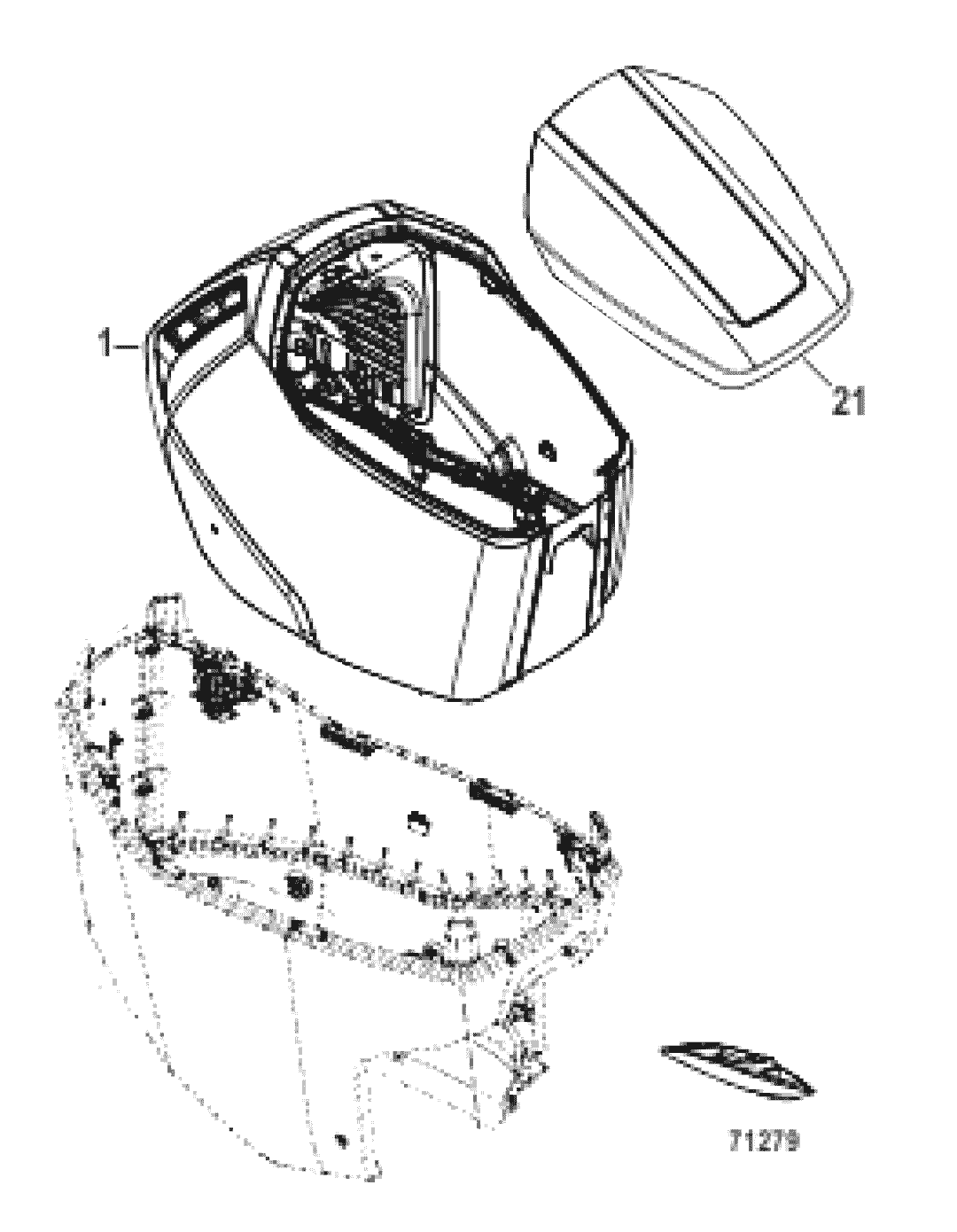

Top Cowl 76560 Diagram

1) 8M0210423 TOP COWL ASSEMBLY Black
1) 8M0210426 TOP COWL ASSEMBLY Cold Fusion White
1) 8M0211061 TOP COWL ASSEMBLY Paint Ready

8M0210423, 8M0210426, 8M0211061
8M0210423 8M0210426 8M0211061

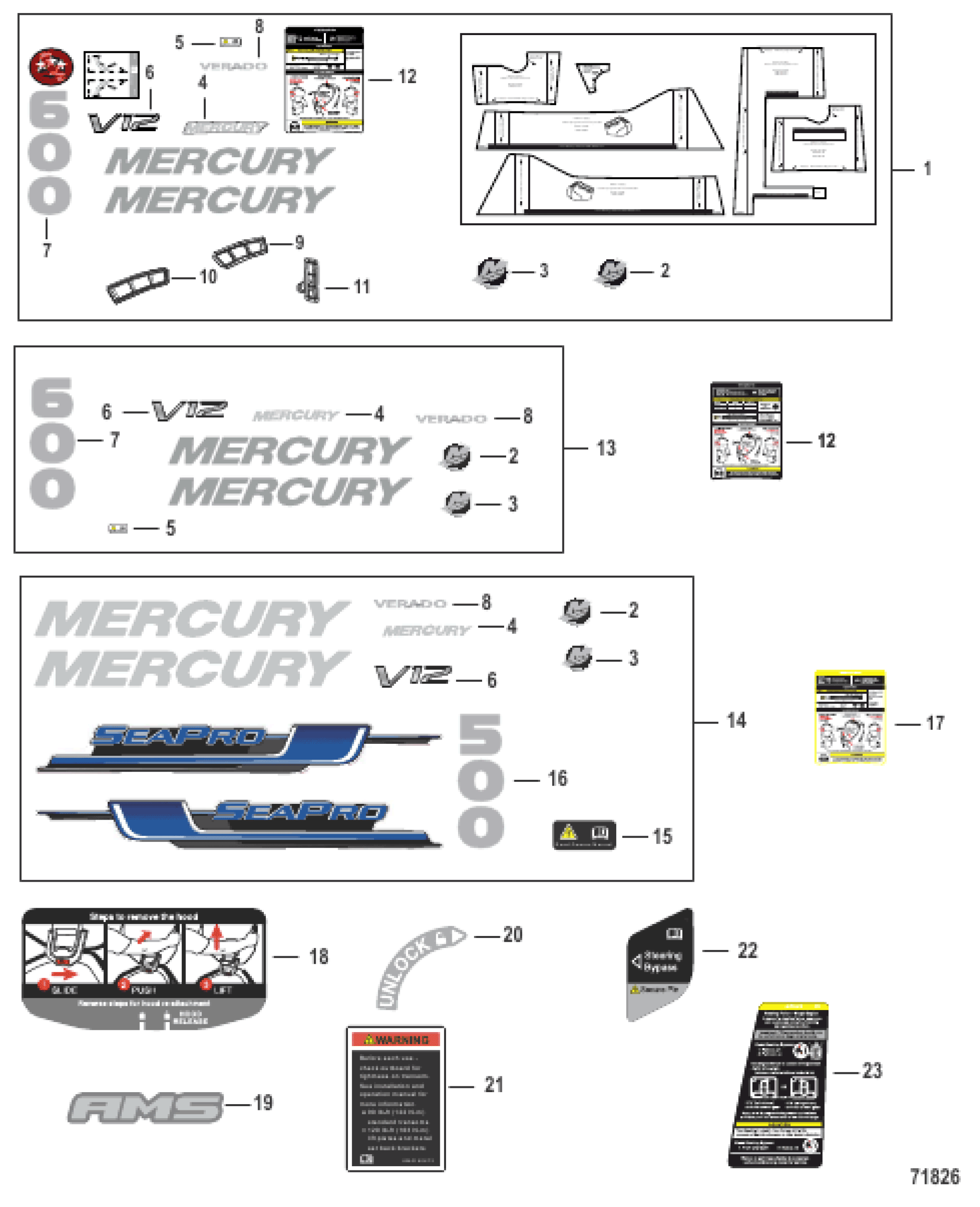

Decals 76566 Diagram

1) 8M0208889 DECAL KIT Paint Ready
2) 8M0142577 DECAL Read Manual, Clear
3) 8M0142371 DECAL Read Manual, Black
4) 8M0149565 DECAL Mercury, Black
5) 8M0147920 DECAL Mercury, Silver
6) 8M0151525 DECAL MI-CON 53 MM, Racing Not defined Placement
7) 8M0213286 DECAL Rear 500
8) 8M0080153 DECAL M-ICON 66 MM Racing Not defined Placement
9) 8M0149566 DECAL Red, R
10) 8M0149568 DECAL Black, R
11) 8M0213288 DECAL SET Top Cowl
12) 8M0151525 DECAL MI-CON 53 MM, Racing Not defined Placement
13) 8M0143773 DECAL SET Lower Cowl
14) 8M0213289 DECAL Check Engine
15) 8M0142569 DECAL Warning
16) 8M0213291 DECAL Maintenance Schedule

Accent Panel 76562 Diagram

1) 8M0210439 ACCENT PANEL Devil Red-Eye
1) 8M0210440 ACCENT PANEL Graphite Grey
1) 8M0172910 ACCENT COWL ASSEMBLY Carbon Fiber (Non-Decaled) Must Purchase 8M0208889
 -  8M0205360 DECAL KIT Accent Panel
2) 8M0147920 DECAL Mercury, Silver Paint Ready
2) 8M0149565 DECAL Mercury, Black
3) 8M0213286 DECAL Rear 500
4) 8M0149566 DECAL Red, R
4) 8M0149568 DECAL Black, R
5) 8M0080153 DECAL M-ICON 66 MM Racing

Problem found on M Racing logos in this Generation orders a complete kit where a 60 mm logo was received ( No part number marked behind the M logo), instructions or Installation templates points 8M0085374, size not found in descriptions for Racing M logo possibly a 60 mm logo, follow up with Mercury for updates on their part books.

8M0085374 DECAL M-ICON 60 MM Racing Confirm size
