1991 EVINRUDE/Johnson 150/175 HP

J150GLEIS 1991

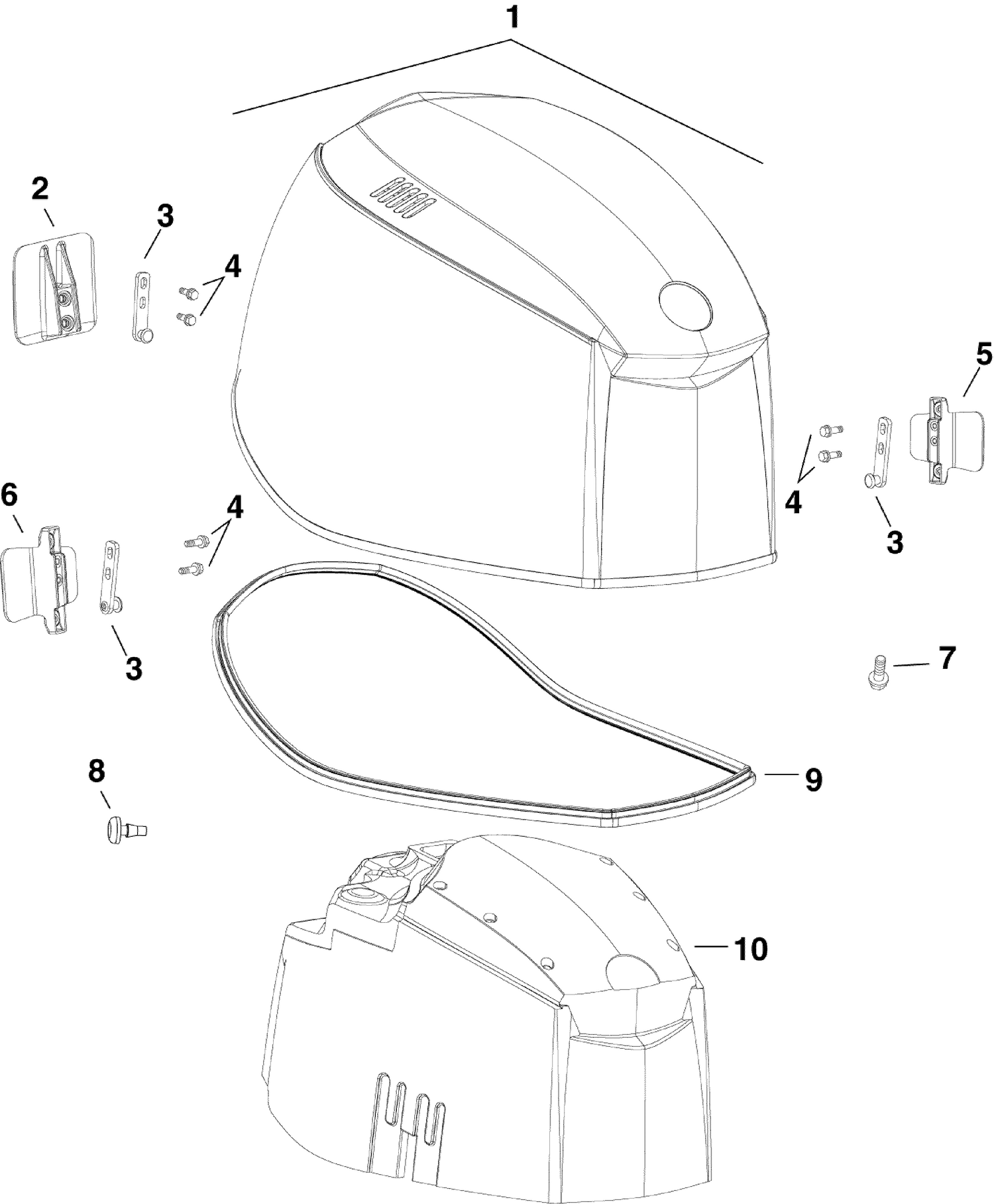

ENGINE COVER - EVINRUDE


ENGINE COVER - EVINRUDE

1 0284083 ENGINE COVER ASSY.. 150EL, 150EX
1 0284084 ENGINE COVER ASSY.. 175EX
1 0284087 ENGINE COVER ASSY.. 150NX
1 0284085 ENGINE COVER ASSY.. 150GL
1 0284086 ENGINE COVER ASSY.. 175GL
1 0284070 ENGINE COVER ASSY.. TE150GL

0284083, 0284084, 0284087, 0284085, 0284086, 0284070

2 0211688 APPLIQUE, Evinrude Order 2
3 0336176 APPLIQUE, Counter rotation

13 0336817 APPLIQUE. TE150GL
14 0284286 DECAL SET. 150EL, 150EX 150NX 150GL
14 0284287 DECAL SET. TE150GL
14 0284288 DECAL SET. 175EX 175GL





ENGINE COVER - JOHNSON

1 0434718 ENGINE COVER ASSY.. 150EL, EX
1 0434721 ENGINE COVER ASSY.. 150GL
1 0434723 ENGINE COVER ASSY.. 150NX
1 0434719 ENGINE COVER ASSY.. 175EX
1 0434722 ENGINE COVER ASSY.. 175GL
1 0434720 ENGINE COVER ASSY.. 150ELA
1 0434670 ENGINE COVER ASSY.. TJ150GL

0434718, 0434721, 0434723, 0434719, 0434722, 0434720, 0434670

11 0435245 DECAL SET. 150EL, EX 150NX
11 0435246 DECAL SET. 150GL 150ELA
11 0435247 DECAL SET. TJ150GL
11 0435248 DECAL SET. 175EX
11 0435249 DECAL SET. 175GL





1997 EVINRUDE/JOHNSON 115 ENGINE COVER

JOHNSON 1997 115 XJ115HLEUA

ENGINE COVER - JOHNSON


ENGINE COVER - JOHNSON Diagram PCA1083C 3-95

0438775 ENGINE COVER ASSY., 90
0438776 ENGINE COVER ASSY., 115

0438782 ENGINE COVER ASSY., 90 -  XJ Prefix Models Only
0438783 ENGINE COVER ASSY., 115 - XJ Prefix Models Only

13 0331856 APPLIQUE, Front

0438775, 0438776, 0438782, 0438783, - 0284939, 0284941, 0284940, 0284942,
0438775 0438776 0438782 0438783 - 0284939 0284941 0284940 0284942

13 0331856 APPLIQUE, Front


18 0438779 DECAL SET, 90

18 0438780 DECAL SET, 115

18 0437766 DECAL SET XJ Prefix Models Only
17 0343683 PLATE, Front & rear, 90 XJ Prefix Models Only
17 0343684 PLATE, Front & rear, 115 XJ Prefix Models Only

0437766, 0331856,0343683 90 XJ Prefix Models Only
0437766 0331856 0343683
0437766, 0331856, 0343684 115 XJ Prefix Models Only
0437766 0331856 0343684

MIDSECTION

102 0342192 DECAL, Exhaust housing



ENGINE COVER - EVINRUDE


0284939 ENGINE COVER ASSY., 90
0284941 ENGINE COVER ASSY., 90
0284940 ENGINE COVER ASSY., 115
0284942 ENGINE COVER ASSY., 115

0284939, 0284941, 0284940, 0284942,
0284939 0284941 0284940 0284942


13 0331856 APPLIQUE, Front
18 0343683 PLATE, Front & rear, 90
18 0343684 PLATE, Front & rear, 115

20 0284943 DECAL SET, 90
20 0284944 DECAL SET, 115
20 0284845 DECAL SET



This Johnson 0437766 DECAL SET. White Engine Cover fits the following models:

1995 Johnson 88HP J88TSLEOC, XJ88TSLEOC,
1996 Johnson 88HP J88TSLEDR, XJ88TSLEDR,

1997 Johnson 90HP J90TSLEUA, XJ90TSLEUA,
1998 Johnson 90HP J90TSLECM, XJ90TSLECM,

1996 Johnson 112HP J112TSLEDR, J112TSXEDR, XJ112TSLEDR, XJ112TSXEDR,
1995 Johnson 112HP J112TSLEOC, J112TSXEOC, XJ112TSLEOC, XJ112TSXEOC,

1997 Johnson 115HP J115TSLEUA, J115TSXEUA, XJ115HLEUA, XJ115HXEUA,
1998 Johnson 115HP J115TSLECM, J115TSXECM, XJ115HLECM, XJ115HXECM,

1995 Johnson - Evinrude 18 JET 25 HP

JOHNSON 25 HP J25JREOS 1995 (JET)
ENGINE COVER - JOHNSON Diagram 437817-04A

1 0437714 ENGINE COVER ASSY.

0437714, 0435150, 0437187, 0435152, 0437188, 0436591, 0435820, 0435155, 0437189
0437714 0435150 0437187 0435152 0437188 0436591 0435820 0435155 0437189



6 0341766 PLATE, Frame, front
18 0341767 PLATE, Frame, rear
19 0437039 DECAL SET

1995 JOHNSON 25 HP
J25EEOA
J25ELEOA
J25REOR
J25RLEOR
J25RWEOS
J25RWLEOS
J25TEEOR
J25TELEOR

1 0435150 ENGINE COVER ASSY.. 20E - 20EL White
1 0437187 ENGINE COVER ASSY.. 20E - 20EL Smoke
1 0435152 ENGINE COVER ASSY.. 25E - 25EL White 25ER - 25ERL
1 0437188 ENGINE COVER ASSY.. 25E - 25EL Smoke
1 0436591 ENGINE COVER ASSY.. 25SE - 25SEL Smoke
1 0435820 ENGINE COVER ASSY.. 20SE - 20SEL White
1 0435155 ENGINE COVER ASSY.. 30E - 30EL White
1 0437189 ENGINE COVER ASSY.. 30E - 30EL Smoke

6 0337606 PLATE, Frame, front, 20. 20E - 20EL 20SE - 20SEL White
6 0341130 PLATE, Frame, front, 20. 20E - 20EL Smoke
6 0337610 PLATE, Frame, front, 25. 25E - 25EL White
6 0341132 PLATE, Frame, front, 25. 25E - 25EL Smoke
6 0335886 PLATE, Frame, front, 25. 25SE - 25SEL Smoke
6 0337614 PLATE, Frame, front, 30. 30E - 30EL White
6 0341134 PLATE, Frame, front, 30. 30E - 30EL Smoke

13 0337607 PLATE, Frame, rear, 20. 20E - 20EL 20SE - 20SEL White
13 0341131 PLATE, Frame, rear, 20. 20E - 20EL Smoke
13 0337611 PLATE, Frame, rear, 25. 25E - 25EL White
13 0341340 PLATE, Frame, rear, 25. 25E - 25EL Smoke
13 0335885 PLATE, Frame, rear, 25. 25SE - 25SEL Smoke
13 0337615 PLATE, Frame, rear, 30. 30E - 30EL White
13 0341135 PLATE, Frame, rear, 30. 30E - 30EL Smoke


21 0435616 DECAL SET. 20E - 20EL White
21 0437039 DECAL SET. 20E - 20EL 25E - 25EL 30E - 30EL Smoke25ER - 25ERL
21 0435618 DECAL SET. 25E - 25EL White
21 0435187 DECAL SET. 25SE - 25SEL Smoke
21 0435961 DECAL SET. 20SE - 20SEL White
21 0435622 DECAL SET. 30E - 30EL White



ENGINE COVER - EVINRUDE Diagram 437817-03A

1 0284809 ENGINE COVER ASSY.

6 0212810 PLATE, Frame, front
13 0212811 PLATE, Frame, rear
16 0212497 LENS, Ev., port & stbd.
20 0284824 DECAL SET

EVINRUDE 25 HP MODELS

1 0284713 ENGINE COVER ASSY.. 20E - 20EL
1 0284714 ENGINE COVER ASSY.. 25E - 25EL - 25ER - 25ERL
1 0284133 ENGINE COVER ASSY.. 25SE - 25SEL
1 0284396 ENGINE COVER ASSY.. 20SE - 20SEL
1 0284715 ENGINE COVER ASSY.. 30E - 30EL

6 0212709 PLATE, Frame, front, 20. 20E - 20EL
6 0212711 PLATE, Frame, front, 25. 25E - 25EL - 25ER - 25ERL
6 0211452 PLATE, Frame, front, 25. 25SE - 25SEL
6 0211504 PLATE, Frame, front, 20. 20SE - 20SEL
6 0212713 PLATE, Frame, front, 30. 30E - 30EL

15 0212710 PLATE, Frame, rear, 20. 20E - 20EL
15 0212712 PLATE, Frame, rear, 25. 25E - 25EL - 25ER - 25ERL
15 0211453 PLATE, Frame, rear, 25. 25SE - 25SEL 20SE - 20SEL
15 0212714 PLATE, Frame, rear, 30. 30E - 30EL
16 0212497 LENS, Ev., port & stbd.. 20E - 20EL 25E - 25EL - 25ER - 25ERL 30E - 30EL 2 Submit

18 0284824 DECAL SET. 20E - 20EL 25E - 25EL - 25ER - 25ERL 30E - 30EL
18 0284331 DECAL SET. 25SE - 25SEL
18 0284329 DECAL SET. 20SE - 20SEL

1988 Evinrude/Johnson 200 HP 200STL MODELS - E200STLCCM

1988 Evinrude - 200  E200STLCCM 200STL MODELS




ENGINE COVER - EVINRUDE - 200STL Diagram 432241-07
0283305 ENGINE COVER ASSY., 200

0283305 0398911 0398828
0283305, 0398911, 0398828



Evinrude Decals

2 0210305 APPLIQUE, Port & stbd.
12 0210499 APPLIQUE, Rear & front Order 2
13 0210312 APPLIQUE, Front
21 0210725 PLATE, Applique, front


0283354 DECAL SET. Not Shown



ENGINE COVER - JOHNSON - 200STL



ENGINE COVER - JOHNSON - 200STL - DIAGRAM 432241-06
0398911 ENGINE COVER ASSY., Charcoal
0398828 ENGINE COVER ASSY., White

0283305 0398911 0398828
0283305, 0398911, 0398828



JOHNSON Decals

10 0330456 APPLIQUE, GT, rear
11 0334645 PLATE, Rear
12 0333049 APPLIQUE, Rear
15 0332749 PLATE, Rear
16 0330413 APPLIQUE, Front & rear
19 0330410 APPLIQUE, Front & rear Order 2
21 0332749 PLATE, Applique front

0397519 DECAL SET, White.
0431928 DECAL SET, Charcoal.





More Articles …

  1. 2014 Evinrude AB Models 200 - (G2, 74° V6, 3.4 L) E200LHABA
  2. 1986 Evinrude/Johnson 75 HP
  3. 2006 Johnson 115 HP WHITE MODELS
  4. 1987 Evinrude Johnson 9.9/15 HP

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.

    90-8M0143239 eng MARCH 2018       © 2018 Mercury Marine      -     Page 1 / 16
