MERCURY 2.5L DFI OPITMAX 150DFI L

MERCURY 2.5L DFI OPITMAX 150DFI L
Model Group: 135 / 150 DFI (2.5L)

Diagram 9210



(1)
852552A3 TOP COWL ASSEMBLY(BLACK)
852552A4 TOP COWL ASSEMBLY (SILVER)

MERCURY DECALS

1998-1999 MERCURY 135 HP OPTIMAX DECAL SET 854291A98

854291A98 DECAL SET (BLACK 135 LONG)
854292A98 DECAL SET (BLACK 135 XL/CXL)

1998-1999 MERCURY 150 HP OPTIMAX DECAL SET 854293A98

854293A98 DECAL SET (BLACK 150 LONG)
854294A98 DECAL SET (BLACK 150 XL/CXL)

MARINER DECALS

854295A98 DECAL SET (GRAY 135 LONG)
854296A98 DECAL SET (GRAY 135 XL/CXL)
854297A98 DECAL SET (GRAY 150 LONG)
854298A98 DECAL SET (GRAY 150 XL/CXL)

TRACKER DECALS

802643A98 DECAL SET (BLACK TRACKER 150)
802646A98 DECAL SET (GRAY TRACKER 150)

855577 26 DECAL, EPA Label Information


Serial Number: 0G655484

75/90 (4-Stroke)

MERCURY 4 STROKE 90 ELPT 4
Cat.# 804851004 - 75/90 (4-Stroke)

TOP COWL 2075

1
827328T 9 TOP COWL ASSEMBLY (BLACK)
827328T10 TOP COWL ASSEMBLY (SILVER)

MERCURY DECALS

2000-2005 MERCURY 75 HP FOURSTROKE DECAL SET 804855A00
804855A00 DECAL SET (MERCURY/TRACKER 75)(2004)
804855A00 DECAL SET  (Mercury 75)(2000 and Up)(Tracker 2002 and Up)

2004-2005 MERCURY 75 HP DECAL SET RED 804855A05
804855A05 DECAL SET (MERCURY/TRACKER 75)(2005)


804855A06 DECAL SET (Mercury 75)


804857A00 DECAL SET (MERCURY/TRACKER 90)(2004)
804857A00 DECAL SET (Mercury 90)(Long)(2002 and Up)(Tracker 2002 and Up)

881841A01 DECAL SET (Mercury 90)(X-Long)(Saltwater)(2001/2002)

804857A05 DECAL SET (MERCURY/TRACKER 90)(2005)


804857A06 DECAL SET (MERCURY 90)(2006)


881841A03 DECAL SET (MERCURY 90 SALTWATER)(2004)
881841A03 DECAL SET  (Mercury 90 Saltwater)

2005 MERCURY 90 HP FOUR STROKE SALTWATER DECAL SET BLUE 881841A05
881841A05 DECAL SET (MERCURY 90 SALTWATER)(2005)

MARINER DECALS

804856A03 DECAL SET (MARINER 75)
804858A03 DECAL SET (MARINER 90)

TRACKER DECALS

804859A00 DECAL SET (Tracker 75)(2000/2001)
804860A00 DECAL SET (Tracker 90)(2000/2001)

OTHER DECALS

827887 DECAL, Unleaded Fuel - Bodensee

804656A00 DECAL, EPA Label Information (2000)
804656A01 DECAL, EPA Label Information (2001)
804656A02 DECAL, EPA Label Information (2002)
804656A03 DECAL, EPA Label Information (2003)


Serial Number: 0T770550 MERCURY - ( 90  H.P. (2003 )) Model: 1F90412AD Version: ELPT 4
Serial Number: 0T267528 MERCURY - ( 90  H.P. (2001 )) Model: 1F90412YD Version: ELPT 4
Serial Number: 0T856198 MERCURY - ( 90  H.P. (2004 )) Model: 1F90412CD Version: ELPT 4
Serial Number: 0T845392 MERCURY - ( 90  H.P. (2004 )) Model: 1F90412CD Version: ELPT 4

0T856198
2004
90ELPT 4S
Max RPM 6000
HP 90 KW 66.2
LB 386 KG 176
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA
from US and foreign
components
CE [03]

Cat.# 804851004 - 75/90 (4-Stroke)


Serial Number: 1B024212 - Model: 1F90412DD - Model Version: ELPT 4
MERCURY 2005 4 STROKE 90 ELPT 4

Serial Number:
1B024212
2005
90ELPT 4S
Max RPM 6000
HP 90 KW 66.2
LB 386 KG 176
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA
from US and foreign
components
CE [04]

Serial Number: 0T813732 - Model: 1F90412CD - Model Version: ELPT 4
2004 MERCURY 90 - Cat.# 90-804851004 - 75/90 (4-STROKE)

200 H.P. (V-6) (1978-1988 COMBINED BOOKS) - Cat.# 90-821303

> Mercury Marine [Updated: Mar. 24, 2018] > Outboard > 2 Stroke Carb > V-200 > [5624878 THRU 0C100860] - Cat.# 90-821303 > Cowls and Front Cover

Catalog: 90-821303 200 H.P. (V-6) (1978-1988 COMBINED BOOKS)

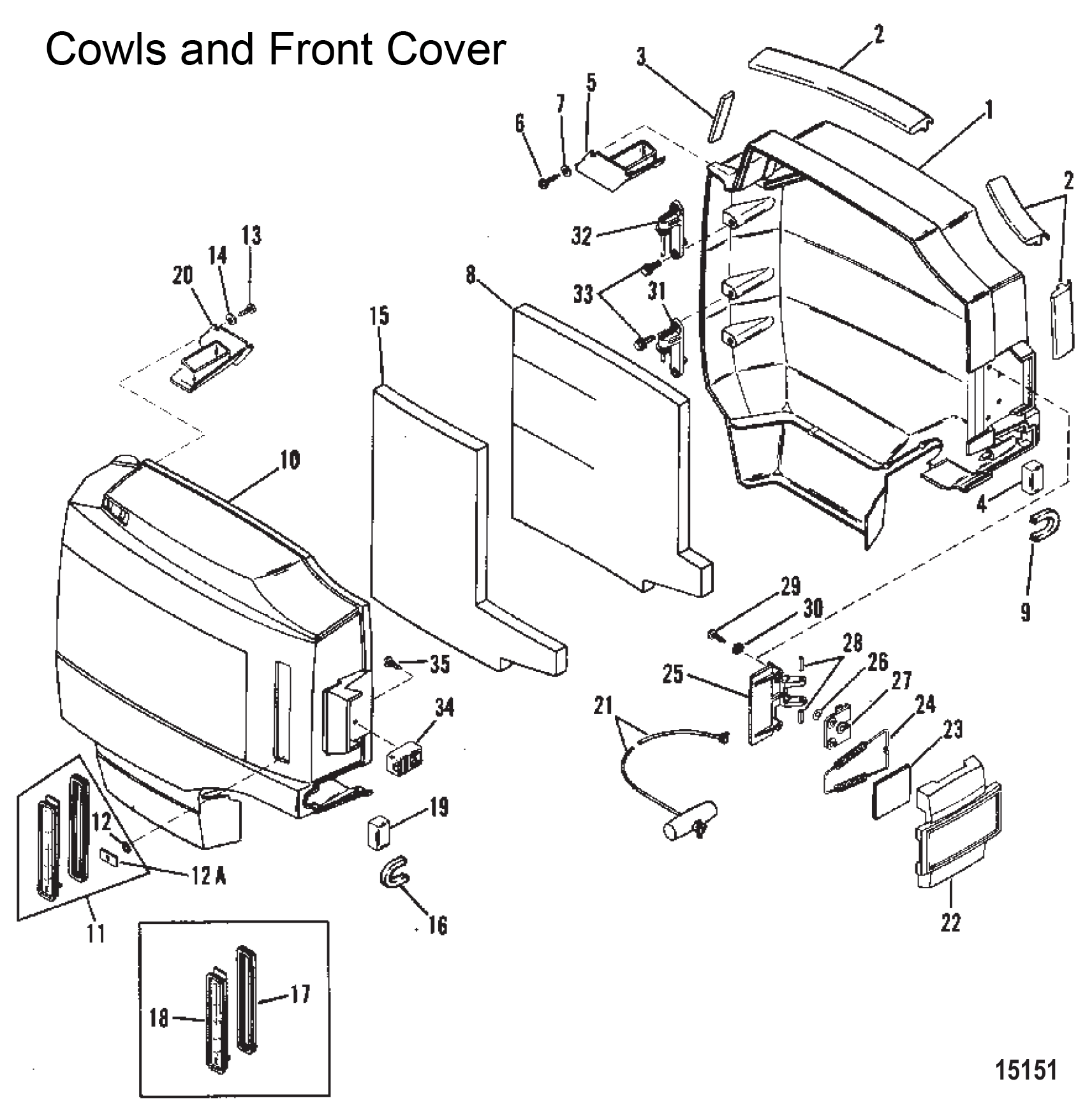

Cowls and Front Cover Diagram 18980

1
7620A4 TOP COWL ASSEMBLY (BLACK) (USE WITH DESIGN "A" LATCH) - Supersedes: 6608A4
7620A22 TOP COWL ASSEMBLY (GRAY) (USE WITH DESIGN "A" LATCH) - Supersedes: 7620A8
7523A2 COWL ASSEMBLY Port (BLACK) (USE WITH DESIGN "B" LATCH)
7523A18 COWL ASSEMBLY Port (GRAY) (USE WITH DESIGN "B" LATCH) - Supersedes: 7523A10

10
7619A1 TOP COWL ASSEMBLY (BLACK)(USE WITH DESIGN "A" LATCH) - Supersedes: 6607A1
7619A5 TOP COWL ASSEMBLY (GRAY)(USE WITH DESIGN "A" LATCH) - Supersedes: 7619A2
7524A4 TOP COWL ASSEMBLY Starboard (GRAY)(USE WITH DESIGN "B" LATCH) - Supersedes: 7524A2
7524A1 TOP COWL ASSEMBLY Starboard (BLACK)(USE WITH DESIGN "B" LATCH)

16
7532A2 COVER ASSEMBLY Cowl - Front (BLACK)(DESIGN "B" LATCH)
7532A23 COVER ASSEMBLY Cowl - Front (GRAY)(DESIGN "B" LATCH) - Supersedes: 7532A9, 7532A32
5399A3 FRONT COVER (BLACK) (DESIGN "A" LATCH)
5399A16 FRONT COVER (GRAY) (DESIGN "A" LATCH)

7620A4 6608A4 7620A22 7620A8 7523A2 7523A18 7523A10 7619A1 6607A1 7619A5 7619A2 7524A4 7524A2 7524A1 7532A2 7532A23 7532A9 7532A32 5399A3 5399A16
7620A4, 6608A4, 7620A22, 7620A8, 7523A2, 7523A18, 7523A10, 7619A1, 6607A1, 7619A5, 7619A2, 7524A4, 7524A2, 7524A1, 7532A2, 7532A23, 7532A9, 7532A32, 5399A3, 5399A16

MERCURY DECALS

43530A86 DECAL SET (BLACK) (1986)
43246A84 DECAL SET (BLACK) (1984-1985)
89620A80 DECAL SET (BLACK) (1980, 1981, 1982, 1983)
86576A79 DECAL SET (BLACK) (1979)
78605A78 DECAL SET (BLACK) (1978

MARINER DECALS

89924A80 DECAL SET (GRAY-NON OIL INJECTION) [66255220] & Below
44227A84 DECAL SET (GRAY-OIL INJECTION)[66255220] & Below
44227A85 DECAL SET (GRAY-OIL INJECTION)[66255221] & Up



This Mercury Marine 43530A86 DECAL SET (BLACK) is used on these models:

1978 1200628, 1200648.
1979 1200629, 1200649.
1980 1200620, 7200620, 7200640, 1200640.
1982 1200622, 1200642, 7200622, 7200642.
1983 1200623, 1200643, 7200623, 7200643.
1984 1200624, 1200644, 1200724, 1200744, 7200724, 7200744.
1985 1200725, 1200745, 7200725, 7200745.
1986 1200726, 1200746, 7200726, 7200746.
1987 1200727, 1200747.
1988 1200412BD, 1200422BD, 7200412ND, 7200422ND.


Serial Number: 6426919 - MERCURY 2.4L 200 ELPT - MERCURY 1983 200 hp  - Model: 1200623



6/8/9.9/15 HP - Cat.# 90-803024

 > Mercury Marine [Updated: Apr. 10, 2018] > Outboard > 2 Stroke Carb > 15 > [0G760300 THRU 0T979999] - USA - Cat.# 90-803024 > Cowls

Cat.# 90-803024 6/8/9.9/15 HP

TOP COWL DIAGRAM 4943

1

9420T10 TOP COWL(Black)
Supersedes: 9420A10, 9205A13, 9205A10, 9205A2

9420T12 TOP COWL (Silver)
Supersedes: 9420A10, 9205A13, 9205A10, 9205A2

8M0107153 TOP COWL ASSEMBLY (Silver)


9420T10, 9420T12, 9420A10, 9205A13, 9205A10, 9205A2, 8M0107153
9420T10 9420T12 9420A10 9205A13 9205A10 9205A2 8M0107153

MERCURY DECALS

808522A00 DECAL SET (Black 6)(2000 and Above) Supersedes: 37-808522A96, 37-808522A94

808526A00 DECAL SET (Black 8)(2000 and Above) Supersedes: 37-808526A96, 37-808526A94

12836A00 DECAL SET (Black 9.9)(2000 and Above) Supersedes: 37-12836A96, 37-12836A94

13478A00 DECAL SET (Black 15)(All) Supersedes: 37-13478A96, 37-13478A94



808522A96 DECAL SET (Black 6)(1996 Through 1999)

808526A96 DECAL SET (Black 8)(1996 Through 1999)

12836A96 DECAL SET (Black 9.9)(1996 Through 1999)

808523A96 DECAL SET (Black 9.9 Sailpower) Supersedes: 37-808523A94



830155A00 DECAL SET (Black 13.5-Spain-Export Only)



MARINER DECALS

808524A03 DECAL SET (Gray 6)(2003/2004) Supersedes: 37-808524A01, 37-808524A97, 37-808524A94

808545A03 DECAL SET (Gray 8)(2003/2004) Supersedes: 37-808545A01, 37-808545A97, 37-808545A94

808525A03 DECAL SET (Gray 9.9)(2003/2004) Supersedes: 37-808525A01, 37-808525A97, 37-808525A94

808546A03 DECAL SET (Gray 15)(2003/2004) Supersedes: 37-808546A01, 37-808546A97, 37-808546A94

808560A03 DECAL SET (8 Sailmate)(2003)



808524A01 DECAL SET (Gray 6)(2001/2002)

808545A01 DECAL SET (Gray 8)(2001/2002)

808525A01 DECAL SET (Gray 9.9)(2001/2002)

808546A01 DECAL SET (Gray 15)(2001/2002)

808560A01 DECAL SET (8 Sailmate)(2002 and Below)



808524A97 DECAL SET (Gray 6)(1997-2000)


808545A97 DECAL SET (Gray 8)(1997-2000)

808545A97 DECAL SET (Gray 9.9)(1997-2000)

808546A97 DECAL SET (Gray 15)(1997-2000)



830156A01 DECAL SET (Gray 13.5-Spain-Export Only)(2001/2002)

830156A03 DECAL SET (Gray 13.5-Spain-Export Only)(2003)



TRACKER DECALS

824740A96 DECAL SET (Tracker 9.9)



OTHER DECALS

856985A 3 DECAL-EPA INFORMATION (6/8)(1999) Supersedes: 37-856985 3

856985A 4 DECAL-EPA INFORMATION (9.9/15)(1999) Supersedes: 37-856985 4

804659A00 DECAL-EPA INFORMATION (6/8)(2000)

804662A00 DECAL-EPA INFORMATION (9.9/15)(2000)

804659A01 DECAL-EPA INFORMATION (6/8)(2001)

804662A01 DECAL-EPA INFORMATION (9.9/15)(2001)

804659A02 DECAL-EPA INFORMATION (6/8)(2002)

804659A03 DECAL-EPA INFORMATION (6/8)(2003)

804659A04 DECAL-EPA INFORMATION (6/8)(2004)

804662A02 DECAL-EPA INFORMATION (9.9/15)(2002)

804662A03 DECAL-EPA INFORMATION (9.9/15)(2003)

804662A04 DECAL-EPA INFORMATION (9.9/15)(2004)




MARINER 2000 8 Model: 7008201JB - Version: M - Catalog: 6/8/9.9/15 HP

Serial Number:
0P084154
2000
8M
5000 MAX RPM
HP 8.0 KW 5.9
LB 88 KG 40
MARINE POWER
EUROPE, INC.
B4822 VERVIERS
MADE IN BELGIUM
CE [00]

Serial Number: 0T409921 - Model: 1008211ZD - Model Version: ML - MERCURY 2002 8 ML

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.

    90-8M0143239 eng MARCH 2018       © 2018 Mercury Marine      -     Page 1 / 16
