2003 Boston Whaler 270 Outrage - Decal, Stickers, Stripes, emblems and Labels
MODEL YEAR 2003 PARTS LIST
BOAT MODEL: 270 OUTRAGE
DOCUMENT CONTROL NO: PB2700R63
GRAPHICS LOCATIONS ASSEMBLY
- 1) 998732 - DECAL, BW OUTRAGE DK GRAY HIBOSSCAL - Order 2
- 2) 1689527 - DECAL, BW OUTRAGE 6.25" BLUE CHR DR
- 3) 1452754 - DECAL, BW LOGO 28" RED PORT DRIP MOLD
- 3) 1452762 - DECAL, BW LOGO 28" BLUE PORT DRIP MOLD
- 3) 1457688 - DECAL, BW LOGO 28" RED STBD DRIP MOLD
- 3) 1457696 - DECAL, BW LOGO 28" BLUE STBD DRIP MOLD
- 4) 1038009 - TAPE, SOLID 1" FIRE RED W/ PIN STRP - 56 ft.
- 4) 1037985 - TAPE, SOLID 1" CORBIN DK BLUE W/ PIN ST - 56 ft.
- 5) 1682392 - DECAL, BW-02 270 FIRE RED HIBOSSCAL - Order 2
- 5) 1682400 - DECAL, BW-02 270 CORBIN DK BLUE HIBOSSCAL - Order 2
998732, 1689527, 1452754, 1452762, 1457688, 1457696, 1038009, 1037985, 1682392, 1682400

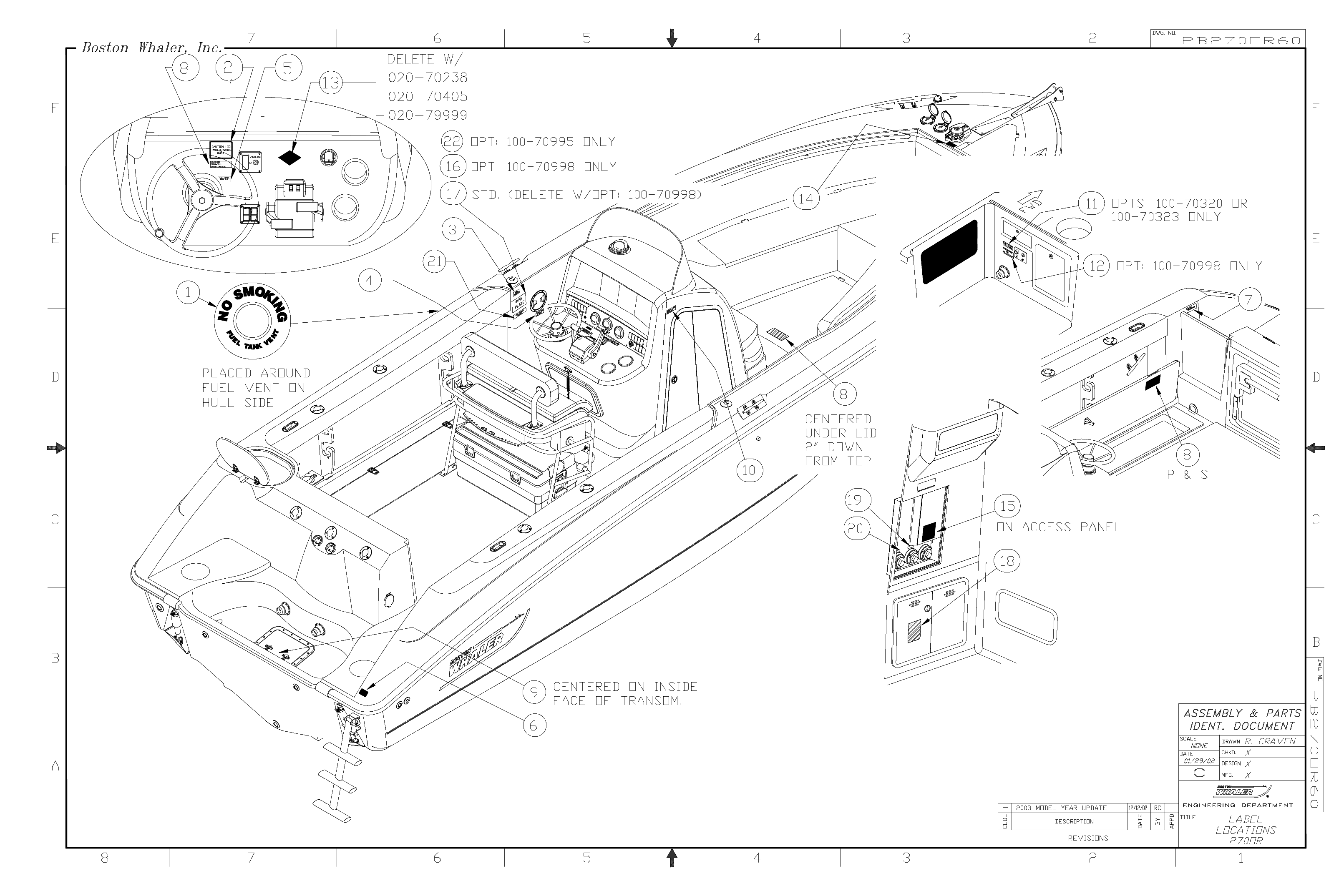

Label Locations Assembly
MODEL YEAR 2003 PARTS LIST
BOAT MODEL: 270 OUTRAGE
DOCUMENT CONTROL NO: PB2700R63
LABEL LOCATIONS ASSEMBLY
- 01) 1016484 - LABEL, BW NO SMOKING FUEL VENT
- 02) 1017136 - LABEL, BW SAFETY HI-PERF BOAT
- 03) 995704 - PLATE, WARNING FUEL HAZARD
- 04) 1016898 - LABEL, VENT HOSE NO DRILL
- 05) 1016534 - LABEL, BW WARNING FUEL GAUGE READ
- 06) 1016948 - LABEL, BW WARNING SWIM PLATFORM
- 07) 1017144 - LABEL, BW WARNING TRANSOM DOOR
- 08) 1689650 - LABEL, BW CAUTION FISHWELL DRAIN PLUG - Order 4
- 09) 258509 - LABEL, DISCHARGE OF OIL (LEXAN)
- 10) 1727117 - LABEL, DOOR SECURED CLOSED WHILE UNDERWAY
- 11) 955278 - LABEL, NOTICE OVERBOARD DISCHARGE
- 12) 934539 - LABEL, PREVENT DISCHARGE OF POLLUTANTS
- 13) 1743323 - DECAL, MERC S-CRFT NETWORKED
- 14) 921759 - LABEL, DANGER STAY CLEAR OF MOVING PAR
- 15) 1051762 - PLATE, BW230CQ-97 BATT PARALLEL DET
- 16) 1683168 - PLATE, BUILDERS CE02-BW2700R
- 17) 1256062 - PLATE, NMMA YACHT CERT GAS
- 18) 1689715 - PLATE, SEACOCK LOCATIONS BW2700R-02
- 19) 0623843 - LABEL, 2" × 1/2" STBD
- 20) 0623850 - LABEL, 2" × 1/2" PORT
- 21) 1735929 - PLATE, BW-03 MAX ENG WT 1220LB/553KG
- 22) 1746025 - PLATE, SAFETY CANADIAN CONFORMITY BW2700R-03
1016484, 1017136, 995704, 1016898, 1016534, 1016948, 1017144, 1689650, 258509, 1727117, 955278, 934539, 1743323, 921759, 1051762, 1683168, 1256062, 1689715, 0623843, 0623850, 1735929, 1746025
