2-Stroke Nissan NS2.5A 1992 M340-B

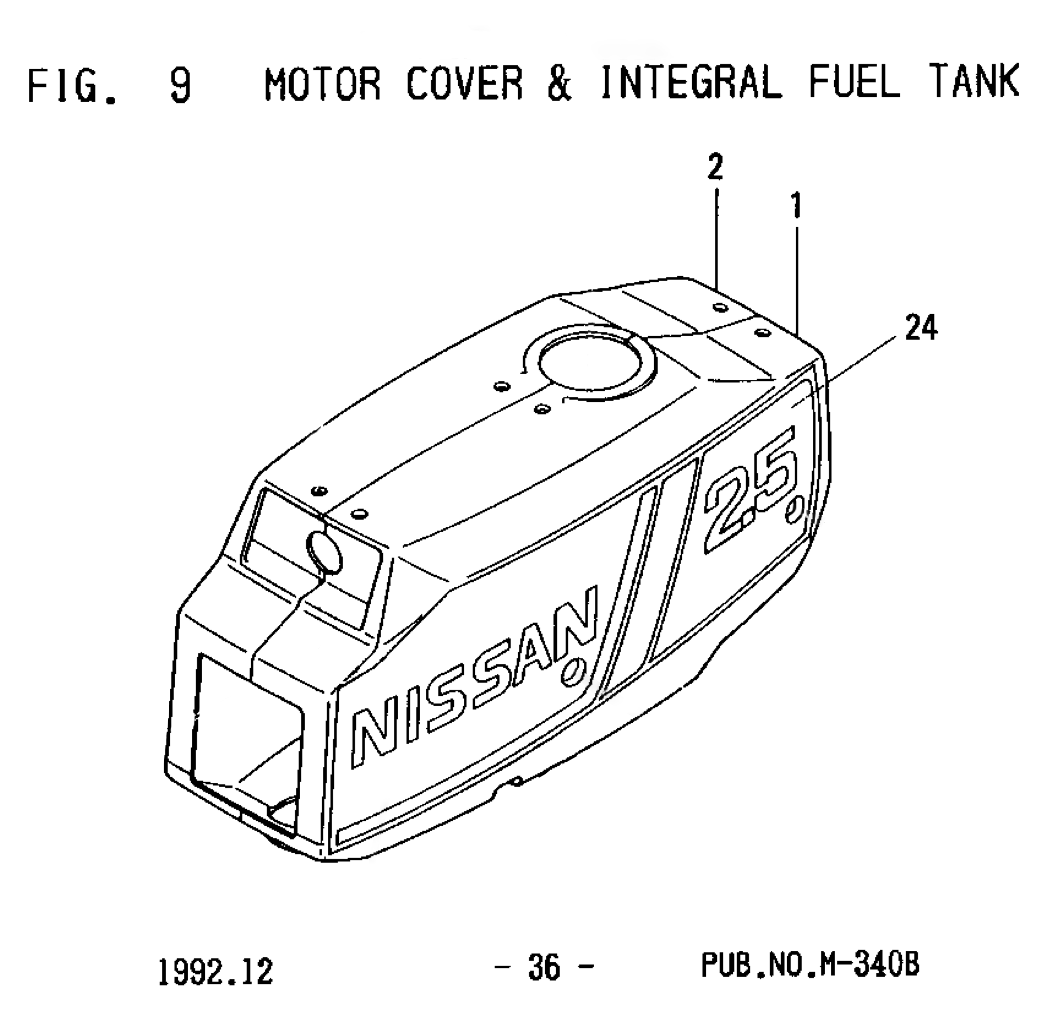

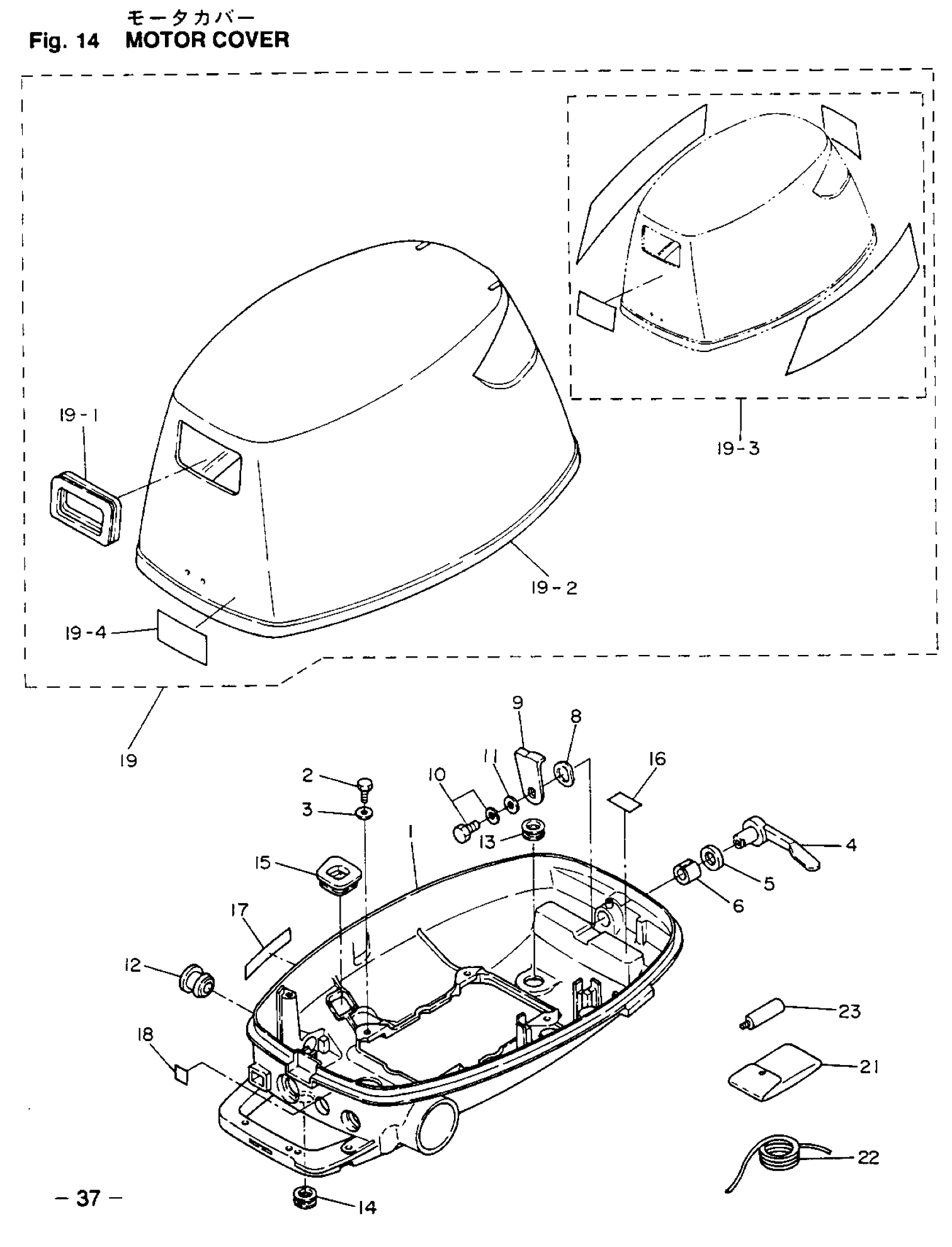

FIG. 9 MOTOR COVER & INTEGRAL FUEL TANK

DIAGRAM NS2-5A-1992-M340-B-FIG-9

1
3C267-0040M MOTOR COVER, LEFT NS2.5A - 60480
31467-0041M MOTOR COVER, LEFT NS2.5A - 60481-67130
31467-0042M MOTOR COVER, LEFT N52.5A - BLUE - 67131-81965
N1467-0042M MOTOR COVER, LEFT NS2.5A - GRAY - 81966-

2
30267-0030M MOTOR COVER,RIGHT NS2.5A - -60480
31467-0031M MOTOR COVER,RIGHT NS2.5A - 60481-67130
31467-0032M MOTOR COVER, RIGHT NS2.5A - BLUE - 67131-81965
N1467-0032M MOTOR COVER RIGHT NS2.5A - GRAY - 81966-

PUB.NO.M-340B. PAGE 37 - 1992.12

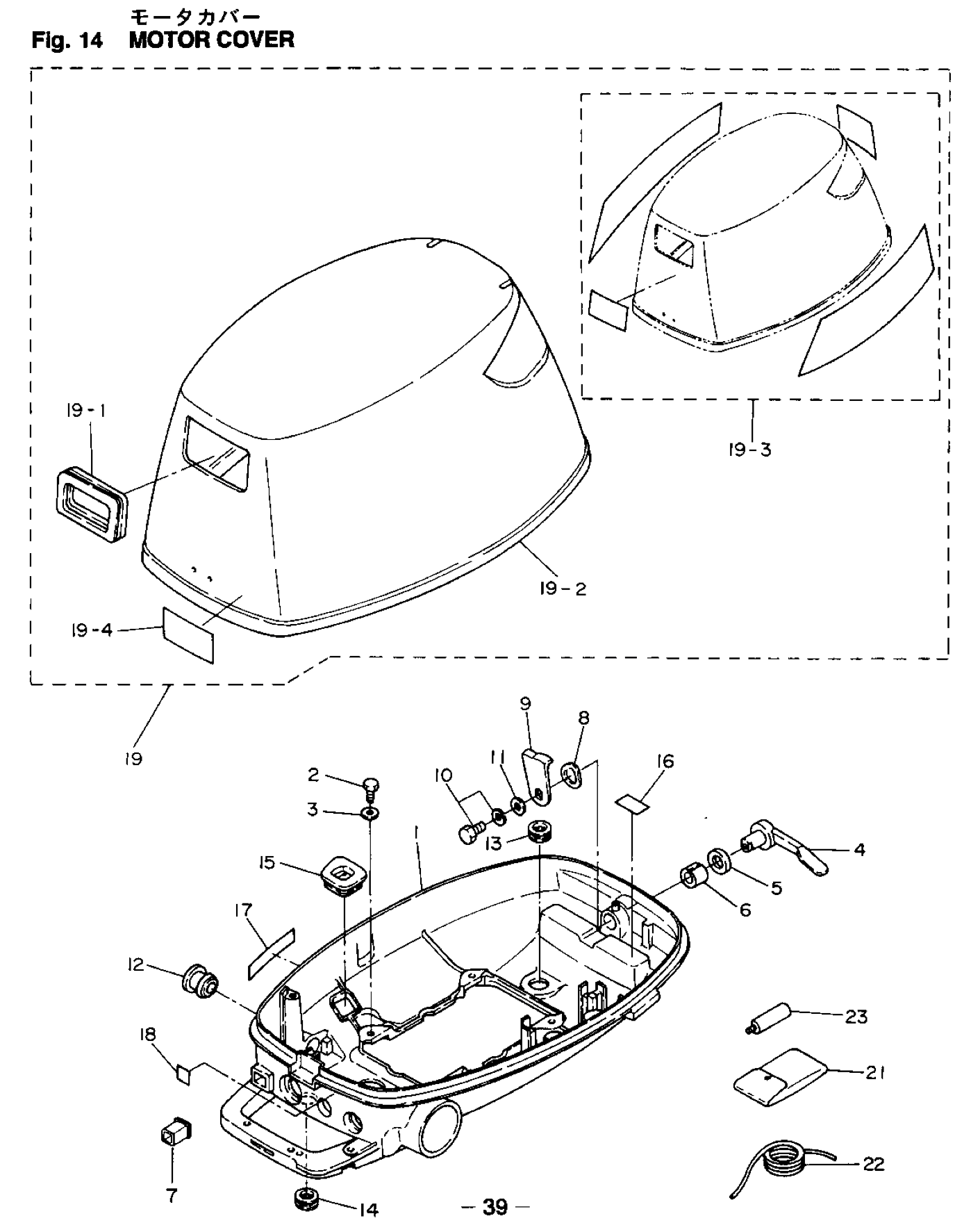

24
3C287-8010M MARK SET NS2.5A BLUE -81965
NC287-8010M MARK SET NS2.5A - GRAY 81966-

PUB.NO.M-340B PAGE 39 1992.12

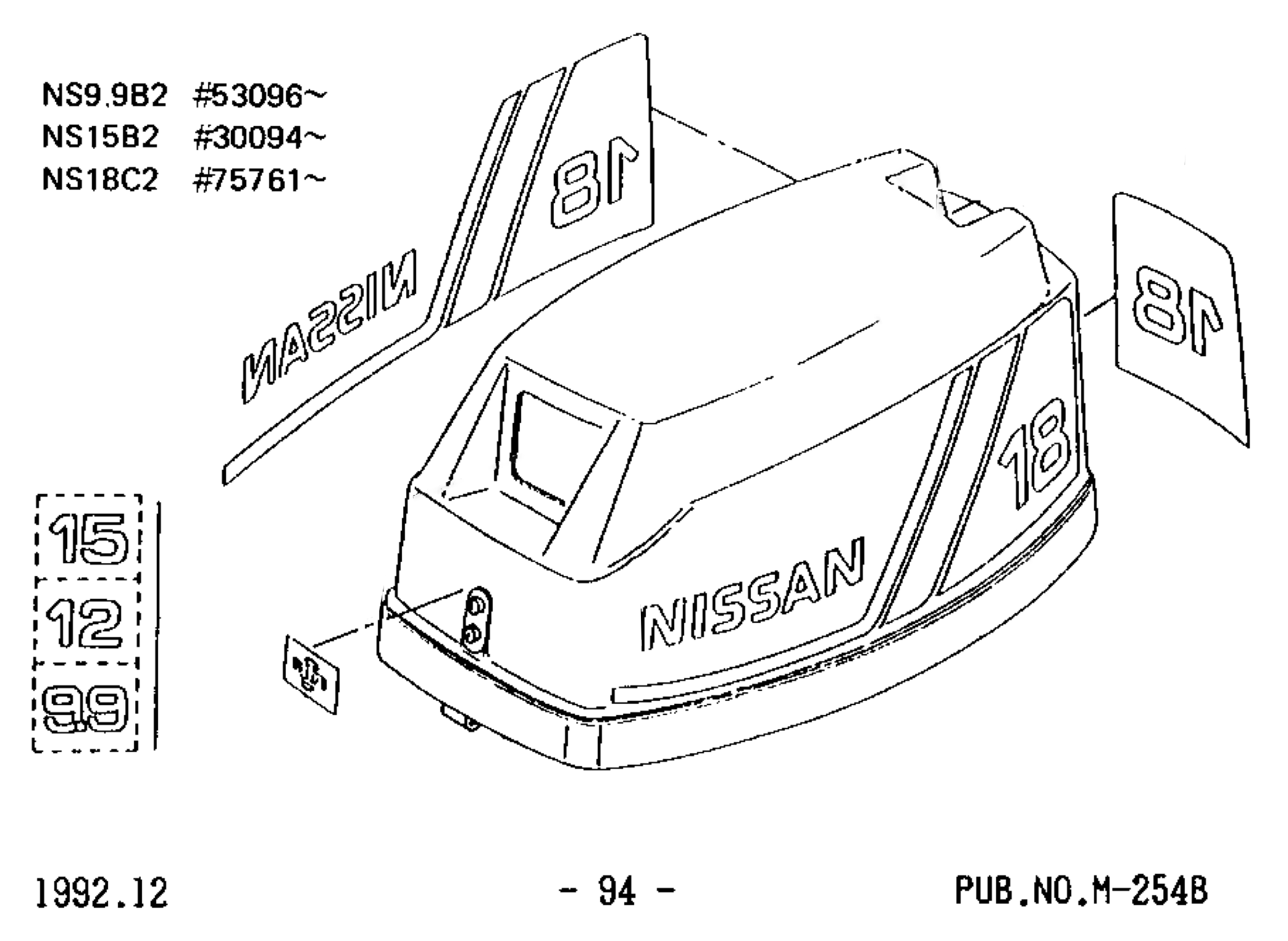

NS9.9B2 NS12C2 NS15B2 NS18C2

DIAGRAM PUB.NO.M-254B - 94 -1992.12

37967-5000M MOTOR COVER UPPER ASS'Y - BLUE NS18C2 -81161
37867-5000M MOTOR COVER UPPER ASS'Y - BLUE NS15B2 -33691
37767-5000M MOTOR COVER UPPER ASS'Y - NS12C2
37667-5000M MOTOR COVER UPPER ASS'Y - BLUE - NS9.9B2 -60344
N7967-5000M MOTOR COVER UPPER ASS'Y - GRAY - NS18C2 81162-
N7867-5000M MOTOR COVER UPPER ASS'Y - GRAY - NS15B2 33692-
N7667-5000M MOTOR COVER UPPER ASS'Y - GRAY NS9.9B2 60345-

37967-5000M, 37867-5000M, 37767-5000M, 37667-5000M, N7967-5000M, N7867-5000M, N7667-5000M
37967-5000M 37867-5000M 37767-5000M 37667-5000M N7967-5000M N7867-5000M N7667-5000M

NISSAN DECALS

37987-8010M MARK SET BLUE - NS18C2 -81161
37887-8010M MARK SET BLUE - NS15B2 -33691
37787-8010M MARK SET BLUE - N51202
37687-8010M MARK SET BLUE - N59. 9B2 -60344

N7987-8010M MARK SET GRAY - NC18C2 81162-
N7887-8010M MARK SET GRAY - N515B2 33692-
N7687-8010M MARK SET GRAY - NS9.9B2 60345-

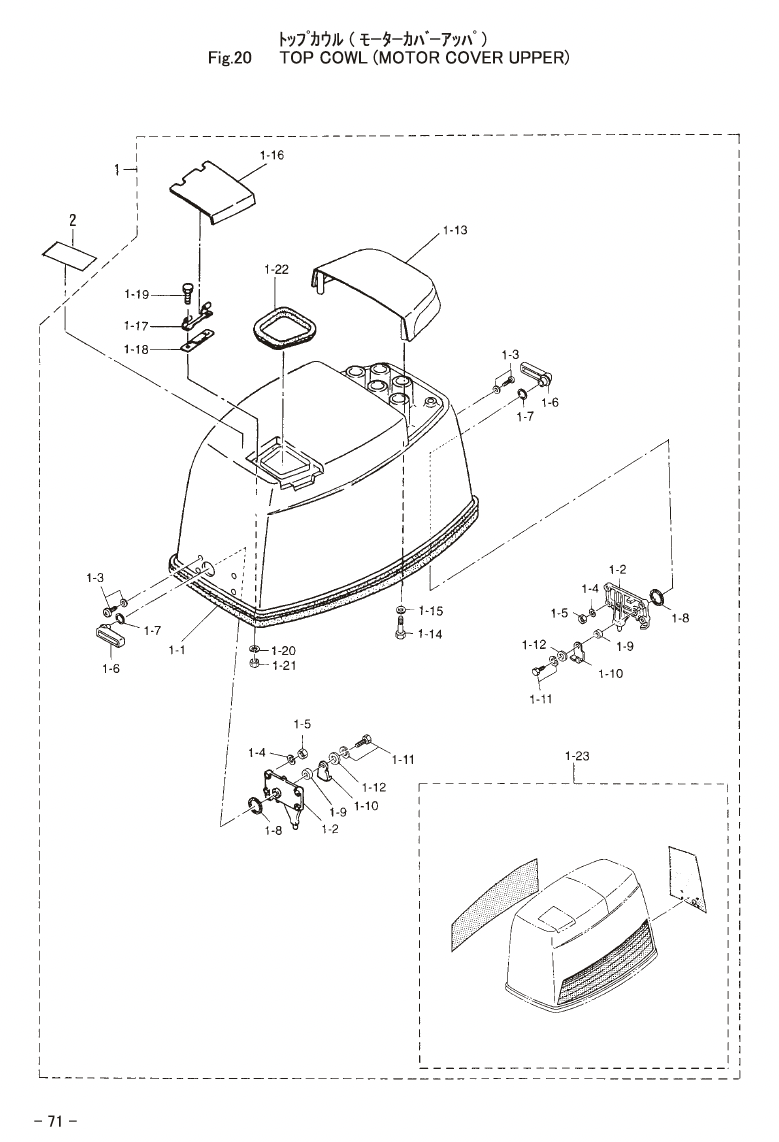

2015 TOHATSU TOP COWL Fig 18-P75-86

18-1 3SAQ67645-0 TOP COWL ASSY (SERVICE)
18-2 3SAQ67640-0 * TOP COWL SUB-ASSY

3SAQ67645-0, 3SAQ67640-0, 3SAQ67645-1, 3SAQ676450, 3SAQ676400, 3SAQ676451,
3SAQ67645-0 3SAQ67640-0 3SAQ67645-1 3SAQ676450 3SAQ676400 3SAQ676451

TOHATSU DECALS

18-7 2 3RZ-87801-0 * DECAL SET (MFS9.9D) 9.9ps
18-7 3 3SB-87801-0 * DECAL SET * (MFS15D) 15ps
18-7 3SA-87801-0 * DECAL SET(MFS20D) 20ps

18-8 3AC-72200-0 * STOP SWITCH DECAL
18-9 3BA-76199-0 * OIL PRESSURE DECAL
18-10 3BJ-67563-0 PTT DECAL for EFT/EPT (15,20)
18-11 3R0-72180-0 CAUTION DECAL (A)
18-12 3SP-67573-0 SPORT DECAL for SPORT (9.9)

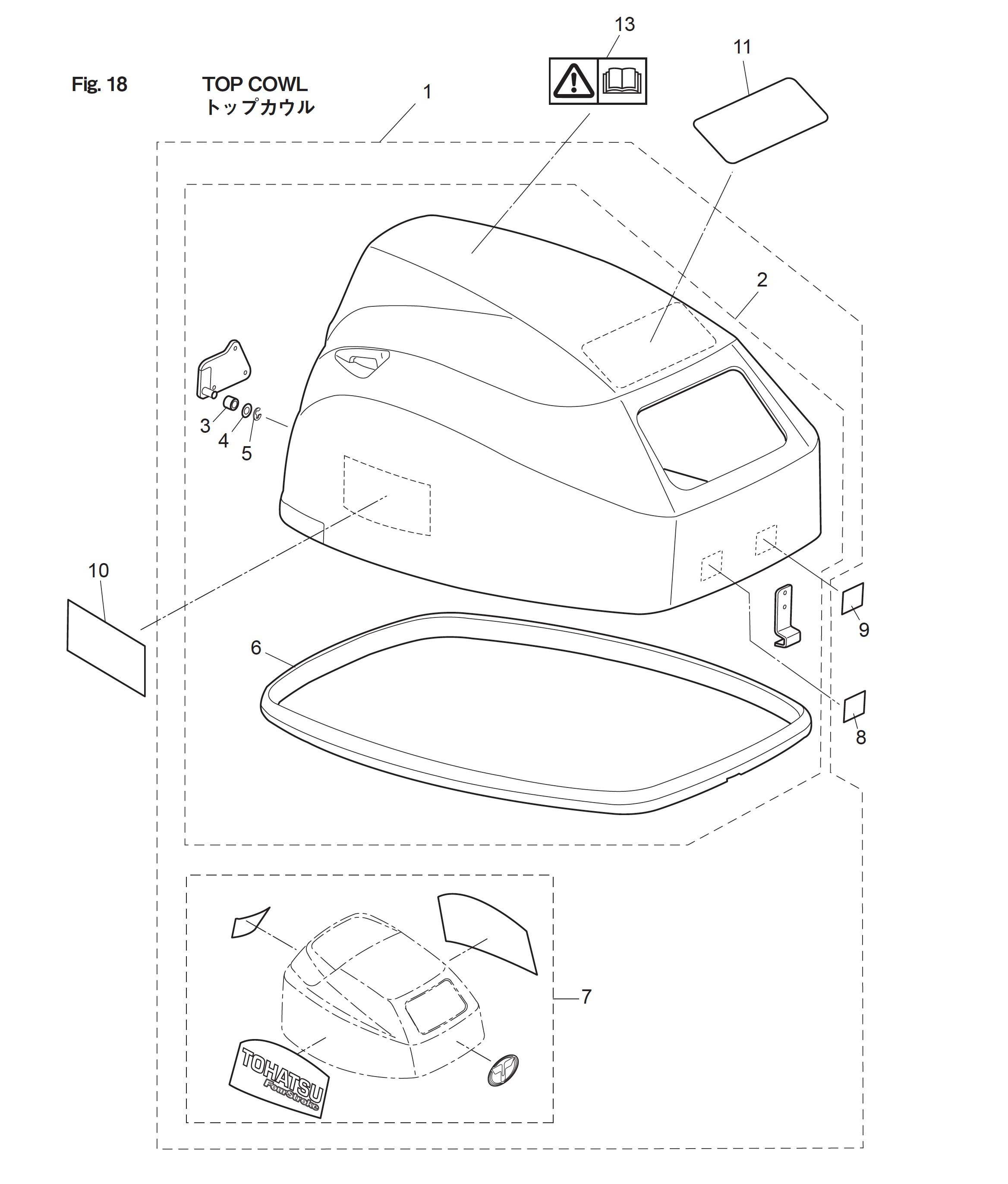

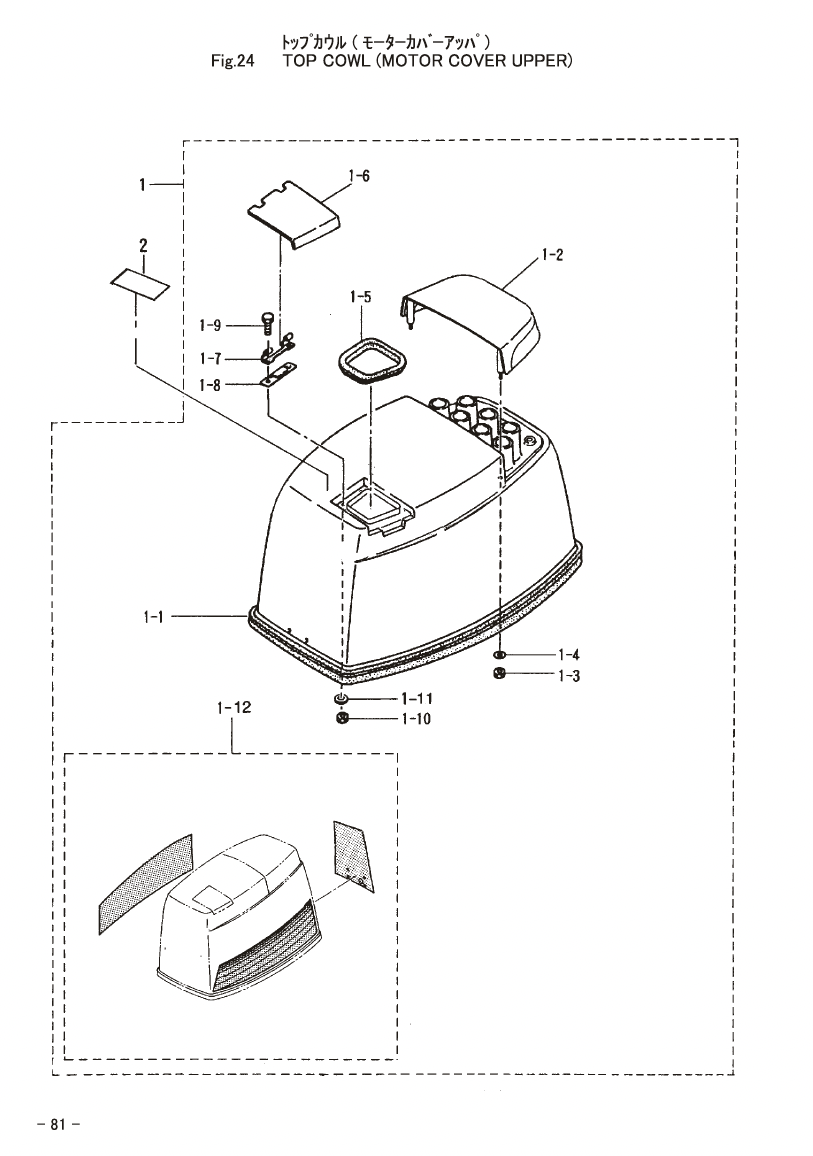

2016-2017 TOHATSU - Fig. 18 TOP COWL P75-86
トップカウル

18-1 3SAQ67645-1 TOP COWL ASSY (SERVICE) - ﾄｯﾌﾟｶｳﾙｱｯｼ
18-2 3SAQ67640-0 * TOP COWL SUB-ASSY - * ﾄｯﾌﾟｶｳﾙｻﾌﾞｱｯｼ

3SAQ67645-0, 3SAQ67640-0, 3SAQ67645-1, 3SAQ676450, 3SAQ676400, 3SAQ676451,
3SAQ67645-0 3SAQ67640-0 3SAQ67645-1 3SAQ676450 3SAQ676400 3SAQ676451

TOHATSU DECALS

18-7 1 3RZ-87801-0 * DECAL SET(MFS9.9D) - * ﾃﾞｶ-ﾙｾｯﾄ （MFS9.9D) - 9.9ps
18-7 2 3SB-87801-0 * DECAL SET(MFS15D) - * ﾃﾞｶ-ﾙｾｯﾄ （MFS15D）- 15ps
18-7 3 3SA-87801-0 * DECAL SET(MFS20D) - * ﾃﾞｶ-ﾙｾｯﾄ (MFS20D) 20ps

18-8 3AC-72200-0 STOP SWITCH DECAL - ｽﾄｯﾌﾟｽｲｯﾁﾃﾞｶ-ﾙ
18-9 3BA-76199-0 OIL PRESSURE DECAL - ｵｲﾙﾌﾟﾚｯｼｬﾃﾞｶｰﾙ
18-10 3BJ-67563-0 PTT DECAL - PTTﾃﾞｶｰﾙ - for EFT/EPT Type
18-11 3R0-72180-0 CAUTION DECAL (A) - ｺｰｼｮﾝﾃﾞｶｰﾙ (A)
18-13 3AC-72185-0 CAUTION DECAL ｺｰｼｮﾝﾃﾞｶｰﾙ for EU Model

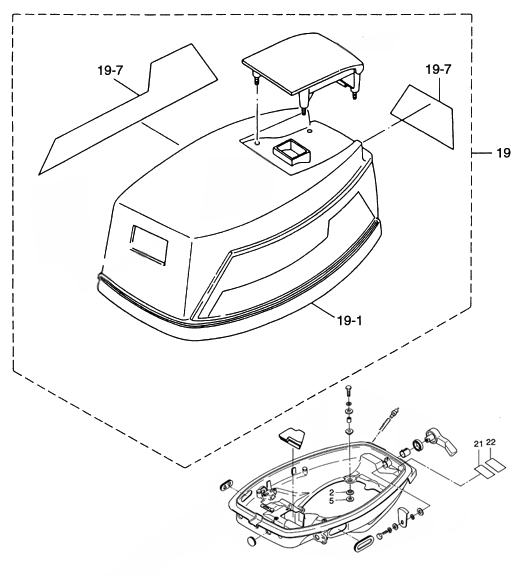

23. MOTOR COVER UPPER DIAGRAM 002-21050-1_FIG23


23-1

3R0S67500-0 Upper Motor Cover Ass'y UNIQUE 25A~#20224.30A~#30211
3R0S67500-1 Upper Motor Cover Ass'y UNIQUE 25A#20225~, 30A#30212~

23-2

3S9S87801-0 Decal Set 25A UNIQUE
3R0S87801-0 Decal Set 30A UNIQUE

23-3 3R0-72180-0 Caution Label A

LOWER MOTOR COVER

22-26 3R3-67578-0 Decal, F, N, R (Shift Mark) For MF & EF
22-27 3H6-67572-0 Label, Storage
22-28 3H6-76199-0 Label, Oil Pressure
