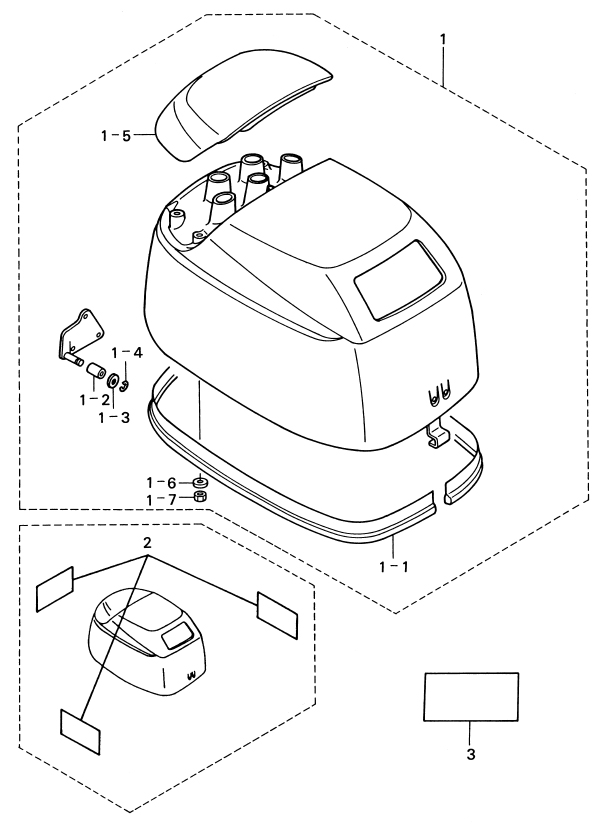

23. MOTOR COVER UPPER DIAGRAM 002-21050-1_FIG23


23-1

3R0S67500-0 Upper Motor Cover Ass'y UNIQUE 25A~#20224.30A~#30211
3R0S67500-1 Upper Motor Cover Ass'y UNIQUE 25A#20225~, 30A#30212~

23-2

3S9S87801-0 Decal Set 25A UNIQUE
3R0S87801-0 Decal Set 30A UNIQUE

23-3 3R0-72180-0 Caution Label A

LOWER MOTOR COVER

22-26 3R3-67578-0 Decal, F, N, R (Shift Mark) For MF & EF
22-27 3H6-67572-0 Label, Storage
22-28 3H6-76199-0 Label, Oil Pressure

(1) 3R0S675000 3R0S67500-0 UPPER MOTOR COVER ASSY  TOHATSU / 25A ~#20224 / 30A ~#30211
(1) 3R0S675001 3R0S67500-0 UPPER MOTOR COVER ASSY  TOHATSU / 25A #20225~ / 30A #30212~
(1) 3W3N675001 3W3N67500-1 UPPER MOTOR COVER ASSY  NISSAN

(2) 3R0S878010 3R0S87801-0 DECAL SET  TOHATSU
(2) 3W3N878010 3W3N87801-0 DECAL SET  NISSAN
(3) 3R0721800M 3R0-72180-0 CAUTION DECAL A

4-stroke
NSF25A
NSF30A
OB NO.002N21050-1
0207 MH-700

64 3R0S67500-1 3W3N67500-1 MOTOR COVER, UPPER
64 3R3S87801-0 3W3N87801-0 DECAL SET (NFS30A)
64 3S9S87801-0 3W2N87801-0 DECAL SET (NFS25A)
