Mid - Large Outboard Engines (25 - 250hp) > BF > BF90 > BF90DK2 LRTA > LABEL

63100-ZZ0-M30ZB COVER, ENGINE *NHB14M* (AQUA MARINE SILVER METALLIC) [K5]

63100-ZY9-030ZB, 63100-ZZ0-M30ZB

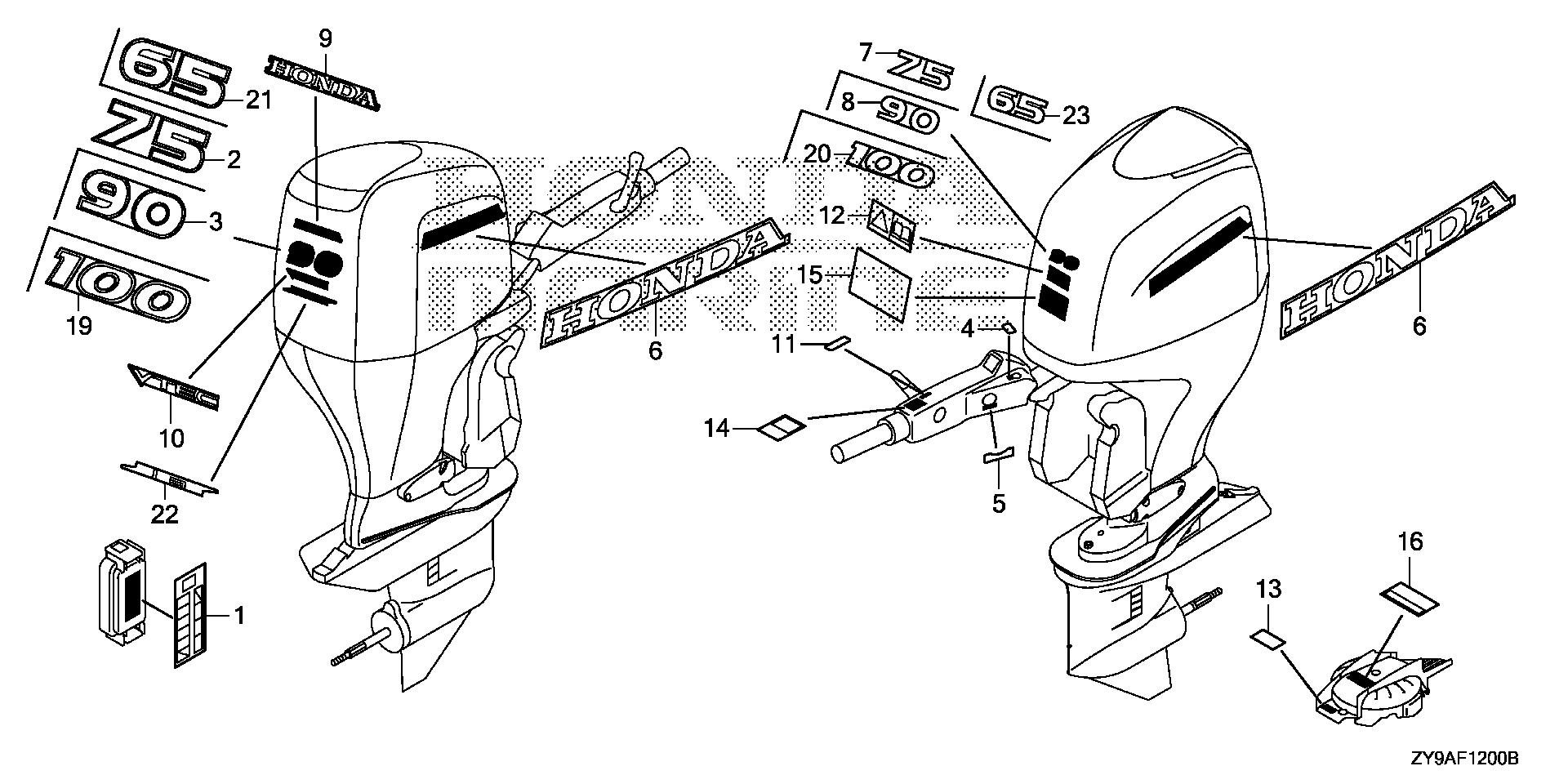

LABEL DIAGRAM 14ZY9C01-ZY9AF1200B

SERIAL 1000001 9999999
001 87117-ZY9-000 LABEL, FUSE

002 87121-ZY9-C00 MARK, RR. (75)
007 87301-ZY9-C00 MARK, FR. EMBLEM (75)

003 87121-ZZ0-C00 MARK, RR. (90)
008 87301-ZZ0-C00 MARK, FR. EMBLEM (90)

005 87121-ZZ0-H80 MARK, RR. (100)
011 87301-ZZ0-H80 MARK, FR. EMBLEM (100)

021 87121-ZY9-J00 MARK, RR. (65)
022 87134-ZY9-J00 MARK (JET)
023 87301-ZY9-J00 MARK, FR. EMBLEM (65)

006 87132-ZY9-000 MARK, SIDE STRIPE
009 87303-ZZ5-C00 MARK, HONDA (SMALL - 65/75/90/100/115/135/150/175/200/225/250 HP)
010 87304-ZZ5-C00 MARK (VTEC)  (90/100/150/200/225/250 HP)

013 87531-ZY9-000 LABEL, CAUTION OIL (ENGLISH)
015 87538-ZW1-740 LABEL, WARNING OPERATOR (ENGLISH)
016 87546-ZY9-000 MARK, EMERGENCY START (ENGLISH)
017 87546-ZY9-000 MARK, EMERGENCY START (ENGLISH) [K5] JET

Read more: 2007 AND LATER HONDA 75/90/100 HP LRTA XRTA - 65 JET JRTA

> Mid - Large Outboard Engines (25 - 250hp) BF > BF90/BF75 > BF90DK0/BF75DK0 XRTA > LABELS

ENGINE COVER-UNDER COVER DIAGRAM 14ZY9701-ZY94F0800B

63100-ZY9-010ZA COVER ASSY., ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)

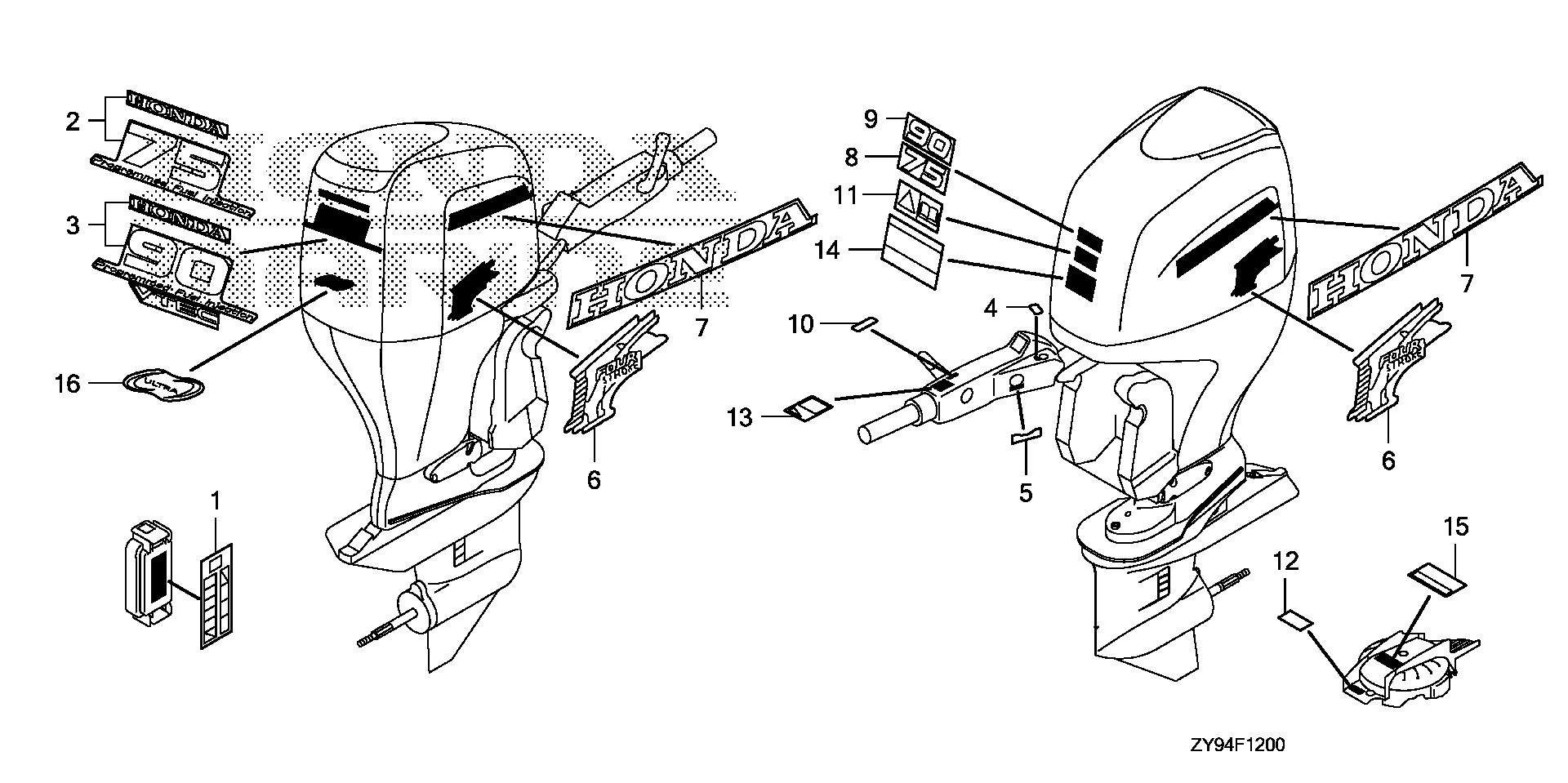

Diagram 14ZY9701-ZY94F1200

003 87121-ZZ0-000 MARK, RR. (90) 1000001 9999999
009 87301-ZZ0-000 MARK, FR. EMBLEM (90) 1000001 9999999

87121-ZZ0-000, 87301-ZZ0-000

002 87121-ZY9-000 MARK, RR. (75)
008 87301-ZY9-000 MARK, FR. EMBLEM (75)

87121-ZY9-000, 87301-ZY9-000

006 87131-ZW1-N00 MARK, SIDE  (FOURSTROKE SIDES) ORDER 2
007 87132-ZY9-000 MARK, SIDE STRIPE  (HONDA LETTERS) ORDER 2

87131-ZW1-N00, 87132-ZY9-000

004 87124-ZV3-010 MARK, EMERGENCY SWITCH INDICATION 1000001 1005015
004 87124-ZZ5-780 MARK, EMERGENCY SWITCH INDICATION (EU) 1005016 9999999
005 87125-ZW1-700 MARK, STARTER (ENGLISH) 1014791 9999999

010 87511-ZW9-000 MARK, CHANGE 1000001 9999999
012 87531-ZY9-000 LABEL, CAUTION OIL (ENGLISH) 1000001 9999999
013 87532-ZW9-640 MARK, THROTTLE (ENGLISH) 1000001 9999999
014 87538-ZW1-740 LABEL, WARNING OPERATOR (ENGLISH) 1000001 9999999
015 87546-ZY9-000 MARK, EMERGENCY START (ENGLISH) 1000001 9999999

001 87117-ZY9-000 LABEL, FUSE 1000001 9999999

Read more: 2002-2007 - Honda 75/90 4S - BF90/BF75 > BF90DK0/BF75DK0 XRTA

> Product Lines > Mid - Large Outboard Engines (25 - 250hp) > BF > BF90 > BF90AW LHTA >
MARK

Honda Outboard  BF90AW JHTA JRTA LHTA LRTA XRTA

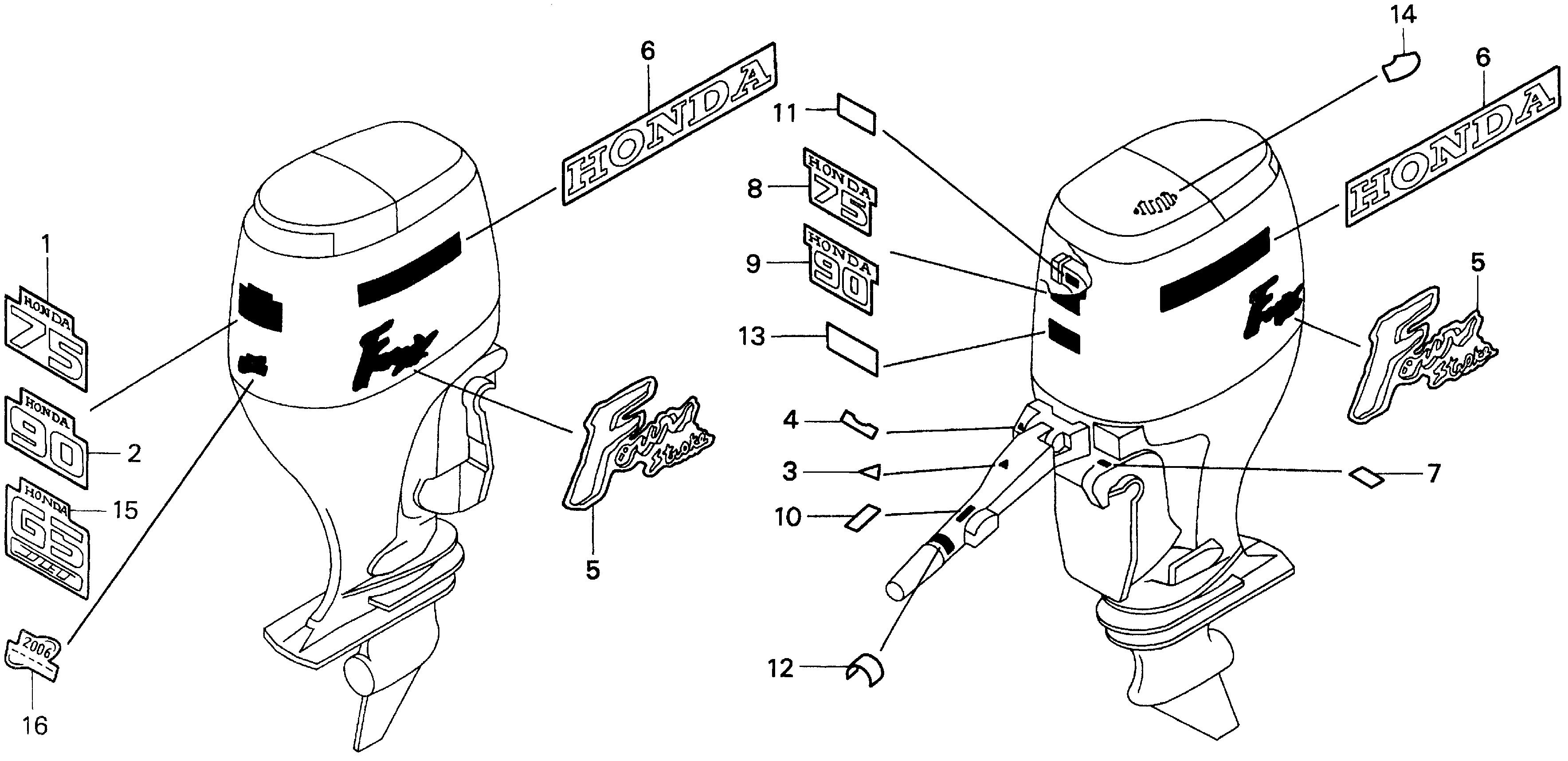

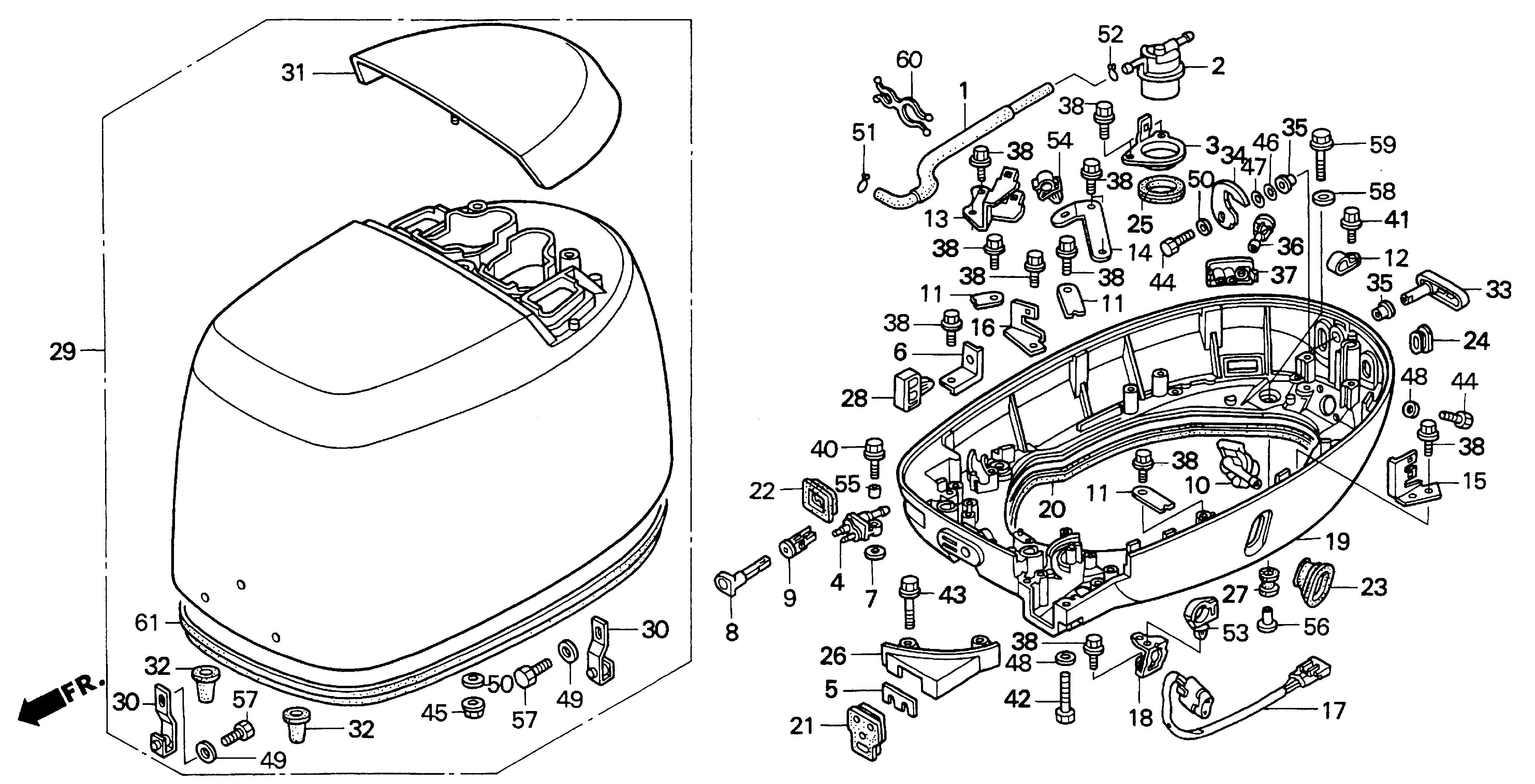

ENGINE COVER DIAGRAM 14ZW00E1-ZW04F0800B

029. 63100-ZW1-030ZA COVER ASSY., ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)

Diagram 14ZW00E1-ZW04F1200A

1. 87121-ZW0-000 MARK, RR. (BF75)
8. 87301-ZW0-000 MARK, FR. EMBLEM (75)

87121-ZW0-000, 87301-ZW0-000, 87131-ZW1-000, 87132-ZW1-000, 87634-ZW1-H40,
87121-ZW0-000 87301-ZW0-000 87131-ZW1-000 87132-ZW1-000 87634-ZW1-H40

2. 87121-ZW1-000 MARK, RR. (BF90) [1997-2001]
9. 87301-ZW1-000 MARK, FR. EMBLEM (90)

87121-ZW1-000, 87301-ZW1-000, 87131-ZW1-000, 87132-ZW1-000, 87634-ZW1-H40,
87121-ZW1-000 87301-ZW1-000 87131-ZW1-000 87132-ZW1-000 87634-ZW1-H40

15. 87121-ZW1-F40 MARK, RR. (BF65) (JET)

87121-ZW1-F40, 87131-ZW1-000, 87132-ZW1-000, 87634-ZW1-H40,
87121-ZW1-F40 87131-ZW1-000 87132-ZW1-000 87634-ZW1-H40

5. 87131-ZW1-000 MARK, SIDE FOUR STROKE [90-75hp - 1997-2001]
6. 87132-ZW1-000 MARK, SIDE STRIPE HONDA [90-75hp - 1997-2001]

3. 87124-ZV3-620 MARK, EMERGENCY SWITCH INDICATION (ENGLISH)*
4. 87125-ZW1-700 MARK, START (E)*

7. 87152-ZW1-740 LABEL, SPECIFICATION (NMMA)*

10. 87511-ZV1-C20 MARK, CHANGE (JAPANESE/ENGLISH)*
11. 87531-ZW1-740 LABEL, OIL CAUTION (ENGLISH)*

12. 87532-ZV3-620 MARK, THROTTLE (ENGLISH)*
13. 87538-ZW1-740 LABEL, CAUTION OPERATOR (ENGLISH); SEE PART DETAILS - PRI [ 5/8/9.9/15/25/30/40/50/60/75/90/100

14. 87546-ZW1-740 MARK, EMERGENCY START (ENGLISH)*
16. 87634-ZW1-H40 MARK, ENVIRONMENT (EPA 2006)*

Read more: 1997-2001 HONDA 75/90 HP 65 JET 4S - 90HP BF90AW JHTA JRTA LHTA LRTA XRTA

Honda Outboard 2002 BF15A2 LA VIN# BAAS-1700001 To BAAS-1799999

https://peparts.honda.com/image.ashx?id=18ZV40E1-ZV48F0800F

OIL CASE - ENGINE COVER DIAGRAM ZV48F0800F

030 63100-ZV4-000ZB COVER, ENGINE *NH282MU* (OYSTER SILVER METALLIC-U) 1000001 9999999
030 63100-ZV4-010ZB COVER, ENGINE *NH282MU* (OYSTER SILVER METALLIC-U) 1602093 9999999

Labels DIAGRAM ZV48-F1200B

https://peparts.honda.com/image.ashx?id=18ZV40E1-ZV48F1200B

1. 87121-ZV4-G00  MARK, RR. (15)
2. 87123-ZV4-620 LABEL, INDICATION (E)
3. 87124-ZV3-620  MARK, EMERGENCY SWITCH INDICATION (ENGLISH)
5. 87125-ZV4-A20  MARK, SPARE CLIP (ENGLISH)
6. 87131-ZW9-S00 MARK, SIDE
7. 87132-ZV4-G00 MARK, SIDE STRIPE (HONDA)
8. 87150-ZV4-A20  LABEL, SPECIFICATION
9. 87511-ZV5-620  MARK, CHANGE (ENGLISH)
10. 87512-ZV4-A21 MARK, RECEPTACLE (6A)
11. 87531-ZV4-A20  LABEL, OIL CAUTION (ENGLISH)
12. 87532-ZV4-A20  MARK, THROTTLE (E)
13. 87535-ZV5-620 LABEL, STORING CAUTION (ENGLISH)
14. 87538-ZV1-C22 LABEL, OPERATOR CAUTION (ENGLISH)
14. 87538-ZV1-C23  LABEL, WARNING OPERATOR
17. 87135-ZW5-000 MARK (E-SPEC)
