MODEL YEAR 2003 PARTS LIST
BOAT MODEL: 255 CONQUEST-03
DOCUMENT CONTROL NO: PB255CQ81

ITEM  -  B.W.I. NO.  -  DESCRIPTION

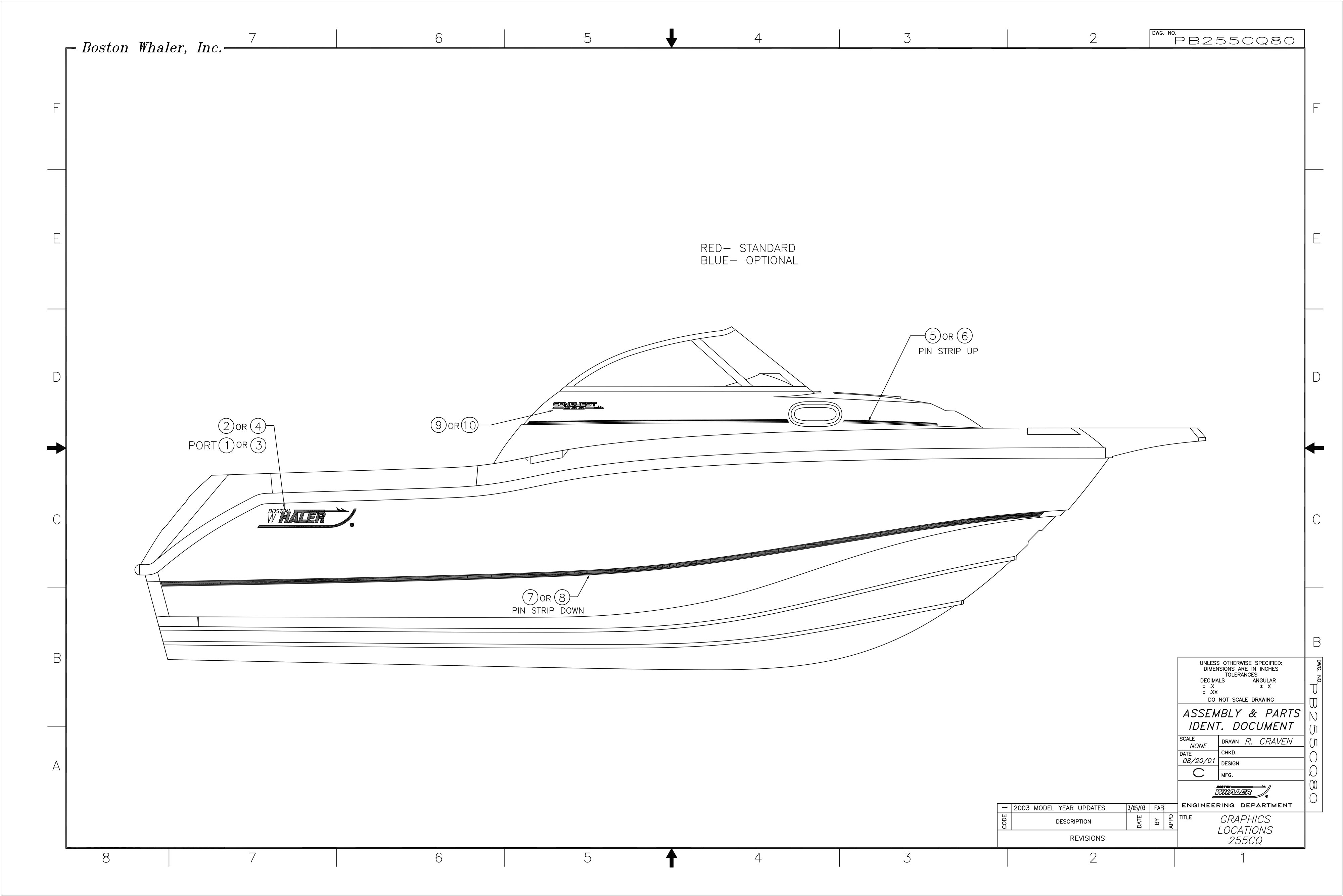

BLUE
1. 1452762 - DECAL, BW LOGO 28" BLUE PORT
2. 1457696 - DECAL, BW LOGO 28" BLUE STBD
5. 1038090 - TAPE, SOLID 1/2" CORBIN DK BLUE W/ PIN STRIP 30 FT Console stripe
7. 1658541 - TAPE, SOLID 2" CORBIN DK BLUE W/ PIN STRIP 50 FT Bootstripe (Water line)
9. 1621705 - DECAL, BW-02 255CQ CORBIN DK BLUE Conquest 255 Logo

RED
3. 1452754 - DECAL, BW LOGO 28" RED PORT
4. 1457688 - DECAL, BW LOGO 28" RED STBD
6. 1038116 - TAPE, SOLID 1/2" FIRE RED W/ PIN STRIP 30 FT Console stripe
8. 1658533 - TAPE, SOLID 2" FIRE RED W/ PIN STRIP 50 FT Bootstripe (Water line)
10. 1621697 - DECAL, BW-02 255CQ FIRE RED Bootstripe

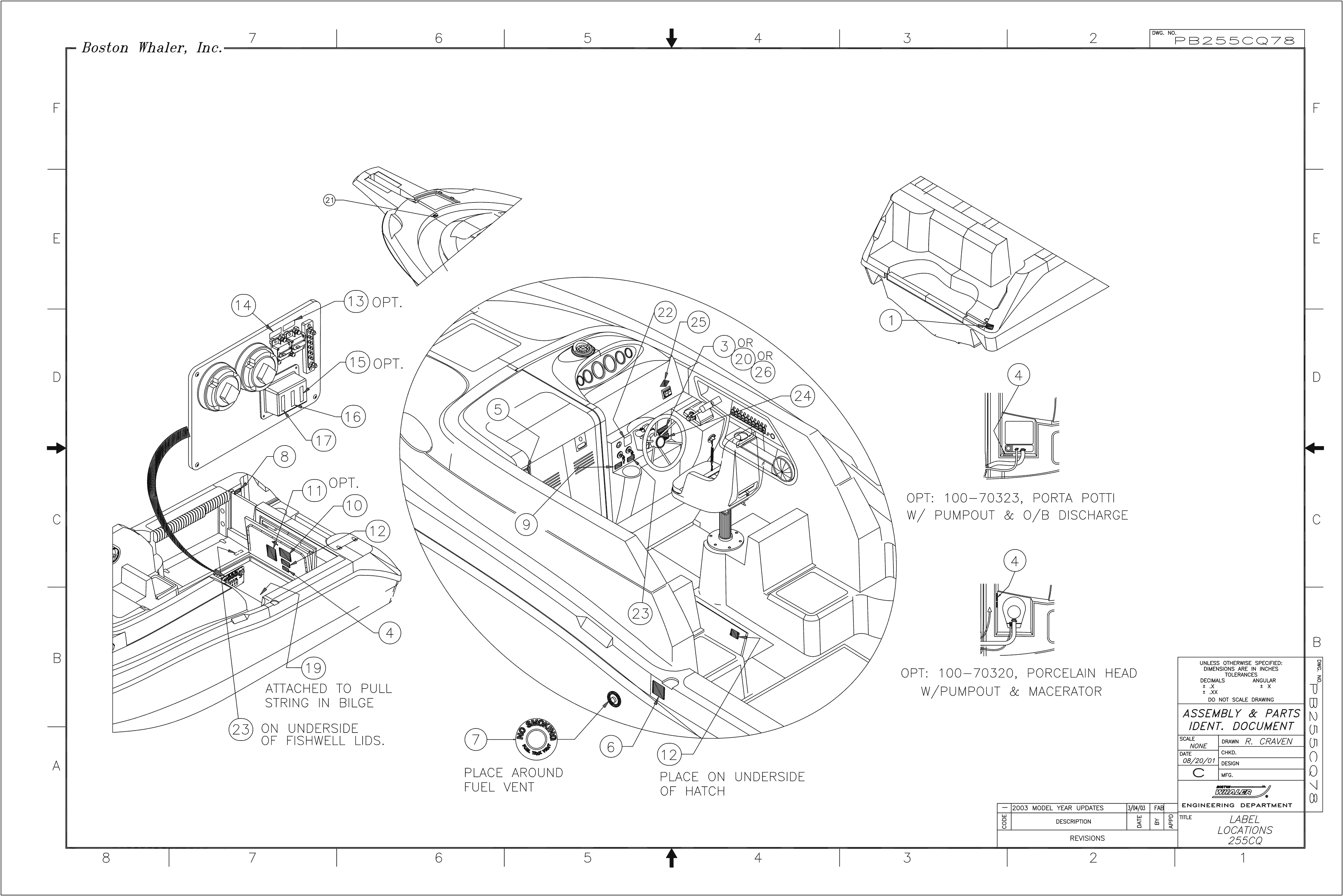

MODEL YEAR 2003 PARTS LIST
BOAT MODEL: 255 CONQUEST-03
DOCUMENT CONTROL NO: PB255CQ79

ITEM  - B.W.I. NO.  -   DESCRIPTION

11. 1016948 - LABEL, BW WARNING SWIM PLATFORM
12. 1727512 - PLATE, NMMA 03-BW255CQ
13. 1745156 - LABEL, NOTICE OVERBOARD DISCHARGE
14. 1672112 - LABEL, WARNING RUNNING BOAT W/DOOR OPEN
15. 995704 - PLATE, WARNING FUEL HAZARD
16. 1016484 - LABEL, BW NO SMOKING FUEL VENT
17. 1017144 - LABEL, BW WARNING TRANSOM DOOR
18. 1110675 - LABEL, BW WARNING CARBON MONOXIDE
19. 1744737 - LABEL, DISCHARGE OF OIL
20. 1051762 - PLATE, BW, 230CQ-97 BATT PARALLEL DETAILS
21. 1691003 - WARNING, DO NOT STORE FUEL
22. 1212596 - LABEL, ANCHOR WINDLASS (LEXAN)
23. 1075282 - LABEL, BW DC MAIN BRKR
24. 1075266 - LABEL, BW STEREO
25. 1396720 - LABEL, BW DIGITAL OPTIMAX POSITIVE
26. 756866 - LABEL, BILGE (LEXAN)
27. 1727513 - PLATE, BUILDERS CE 03-BW255CQ
28. 943530 - LABEL, WARNING DO NOT OCCUPY SEAT
29. 1017136 - LABEL, BW SAFETY HI-PERF BOAT
30. 1689650 - LABEL, BW CAUTION FISHWELL DRAIN PLUG
31. 1735929 - PLATE, BW-03 MAX ENG WT 1220LB/553KG
32. 1743323 - DECAL, MERC SMARTCRAFT NETWORKED
33. 1746027 - PLATE, SAFETY CANADIAN CONFORMITY BW255CQ-03
