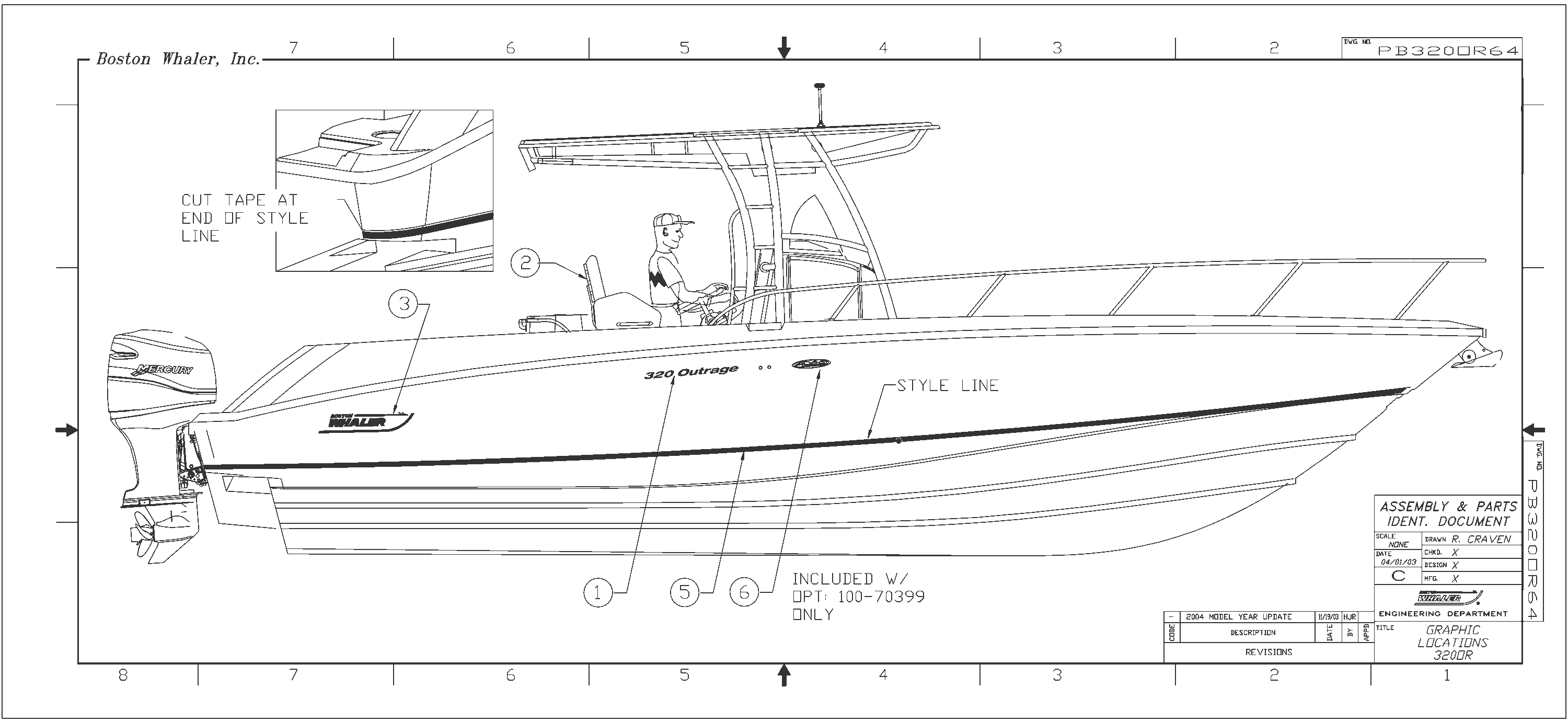

GRAPHICS AND DECALS

BOAT MODEL: 320 OUTRAGE - DOCUMENT CONTROL NO: PB3200R65

BOAT MODEL

• 1) 1753478 - DECAL, BW-04 3200R BLK (DRIP MOLD) - ORDER 2
• 1) 1753479 - DECAL, BW-04 320OR GRY (DRIP MOLD) - ORDER 2
• 1) 1753477 - DECAL, BW-04 3200R SLVR MATTE (DRIP MOLD) - ORDER 2

BW SEAT LOGO REAR

• 2) 1745888 - DECAL, BW LOGO 5.75" BLK/CHR (DRIP MOLD) - ORDER 2

BW HULL LOGOS

• 3) 1752941 - DECAL, BW-04 LOGO 29" RED PRT (DRIP MOLD)
• 3) 1752943 - DECAL, BW-04 LOGO 29" DK BLUE PRT (DRIP MOLD)
• 3) 1752950 - DECAL, BW LOGO 29" SLVR MATTE PRT (DRIP MOLD)
• 3) 1752948 - DECAL, BW-04 LOGO 29" BLK PRT (DRIP MOLD)
•
• 4) 1752942 - DECAL, BW-04 LOGO 29" RED STB (DRIP MOLD)
• 4) 1752944 - DECAL, BW-04 LOGO 29" DK BLUE STB (DRIP MOLD)
• 4) 1752951 - DECAL, BW LOGO 29" SLVR MATTE STB (DRIP MOLD)
• 4) 1752949 - DECAL, BW-04 LOGO 29" BLK STB (DRIP MOLD)

WATERLINE STRIPES

• 5) 1754509 - 90 FT. TAPE, SOLID 1" RED W/GRY STRIP
• 5) 1754510 - 90 FT. TAPE, SOLID 1" DK BLUE W/GRY PIN STRIP

ADSS EMBLEM - MEDALLION

• 6) 1749401 - 2 EA. DECAL, BW-03 ADSS 11.4" BLK/ CHR (DRIP MOLD) - ORDER 2

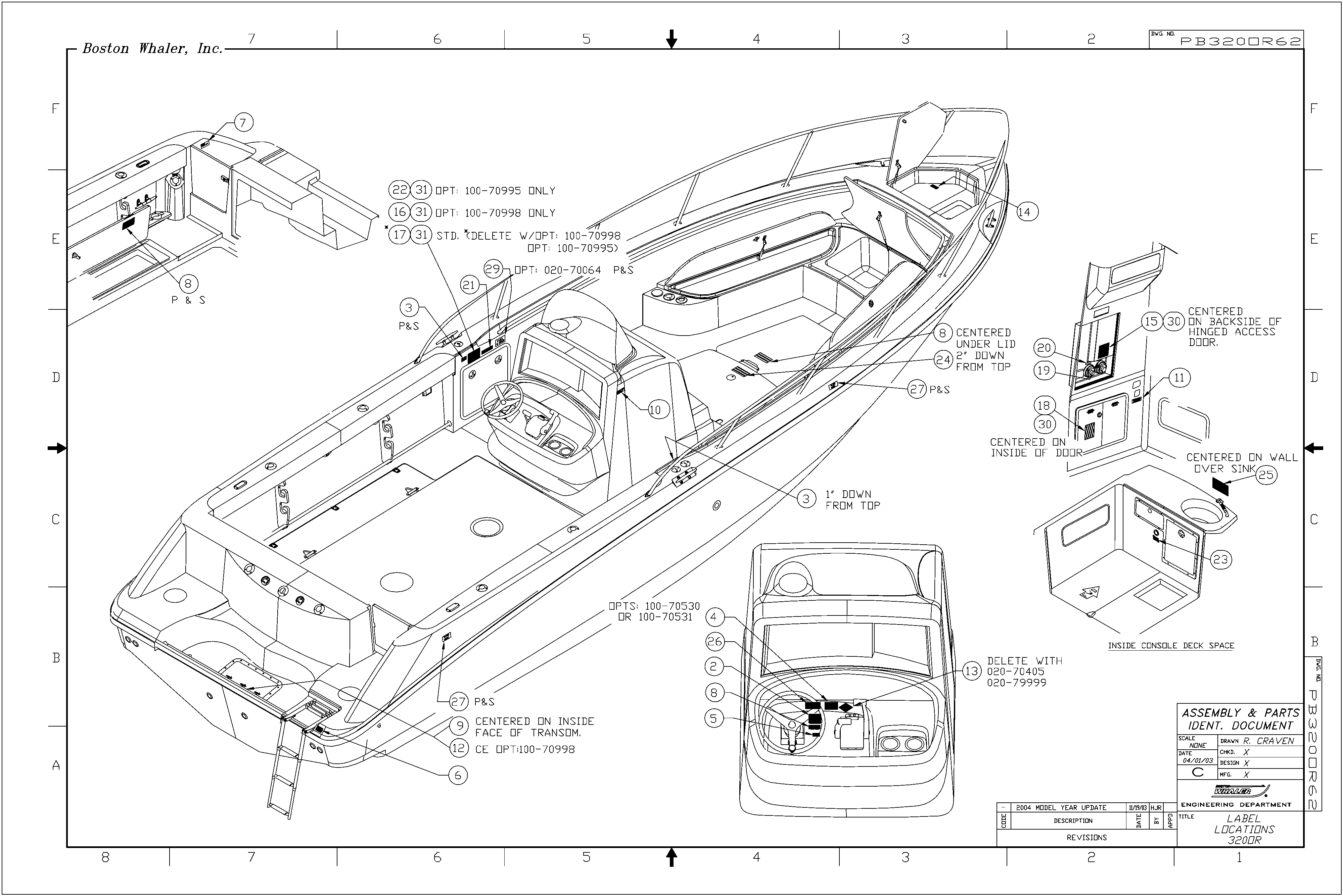

LABELS AND PLATES

BOAT MODEL: 320 OUTRAGE - DOCUMENT CONTROL NO: PB320DR63

• 1) 1016484 - LABEL, BW NO SMOKING FUEL VENT
• 2) 1017136 - LABEL, BW SAFETY HI-PERF BOAT
• 3) 995704 - PLATE, WARNING FUEL HAZARD - Order 2
• 4) 1110675 - LABEL, BW WARNING CARBON MONOXIDE CANVAS ENCL
• 5) 1016534 - LABEL, BW WARNING FUEL GAUGE READ
• 6) 1016948 - LABEL, BW WARNING SWIM PLATFORM
• 7) 1017144 - LABEL, BW WARNING TRANSOM DOOR
• 8) 1743504 - LABEL, BW CAUTION FISHWELL DRAIN PLUG - Order 4
• 9) 1744737 - LABEL, DISCHARGE OF DIL (LEXAN)
• 10) 1754632 - LABEL, DOOR SECURED CLOSED WHILE UND.
• 11) 1745156 - LABEL, NOTICE OVERBUARD DISCHARGE (LEXAN)
• 12) 1745514 - LABEL, PREVENT DISCHARGE OF POLLUTANTS
• 13) 1743323 - DECAL, MERC SMARTCRAFT NETWORKED
• 14) 1746896 - LABEL, DANGER STAY CLEAR OF MOVING PAR
• 15) 1051762 - PLATE, BWZ3OCQ-97 BATT PARALLEL DET
• 16) 1738303 - PLATE, BUILDERS CE 03-BW3200R
• 17) 125062 - PLATE, NMMA YACHT CERT GAS
• 18) 1742660 - PLATE, SEACOCK LOCATIONS BW320DR-03
• 19) 1743511 - LABEL, 2"X 1/2" STBD
• 20) 1744740 - LABEL, 2"X 1/2" PORT
• 21) 1735929 - PLATE, BW-03 MAX ENG WT 1220LB/553KG
• 22) 1746031 - PLATE, SAFETY CANADIAN CONFORMITY BW320DR-03
• 23) 1744738 - LABEL, RECEPTACLE 12V-15A MAX (LEXAN)
• 24) 1691003 - LABEL, WARNING DO NOT STORE FUEL
• 25) 1744745 - LABEL, DISPOSAL OF GARBAGE
• 26) 1752856 - LABEL, WARNING LID VISION FROM HELM STN
• 27) 1743532 - LABEL, SLING (LEXAN) - ORDER 4
• 28) 0614867 - DECAL, "SLING" LARGE (VAC PAC) - ORDER 4
• 29) 1749551 - LABEL, FUEL RECOMMENDATION 91 OCTANE - ORDER 2
• 30) 1734115 - SCREW, TAPPING #6A × 3/8" PTH SC - ORDER 8
• 31) 0192047 - RIVET, POP/BLIND #1/8 X 3/8" ALUM - ORDER 8
