SECTION 1 — HELM & COCKPIT WARNING LABELS

Fig. 1.19.1

• 1) 1795087 - Prop 65 Hang Tag
• 2) 2121785 - Hang Tag w/ Joystick Label Kit (Option 1)
• 3) 1811368 - Danger, CO Helm
• 4) 1752856 - Warning, Limited Visibility From Helm
• 5) 2121785 - Warning w/Joystick Label Kit (Option 1)
• 6) 1950698 - Warning, Rotating Propeller

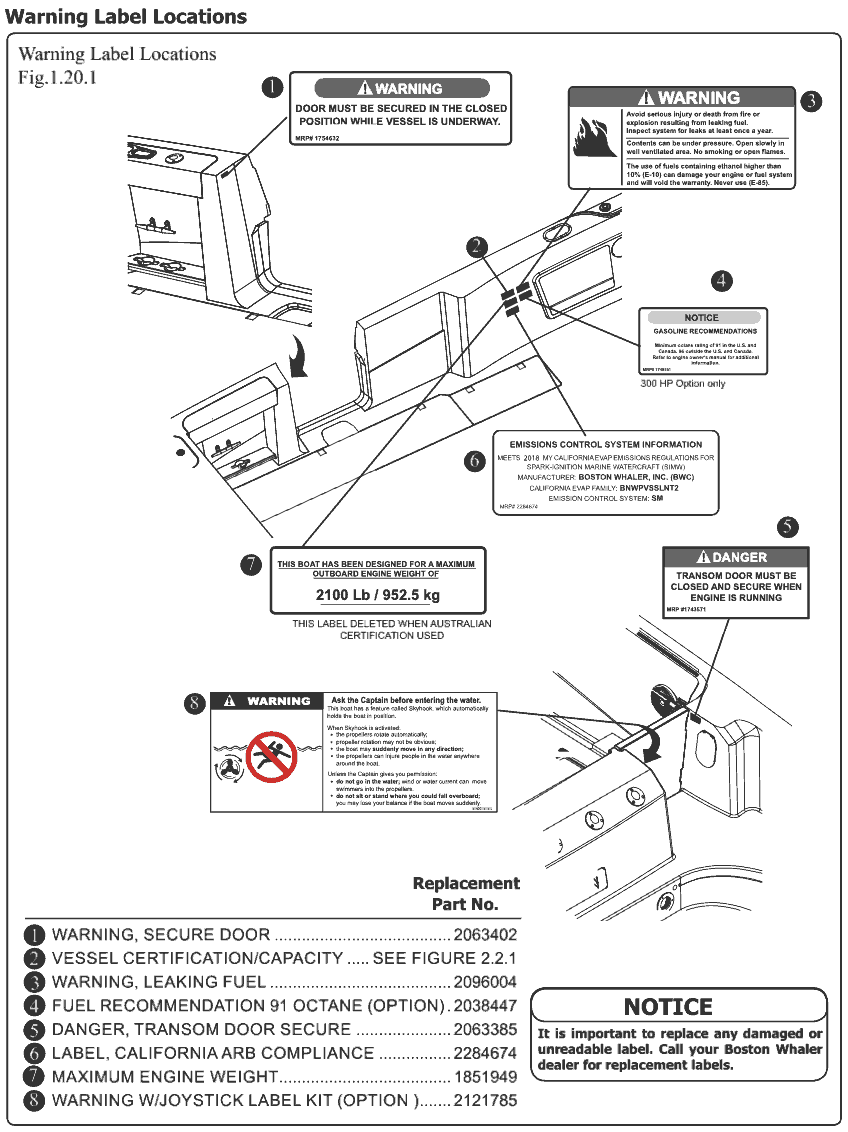

SECTION 2 — AFT DECK & INTERIOR WARNING LABELS

Fig. 1.20.1

• 1) 2063402 - Warning, Secure Door
• 2) Vessel Certification / Capacity (see Fig. 2.2.1) – plate referenced separately
• 3) 2096004 - Warning, Leaking Fuel
• 4) 2038447 - Fuel Recommendation 91 Octane (Option)
• 5) 2063385 - Danger, Transom Door Secure
• 6) 2284674 - Label, California ARB Compliance
• 7) 1851949 - Maximum Engine Weight
• 8) 2121785 - Warning w/Joystick Label Kit (Option 1)

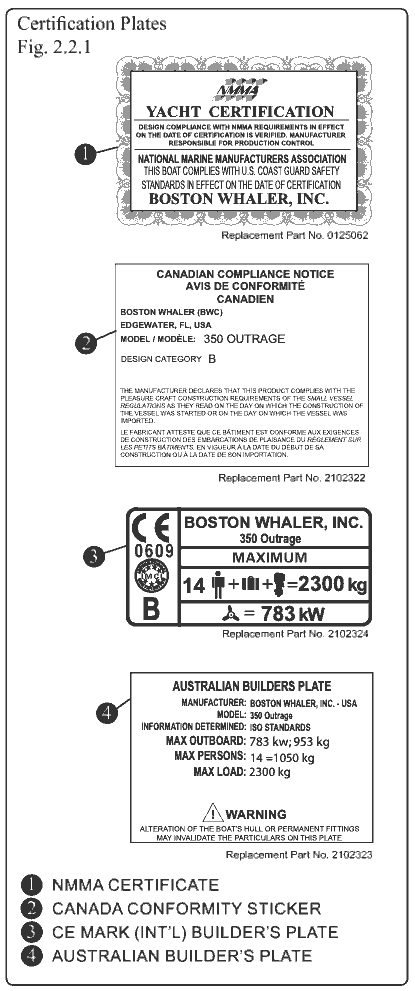

SECTION 6 — CERTIFICATION PLATES

Fig. 2.2.1

• 1) 0125062 - NMMA Certificate
• 2) 2102322 - Canada Conformity Sticker
• 3) 2102324 - CE Mark / International Builder’s Plate
• 4) 2102323 - Australian Builder’s Plate

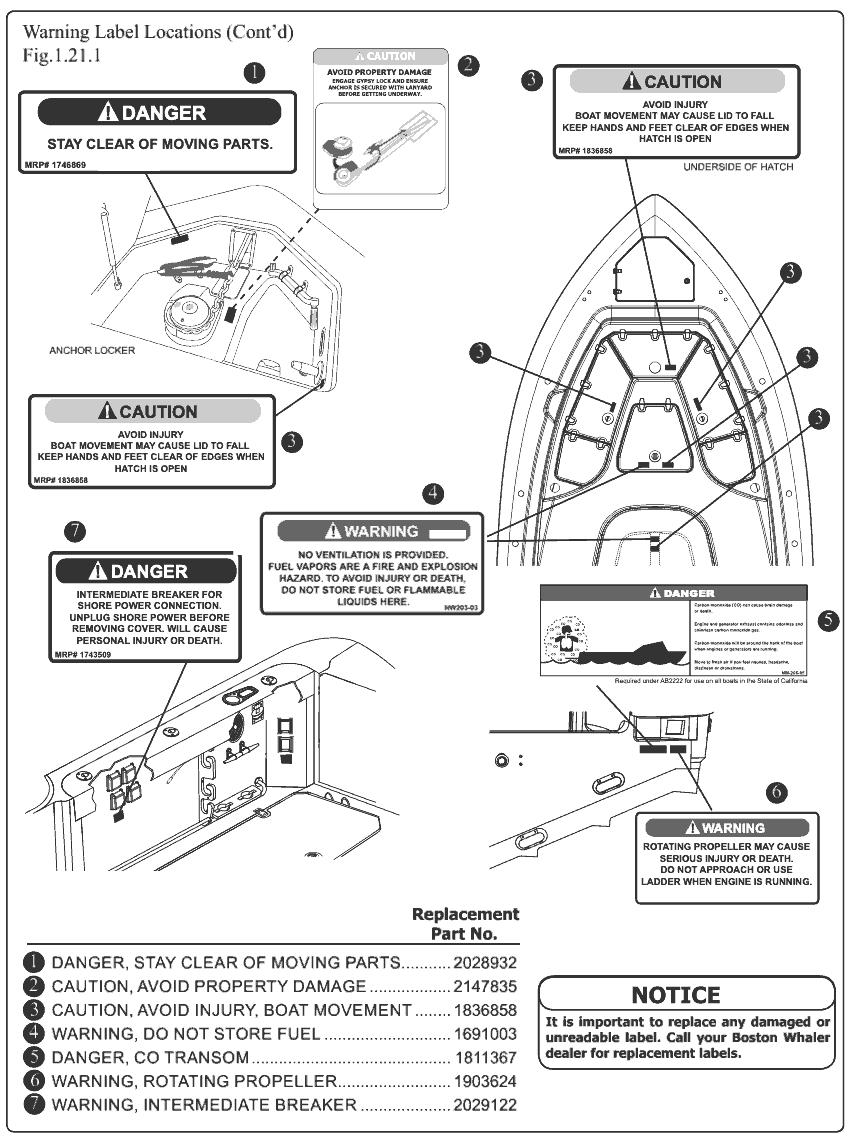

SECTION 3 — ANCHOR LOCKER, BOW & TRANSOM LABELS

Fig. 1.21.1

• 1) 2028932 - Danger, Stay Clear of Moving Parts
• 2) 2147835 - Caution, Avoid Property Damage
• 3) 1836858 - Caution, Avoid Injury – Boat Movement
• 4) 1691003 - Warning, Do Not Store Fuel
• 5) 1811367 - Danger, CO Transom
• 6) 1903624 - Warning, Rotating Propeller
• 7) 2029122 - Warning, Intermediate Breaker

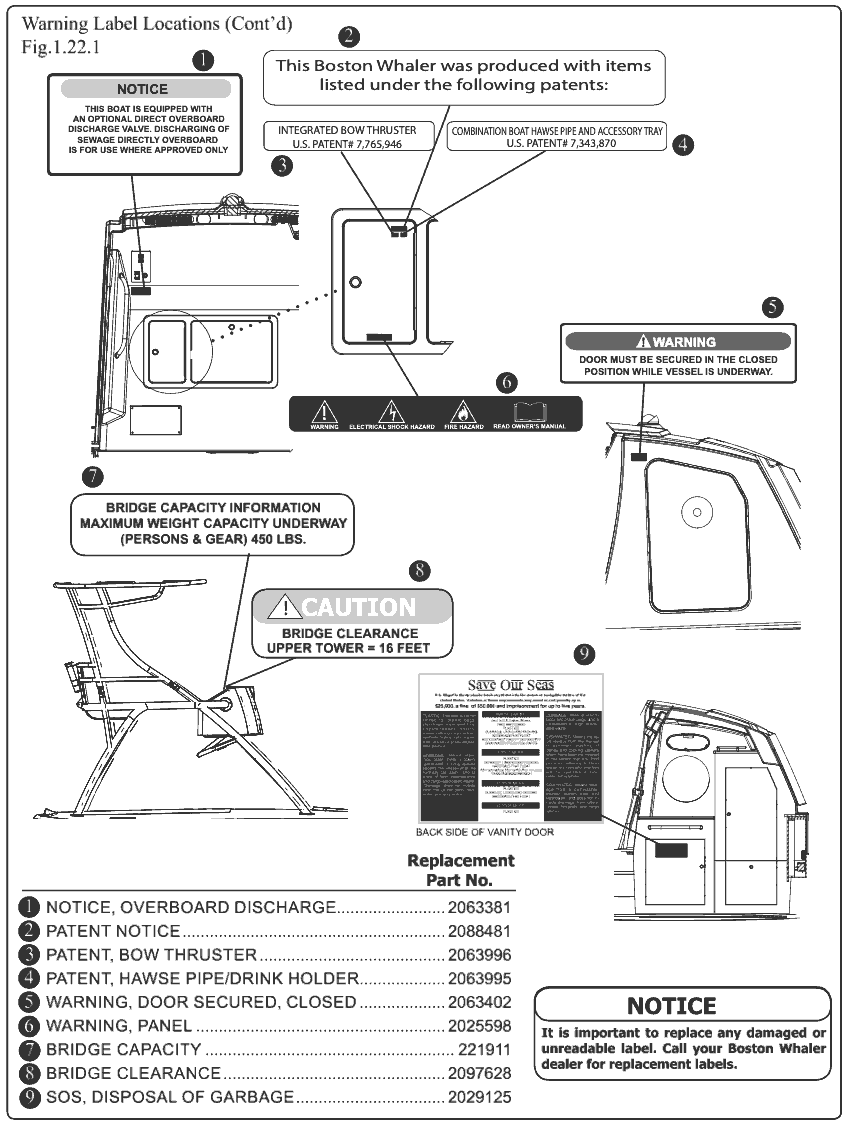

SECTION 4 — PATENT LABELS, BRIDGE CAPACITY & TOWER CLEARANCE

Fig. 1.22.1

• 1) 2063381 - Notice, Overboard Discharge
• 2) 2088481 - Patent Notice
• 3) 2063996 - Patent, Bow Thruster
• 4) 2063995 - Patent, Hawse Pipe / Drink Holder Tray
• 5) 2063402 - Warning, Door Secured Closed
• 6) 2025598 - Warning Panel (multi-icon: electrical, fire, read manual)
• 7) 221911 - Bridge Capacity Plate (450 lbs)
• 8) 2097628 - Bridge Clearance Label (16 Feet)
• 9) 2029125 - SOS, Disposal of Garbage

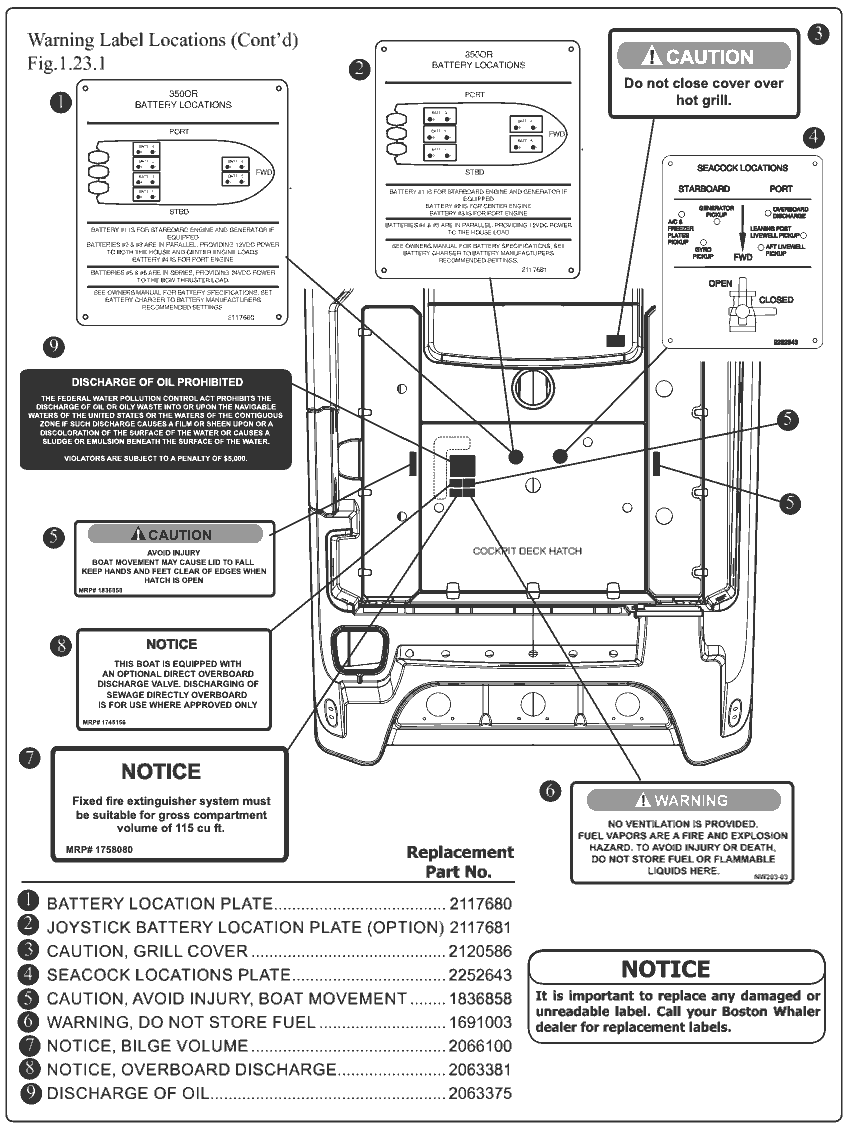

SECTION 5 — BATTERY, SEACOCK & GRILL AREA LABELS

Fig. 1.23.1

• 1) 2117680 - Battery Location Plate
• 2) 2117681 - Joystick Battery Location Plate (Option)
• 3) 2120586 - Caution, Grill Cover – Hot Surface
• 4) 2252643 - Seacock Locations Plate
• 5) 1836858 - Caution, Avoid Injury – Boat Movement
• 6) 1691003 - Warning, Do Not Store Fuel
• 7) 2066100 - Notice, Bilge Volume
• 8) 2063381 - Notice, Overboard Discharge
• 9) 2063375 - Discharge of Oil

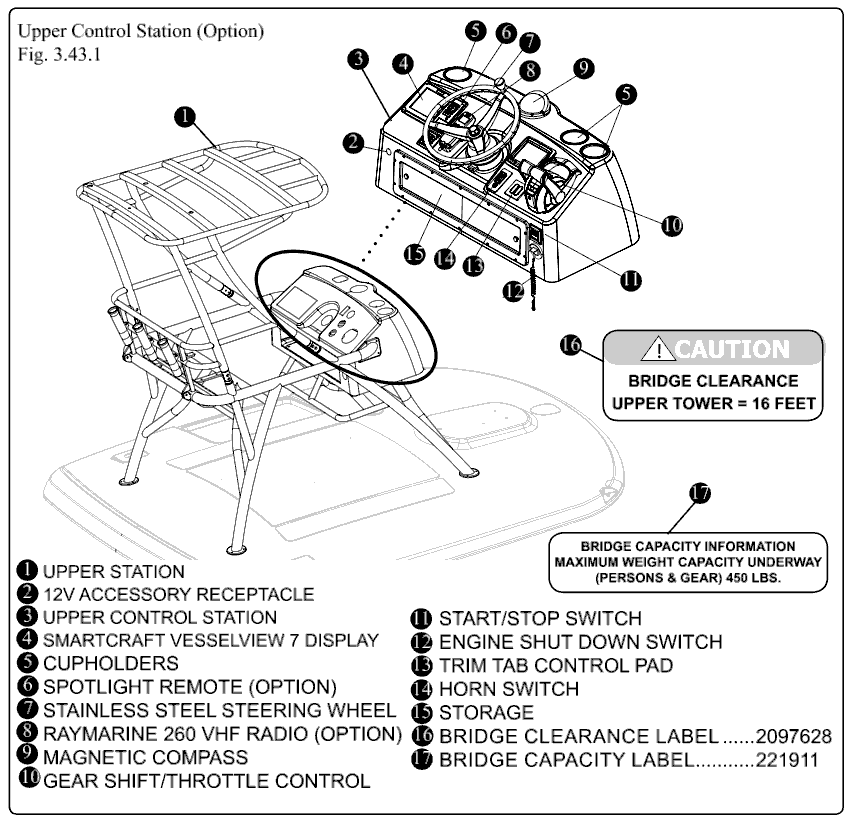

SECTION 7 — UPPER CONTROL STATION LABELS (OPTION)

Fig. 3.43.1

• 16) 2097628 - Bridge Clearance Label
• 17) 221911 - Bridge Capacity Label
