2004 Evinrude -225 E225FHLSRM

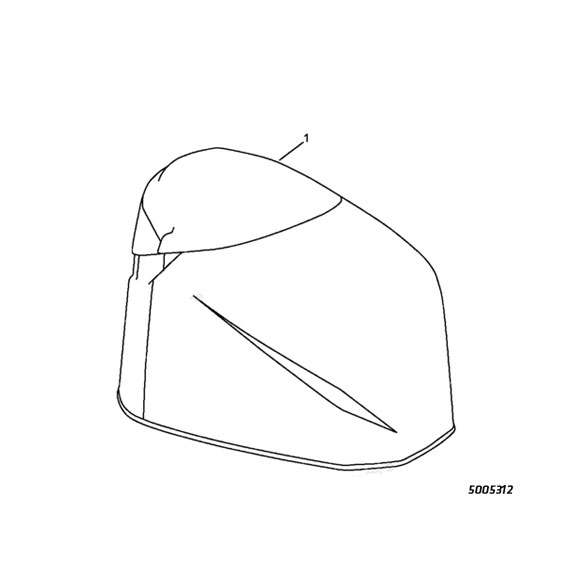

ENGINE COVER
Diagram EPC3413

http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\5005312%2003\EPC3413.tif&ilSC=50&ilIV=0&ilBR=0&ilIF=P&ilRE=8

IMPORTANT: When ordering "ENGINE COVER Assy", New P/N for 2004
0285613 ENGINE COVER Assy, "WHITE"
0285625 ENGINE COVER Assy, "BLUE".

IMPORTANT: When ordering "ENGINE COVER Assy"; FHL, FHX Models only; New P/N for 2004
0285624 ENGINE COVER Assy, "BLUE".

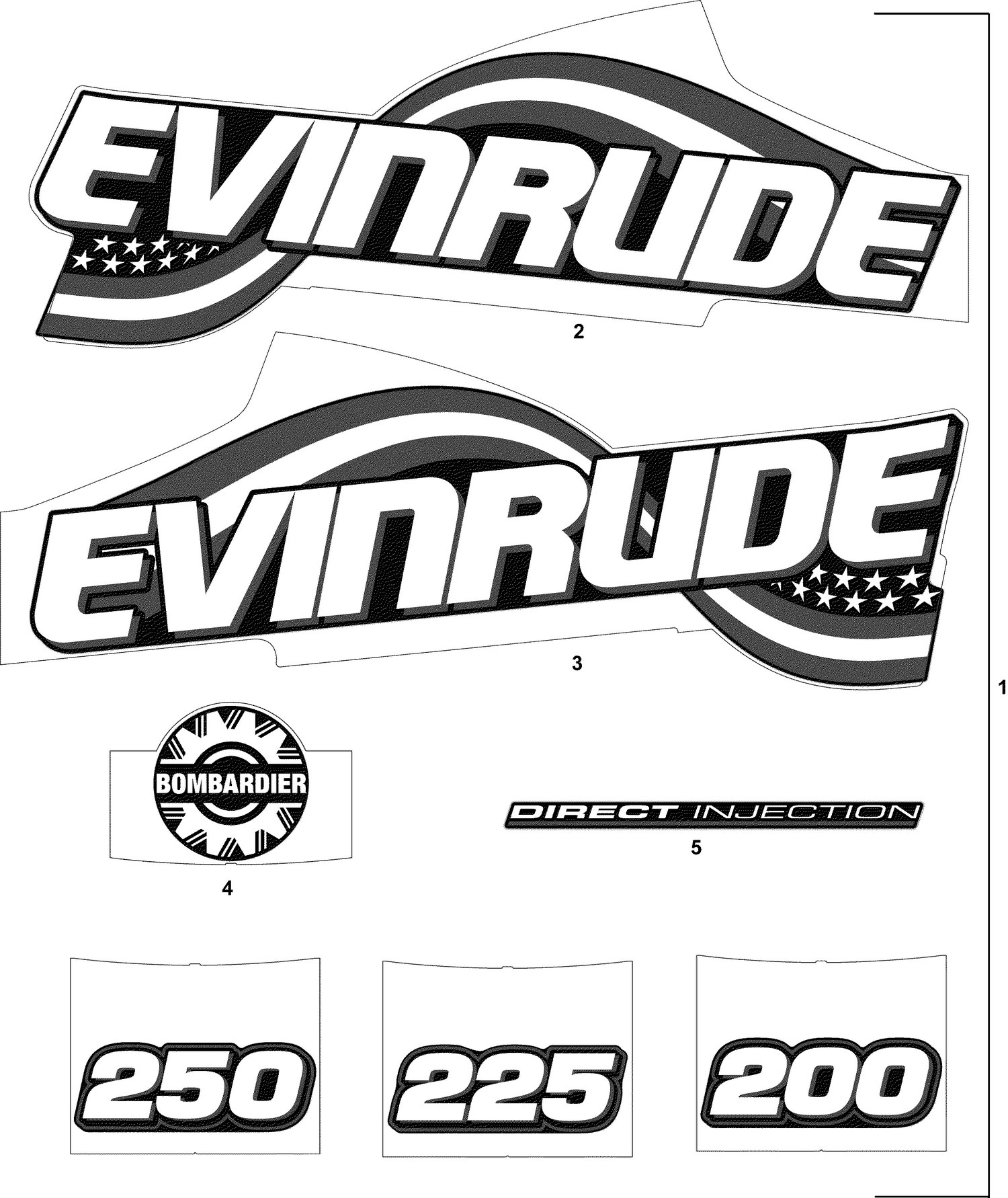

EVINRUDE DECAL ACCESSORY SET - BLUE MODELS

Diagram EPC3646

http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\045005686\EPC3646.tif&ilSC=500&ilIV=0&ilBR=0&ilIF=P&ilRE=8

1) 0776290 Decal Set, Flag
2) 0215320 *Decal, Flag - Port
3) 0215319 *Decal, Flag - Port
4) 0215317 *BOMBARDIER - front/rear (2 Decals)
5) 0215556 *DIRECT INJECTION (2 Decals)
0776304 *Squeege, Application. Not Shown

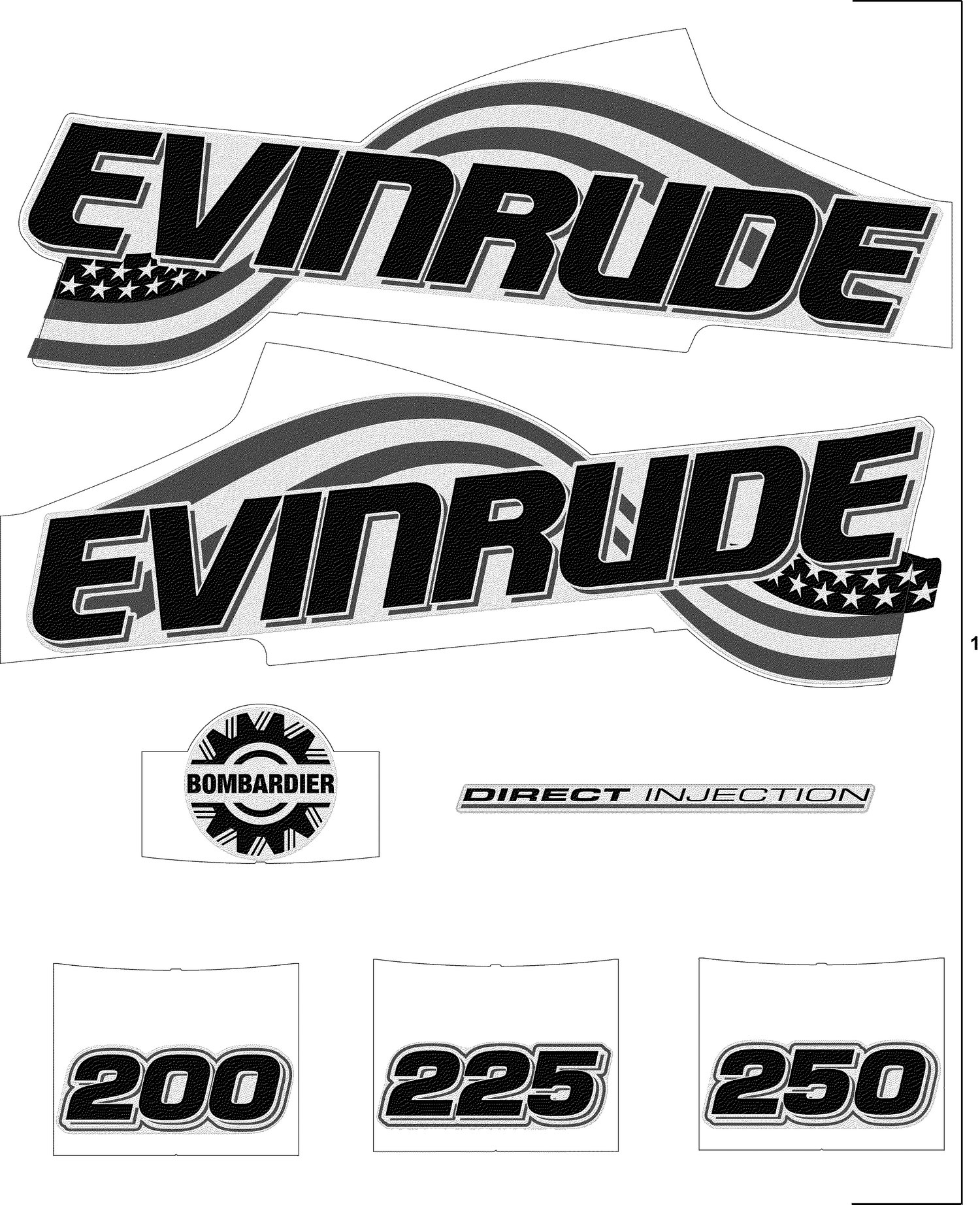

EVINRUDE DECAL ACCESSORY SET - WHITE MODELS

Diagram EPC3647

http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\045005686\EPC3647.tif&ilSC=500&ilIV=0&ilBR=0&ilIF=P&ilRE=8

0776293 Decal Set, Flag

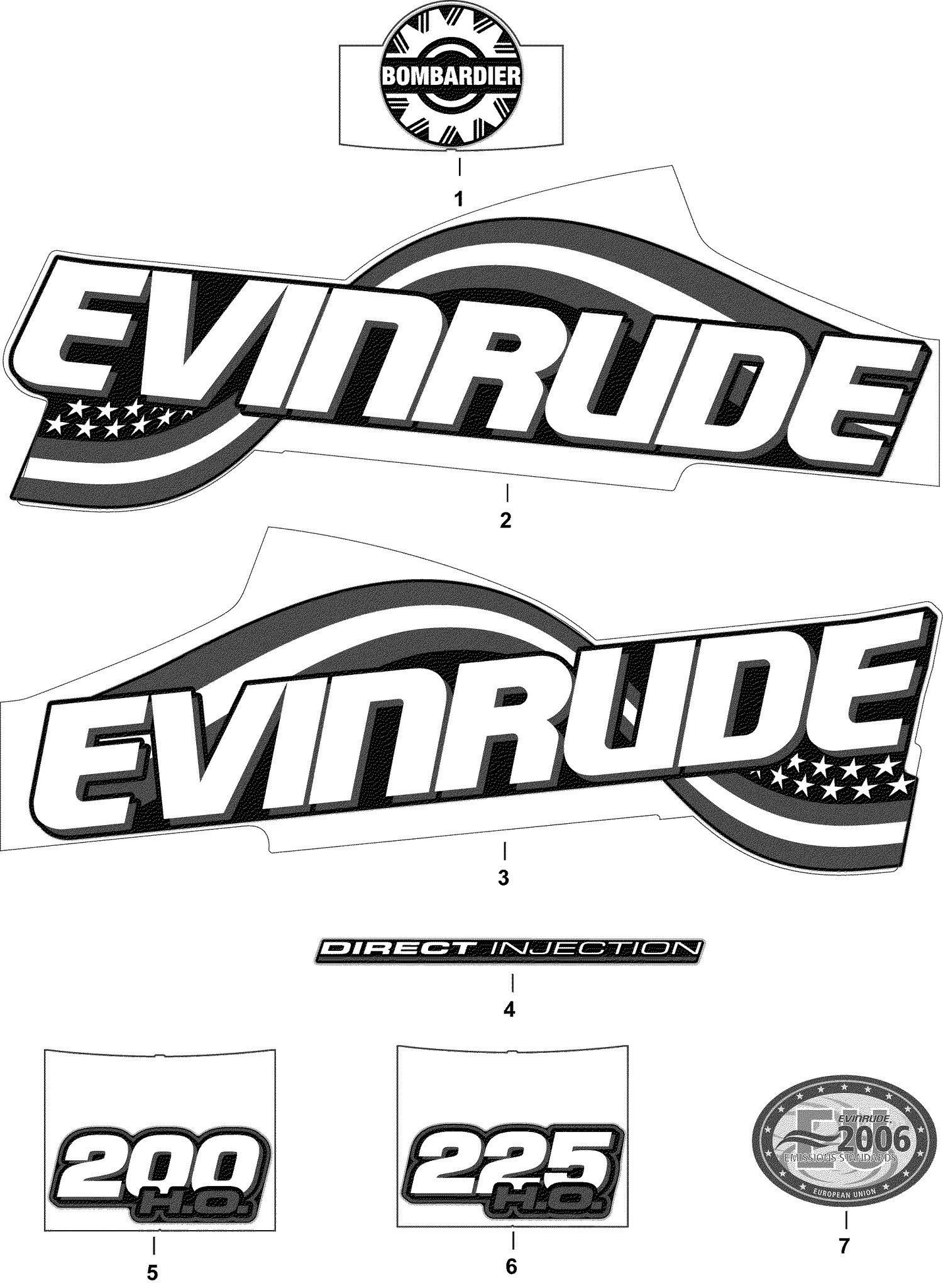

EVINRUDE DECALS - FHL, FHX MODELS

Diagram EPC3624

http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\045005686\EPC3624.tif&ilSC=30&ilIV=0&ilBR=0&ilIF=P&ilRE=8

1) 0215317 BOMBARDIER - Front/Rear. Included with Engine Cover Assy (2 Decals)
2) 0215320 EVINRUDE - Port. Included with Engine Cover Assy
3) 0215319 EVINRUDE - Stbd. Included with Engine Cover Assy
4) 0215556 DIRECT INJECTION - Port/Stbd. Included with Engine Cover Assy (2 Decals)
5) 0215322 200 H.O. Front/Rear (2 Decals)
6) 0215318 225 H.O. Front/rear (2 Decals)
7) 0215558 "EVINRUDE EU2006"
