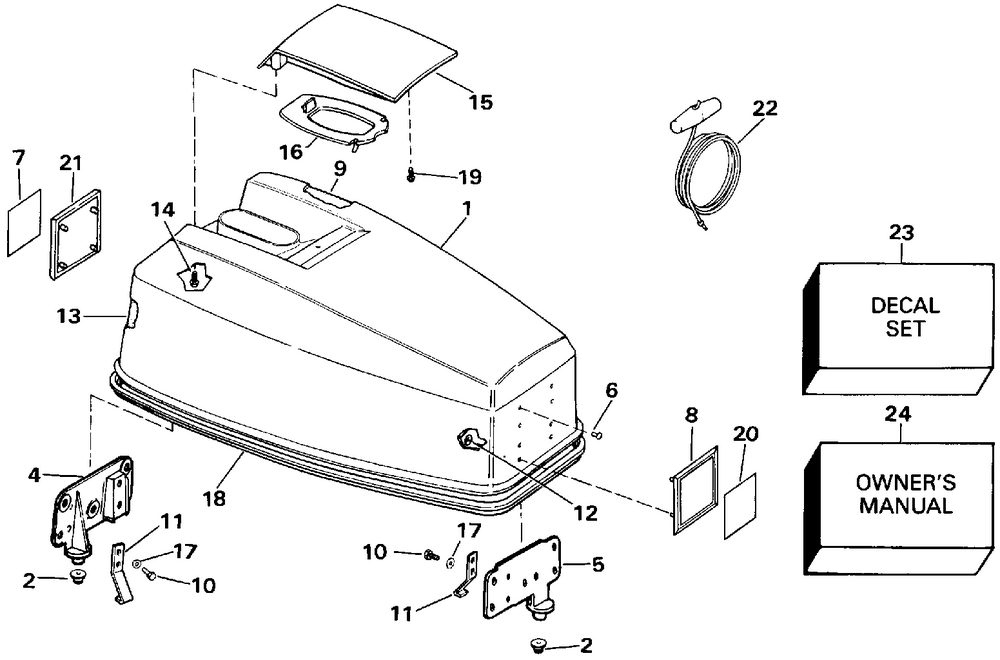

Engine Cover Diagram 434241-07

1
0433965 ENGINE COVER ASSY.. 50BE - 50BEL - 50TL 50TEL

0434583 ENGINE COVER ASSY.. 50JE

0433965, 043458, -- 0283519, 0282307
0433965 043458 -- 0283519 0282307

23
0435315 DECAL SET. 50BE - 50BEL - 50TL 50TEL
0435316 DECAL SET. 50JE

20
0336070 PLATE, Applique. 50BE - 50BEL - 50TL 50TEL
0335754 PLATE, Applique. 50JE

7
0336074 PLATE, Rear. 50BE - 50BEL - 50TL 50TEL
0335756 PLATE, Rear. 50JE

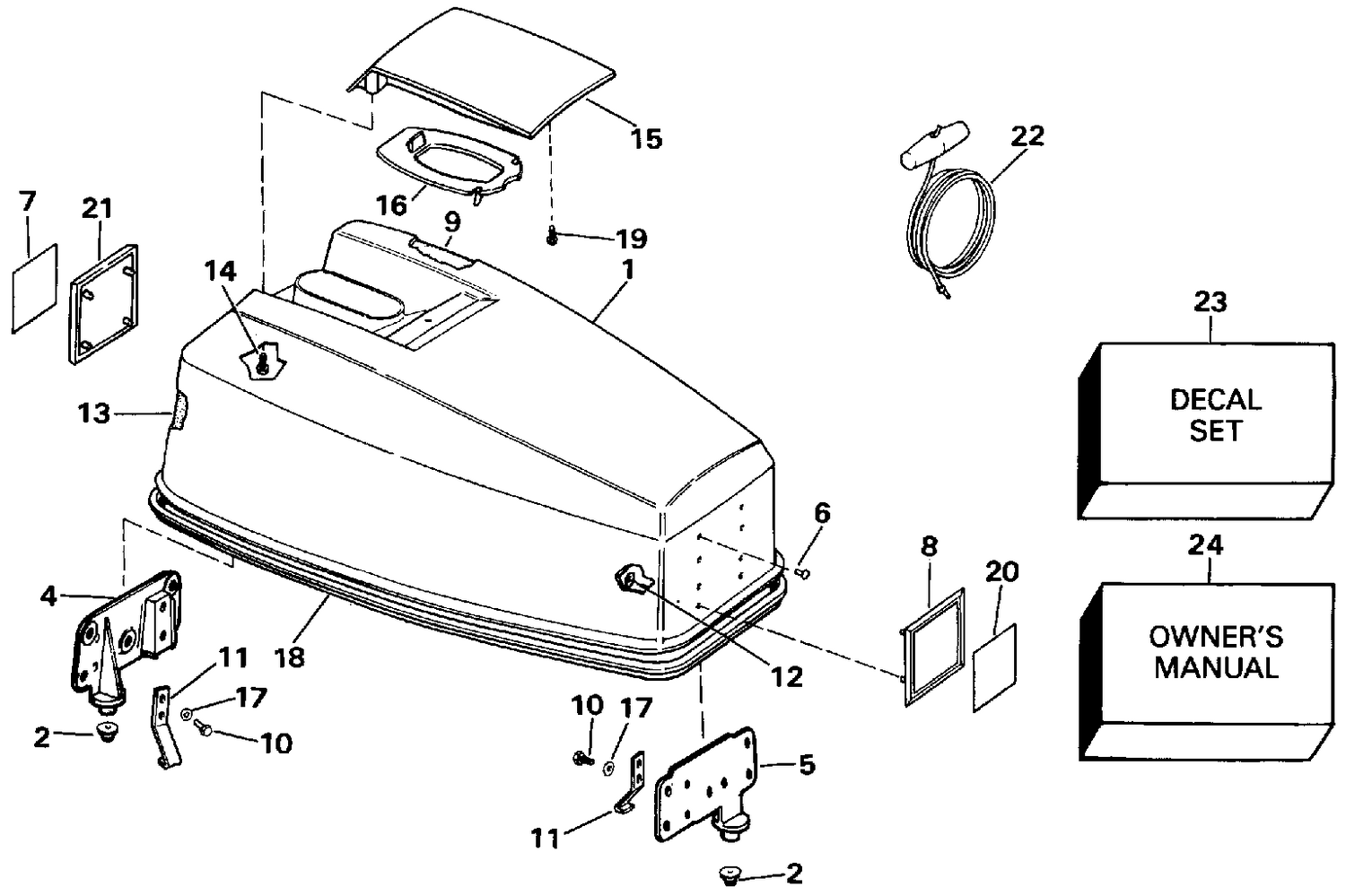

ENGINE COVER - JOHNSON 25-40

0433964 ENGINE COVER ASSY. 40EC - 40EL - 40TL 40TEC - 40TEL - 40TTL
0434556 ENGINE COVER ASSY. TJ40EL

7) 0336069 PLATE, Rear   40EC - 40EL - 40TL 40TEC - 40TEL - 40TTL
7) 0336667 PLATE, Rear  TJ40EL

20) 0336070 PLATE, Applique  40EC - 40EL - 40TL 40TEC - 40TEL - 40TTL
20) 0335755 PLATE, Applique  TJ40EL

23) 0435312 DECAL SET 40EC - 40EL - 40TL 40TEC - 40TEL - 40TTL - VJ40TLEIA
23) 0435313 DECAL SET TJ40EL

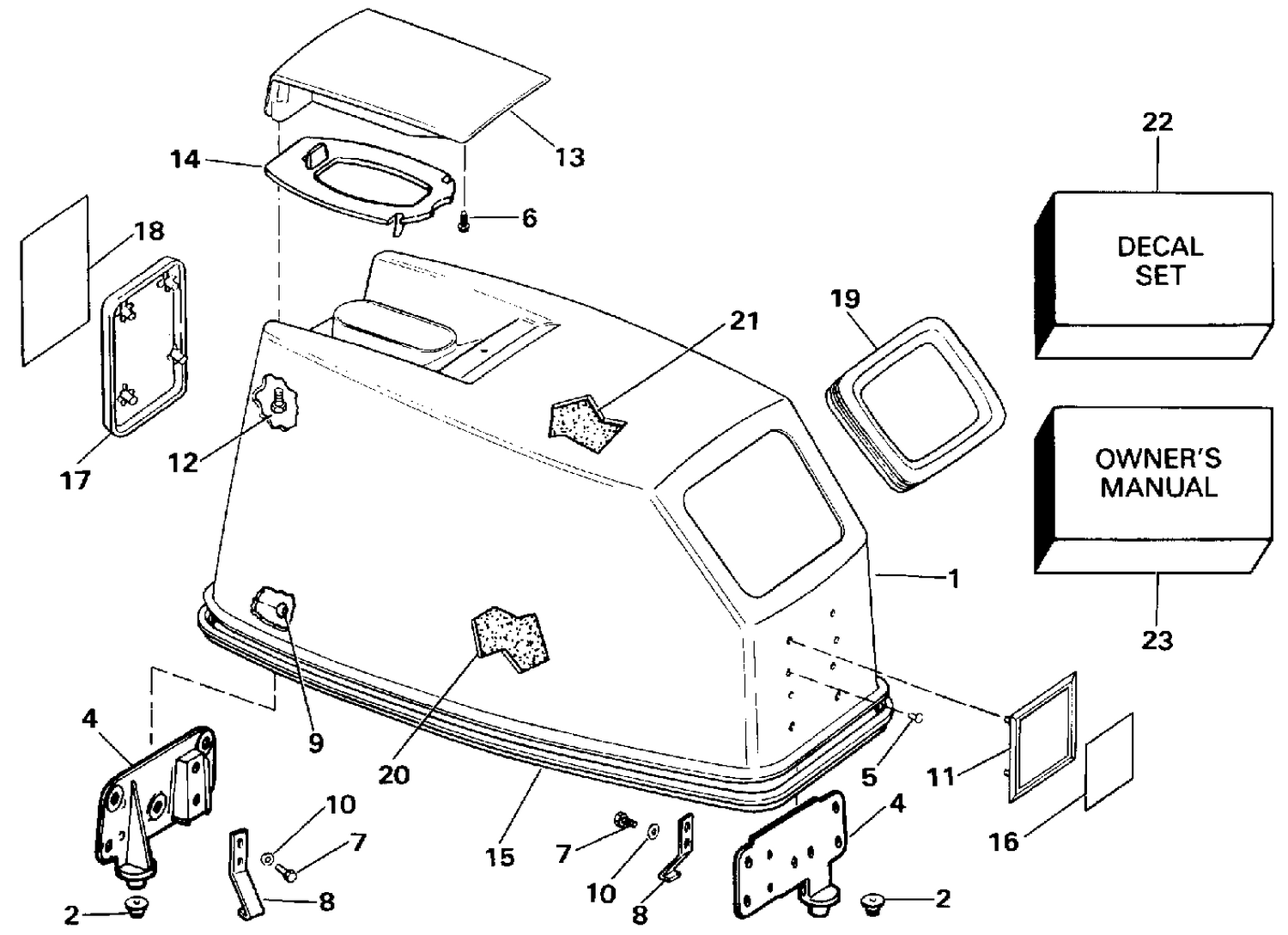

ENGINE COVER - JOHNSON ROPE START ONLY

1) 0434083 ENGINE COVER ASSY.
22) 0435311 DECAL SET

• J40EEIA 1991
• J40ELEIA 1991
• J40REIA 1991
• J40RLEIA 1991
• J40TEEIA 1991
• J40TELEIA 1991
• J40TLEIA 1991
• J40TTLEIA 1991
• TJ40ELEIA 1991
• VJ40EEIA 1991
• VJ40ELEIA 1991
• VJ40TELEIA 1991
• VJ40TLEIA 1991

• J50BEEIA 1991
• J50BELEIA 1991
• J50TELEIA 1991
• J50TLEIA 1991
• VJ50BEEIA 1991
• VJ50BELEIA 1991
• VJ50TLEIA 1991
