1995 Johnson 115 HP - J115TLEOR

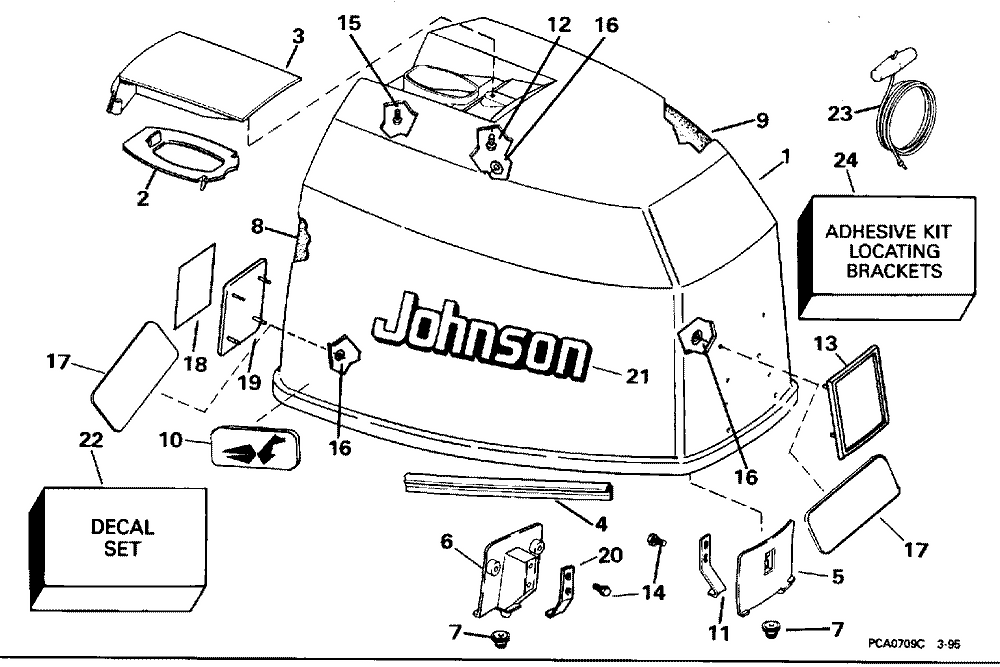

Engine cover Diagram 437487-03A

ENGINE COVER ASSEMBLY – JOHNSON

• 1) 0434916 - ENGINE COVER ASSY., 88. White Engine Cover
• 1) 0437258 - ENGINE COVER ASSY., 88. Smoke Engine Cover
• 1) 0436148 - ENGINE COVER ASSY., 90. White Engine Cover
• 1) 0436518 - ENGINE COVER ASSY., 90. Smoke Engine Cover
• 1) 0436580 - ENGINE COVER ASSY., 90 Jet, (65)
• 1) 0436149 - ENGINE COVER ASSY., 115. White Engine Cover
• 1) 0436519 - ENGINE COVER ASSY., 115. Smoke Engine Cover
• 1) 0436581 - ENGINE COVER ASSY., 115 Jet, (80)

0434916, 0437258, 0436148, 0436518, 0436580, 0436149, 0436519, 0436581

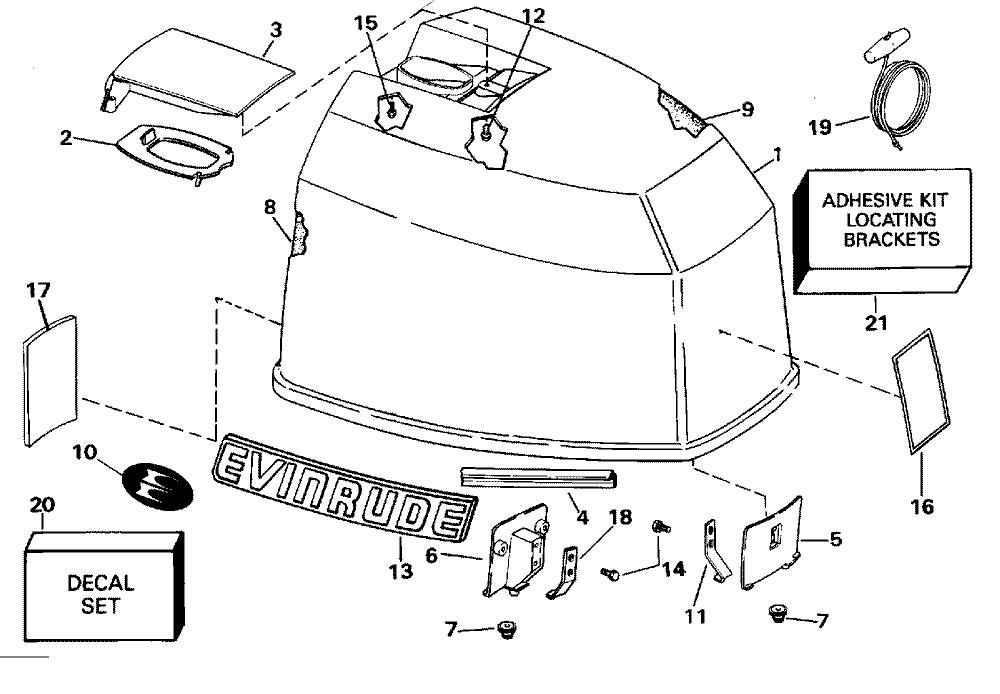

ENGINE COVER ASSEMBLY – EVINRUDE

• — 0284718 - ENGINE COVER ASSY., 88 models
• — 0284738 - ENGINE COVER ASSY., 90 models
• — 0284725 - ENGINE COVER ASSY., 90 Jet, (65)
• — 0284739 - ENGINE COVER ASSY., 115
• — 0284726 - ENGINE COVER ASSY., 115 Jet, (80)

0284718, 0284738, 0284725, 0284739, 0284726

DECALS – JOHNSON

• 17) 0340595 - APPLIQUE, 65
• 17) 0340596 - APPLIQUE, 80 (2 decals)
• 17) 0340597 - APPLIQUE, 90 (2 decals)
• 17) 0340598 - APPLIQUE, 115 (2 decals)
• 18) 0335263 - PLATE, Front & rear, 88 models. White Engine Cover
• — 0340592 - APPLIQUE, Johnson

0340595, 0340596, 0340597, 0340598, 0335263, 0340592

• 22) 0435634 - DECAL SET, 88 models. White Engine Cover
• 22) 0437764 - DECAL SET, 88 models. Smoke Engine Cover
• 22) 0436303 - DECAL SET, 90 models. White Engine Cover
• 22) 0437124 - DECAL SET, 90/115, 65/80 Jet. Smoke Engine Cover
• 22) 0435638 - DECAL SET, 115 models. White Engine Cover

0435634, 0437764, 0436303, 0437124, 0435638
