Evinrude/Johnson 1995 25/40 50HP ROPE START
EVINRUDE 1995 50 E50TLEOD

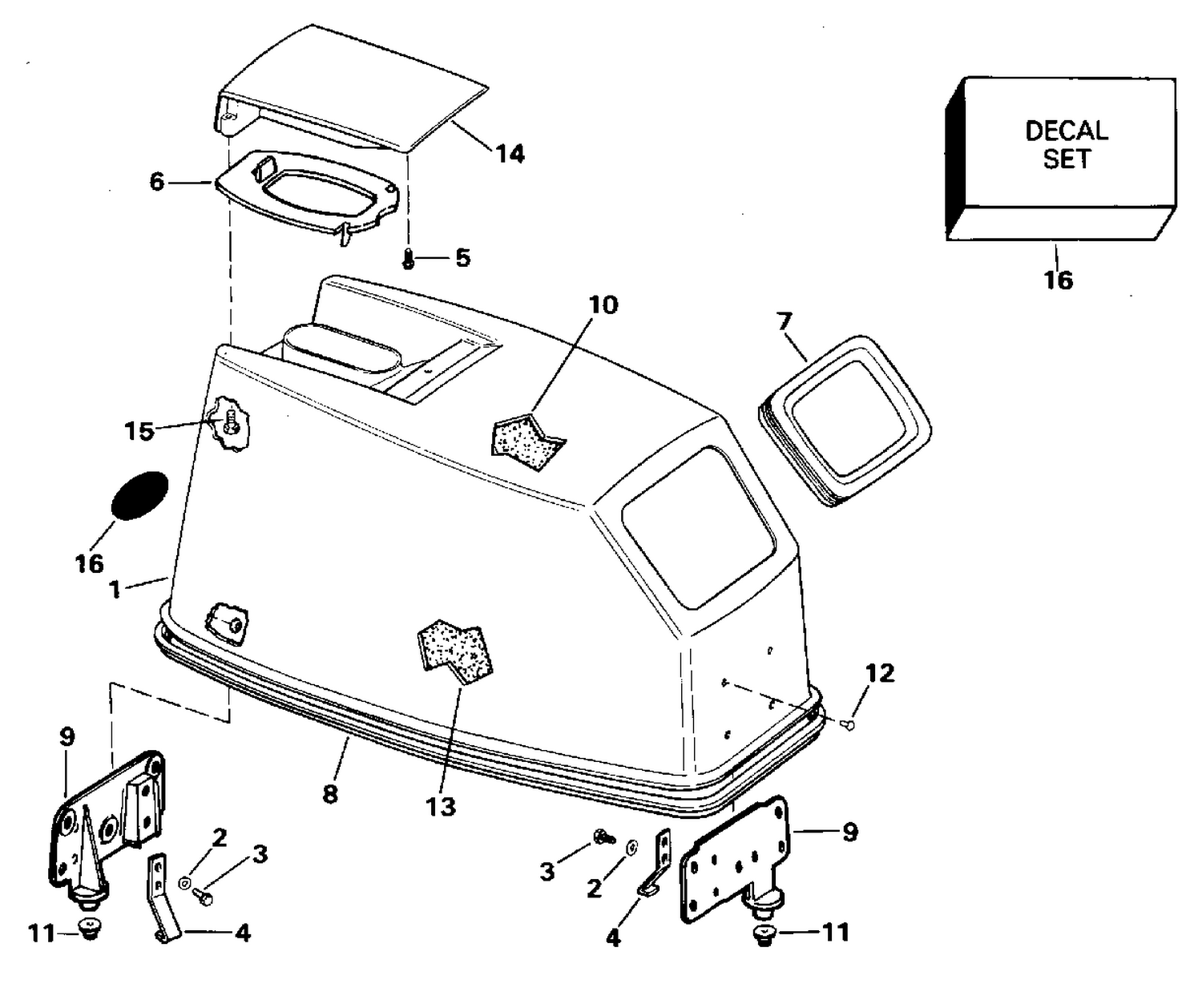

ENGINE COVER - EVINRUDE 50 Diagram 0c4ae442-9038-4dba-82e8-1e24a26214cd
1) 0284722 ENGINE COVER ASSY. - 50BE - 50BEL - 50TL - 50TEL
1) 0284724 ENGINE COVER ASSY. - 50JE (JET)
0284722, 0284724
0284722 0284724
23) 0284830 DECAL SET
3) 0212497 LENS, Ev.
20) 0212895 PLATE, Front This part replaces 0212771. - 50BE - 50BEL - 50TL - 50TEL
7) 0212772 PLATE, Rear - 50BE - 50BEL - 50TL - 50TEL
20) 0212767 PLATE, Front - 50JE (JET)
7) 0212768 PLATE, Rear - 50JE (JET)

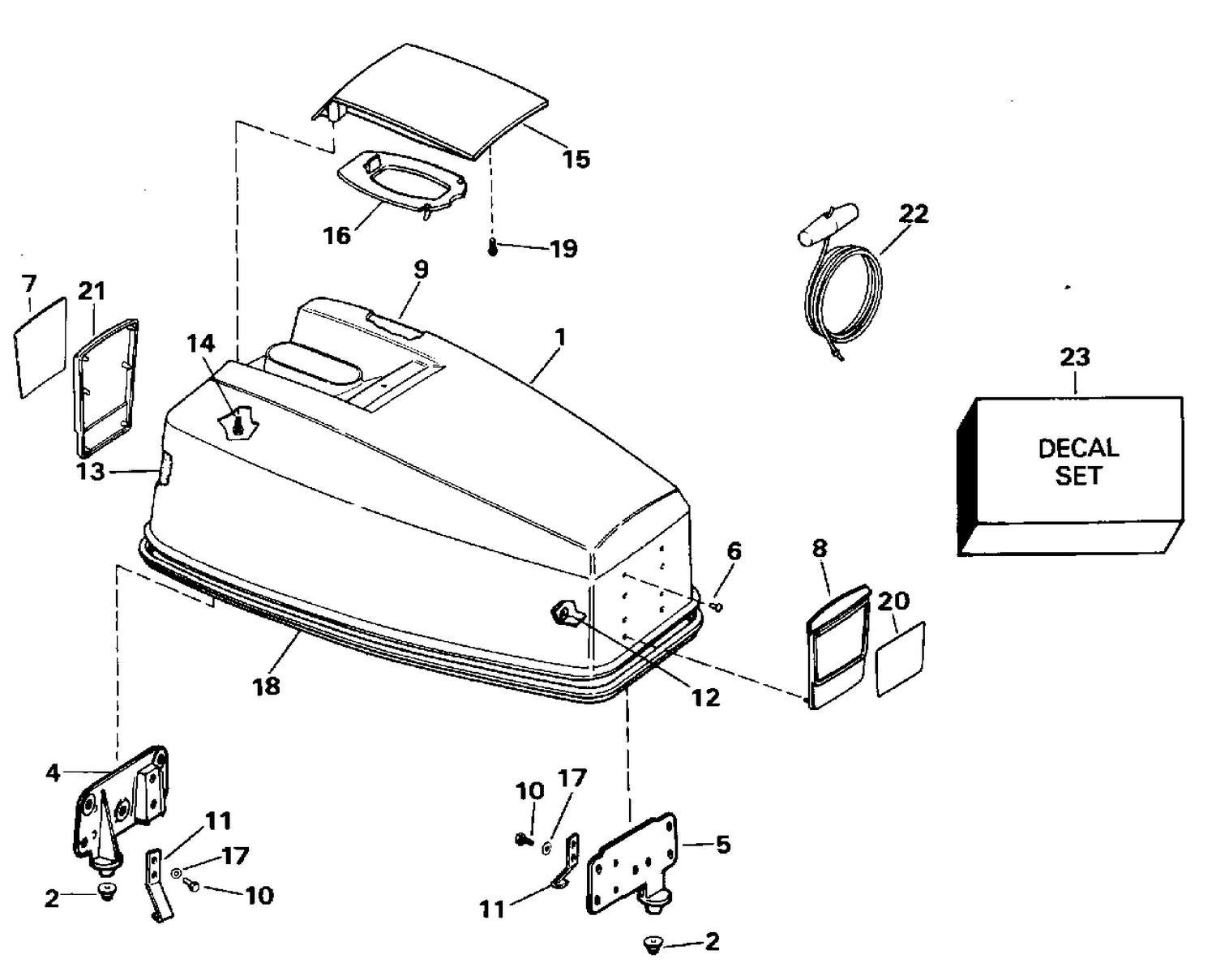

ENGINE COVER - EVINRUDE 25-40 Diagram a2fc7f29-d72c-4971-95df-6034e22a8c95
1) 0284721 ENGINE COVER ASSY. - 40EE - 40EL - 40TL 40TEE - 40TEL - 40TTL
1) 0284184 ENGINE COVER ASSY., - 25DE - 25DT
24) 0284830 DECAL SET - 40EE - 40EL - 40TL 40TEE - 40TEL - 40TTL
22) 0212497 LENS, Ev. - 40EE - 40EL - 40TL 40TEE - 40TEL - 40TTL
20) 0212769 PLATE, Applique - 40EE - 40EL - 40TL 40TEE - 40TEL - 40TTL
7) 0212770 PLATE, Rear - 40EE - 40EL - 40TL 40TEE - 40TEL - 40TTL
24) 0284337 DECAL SET - 25DE - 25DT
20) 0211942 PLATE, Applique - 25DE - 25DT
7) 0211943 PLATE, Rear - 25DE - 25DT
3) 0211537 APPLIQUE - 25DE - 25DT

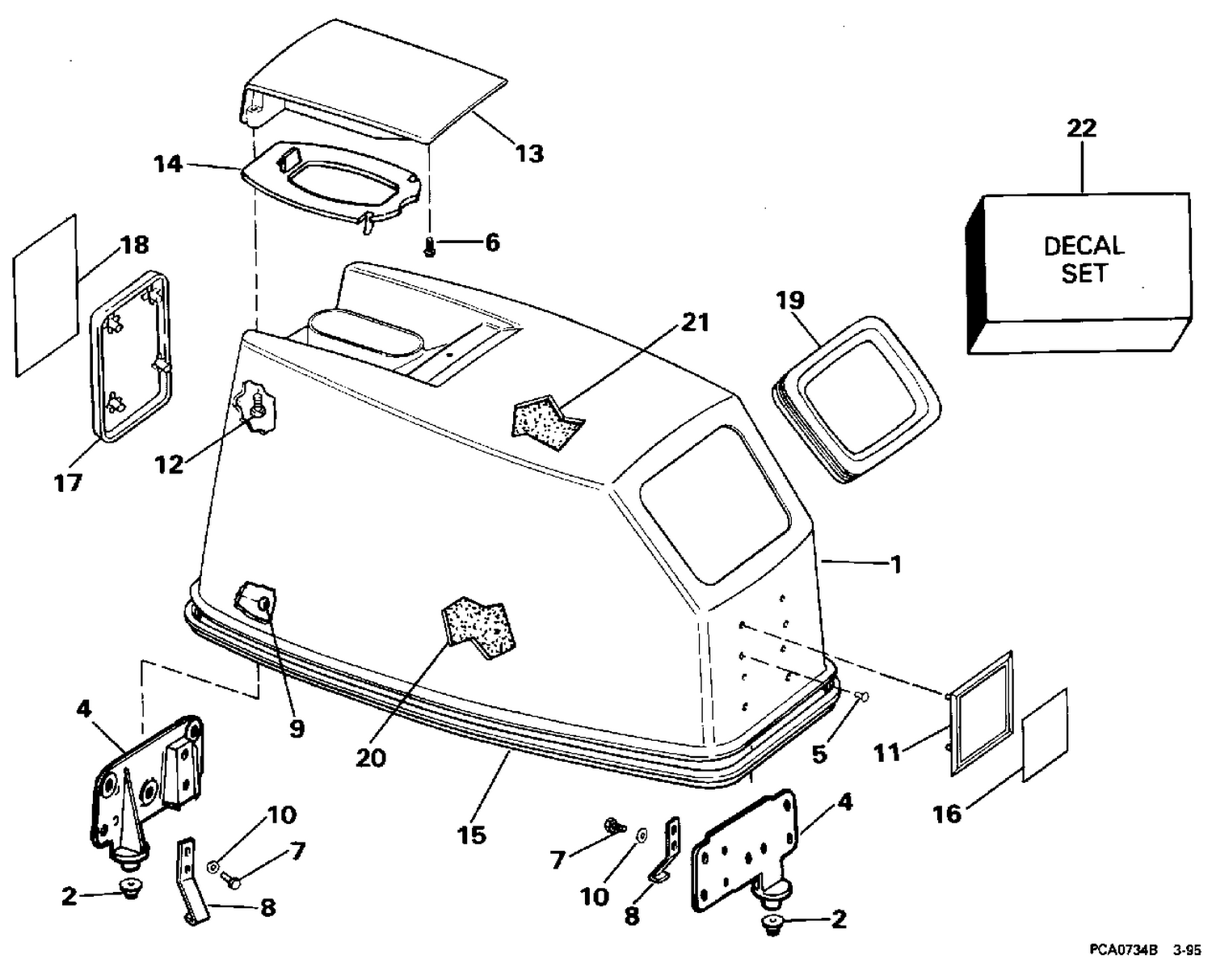

ENGINE COVER - EVINRUDE ROPE START ONLY Diagram 92fc9d67-6c69-4f0a-9814-aeac673cd44f
1) 0284797 ENGINE COVER ASSY.
1) 0284135 ENGINE COVER ASSY.
16) 0212478 APPLIQUE, Ev., port & stbd
17) 0284834 DECAL SET
17) 0284336 DECAL SET

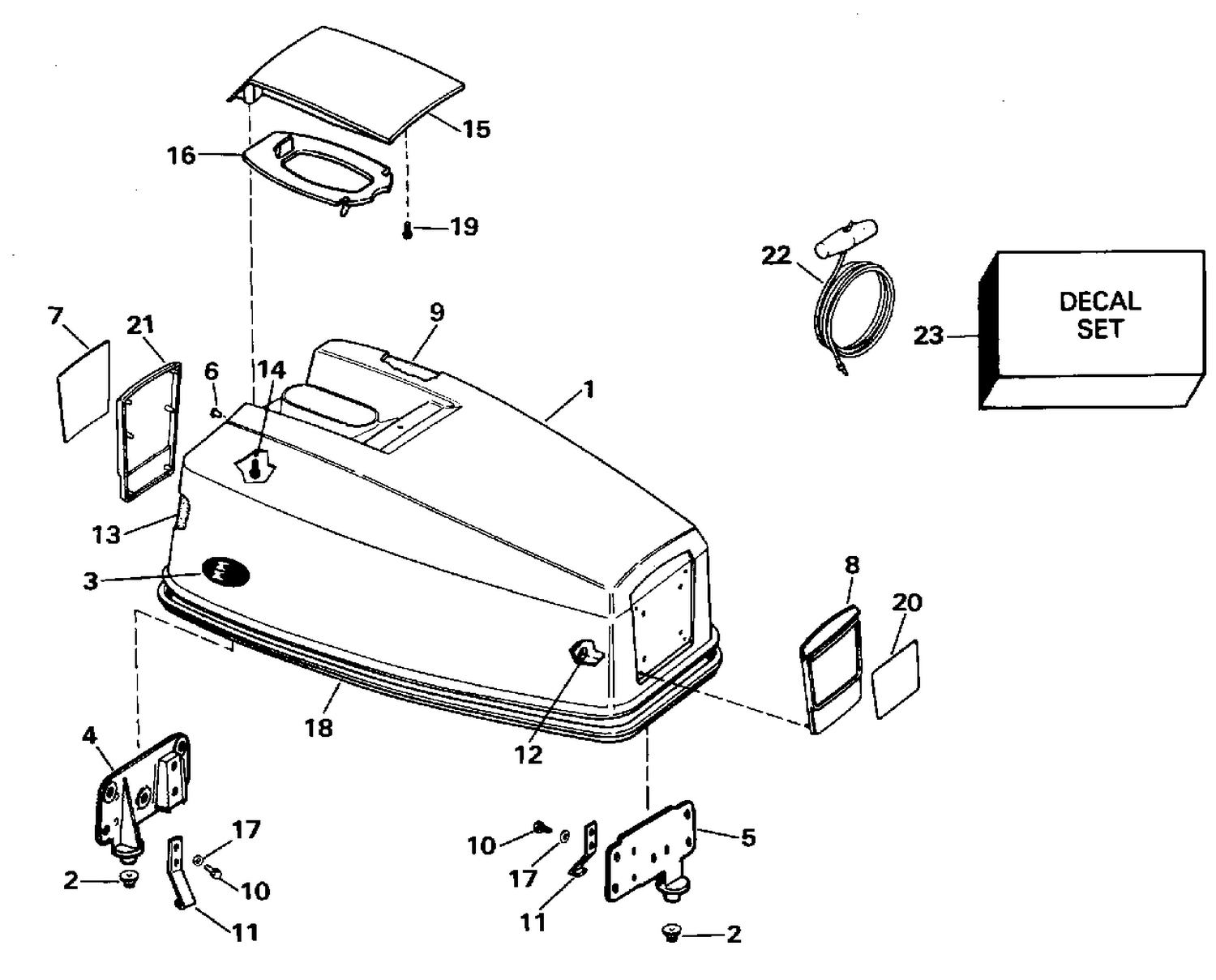

ENGINE COVER - JOHNSON 25-40 Diagram 0d6582fd-009d-4d12-99de-385b049bd93b
1) 0435158 ENGINE COVER ASSY.
1) 0437191 ENGINE COVER ASSY.
1) 0436209 ENGINE COVER ASSY.
7) 0337665 PLATE, Rear
7) 0341139 PLATE, Rear
7) 0335407 PLATE, Rear
20) 0337653 PLATE, Applique
20) 0341138 PLATE, Front
20) 0335378 PLATE, Front
23) 0435625 DECAL SET
23) 0437076 DECAL SET
23) 0435190 DECAL SET

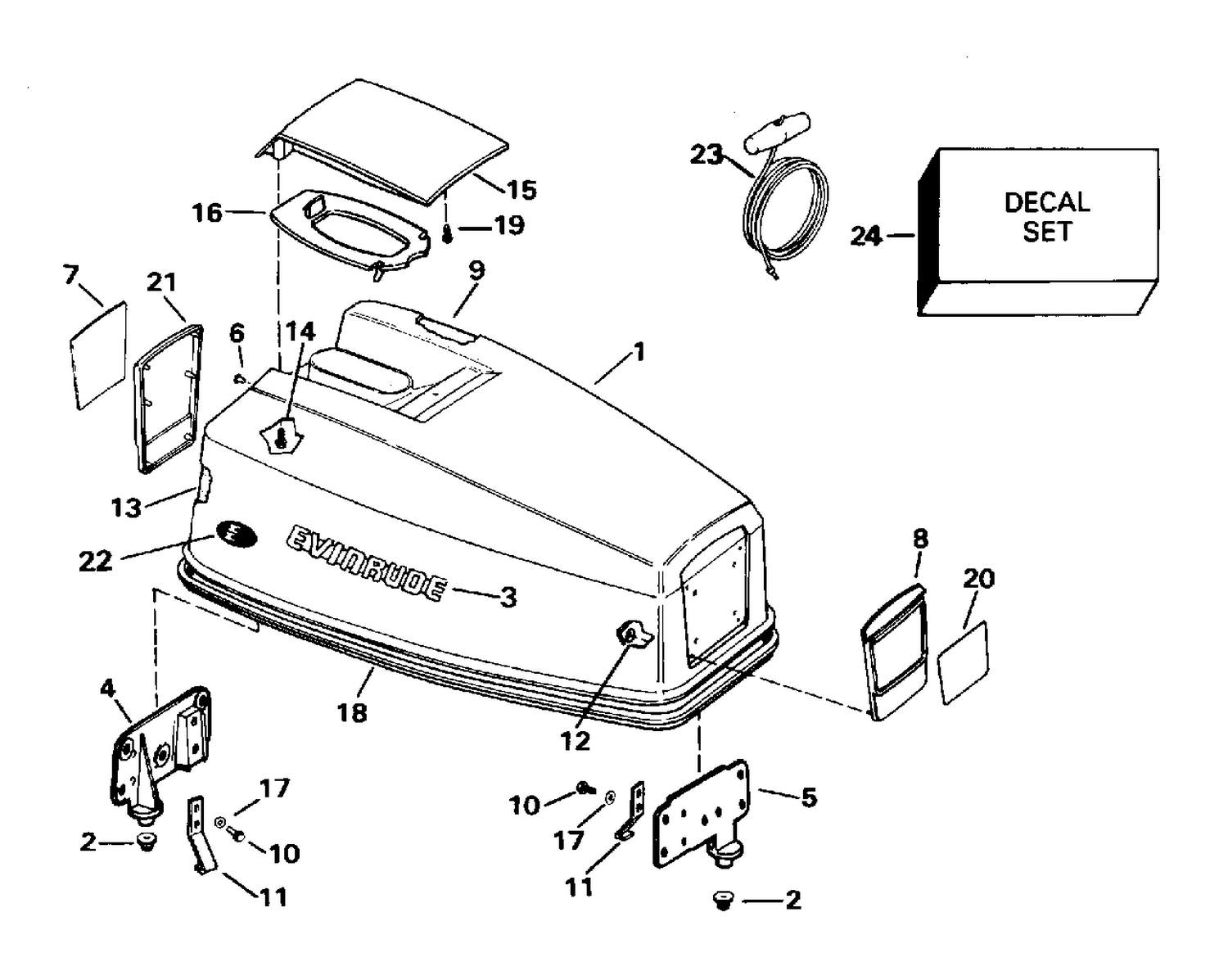

ENGINE COVER - JOHNSON 50 7f0d86ad-5585-451a-b132-05073d86ae21
1) 0435160 ENGINE COVER ASSY.
1) 0437192 ENGINE COVER ASSY.
1) 0436579 ENGINE COVER ASSY.
7) 0337661 PLATE, Rear
7) 0341141 PLATE, Rear
7) 0340268 PLATE, Rear
20) 0337653 PLATE, Applique
20) 0341140 PLATE, Front
20) 0340269 PLATE, Applique
23) 0435625 DECAL SET
23) 0437076 DECAL SET

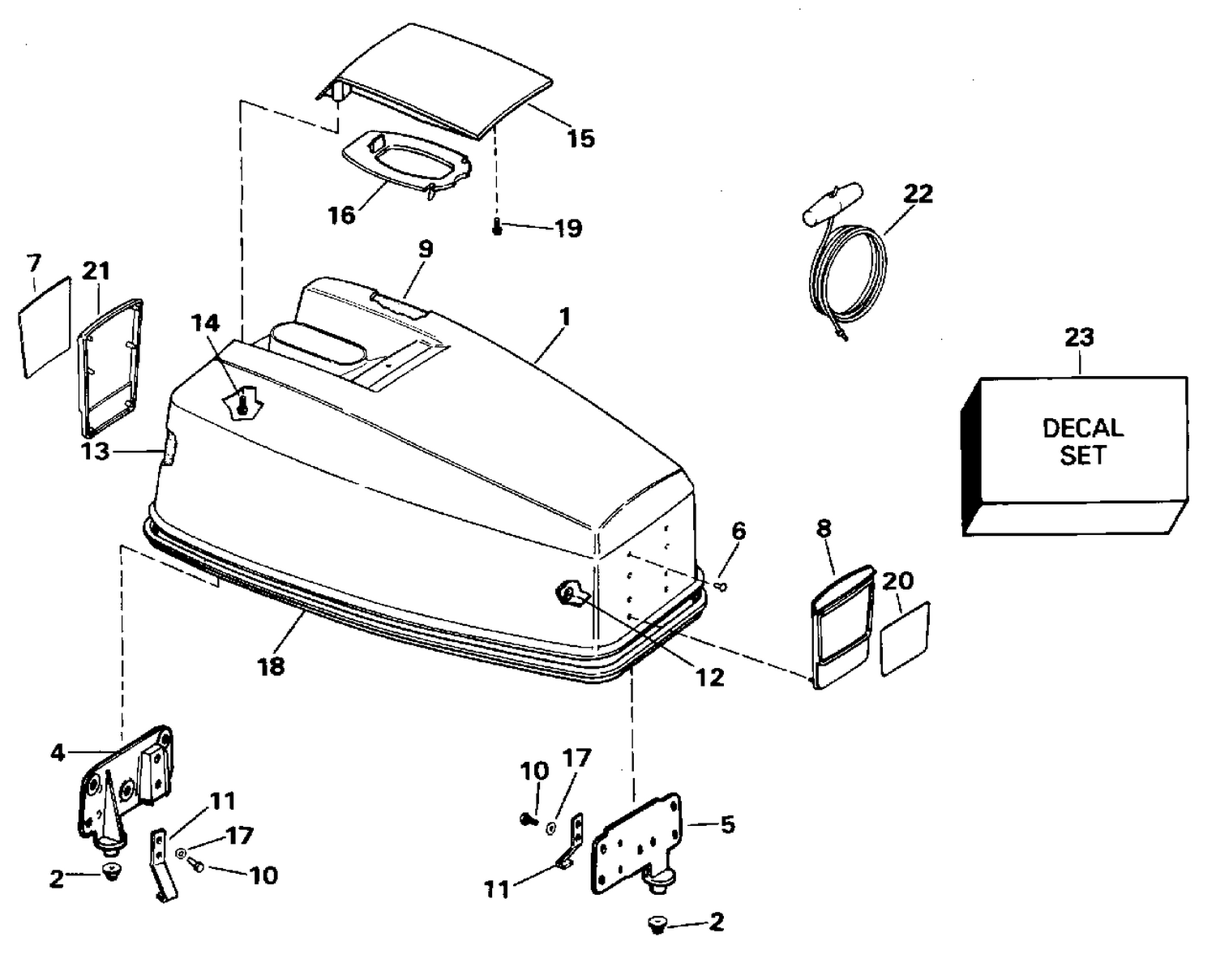

ENGINE COVER - JOHNSON ROPE START ONLY ebf389ca-722d-4d88-b7f7-7073afc23a61
1) 0436208 ENGINE COVER ASSY.
1) 0438336 ENGINE COVER ASSY. This part replaces 0435157.
1) 0438338 ENGINE COVER ASSY This part replaces 0437190.
16) 0335375 PLATE, Frame
17) 0331420 APPLIQUE, Engine cover
18) 0335376 PLATE, Rear
22) 0435189 DECAL SET
22) 0435624 DECAL SET
22) 0437755 DECAL SET
