> Mercury Marine [Updated: Nov. 15, 2017] > Outboard > 2 Stroke Carb > 115 (6 CYL.) > ARCHIVE CAT 83778

MARINER
115 HORSEPOWER
115 (6 CYL.) . . . . . . . . . . . . . .  USA 4865178 THRU 5430526
115 (6 CYL.) . . . . . . . . . . . . . .  8057045 THRU 8062459

90-83778 © Mercury Marine 2003 02-01-2002

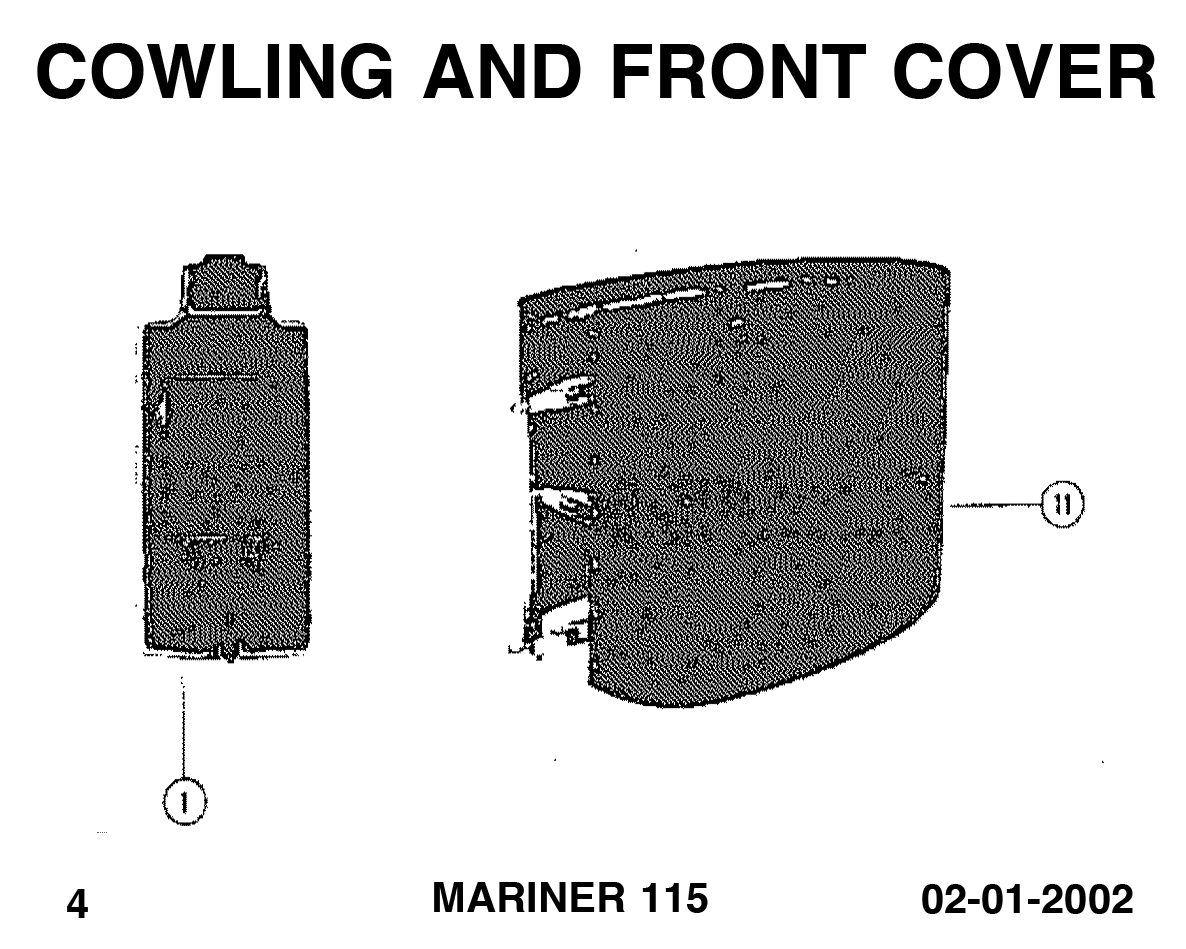

COWLING AND FRONT COVER

Diagram 84980-6

1
6497A2 COWL FRONT COVER ASSEMBLY (WITHOUT DECALS)

11
6498A3 WRAP AROUND COWL ASSEMBLY (WITHOUT DECALS)

MARINER DECALS

77550A78 DECAL SET UNITED STATES 5180698 AND BELOW

87133A79 DECAL SET UNITED STATES 5180699 AND UP AUSTRALIA 8057045 AND UP

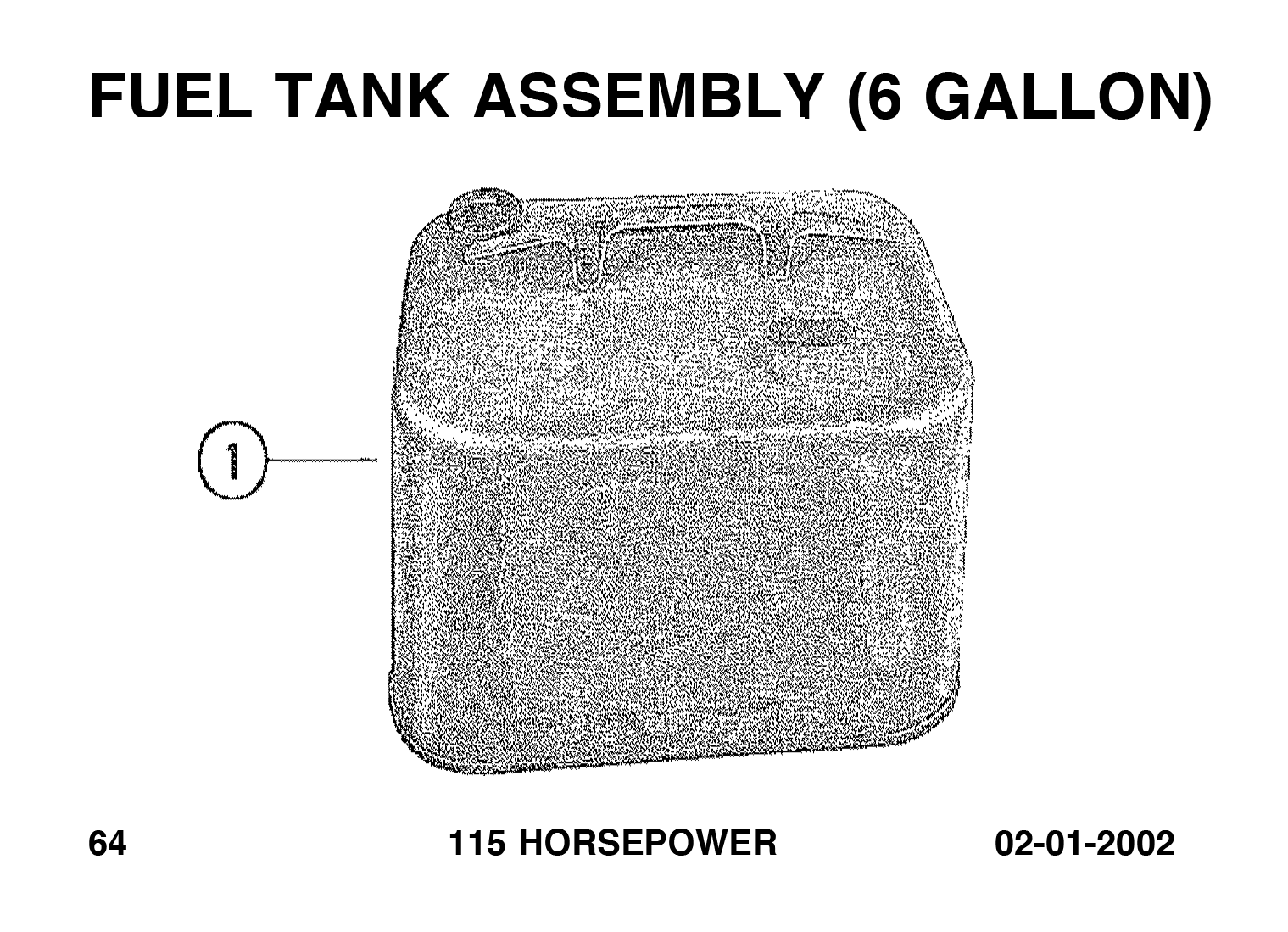

FUEL TANK ASSEMBLY (6 GALLON)

Diagram 83778-66

1529A16 FUEL TANK ASSEMBLY, COMPLETE (6 GALLON)

1
1529 FUEL TANK (6 GALLON)

75881 DECAL, FUEL TANK

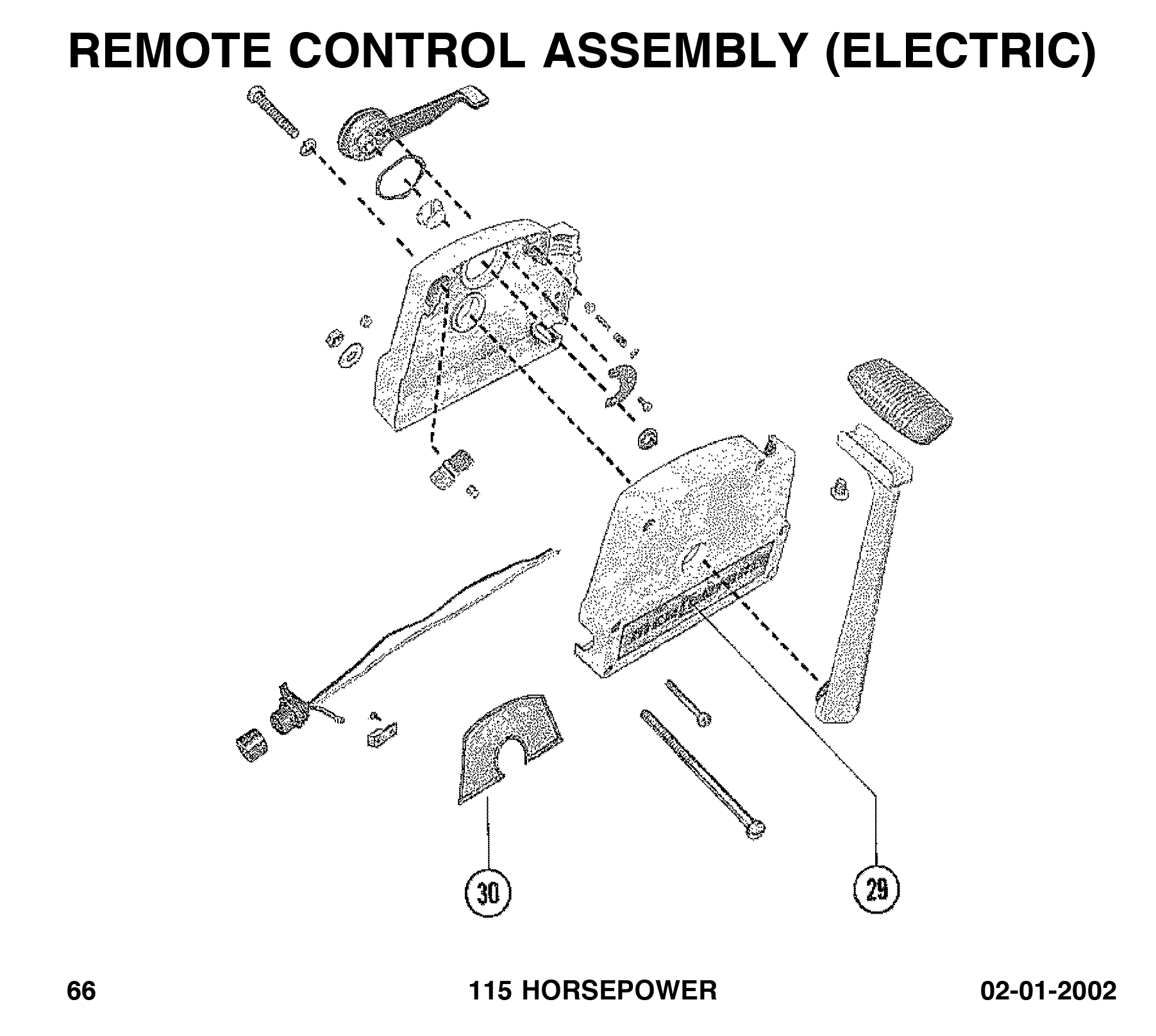

REMOTE CONTROL ASSEMBLY (ELECTRIC)

Diagram 83778-68

29 76703 DECAL, CONTROL HOUSING (MARINER) - NOT AS SHOWN

30 64043 DECAL, CONTROL HOUSING (MERCONTROL)

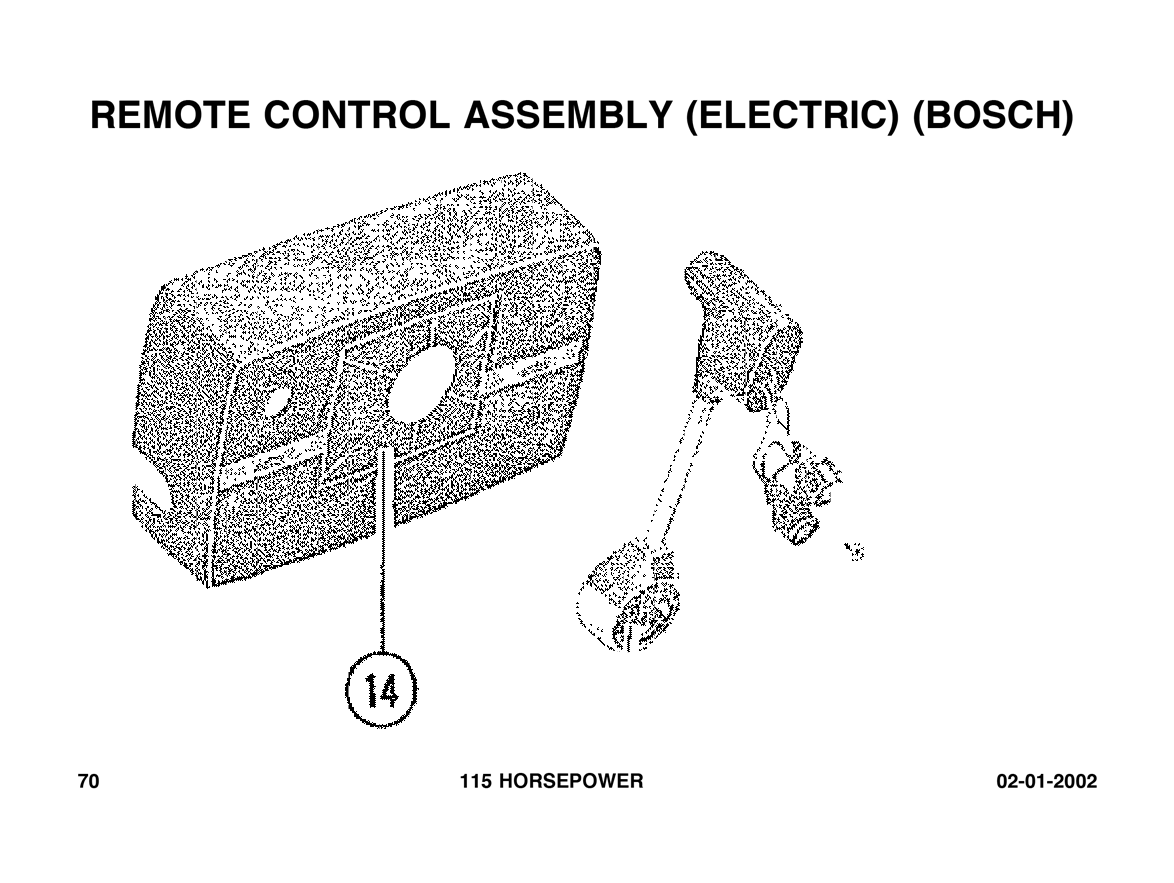

REMOTE CONTROL ASSEMBLY (ELECTRIC) (BOSCH)

Diagram 83778-72

14 77992 DECAL, REMOTE CONTROL COVER (NOT AS SHOWN)

Serial Number: 05181075 - Model: 7115629 - Version: ELPT
1979 MARINER 115 ELPT (6 CYL.)
