Chrysler 20 H.P. (1979) - ARCHIVE CAT FOB3077

> Mercury Marine [Updated: Nov. 16, 2017] > Outboard > Chrysler > 20 HP > ARCHIVE CAT FOB3077

20 H.P. (1979)
SERIAL NUMBER
20 (1979) . . . . . . . . . . . . 202B9K
20 (1979) . . . . . . . . . . . . 202H9K
20 (1979) . . . . . . . . . . . . 203B9K
20 (1979) . . . . . . . . . . . . 203H9K
20 (1979) . . . . . . . . . . . . 206B9B
20 (1979) . . . . . . . . . . . . 206H9B
20 (1979) . . . . . . . . . . . . 207B9B
20 (1979) . . . . . . . . . . . . 207H9B

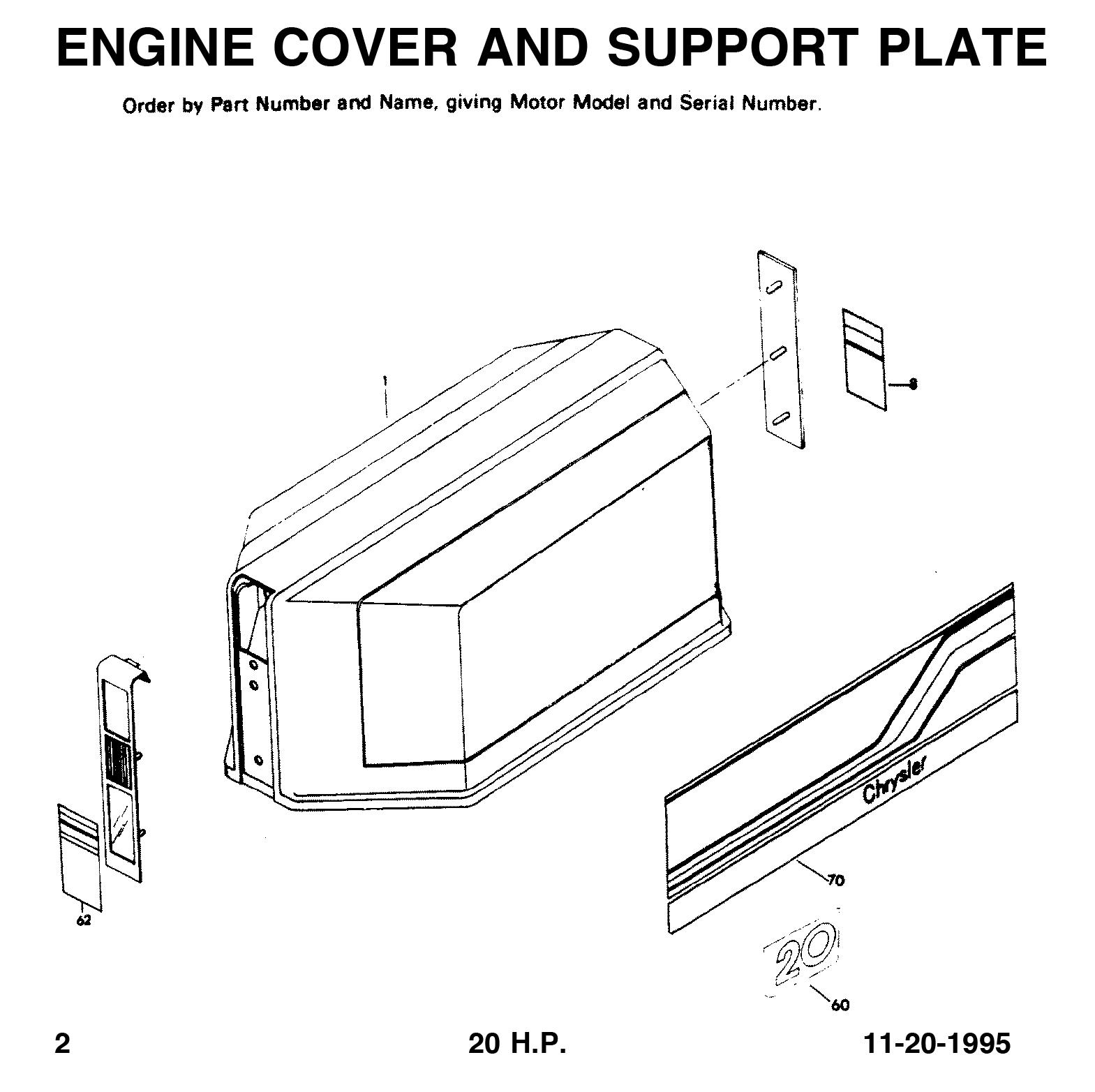

ENGINE COVER AND SUPPORT PLATE

Diagram FOB3077-4-2

1 FS529712 ENGINE COVER W/FRONT AND REAR RETAINERS ((1978-25 hp)-(818015A1 engine cover - 35 hp (1986))

- 2C542712 ENGINE COVER COMPLETE INCLUDES ALL ITEMS MARKED WITH AN ASTERISK (*).

Chrysler Outboard Motor Decals

(8) FA542528 DECAL ENGINE COVER REAR

(41-62) FA542892 DECAL ENGINE COVER FRONT

(39-60) FA542386 DECAL, NUMERAL 20 ( 2 decals)

(44-70) FA542397 DECAL ENGINE COVER PORT

FA542396 DECAL ENGINE COVER STARBOARD

ELECTRIC STARTER

FC497390 DECAL STARTER - CANADA (NOT SHOWN)

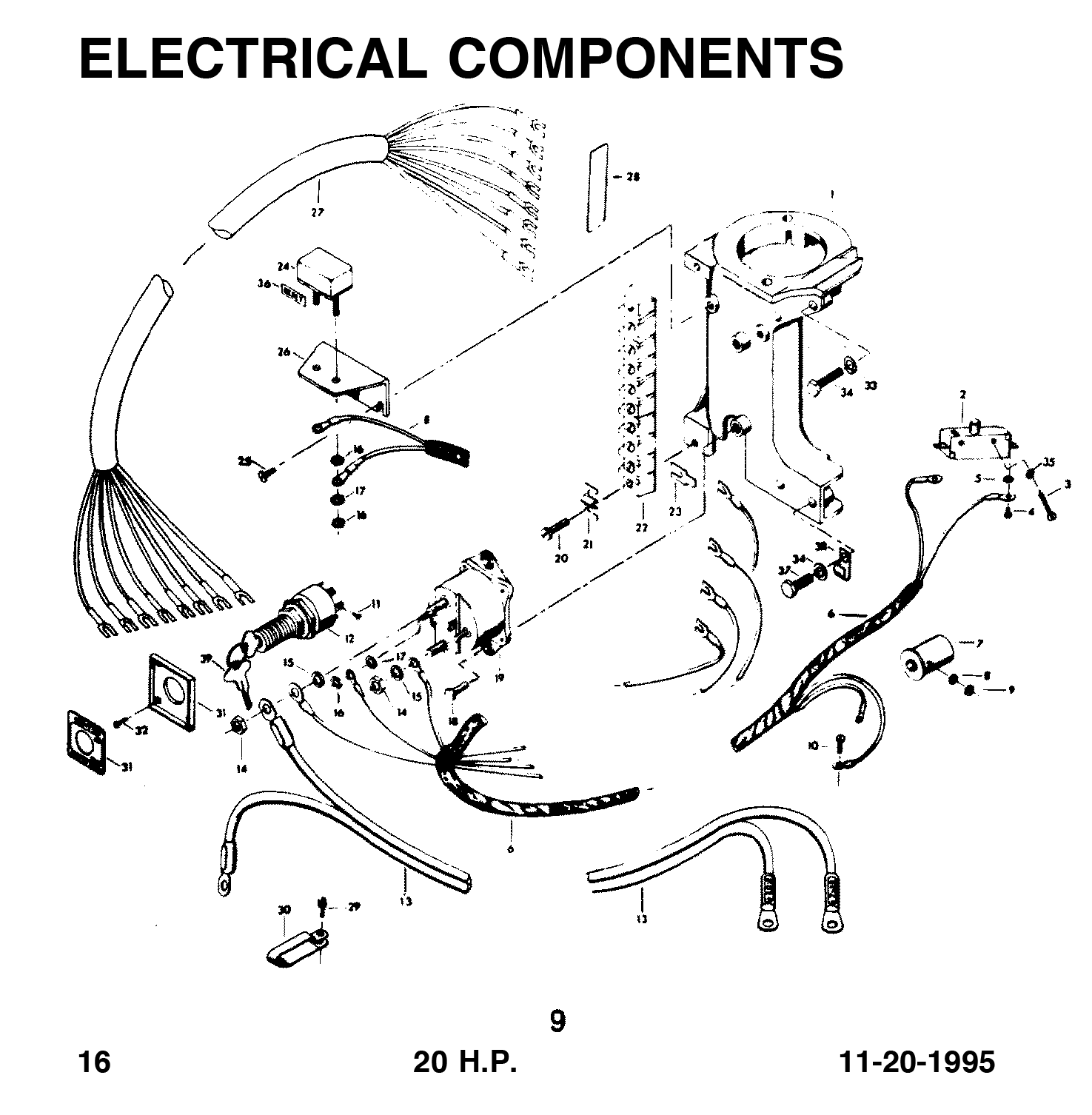

ELECTRICAL COMPONENTS

Diagram FOB3077-18-16

28 F529398 1 DECAL, WIRING

- FC529398 1 DECAL, WIRING - CANADA

36 F510374 1 DECAL, CIRCUIT BREAKER - U.S.A.

- FC529398 1 DECAL, CIRCUIT BREAKER - CANADA

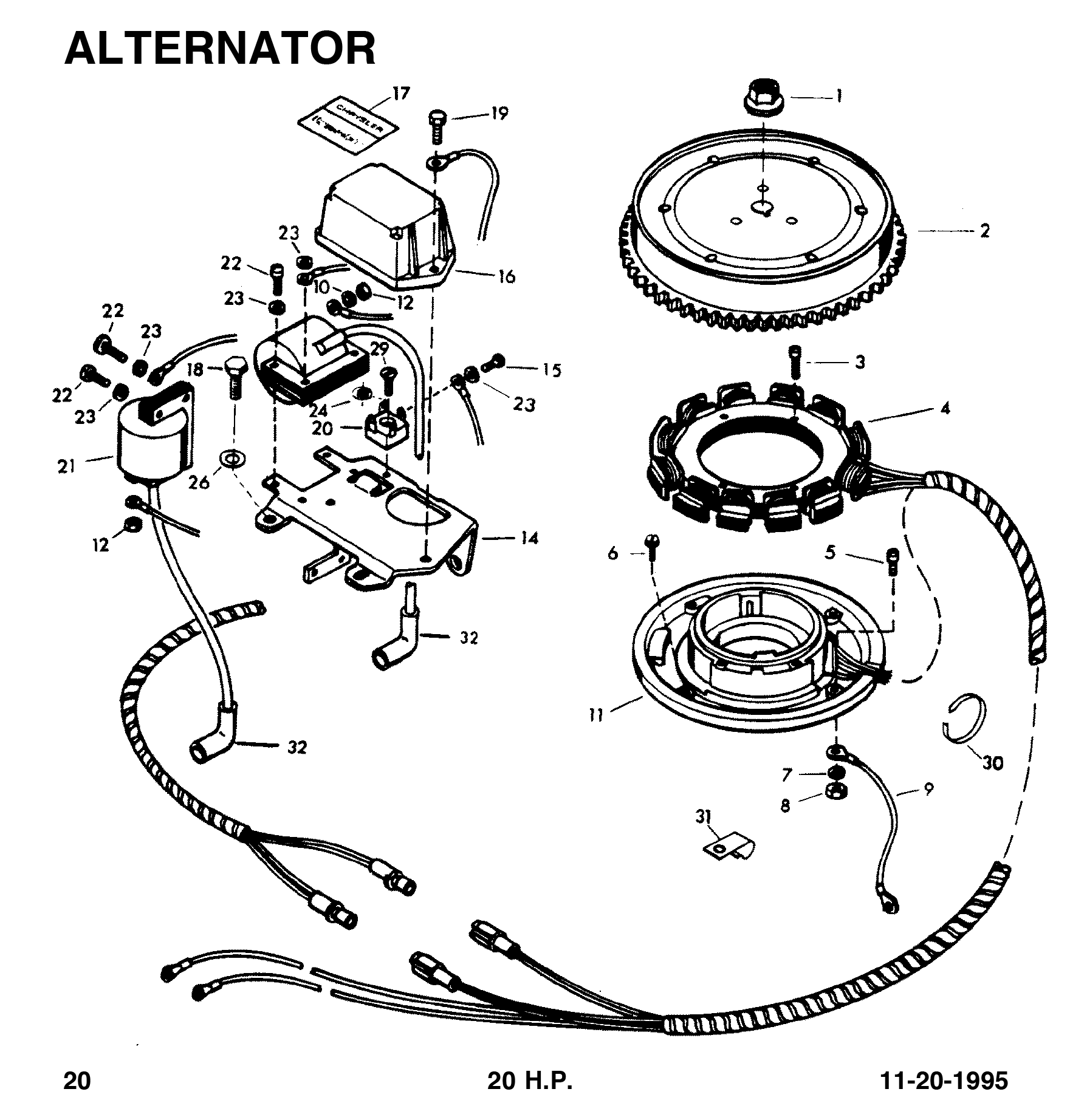

ALTERNATOR

Diagram FOB3077-22-20

17 510373-1 1 DECAL, MAGNAPOWER

- F235785 1 DECAL COMPLIANCE - CANADA (NOT SHOWN)

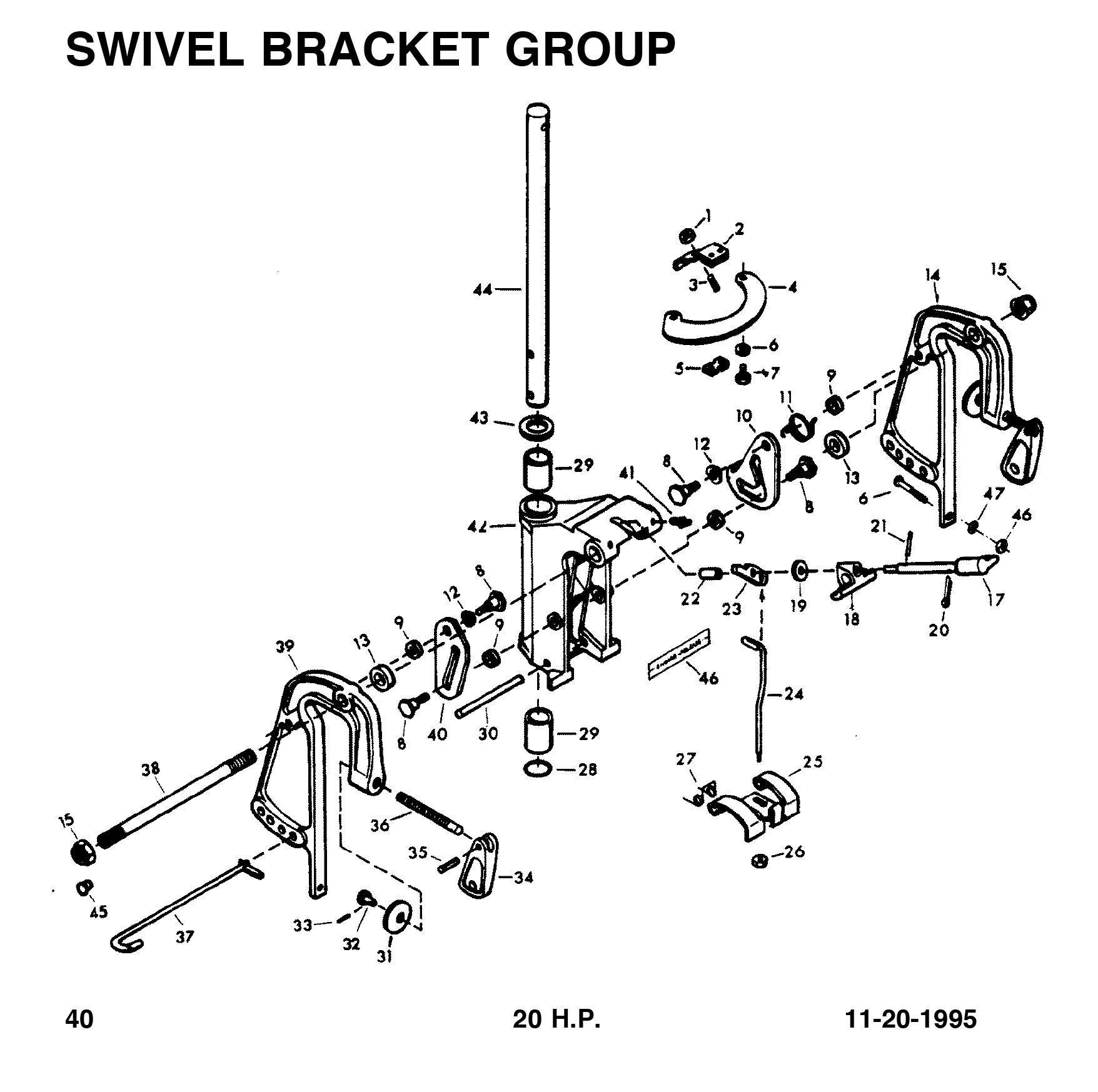

SWIVEL BRACKET GROUP

Diagram FOB3077-42-40

46 F529390 1 DECAL, REVERSE LOCK - U.S.A.

- FC529390 1 DECAL, REVERSE LOCK - CANADA

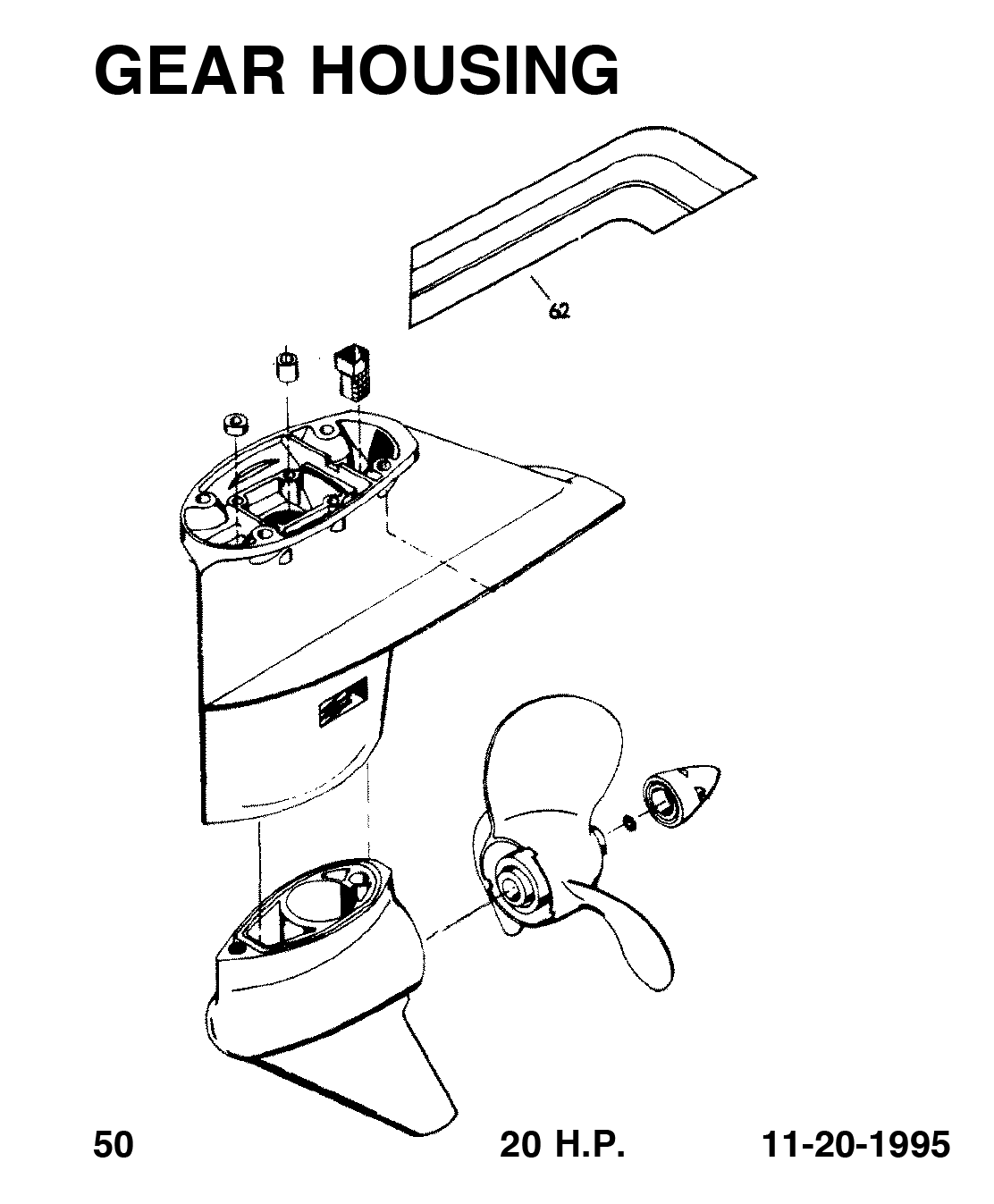

GEAR HOUSING

Diagram FOB3077-52-50

(62) A467392 DECAL, LEG - PORT

- A467391 DECAL, LEG - STANDARD

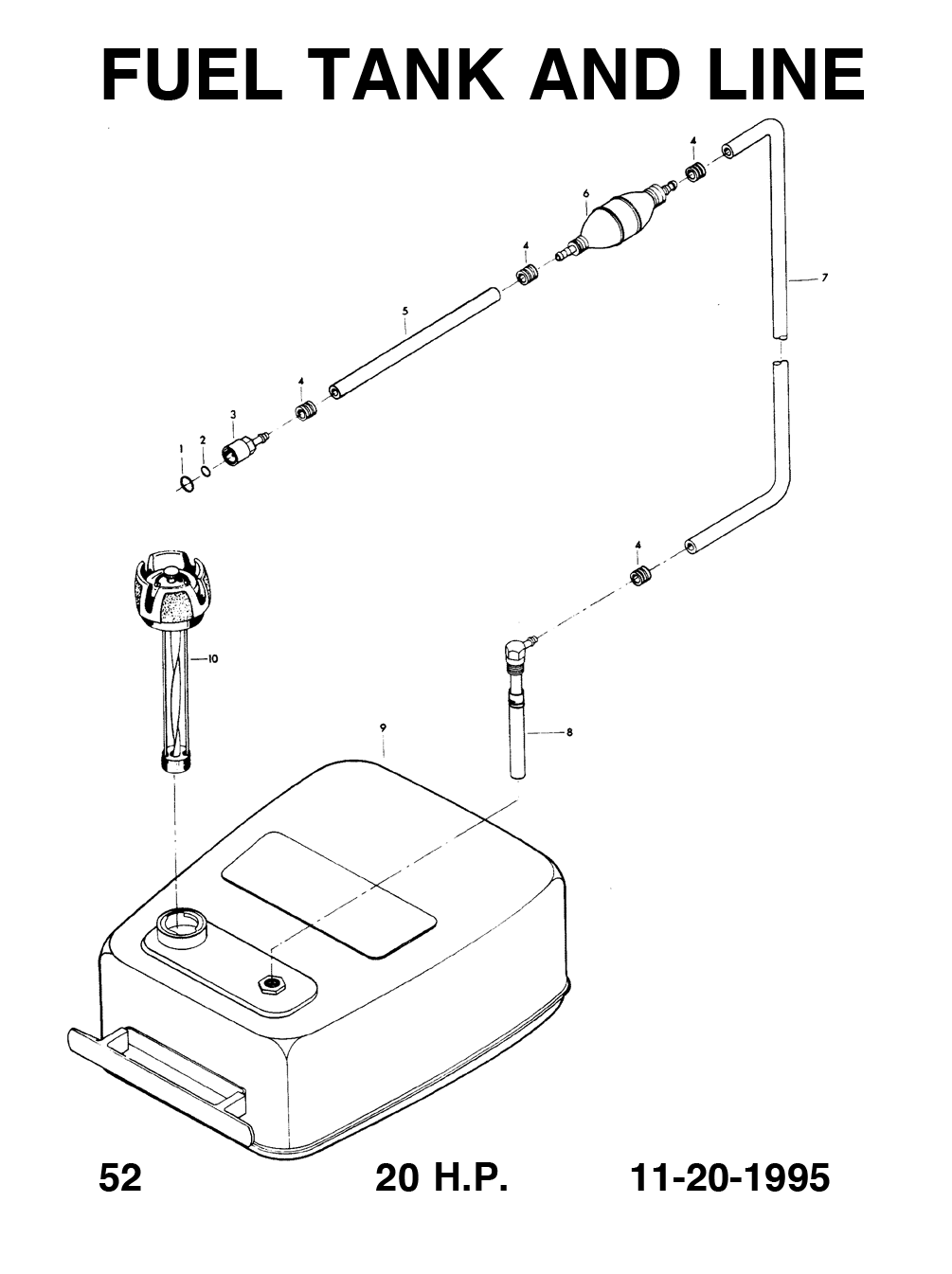

FUEL TANK AND LINE

Diagram FOB3077-54-52

- FC409398 1 DECAL, TOTE TANK - CANADA (NOT SHOWN)

ACCESSORIES

- F5H131 0 PORT SIDE DECAL KIT CONVERTS 5H130 CONTROL BOX TO PORT SIDE MOUNTING.
