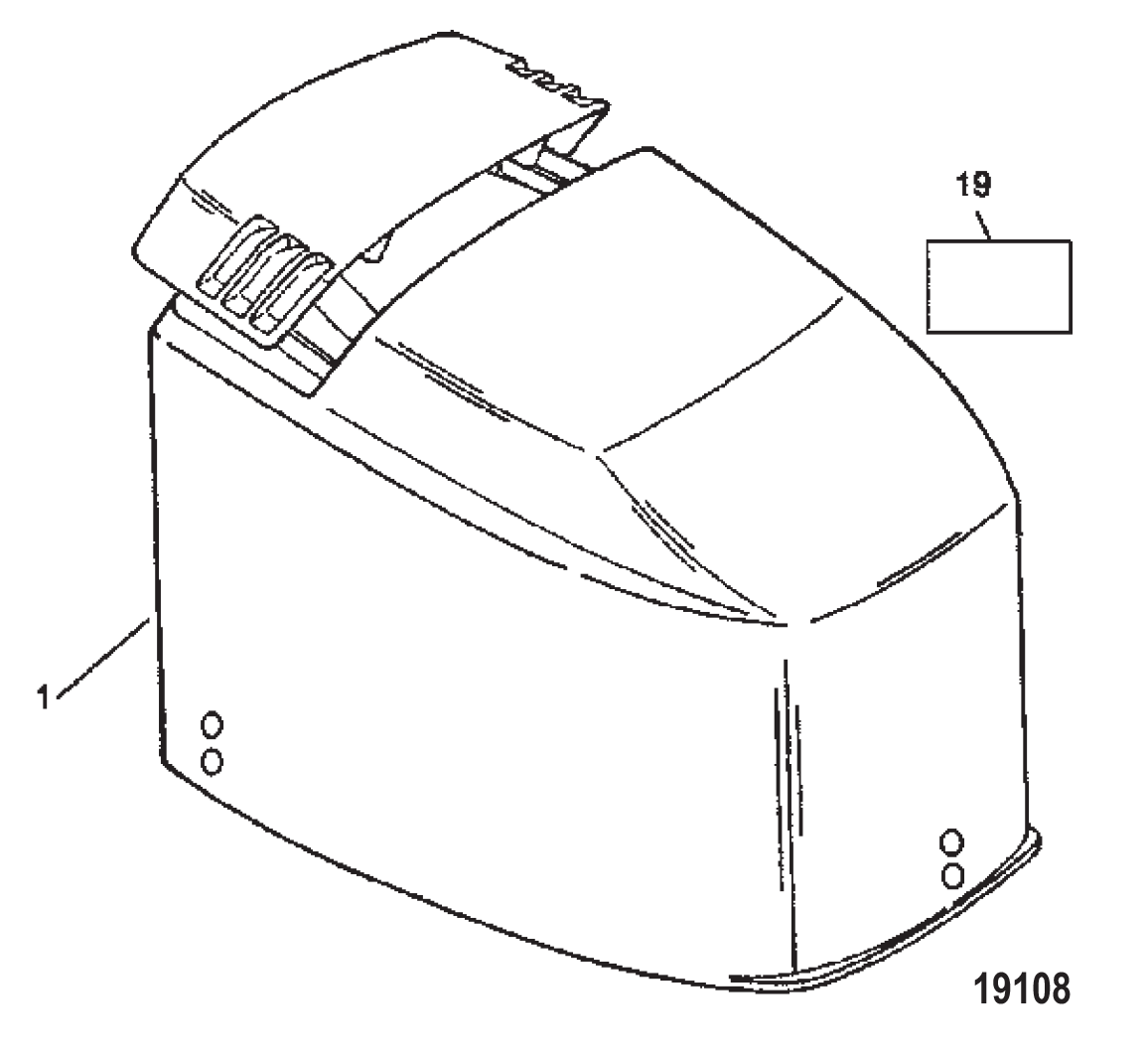

Top Cowl Diagram 19108

1
814277T14 TOP COWL ASSEMBLY (BLACK) - Supersedes: 814277A14, 814277A 6
814277T15 TOP COWL ASSEMBLY (SILVER) - Supersedes: 814277A15, 814277A 7

MERCURY DECALS

824105A00 DECAL SET (225 BLACK LONG) (2000 thru 2001)
+ 824105A95 DECAL SET

824105A96 DECAL SET (225 BLACK LONG) (1996 THRU 1999)

809693A00 DECAL SET (225 BLACK XL/XXL-BLUEWATER) (2000 thru 2001)
+ 809693A96 , 824911A95
809693A99 DECAL SET (225 BLACK XL/XXL-BLUEWATER) (1999)

809167A00 DECAL SET (250 BLACK-BLUEWATER) (2000 thru 2001)  - Supersedes: 809167A96 , 809167A95
809167A99 DECAL SET (250 BLACK-BLUEWATER) (1999)

MARINER DECALS

827438A01 DECAL SET (225 GRAY)(2001)  - Supersedes: 827438A00, 827438A97, 827438A96, 827438A95
827438A00 DECAL SET (225 GRAY XL/XXL) (2000)
827438A97 DECAL SET (225 GRAY XL/XXL) (1997 THRU 1999) ALSO ORDER STRIPING DECAL BELOW

809168A01 DECAL SET (250 GRAY)(2001)  - Supersedes: 809168A00, 809168A97, 809168A96, 809168A95
809168A00 DECAL SET (250 GRAY) (2000)
809168A97 (250 GRAY) (1997 THRU 1999) ALSO ORDER STRIPING DECAL BELOW

809709A97 DECAL SET (225 GRAY LONG) ALSO ORDER STRIPING DECAL BELOW - Supersedes: 809709A96, 824106A95

824911A25 DECAL, Striping (ROLL OF 25 FT. - NEED 7.2 FT.)

TRACKER DECALS

809848A96 DECAL SET (TRACKER BY MERCURY)
809854A96 DECAL SET (TRACKER BY MARINER)

OTHER DECALS:

19 - NOT SOLD SEPARATE Decal- Break-In

856985A12 DECAL, EPA Label Information (1999) - Supersedes: 85698512
804670A00 DECAL, EPA Label Information (2000)
804670A01 DECAL, EPA Label Information (2001)

Cat.# 90-803199 225 3.0L EFI
225/250 3.0L EFI
MERCURY 3.0L OFFSHORE EFI 250 CXL EFI

Serial Number: OG944498 - OG939147- Model description: 1250424VD - 1250423VD 225/250 3.0L EFI
MERCURY 3.0L OFFSHORE EFI 250 CXL EFI-MERCURY 1999 250

Serial Number:0G946651 - Model: 1225413VD - Model Version: L

MERCURY 1999 225EFI
MERCURY 3.0L EFI 225EFI L - 225/250 3.0L EFI
Cat.# 90-803199 225 3.0L EFI

Serial Number:
0G946651
1999
225LEFI
Max RPM 5800
HP 225 KW 168
LB 475 KG 215
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Made in USA
CE [99]

Serial Number: 0G813848 - Model Number: 1225423VD
1998 MERCURY 3.0L EFI OFFSHORE 225EFI XL

824105A96 DECAL SET (225 BLACK LONG) (1996 THRU 1999)
A96 means it is since 1996 but it was available up to 1998 Make a look up by 824105A96 and you will find them.
