> Mercury Marine [Updated: Aug. 6, 2019] > Outboard > 4 Stroke > 400R 2.6L L6 RACING > [2B141124 & Up] - USA - Cat.# 90-8M0103727

TOP COWL DIAGRAM 57919

1
8M0100167 TOP COWL ASSEMBLY Mercury, Decaled 350
+ 8M0113905 TOP COWL, MERCURY

8M0103307 TOP COWL ASSEMBLY Mercury Racing, Black, Decaled 400R
+ 8M0113911 TOP COWL, MERCURY

8M0100170 TOP COWL ASSEMBLY Cold Fusion, Decaled 350
+ 8M0113906 TOP COWL CFWH

8M0103308 TOP COWL ASSEMBLY Mercury Racing, Cold Fusion 400R
+ 8M0113912 TOP COWL CFWH

8M0100171 TOP COWL ASSEMBLY Warm Fusion, Decaled 350
+ 8M0113907 TOP COWL - WFWH

8M0119291 TOP COWL ASSEMBLY Pearl Fusion, Decaled 350
8M0134719 TOP COWL ASSEMBLY Carbon Edition, Decaled 400R

8M0100220 TOP COWL ASSEMBLY Mercury, Non-Decaled
+ 8M0113902 TOP COWL NONDECAL

8M0100222 TOP COWL ASSEMBLY Warm Fusion, Non-Decaled
+ 8M0113904 TOP COWL - WFWH

8M0100221 TOP COWL ASSEMBLY Cold Fusion, Non-Decaled
+ 8M0113903 TOP COWL CFWH

8M0119289 TOP COWL ASSEMBLY Pearl Fusion, Non-Decaled

8M0100167, 8M0113905, 8M0103307, 8M0113911, 8M0100170, 8M0113906, 8M0103308, 8M0100171, 8M0113907, 8M0119291, 8M0134719, 8M0100220, 8M0113902, 8M0100222, 8M0113904, 8M0100221, 8M0113903, 8M0119289,
8M0100167,8M0113905,8M0103307,8M0113911,8M0100170,8M0113906,8M0103308,8M0100171,8M0113907,8M0119291,8M0134719,8M0100220,8M0113902,8M0100222,8M0113904,8M0100221,8M0113903,8M0119289,
8M0100167 8M0113905 8M0103307 8M0113911 8M0100170 8M0113906 8M0103308 8M0100171 8M0113907 8M0119291 8M0134719 8M0100220 8M0113902 8M0100222 8M0113904 8M0100221 8M0113903 8M0119289

2
885354T01 CAP, Air Dam Mercury, Black
8M0024870 DECAL (Mercury Verado) Air Dam Cap Decal
8M0090474 CAP, Air Dam Cold Fusion
8M0090475 CAP, Air Dam Warm Fusion
8M0119293 CAP, Air Dam Pearl Fusion

8M0024870 DECAL Mercury Verado

MERCURY DECALS

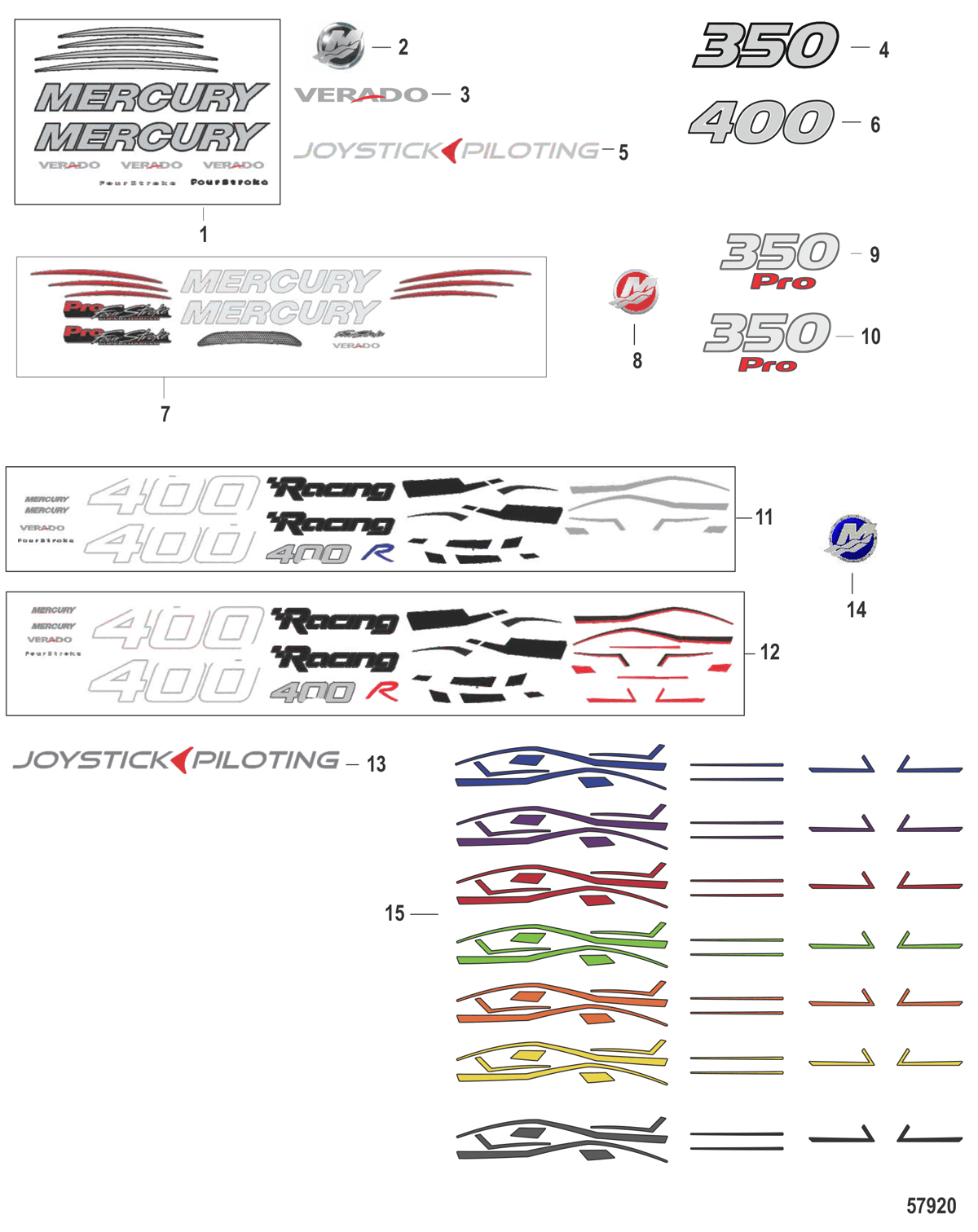

Decals - Top Cowl DIAGRAM 57920-Cat-90-8M010372

VERADO DECALS

1 8M0102448 DECAL SET Mercury
2 8M0043703 DECAL M-Icon, 66 MM, Black
3 8M0024870 DECAL Mercury Verado (3 decals)

7 8M0085367 DECAL 350 HP, Rear
8 8M0075217 DECAL Joystick Piloting 350/400

6 8M0156650 DECAL 400 HP, Rear
7 8M0103041 DECAL SET ME Verado Pro
8 8M0043699 DECAL M-Icon, 66mm Red
10 8M0090899 DECAL 350 Pro, Top
10 8M0090898 DECAL 350 Pro, Rear

MERCURY RACING DECALS

11 8M0103043 DECAL SETMERCURY Verado Racing, White 400R
12 8M0103042 DECAL SET ME Verado Racing, Black (Does Not Contain Carbon Decals) 400R
13 8M0099017 DECAL Joystick Piloting, Silver 400R
14 8M0080153 M-ICON 66 MM Racing (BLUE)

15
8M0096286 DECAL KIT 400R Racing Blue
8M0096287 DECAL KIT 400R Racing Purple
8M0096288 DECAL KIT 400R Racing Red
8M0096289 DECAL KIT 400R Racing Green
8M0096290 DECAL KIT 400R Racing Orange
8M0096291 DECAL KIT 400R Racing Yellow
8M0097812 DECAL KIT 400R Racing Carbon

Serial Number: 2B373228
Model: 1400V231D
Model Version: XL
2016 HIGH PERFORMANCE 400R XL 1.75:1 VERADO-EPA 400 4S XL

Model Number
||||||||||||||
1400V231D
Serial Number:
||||||||||||||
2B373228
400R XL
HP 400 KW 298
LB 699 KG 317
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA from
US and foreign components
