250 PRO XS (3.0L) - Cat.# 90-898101403
> Mercury Marine [Updated: Oct. 21, 2021] > Outboard > 2 Stroke DFI (OptiMax) > 250 PRO XS (3.0L DFI) > [1B426561 THRU 1B752546] - USA - Cat.# 90-898101403
> Mercury Marine [Updated: Sep. 15, 2021] > Outboard > 2 Stroke DFI (OptiMax) > 250 PRO XS (3.0L DFI) > [1B426561 THRU 1B752546] - USA - Cat.# 90-898101403
> Mercury Marine [Updated: Apr. 8, 2021] > Outboard > 2 Stroke DFI (OptiMax) > 250 PRO XS (3.0L DFI) > [1B426561 THRU 1B752546] - USA - Cat.# 90-898101403
> Mercury Marine [Updated: Feb. 19, 2019] > Outboard > 2 Stroke DFI (OptiMax) > 250 PRO XS (3.0L DFI) > [1B426561 THRU 1B752546] - USA - Cat.# 90-898101403
250 PRO XS (3.0L)

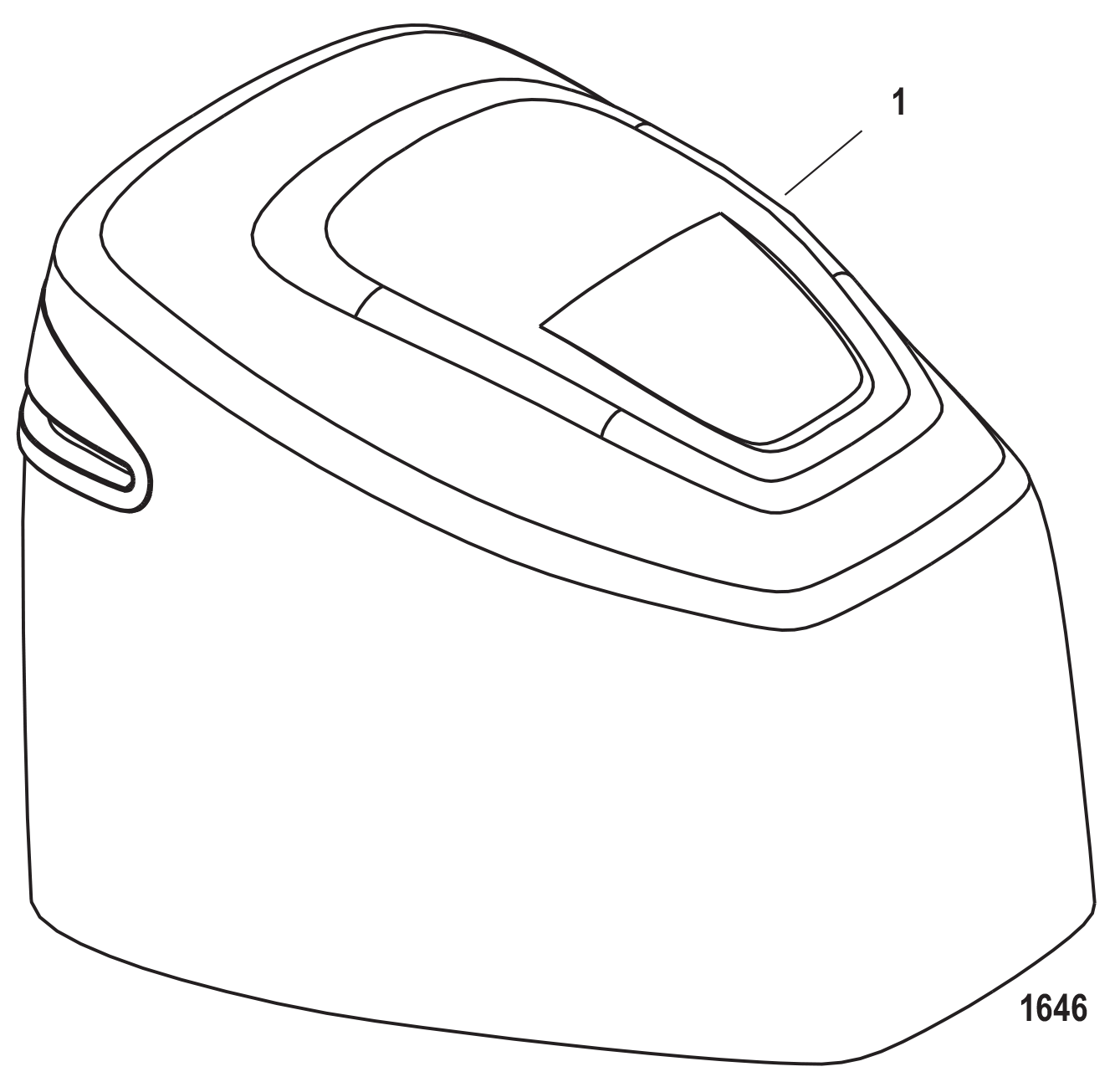

Top cowl diagram 1646
1
881288T58 TOP COWL ASSEMBLY (Includes all Decals except HorsePower) SN# 1B446999 & Below
881288T66 TOP COWL ASSEMBLY (Includes all Decals except HorsePower) SN# 1B447000 & Up
+ 8M0063392 ORD 100-8M0075372
++ 8M0075372 TOP COWL ASSEMBLY Mercury, Without decals
+ 8M0063392 ORD 100-8M0075372
++ 8M0075372 TOP COWL ASSEMBLY Mercury, Without decals
8M0075372 TOP COWL ASSEMBLY (Includes all Decals except HorsePower) SN# 1B446999 & Below
8M0075372 TOP COWL ASSEMBLY, (Black) (Includes all Decals except HorsePower) SN# 1B447000 & Up
881288T58, 881288T66, 8M0063392, 8M0075372,
881288T58 881288T66 8M0063392 8M0075372
MERCURY DECALS
+897136A07 DECAL SET, 250 ProXS ***DECAL SET ProXS, HP decal not included

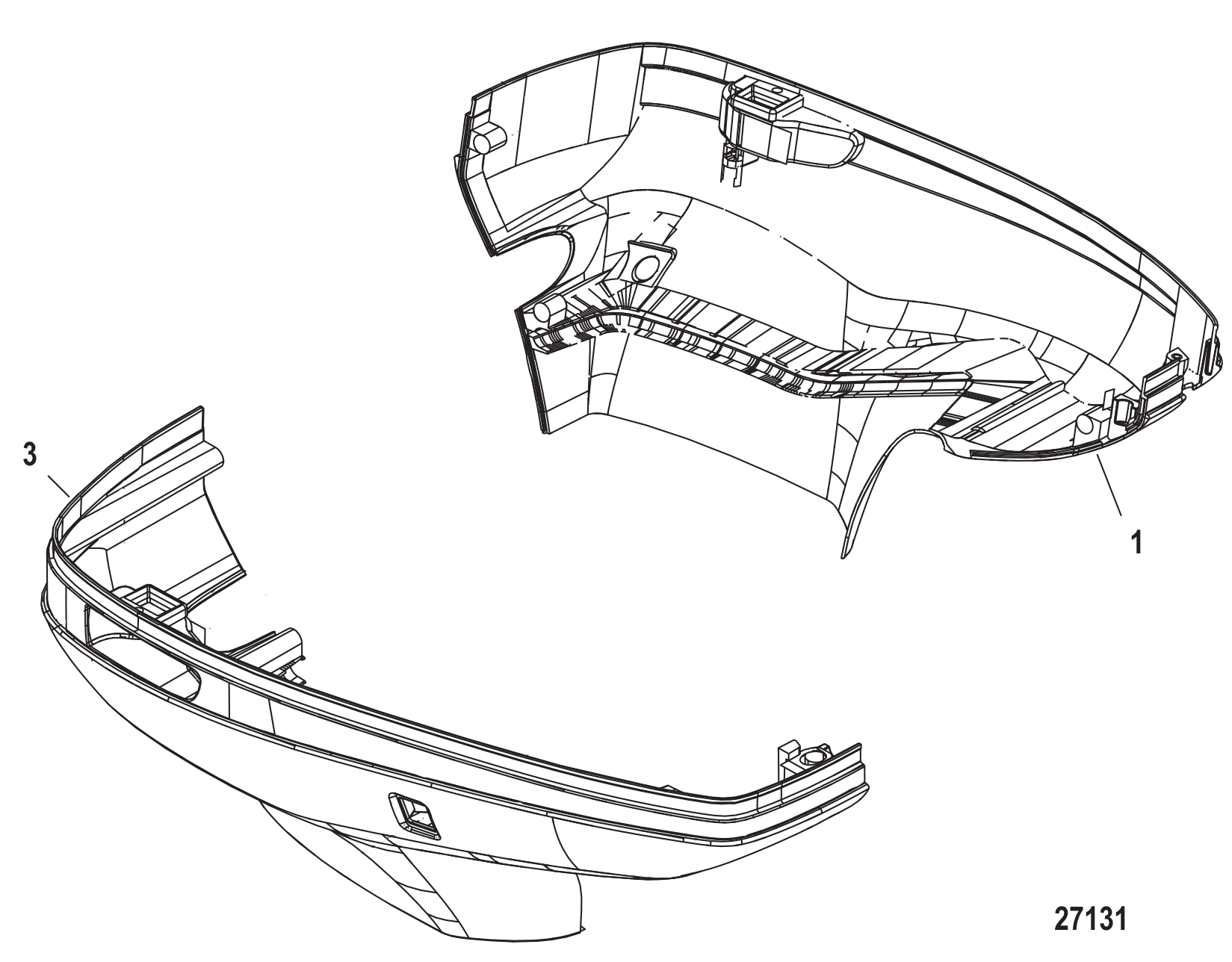

Lower cowl diagram 27131
1- 850302A07 BOTTOM COWL, Port
3- 850301A07 BOTTOM COWL, Starboard
Serial Number: 1B555079 - Model: 1250P73HD - Model Version: L PROXS
2006 MERCURY OPTIMAX PROXS 250DFI L PROXS
Serial Number: 1B532973 - Model: 1250P73HD - Model Version: L PROXS
2006 MERCURY OPTIMAX PROXS 250DFI L PROXS
Serial Number: 1B722289 - Model: 1250P73HD - Model Version: L PROXS
2006 MERCURY OPTIMAX PROXS 250DFI L PROXS
Serial Number
1B722289
SEP 2008
250XS L
Max RPM 6000
HP 250 KW 186
LB 516 KG 235
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA
from US and foreign
components
[08]
Serial Number: 1B458921 - Model: 1250P73HD - Model Version: L PROXS
MERCURY OPTIMAX PROXS 250DFI L PROXS
Serial Number: 1B458921 - Model: 1250P73HD - Model Version: L PROXS
MERCURY OPTIMAX PROXS 250DFI L PROXS
