> Mercury Marine [Updated: Jul. 5, 2022] > Outboard > 4 Stroke > 300R HP 4.6L V8 AMS Racing > [1E081459 & Up] - USA - Cat.# 90-8M0177033
> Mercury Marine [Updated: May. 24, 2022] > Outboard > 4 Stroke > 300R HP 4.6L V8 AMS Racing > [1E081459 & Up] - USA - Cat.# 90-8M0177033

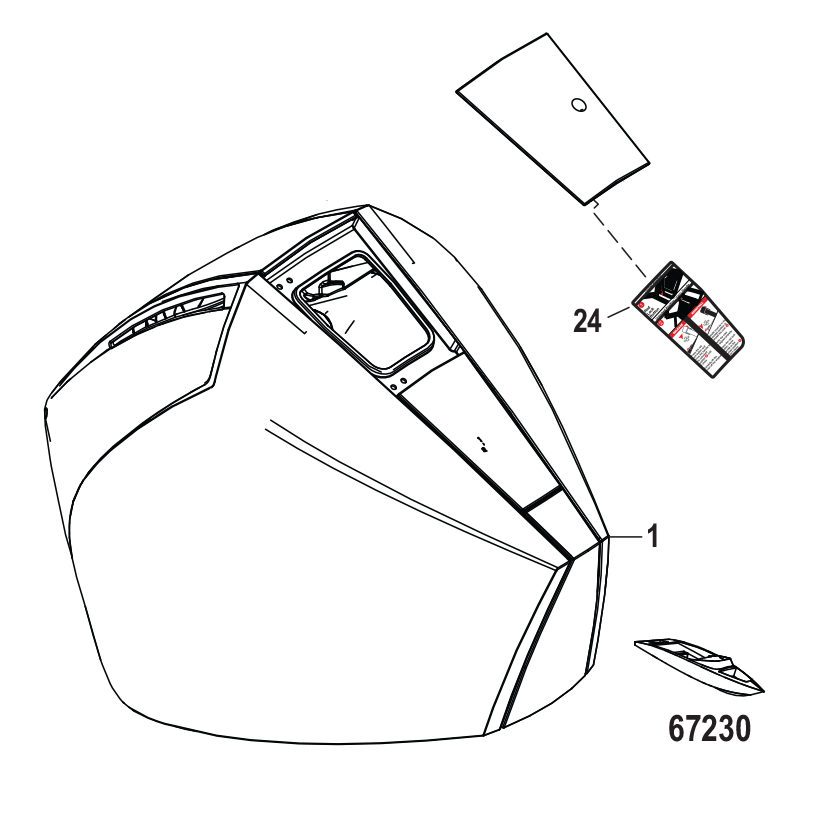

8M0182331 TOP COWL ASSEMBLY Black, Decaled without Accent Panel Decal Set
8M0177060 TOP COWL ASSEMBLY Cold Fusion, Decaled without Accent Panel Decal Set

and others 8M0143491, 8M0143492, 8M0142173, 8M0182329, 8M0142172, 8M0142174, 8M0142175, 8M0142176, 8M0142177, 8M0159576, 8M0159577,

MERCURY DECALS diagram 71969

1) 0037 8M0145974 DECAL SET Top Cowl 300R
2) 0037 8M0143773 DECAL SET Lower Cowl
3) 0037 8M0151525 DECAL MICON 53 MM, Racing
4) 0037 8M0080153 DECAL M-ICON 66 MM Racing

Accent Panel Diagram 71970

1 8M0147687 ACCENT COWL ASSEMBLY Devils Eye Red
1 8M0147684 ACCENT COWL ASSEMBLY Graphite Grey

1 8M0147685 ACCENT COWL ASSEMBLY Ready to Paint
+ 8M0192256 ACCENT PNL PAINT

1 8M0172910 ACCENT COWL ASSEMBLY Carbon Fiber (Non-Decaled) MUST ORDER DECAL SET

8M0147687, 8M0147684, 8M0147685, 8M0192256, 8M0172910

Decals

2 8M0159922 DECAL SET Accent Panel, 300R
3 8M0149565 DECAL Mercury, Black Devil Eye Red or Graphite Grey
3 8M0147920 DECAL Mercury, Silver Carbon Fiber
4 8M0149567 DECAL Rear, 300 HP
5 8M0080153 DECAL M-ICON 66 MM Racing
6 8M0149566 DECAL Red, R Graphite Grey or Carbon Fiber
7 8M0149568 DECAL Black, R Devils Eye Red

Installation instructions V8 Accent panels

Serial Number: 1E082321 - Model: 13000232A - Model Version: XL 4
HIGH PERFORMANCE 300R XL AMS 5.44 HD 1.85 DT BL 300EFI XL 4

Model Number
13000232A
Serial Number
1E082321
300XLAHDB
HP 300 KW 224
LB 635 KG 288
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA from
US and foreign components
CE

Serial Number: 1E082562 - Model: 13000233A - Model Version: CXL 4
HIGH-PERFORMANCE 300R CXL AMS 5.44 HD 1.85 DTBL 300EFI CXL 4
