4 Stroke - 350/400 HP 5.7L V10 Verado SeaPro - Cat.# 90-8M0188523

> Mercury Marine [Updated: May. 13, 2023] > Outboard > 4 Stroke > 400 HP 5.7L V10 Verado > [3B266064 & Up] - USA - Cat.# 90-8M0188523

TOP COWL DIAGRAM 75049

1 0100 8M0200182 TOP COWL ASSEMBLY Black Decaled without horsepower
1 0100 8M0200183 TOP COWL ASSEMBLY Cold Fusion Decaled without horsepower
1 0100 8M0200184 TOP COWL ASSEMBLY Warm Fusion Decaled without horsepower
1 0100 8M0200185 TOP COWL ASSEMBLY Pearl Fusion Decaled without horsepower
1 0100 8M0200186 TOP COWL ASSEMBLY Black SeaPro Decaled with horsepower

8M0200182, 8M0200183, 8M0200184, 8M0200185, 8M0200186,

2 8M0200187 DOOR ASSEMBLY Black
2 8M0200188 DOOR ASSEMBLY Cold Fusion
2 8M0200189 DOOR ASSEMBLY Warm Fusion
2 8M0200190 DOOR ASSEMBLY Pearl Fusion

Lower Cowl 75035

1 0100 8M0199880 LOWER COWLS Black (Pair)
1 0100 8M0199882 LOWER COWLS Cold Fusion (Pair)
1 0100 8M0199881 LOWER COWLS Warm Fusion(Pair)
1 0100 8M0199883 LOWER COWLS Pearl Fusion (Pair)

52 0100 8M0199910 LOWER COWL ASSEMBLY Rear Black
52 0100 8M0199912 LOWER COWL ASSEMBLY Rear Cold Fusion
52 0100 8M0199911 LOWER COWL ASSEMBLY Rear Warm Fusion
52 0100 8M0199913 LOWER COWL ASSEMBLY Rear Pearl Fusion

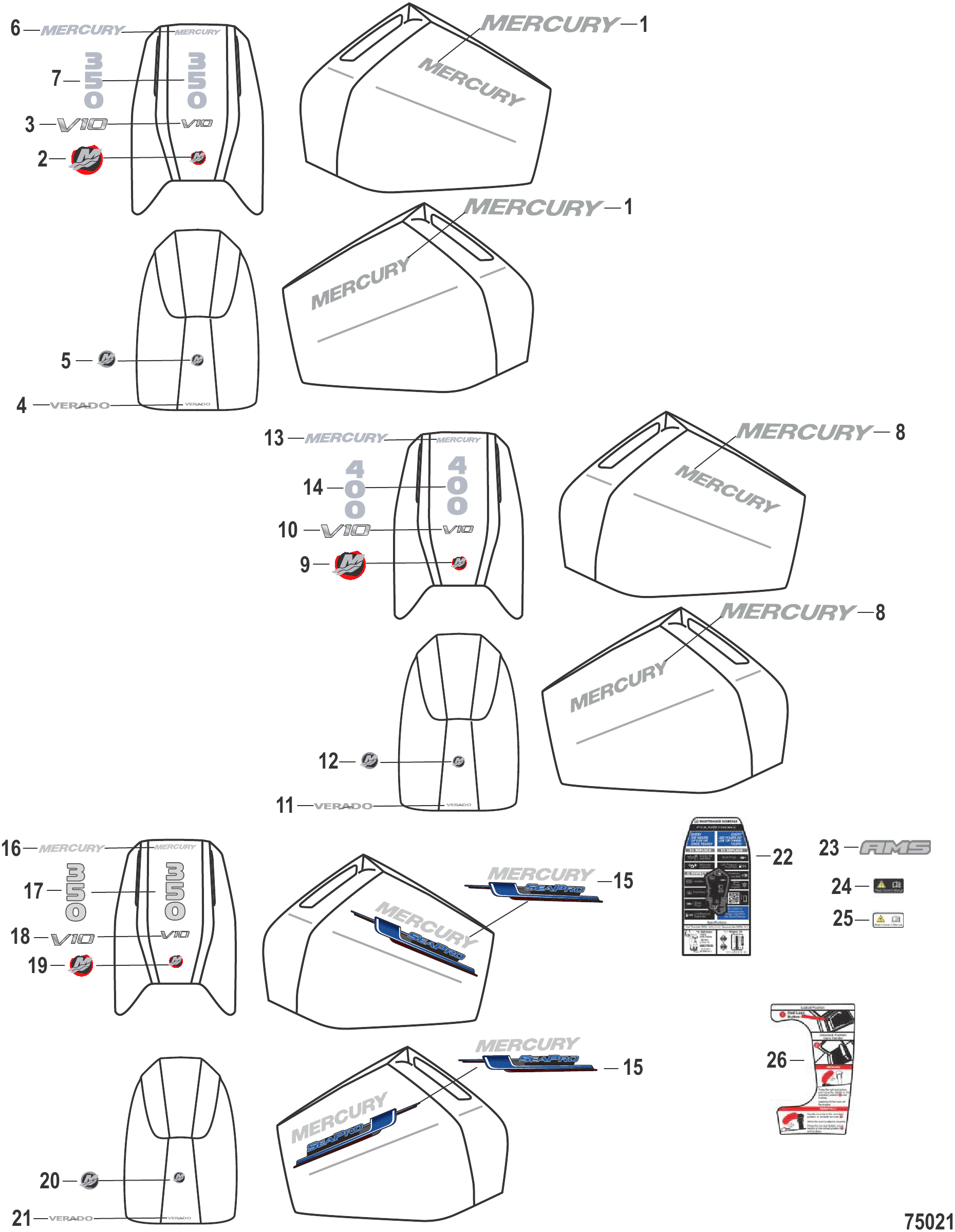

MERCURY DECALS Diagram 75021

1) 0037 8M0204796 DECAL SET 350 HP
2) 0037 8M0043703 DECAL M-Icon, 66 MM, Black
3) 0037 8M0204799 DECAL V10
4) 0037 8M0178230 DECAL Verado
5) 0037 8M0043705 DECAL M-Icon, 60 MM Black
6) 0037 8M0153042 DECAL Mercury, Silver
7) 0037 8M0204800 DECAL 350 HP
8) 0037 8M0204797 DECAL SET 400 HP
9) 0037 8M0043703 DECAL M-Icon, 66 MM, Black
10) 0037 8M0204799 DECAL V10
11) 0037 8M0178230 DECAL Verado
12) 0037 8M0043705 DECAL M-Icon, 60 MM Black
13) 0037 8M0153042 DECAL Mercury, Silver
14) 0037 8M0204801 DECAL 400 HP
15) 0037 8M0204798 DECAL SET 350 HP SeaPro
16) 0037 8M0153042 DECAL Mercury, Silver
17) 0037 8M0204802 DECAL 350 HP
18) 0037 8M0204799 DECAL V10
19) 0037 8M0043703 DECAL M-Icon, 66 MM, Black
20) 0037 8M0043705 DECAL M-Icon, 60 MM Black
21) 0037 8M0178230 DECAL Verado
22) 0037 8M0199986 DECAL Check Engine
23) 0037 8M0142569 DECAL Warning
24) 0037 8M0204803 DECAL Maintenance
25) 0037 8M0146963 DECAL AMS - Order 2
26) 0037 8M0204805 DECAL Read Manual Black
27) 0037 8M0204806 DECAL Read Manual White
28) 0037 8M0204807 DECAL Latch



Accent Panel Diagram 75006

1) 0094 8M0203820 ACCENT PANEL Redline Red
1) 0094 8M0203821 ACCENT PANEL Pacific Blue
1) 0094 8M0203822 ACCENT PANEL Mercury Silver
1) 0094 8M0203823 ACCENT PANEL Graphite Grey
1) 0094 8M0203824 ACCENT PANEL Pro Black
1) 0094 8M0203825 ACCENT PANEL Paint Ready

8M0203820, 8M0203821, 8M0203822, 8M0203823, 8M0203824, 8M0203825,
8M0203820 8M0203821 8M0203822 8M0203823 8M0203824 8M0203825

2) 0037 8M0147920 DECAL Mercury, Silver
2) 0037 8M0147987 DECAL Mercury, Dark Silver
2) 0037 8M0149565 DECAL Mercury, Black
3) 0037 8M0204799 DECAL V10
4) 0037 8M0043703 DECAL M-Icon, 66 MM, Black
5) 0037 8M0204800 DECAL 350 HP
6) 0037 8M0204801 DECAL 400 HP
7) 0037 8M0204802 DECAL 350 HP SeaPro


Serial Number: 3B391127 Model: 13500072A Model Version: XL 4
2023/2022 MERCURY 350XL VER 6.4 ES 350 4S XL 4
