> Mercury Marine [Updated: May. 26, 2023] > Outboard > 4 Stroke > 360 APEX > [1E054247 THRU 99999999999999999] - Cat.# 90-8M0181147

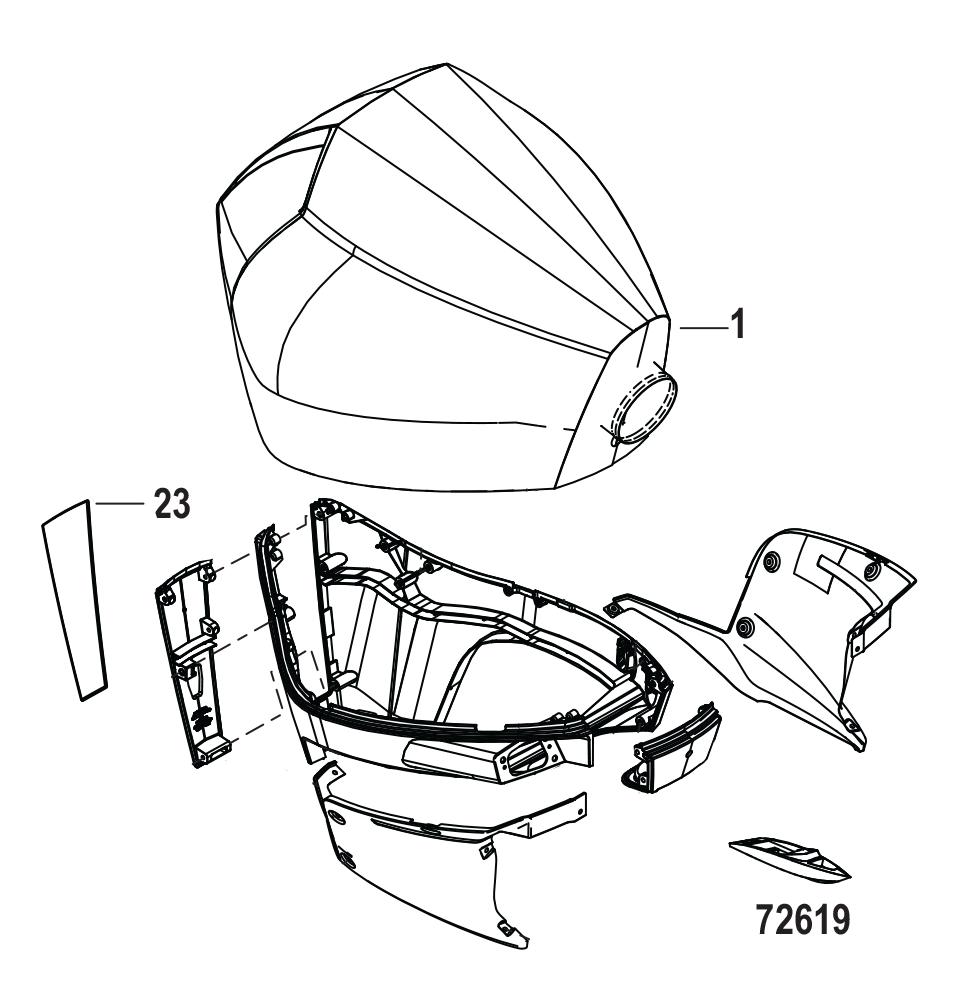

Cowl Diagram 72619

1) 0100 8M0176575 TOP COWL ASSEMBLY
10) 0100 8M0176570 LOWER COWL ASSEMBLY Trimmed
19) 0100 8M0142223 LOWER REAR COWL ASSEMBLY Black
23) 0000 8M0176572 ACCENT PANEL
34) 0100 8M0176574 COVER Driveshaft Housing Starboard
35) 0100 8M0176573 COVER Driveshaft Housing Port

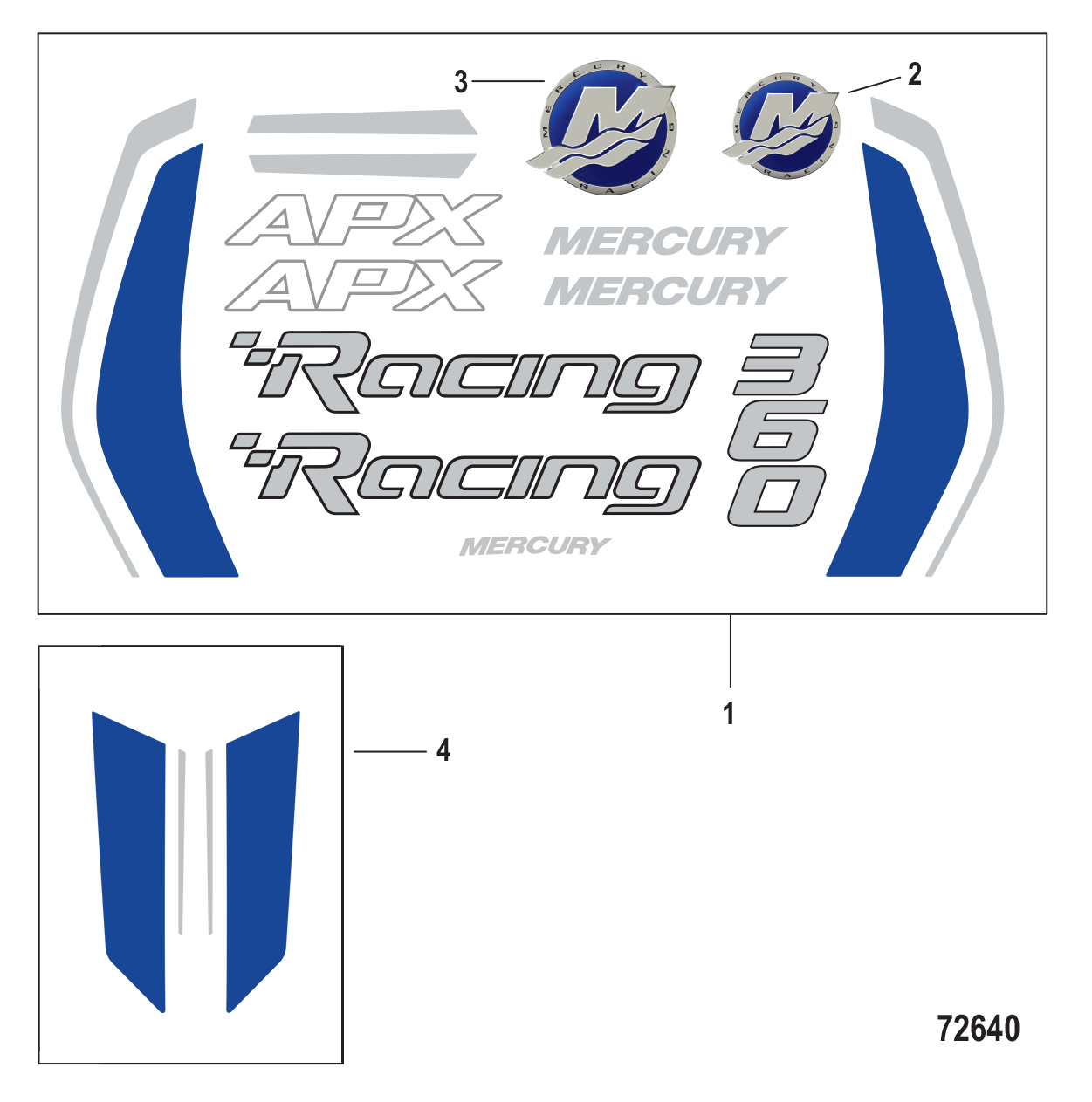

Decals Diagram 72640

1) 0037 8M0176584 DECAL SET Top Cowl
2) 0037 8M0151525 DECAL MI-CON 53 MM, Racing
3) 0037 8M0080153 DECAL M-ICON 66 MM Racing
4) 0037 8M0176585 DECAL SET Chap Set
