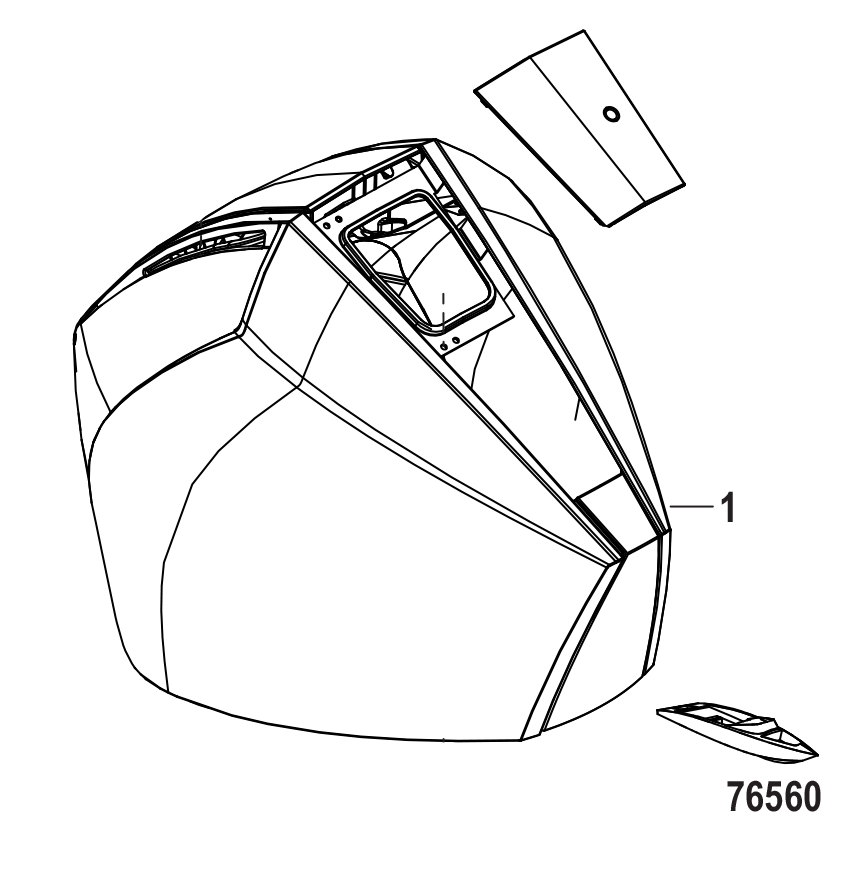

Top Cowl 76560 Diagram

1) 8M0210423 TOP COWL ASSEMBLY Black
1) 8M0210426 TOP COWL ASSEMBLY Cold Fusion White
1) 8M0211061 TOP COWL ASSEMBLY Paint Ready

8M0210423, 8M0210426, 8M0211061
8M0210423 8M0210426 8M0211061

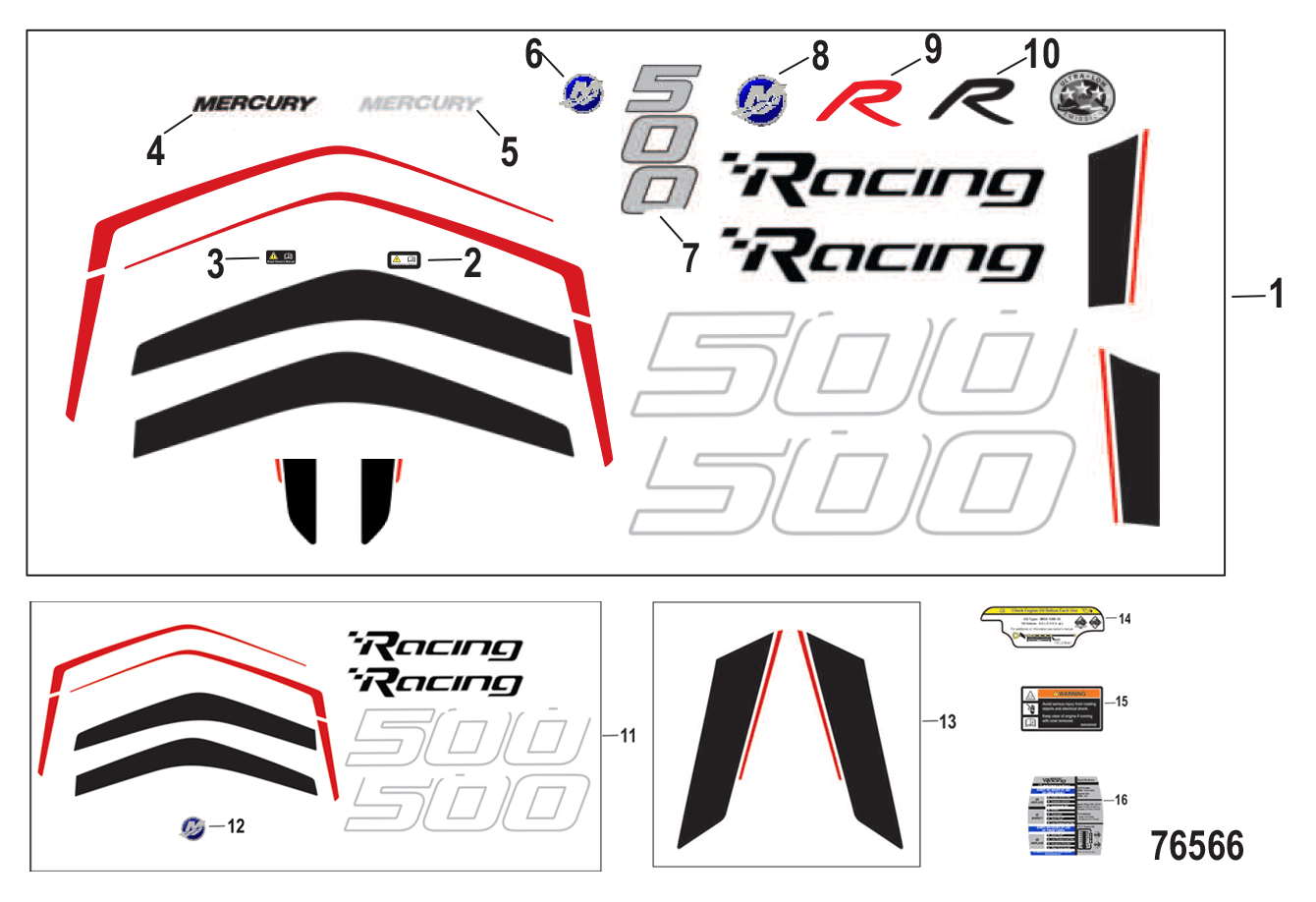

Decals 76566 Diagram

1) 8M0208889 DECAL KIT Paint Ready
2) 8M0142577 DECAL Read Manual, Clear
3) 8M0142371 DECAL Read Manual, Black
4) 8M0149565 DECAL Mercury, Black
5) 8M0147920 DECAL Mercury, Silver
6) 8M0151525 DECAL MI-CON 53 MM, Racing Not defined Placement
7) 8M0213286 DECAL Rear 500
8) 8M0080153 DECAL M-ICON 66 MM Racing Not defined Placement
9) 8M0149566 DECAL Red, R
10) 8M0149568 DECAL Black, R
11) 8M0213288 DECAL SET Top Cowl
12) 8M0151525 DECAL MI-CON 53 MM, Racing Not defined Placement
13) 8M0143773 DECAL SET Lower Cowl
14) 8M0213289 DECAL Check Engine
15) 8M0142569 DECAL Warning
16) 8M0213291 DECAL Maintenance Schedule

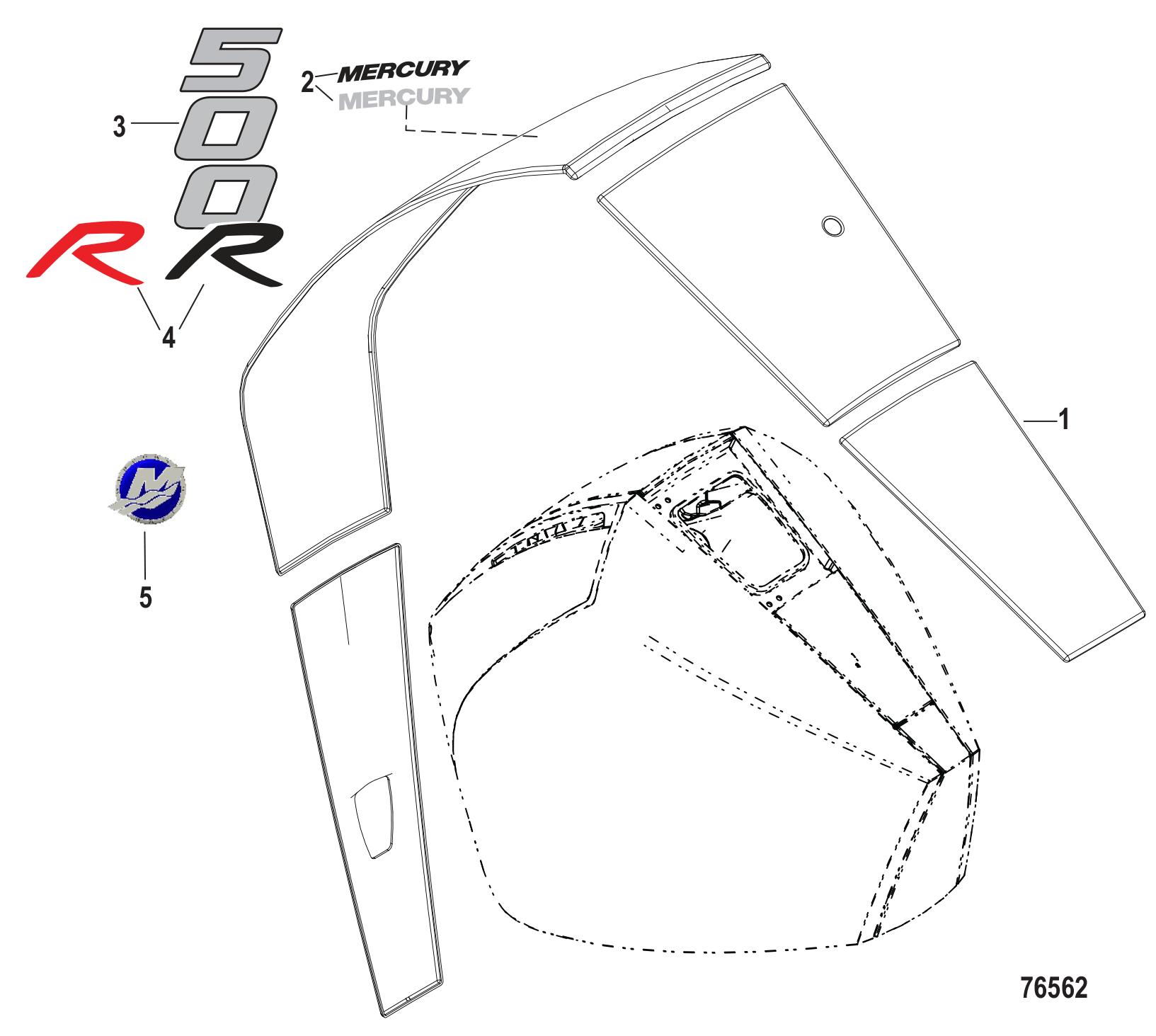

Accent Panel 76562 Diagram

1) 8M0210439 ACCENT PANEL Devil Red-Eye
1) 8M0210440 ACCENT PANEL Graphite Grey
1) 8M0172910 ACCENT COWL ASSEMBLY Carbon Fiber (Non-Decaled) Must Purchase 8M0208889
 -  8M0205360 DECAL KIT Accent Panel
2) 8M0147920 DECAL Mercury, Silver Paint Ready
2) 8M0149565 DECAL Mercury, Black
3) 8M0213286 DECAL Rear 500
4) 8M0149566 DECAL Red, R
4) 8M0149568 DECAL Black, R
5) 8M0080153 DECAL M-ICON 66 MM Racing

Problem found on M Racing logos in this Generation orders a complete kit where a 60 mm logo was received ( No part number marked behind the M logo), instructions or Installation templates points 8M0085374, size not found in descriptions for Racing M logo possibly a 60 mm logo, follow up with Mercury for updates on their part books.

8M0085374 DECAL M-ICON 60 MM Racing Confirm size

Installation instructions V8 Accent panels
