> Mercury Marine [Updated: Aug. 29, 2026] > Outboard > 4 Stroke EFI > 9.9 HP EFI ProKicker 2 CYL (209cc) > [1R281445 & Up] - Cat.# 90-8M0223221

TOP COWL ASSEMBLY Top Cowl 77674 Diagram

• 1) 0100 - 8M0223489 - TOP COWL ASSEMBLY Mercury, Non-Decaled

8M0223489, 0100-8M0223489

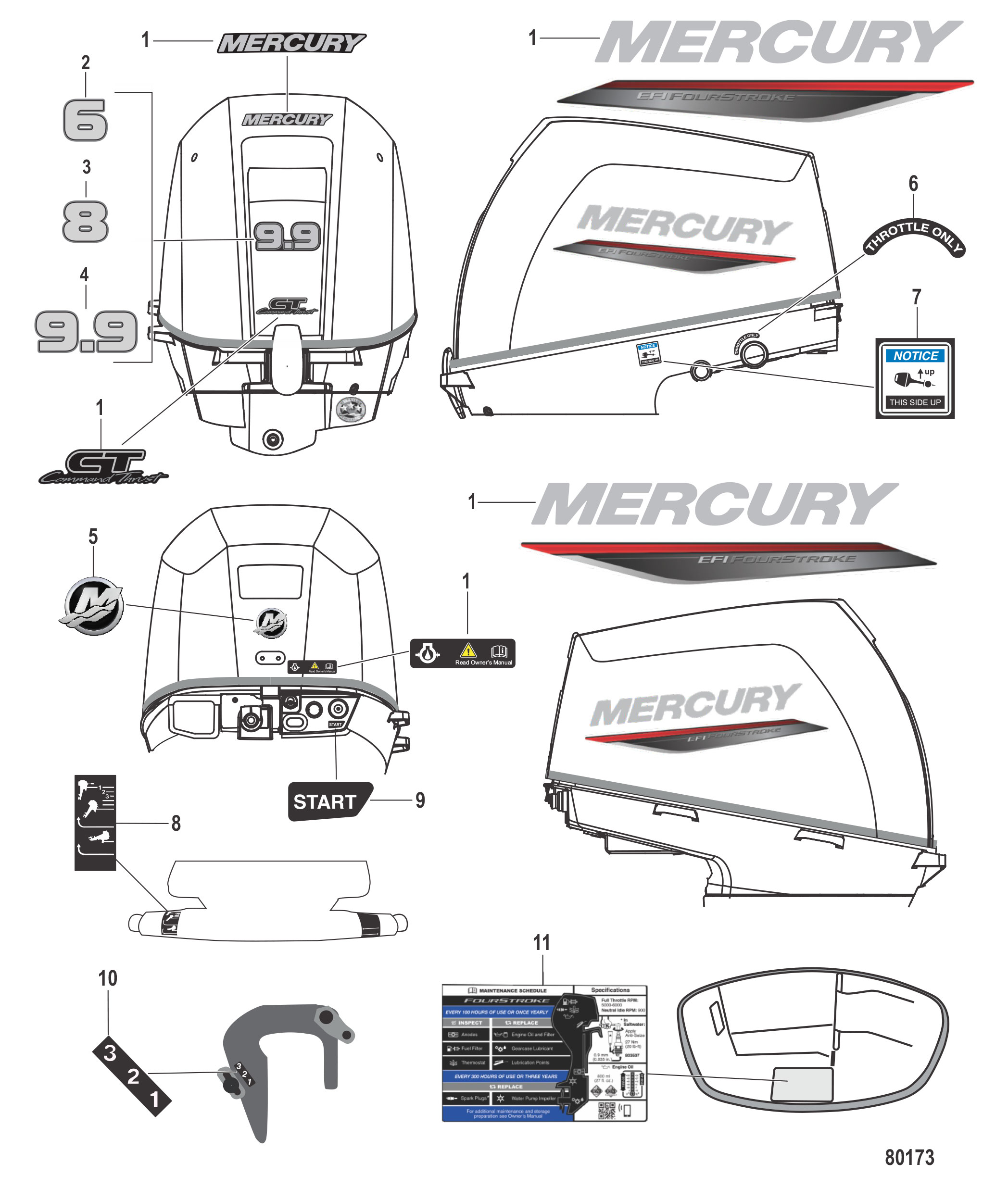

Diagram 80173 - v110966352 (2026)

DECALS - EFI FOURSTROKE MODELS ONLY

• 1) 8M0225036 - DECAL SET - Mercury
• 2) 8M0073676 - DECAL - Rear 6 HP
• 3) 8M0225037 - DECAL - Rear 8 HP
• 4) 8M0225038 - DECAL - Rear 9.9 HP
• 5) 8M0050645 - DECAL - M-icon
• 6) 859278003 - DECAL - Throttle Only
• 7) 8M0157275 - DECAL - Notice This Side Up
• 8) 12869 - DECAL - Tilt Position
• 9) 8M0225039 - DECAL - Start
• 10) 128671 - DECAL - Lower Tilt Limit
• 11) 8M0180066 - DECAL - Maintenance Place under cowl
• - 8M0226901 - CONVERSION KIT - Remote Control Models to Tiller Models

8M0225036, 8M0225036, 8M0073676, 8M0073676, 8M0225037, 8M0225037, 8M0225038, 8M0225038, 8M0050645, 8M0050645, 859278003, 859278003, 8M0157275, 8M0157275, 12869, 12869, 8M0225039, 8M0225039, 128671, 128671, 8M0180066, 8M0180066, 8M0226901, 8M0226901

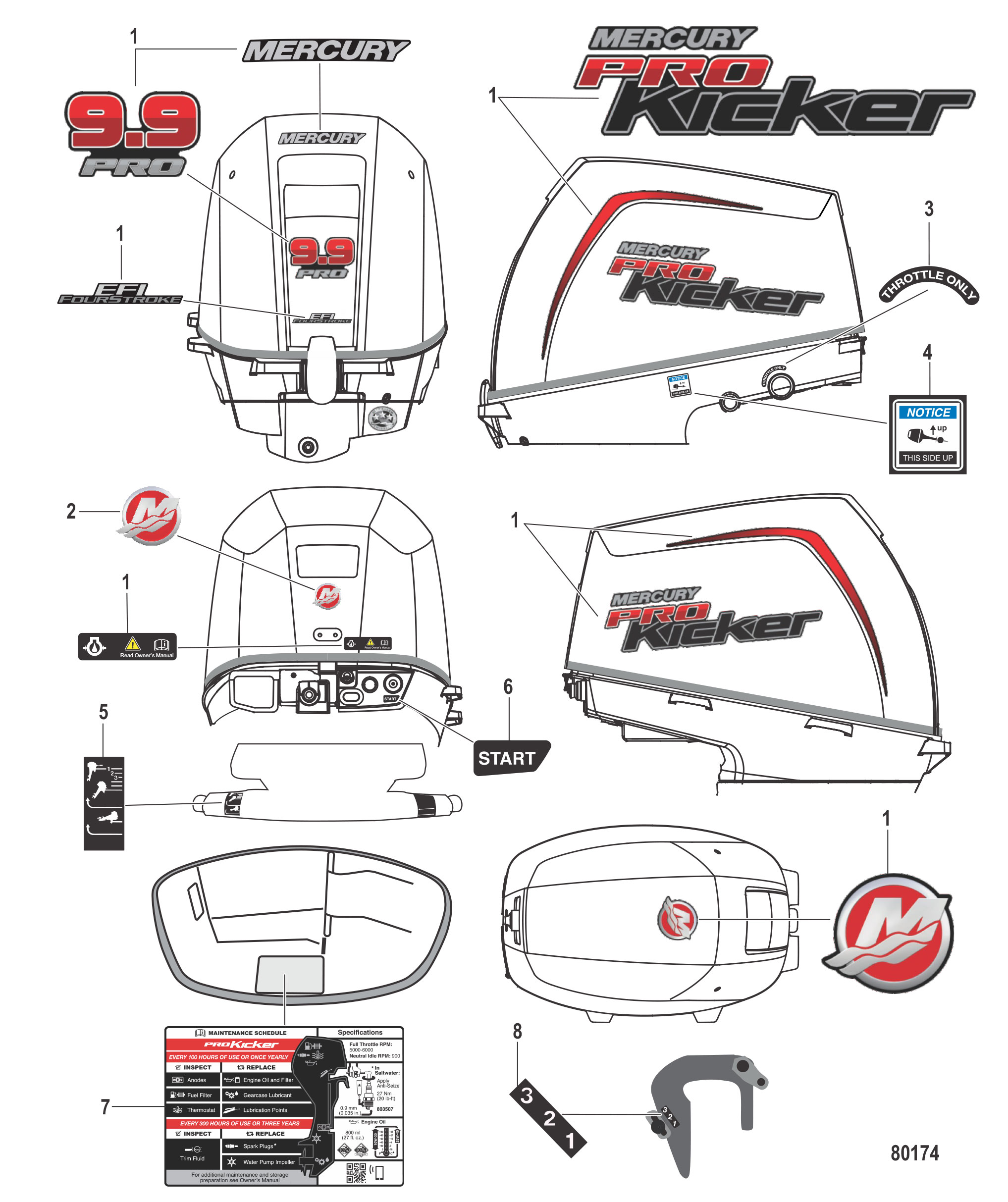

Diagram 80174 - v110966456 (2026)

DECALS - PROKICKER

• 1) 8M0225040 - DECAL SET - ProKicker
• 2) 8M0188626 - DECAL - M-ICON, Red, 39 mm
• 3) 859278003 - DECAL - Throttle Only
• 4) 8M0157275 - DECAL - Notice This Side Up
• 5) 12869 - DECAL - Tilt Position
• 6) 8M0225039 - DECAL - Start
• 7) 8M0180068 - DECAL - Maintenance, 9.9 ProKicker Place under cowl
• 8) 128671 - DECAL - Lower Tilt Limit
• - 8M0226901 - CONVERSION KIT - Remote Control Models to Tiller Models

8M0225040, 8M0225040, 8M0188626, 8M0188626, 859278003, 859278003, 8M0157275, 8M0157275, 12869, 12869, 8M0225039, 8M0225039, 8M0180068, 8M0180068, 128671, 128671, 8M0226901, 8M0226901

> Mercury Marine [Updated: Sep. 3, 2025] > Outboard > 4 Stroke EFI > 9.9 HP EFI ProKicker 2 CYL (209cc) > [1R281445 & Up] - Cat.# 90-8M0223221 > Decals
> Mercury Marine [Updated: Sep. 4, 2025] > Outboard > 4 Stroke EFI > 9.9 HP EFI ProKicker 2 CYL (209cc) > [1R281445 & Up] - Cat.# 90-8M0223221

MERCURY DECAL SET Decals Diagram 77817

FourStroke Decals

1) 0037 8M0225036 - 8M0225036 - DECAL SET Mercury
2) 8M0225037 - 8M0225037 - DECAL Rear 8 HP
3) 0037 8M0225038 - 8M0225038 - DECAL Rear 9.9 HP
4) 0037 8M0050645 - 8M0050645 - DECAL M-icon
5) 0037 8M0180066 - DECAL Maintenance Place under cowl
6) 0037 8M0157275 - DECAL Notice This Side Up
7) 0037 8M0225039 - DECAL Start
8) 0037 859278003 - DECAL Throttle Only
9) 0037 128671 - DECAL Lower Tilt Limit
10) 0037 12869 - DECAL Tilt Position

ProKicker Decals

11) 0037 8M0225040 - DECAL SET ProKicker
12) 0037 8M0188626 - DECAL M-ICON, Red, 39 mm
13) 0037 8M0180068 - DECAL Maintenance, 9.9 ProKicker

8M0225036, 8M0225037, 8M0225038, 8M0050645, 8M0180066, 8M0157275, 8M0225039, 859278003, 128671, 12869, 8M0225040, 8M0188626, 8M0180068

OTHER COMPONENT

• - 0000  - 8M0226901 - CONVERSION KIT Remote Control Models to Tiller Models

8M0226901, 8M0226901

1R313506 Model: 1A10452LK
MERCURY ME9.9ELPT CT PK 4S 9.9EFI ELPT/BF 4

Model Number
1A10452LK
Serial Number
1R281586
F9.9ELPC
HP 9.9 KW 7.28
LB 111 KG 50.3
Mercury Marine
Brunswick Corp.
Made in Japan
[BD]
CE 0098 UKCA
△ CAN ICES-2/ NMB-2

Serial Number: 1R281586 - Model Number: 1A10452LK
2023 MERCURY ME9.9ELPT CT PK 4S 9.9EFI ELPT/BF 4

Model Number
1A10452LK
Serial Number
1R383282
F9.9ELPC
HP 9.9 KW 7.28
LB 111  KG 50.3
Mercury Marine
Brunswick Corp.
Made in Japan
[BF]
CE 0098 UKCA
△ CAN ICES-2/NMB-2

Serial Number: 1R383282 -  Model: 1A10452LK
Mercury 9.9 HP ProKicker 4S EFI
