> Mercury Marine [Updated: Jan. 13, 2024] > Outboard > 4 Stroke > 150 HP EFI > [1B905505 & Up] - Cat.# 90-8M0060852
> Mercury Marine [Updated: Feb. 15, 2023] > Outboard > 4 Stroke > 150 HP EFI > [1B905505 & Up] - Cat.# 90-8M0060852
> Mercury Marine [Updated: Sep. 14, 2019] > Outboard > 4 Stroke > 150 (4-Stroke) > [1B905505 & Up] - Cat.# 90-8M0060852
> Mercury Marine [Updated: Aug. 7, 2018]  > Outboard > 4 Stroke > 150 (4-Stroke) > [1B905505 & Up] - Cat.# 90-8M0060852

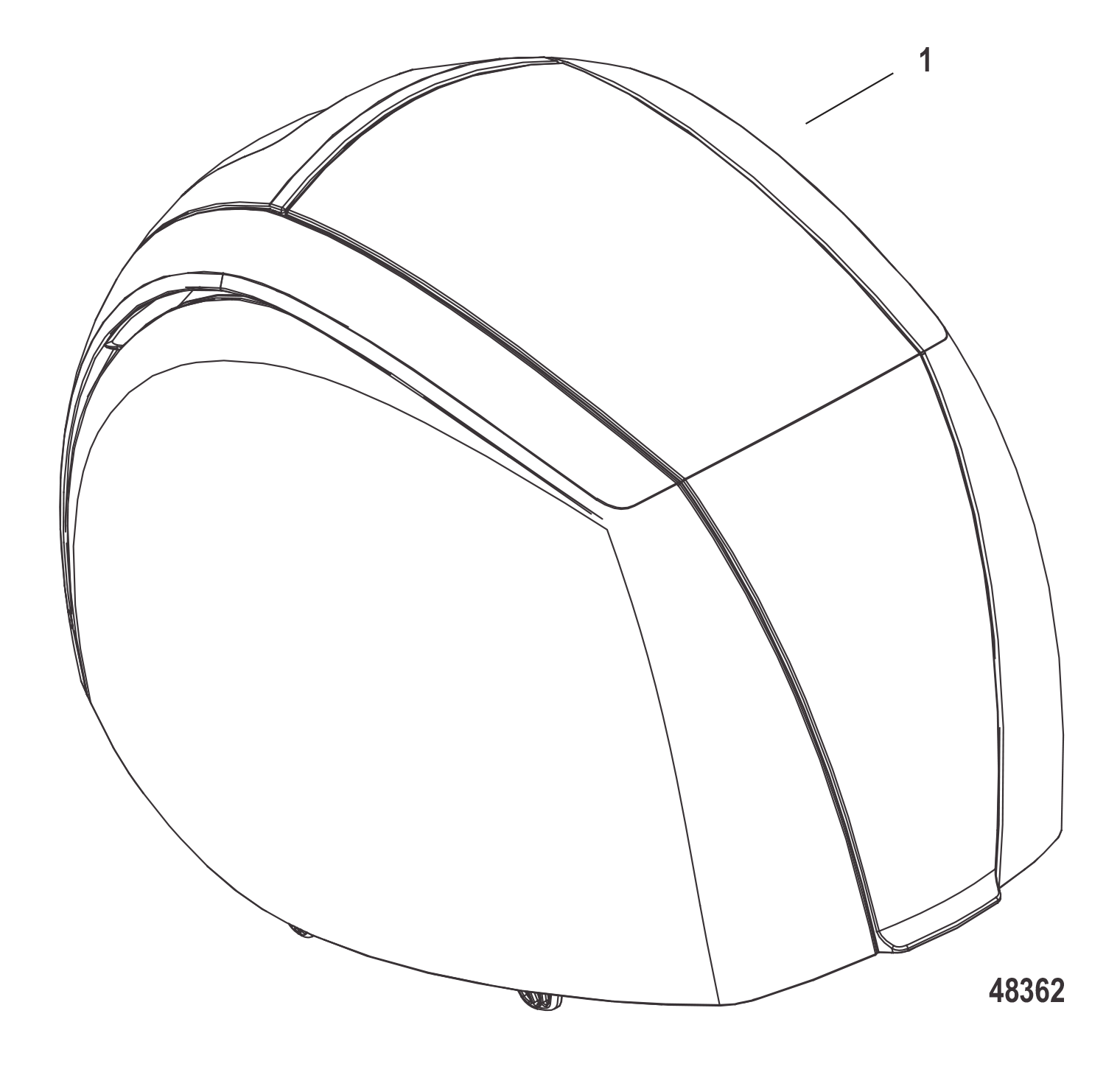

TOP COWL DIAGRAM 48362

8M0057754 TOP COWL ASSEMBLY Mercury, Decaled - Non SeaPro
8M0159538 TOP COWL ASSEMBLY Decaled without Horsepower [2B659598] & Up
8M0057727 TOP COWL ASSEMBLY Mariner, Decaled - Non SeaPro
8M0096297 TOP COWL ASSEMBLY Mercury, Decaled SeaPro
8M0075367 TOP COWL ASSEMBLY Mercury, Non Decaled
8M0075368 TOP COWL ASSEMBLY Mariner, Non Decaled

8M0144419, 8M0057754, 8M0159538, 8M0096297, 8M0075367, 8M0075368, 8M0057727,
8M0144419 8M0057754 8M0159538 8M0096297 8M0075367 8M0075368 8M0057727

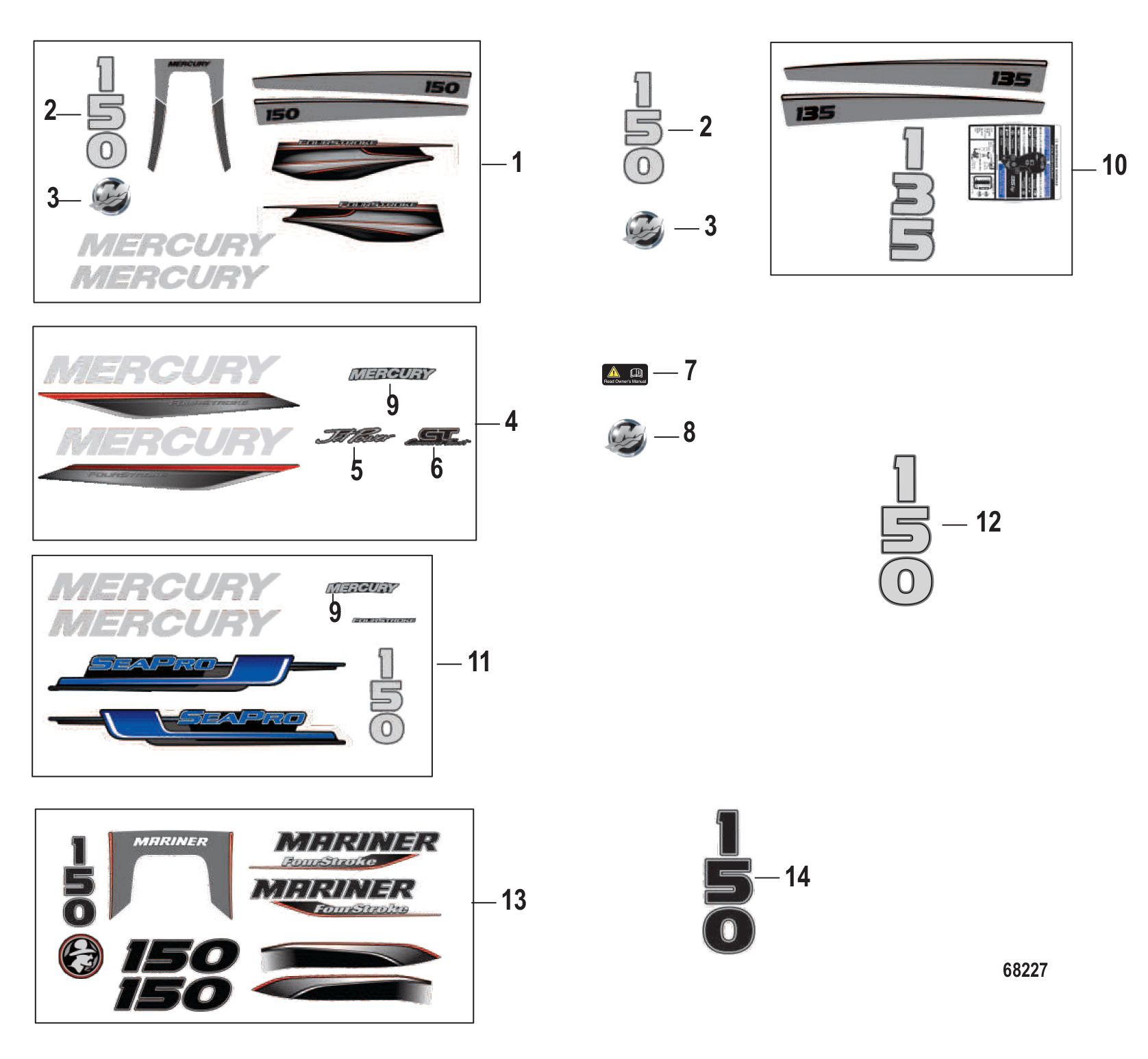

Decals Top Cowl Diagram 68227

1 0000 8M0057762 DECAL SET Mercury [2B659597] & Below
2 0037 8M0153658 DECAL Rear 150 HP
3 0037 8M0043705 DECAL M-Icon, 60 MM Black - Font Emblem - M logo Black

21) 0037 8M0057754 TOP COWL - Small - M logo Black Rear Emblem (Lower Cowl diagram 48363)

4 0037 8M0156748 DECAL SET Mercury 65-150 HP 4S [2B659598] & Up
5 0037 8M0063354 DECAL Jet Drive
6 0037 8M0088310 DECAL Command Thrust
7 0037 8M0056643 DECAL Read Manual
8 0037 8M0043701 M-ICON 39MM - Small
9 0037 8M0159890 DECAL Lenz Mercury
10 0098 8M0059744 DECAL SET 135HP 4S ANZP With Maintenance Decal

11 0037 8M0098615 DECAL SET SeaPro 150HP
12 0037 8M0153658 DECAL Rear 150 HP SEAPRO

MARINER DECALS

13 0037 8M0057719 DECAL SET Mariner
14 0037 8M0153760 DECAL Rear 150 HP, Mariner

Serial Number: 1B927181 - Model: 1150F13HD - Model Version: L 4
2011 MERCURY 150 L 4S 150 L 4

Model Number:
1150F13HD
Serial Number:
1B927181
150L 4S
HP 150 KW 110
LB 455 KG 206
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA from
US and foreign components
CE 0575 [12]

Serial Number: 2B071446 - Model: 1150F13HD - Model Version: L 4
2011 MERCURY 150 L 4S 150 L 4

Serial Number: 2B480562 - Model: 1150F23HD - Model Version: XL
MERCURY 150 XL 4S 150 XL

MODEL NUMBER
115F23HD
Serial Number:
2B480562
----------------
150XL 4S
----------------
Max RPM
HP  150 KW 110
LB  465 KG 211
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA
from US and foreign
components
CE 0098

Serial Number: 2B060746 - Model: 1150F13HD - Model Version: L 4
2011 MERCURY 150 L 4S 150 L 4

Model Number
||||||||||||||
115F23HD
Serial Number:
||||||||||||||
2B060746
----------------
150L 4S
----------------
Max RPM
HP  150 KW 110
LB  455 KG 206
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA from
US and foreign components
CE 0575 [13]

Serial Number: 1B952929 - Model: 1150F24HD - Model Version: CXL
2011 MERCURY 150 CXL 4S 150 CXL

Serial Number: 1B952525 - Model: 1150F23HD - Model Version: CXL
2011 MERCURY 150 XL 4S 150 XL
