TOP COWL DIAGRAM 30394

850299T1 TOP COWL ASSEMBLY Black
850299T2 TOP COWL ASSEMBLY Silver

850299T1, 850299T2
850299T1 850299T2

MERCURY DECALS

855405A00 DECAL SET (225 BLACK) (RED)(2001 AND ABOVE)
855408A00 DECAL SET (225 BLACK) (BLUE)(2001 AND ABOVE)
855410A00 DECAL SET (200 BLACK) (RED)(2001 AND ABOVE)
855412A00 DECAL SET (200 BLACK) (BLUE)(2001 AND ABOVE)

MARINER DECALS

855413A01 DECAL SET (200 GRAY)
855409A01 DECAL SET (225 GRAY)

TRACKER DECALS

802641A98 DECAL SET (225 TRACKER)(2001)
855405A00 DECAL SET (225 TRACKER)(2002)
802642A98 DECAL SET (200 TRACKER)(2001)
855410A00 DECAL SET (200 TRACKER)(2002)

OTHER DECALS

804658A01 DECAL EPA Label Information (2001)(SEE NOTE)
804658A02 DECAL EPA Label Information (2002)(SEE NOTE 1)

23) NSS NOT SOLD SEPARATE DECAL, Counter Rotation (Left Hand)
23) NSS NOT SOLD SEPARATE DECAL, Counter Rotation (Right Hand)
24) NSS NOT SOLD SEPARATE DECAL, Break-in

Read more: 200/225 (3.0L DFI)- Cat.# 90-80348501

> Mercury Marine [Updated: Jul. 24, 2018] > Accessories > Remote Controls and Components > Console Mount > Mechanical > [1994 & Up] - Cat.# 90-8M0125568 > Commander Console (Dual) (88688A22 - A24)

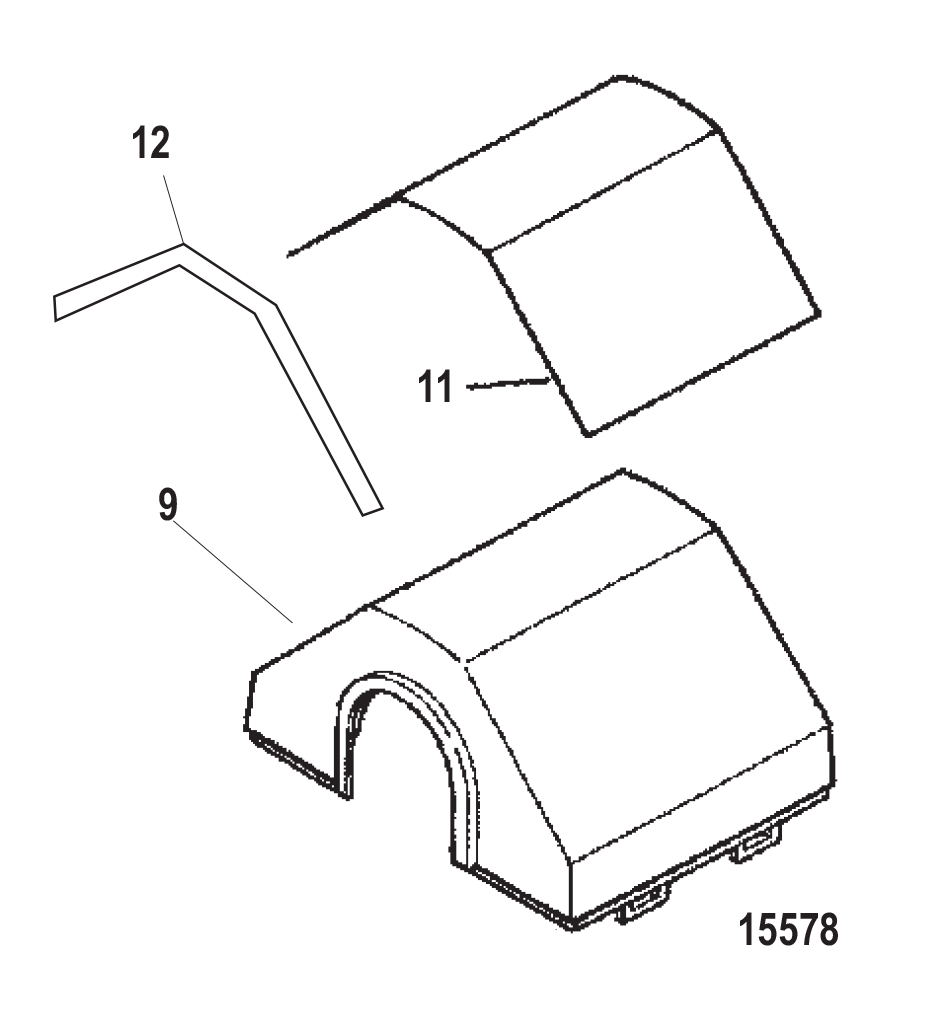

DIAGRAM 15578

88688A22 REMOTE CONTROL (Outboard)

88688A23 REMOTE CONTROL (Mercruiser)

88688A24 REMOTE CONTROL (Non Trim)

9) 14388A2 COVER ASSEMBLY

11) 37 1353011 DECAL
12) 37 14517 DECAL Shift Indicator

> Mercury Marine [Updated: Jul. 19, 2018] > Outboard > 2 Stroke Carb > 90, 900 (6 CYL.) > ARCHIVE CAT 84979

90 (6 CYL.) . . .SERIAL NUMBER USA 5721325 THRU 6436122
90 (6 CYL.) . . .SERIAL NUMBER CAN 7190903 THRU 7208847

TOP COWL DIAGRAM

TOP COWL AND SUPPORT BRACKETS Diagram 84979-4
6392 TOP COWL (WITHOUT DECALS)

COWLING AND FRONT COVER Diagram 84979-6
1)  6497A2 FRONT COVER ASS’Y (W/O DECALS)
11) 6498A3 WRAP AROUND COWL ASSEMBLY (W/O DECALS)

6392, 6497A2, 6498A3
6392 6497A2 6498A3

MARINER DECALS

87286A79 DECAL SET

Serial Number: 05919060 - Model: 7090620 - Model Version: ELPT
1980 MARINER 90 ELP

> Mercury Marine [Updated: Jul. 18, 2018] > Outboard > 2 Stroke Carb > 115 (6 CYL.) > ARCHIVE CAT 63296

TOP COWL AND SUPPORT BRACKETS Diagram 40750

1
2114-3806 COWL, TOP (USA-4394236/Australia-8027439/Canada-7075522 and below)
2114-5999 COWL, TOP (USA-4394237/Canada-7075523 and above)

COWLING AND FRONT COVER Diagram 40751

1)
2113-2663A18 COVER ASSEMBLY, Cowl - Front (USA-4112634/Australia-8027114/Canada-7047257 and below)
2113-5631A 1 COVER ASSEMBLY, Cowl - Front (USA-4112635/Australia-8027115/Canada-7047258 thru USA-4310784/Australia-8027439/Canada-7075522)
2113-5631A 4 COVER ASSEMBLY, Cowl - Front (USA-4310785/Canada-7075523 and above)

11) 2136-4660A 4 WRAP AROUND COWL ASSEMBLY

3806, 5999, 2663A18, 5631A1, 5631A4, 4660A4
3806 5999 2663A18 5631A1 5631A4 4660A4

MERCURY DECALS

60893A73 DECAL SET (USA-3761034/Australia-8014004/Canada-7025597 and below)
66323A74 DECAL SET (USA-3761035/Australia-8014005/Canada-7025598 thru USA-4112634/Australia-8037114/Canada-7047257)
69770A75 DECAL SET (USA-4112635/Australia-8027115/Canada-7047258 thru USA-4310784/Australia-8027439/Canada-7075522)
73889A76 DECAL SET (USA-4310785/Canada-7075523 thru USA-4567951/ Canada-7087422)
73889A77 DECAL SET (USA-4567952/Canada-7087423 and above)

OTHER DECALS

HYDRAULIC PUMP AND CONTROL PANEL

6) 37-55901 DECAL, INSTRUCTION

TOP COWL AND SUPPORT BRACKETS

17)
37-60204 DECAL, TIMING (USA-3761034/Australia-8014004/Canada-7025597 and below)
37-65601 DECAL, TIMING (USA-3761035/Australia-8014005/Canada-7025598 thru USA-4394236/Australia-8027439/Canada-7075522)
37-73291 DECAL, TIMING (FLYWHEEL) (USA-4394237/Canada-7075523 and above)
