150/200 EFI PROMAX/SUPERMAGNUM - Cat.# 90-80856798

 > Mercury Marine [Updated: Aug. 6, 2018] > Outboard > 2 Stroke EFI > 150/200 EFI PRO MAX/SUPER MAG > [0G610050 THRU 0G856999] - Canada - Cat.# 90-80856798

TOP COWL DIAGRAM 34972

849203T3 TOP COWL ASSEMBLY (BLACK)
849203A4 TOP COWL ASSEMBLY (SILVER)

849203A4, 849203T3, 849203T23, 848792T9, 848792T10
849203A4 849203T3 849203T23 848792T9 848792T10



MERCURY DECALS

849537A9 DECAL SET (MERCURY 150 - SHORT)

849537A10 DECAL SET (MERCURY 150 - LONG)

849537A8 DECAL SET (MERCURY 200 - SHORT)

849537A11 DECAL SET (MERCURY 200 - LONG)



MARINER DECALS

849543A7 DECAL SET (150 SUPERMAGNUM)

849543A8 DECAL SET (200 SUPERMAGNUM SHORT)

849543A9 DECAL SET (200 SUPERMAGNUM LONG)

Serial Number: 0G703731 - Model: 7915311GH - Model Version: SUPER MAG - RACE OUTBOARD 1998 & Newer 150

Serial Number:
0G703731
1998
150 PROMX
6500 Max RPM
HP 150 KW 112
LB 375 KG 170
MERCURY MARINE
BRUNSWICK CORP.
FOND DU LAC, WI 54935
ASSEMBLED IN THE USA
CE [97]

175 3.4L V6 PRO XS (4-STROKE)- [2B529482 & Up] - USA - Cat.# 90-8M0142638

> Mercury Marine [Updated: Dec. 13, 2023] > Outboard > 4 Stroke > 175 HP 3.4L V6 Pro XS > [2B529482 & Up] - USA - Cat.# 90-8M0142638


Top Cowl Diagram 68740

1  8M0142179 TOP COWL ASSEMBLY Pro XS, Decaled without Horsepower
+ 8M0182322 COWL TOP PROXS

FIT OTHER COVERS:

8M0142178 TOP COWL ASSEMBLY Black
8M0142180 TOP COWL ASSEMBLY Cold Fusion
8M0142181 TOP COWL ASSEMBLY Warm Fusion
8M0142182 TOP COWL ASSEMBLY Pearl Fusion
8M0142183 TOP COWL ASSEMBLY Sea Pro

8M0142179, 8M0182322, 8M0142178, 8M0142180, 8M0142181, 8M0142182, 8M0142183
8M0142179 8M0182322 8M0142178 8M0142180 8M0142181 8M0142182 8M0142183

11) 8M0142233 DOOR ASSEMBLY Black
15) 8M0148533 DECAL Latch Position



Lower Cowl

Lower Cowl Diagram 66952

1)    8M0142219 LOWER COWL ASSEMBLY Port and Starboard
41) 8M0142577 DECAL Read Manual, Clear
41) 8M0142371 DECAL Read Manual, Black
-    8M0142187 DECAL SET Pro XS Lower Chaps

MERCURY DECALS

Decals diagram 66976

1) 8M0142188 DECAL SET Pro XS Top Cowl
    2) 8M0214839 DECAL Fourstroke - Front Decal
    3) 8M0153042 DECAL Mercury, Silver - Rear Top MERCURY (13,16)
    4) 8M0214840 DECAL M-Icon, Red Service Door (18)

5) 8M0214849 DECAL SET Pro XS
    6) 8M0085373 DECAL M-Icon, 60mm Red - Front Logo (20)
    7) 8M0142371 DECAL Read Manual, Black - Front label

8) 8M0142198 DECAL SET 175 HP - Rear and Side carbon Numbers
    9) 8M0217482 DECAL 175 PXS Rear Numbers (12, 17)

10) 8M0214851 DECAL 175 HP Side Required for Top Cowl Replacement - Sides carbon Numbers

11) 8M0145995 DECAL 175 HP - Rear MERCURY - 175 - Pro
     12) 8M0217482 DECAL 175 PXS - Rear Numbers (9, 17)
     13) 8M0153042 DECAL Mercury, Silver - Rear Top MERCURY (3,16)

14) 8M0214850 DECAL 175 HP Required for Top Cowl Replacement
     15) 8M0159717 DECAL M Icon, 53 MM Red - Rear Bottom Logo
     16) 8M0153042 DECAL Mercury, Silver - Rear Top MERCURY (3, 13)
     17) 8M0217482 DECAL 175 PXS - Rear Numbers (9, 12)
     18) 8M0214840 DECAL M-Icon, Red Service Door (4)
     19) 8M0214841 DECAL V6 - Rear Emblem for new models - was not included on the first models
     20) 8M0085373 DECAL M-Icon, 60mm Red - Front Logo (6)

21) 8M0142187 DECAL SET Pro XS Lower Cowl - Chap stripes only

22) 8M0187221 DECAL 3D Circles, Black
23) 8M0187223 DECAL 3D Circles, White



Installation instructions V8 Accent panels

REDLINE RED V6: 8M0142211
PACIFIC BLUE V6: 8M0142212
MERCURY SILVERV6: 8M0142213
GRAPHITE GREYV6: 8M0142214
PRO BLACK (MATTE) V6: 8M0142215
READY-FOR-PAINT V6: 8M0142216

> Mercury Marine [Updated: Sep. 15, 2022] > Outboard > 4 Stroke > 175 HP 3.4L V6 Pro XS > [2B529482 & Up] - USA - Cat.# 90-8M0142638
> Mercury Marine [Updated: Feb. 18, 2019] > Outboard > 4 Stroke > 175 3.4L V6 PRO XS (4-STROKE) > [2B529482 & Up] - USA - Cat.# 90-8M0142638



Old Version

Decals diagram 66976 - old version

1) 8M0142188 DECAL SET Pro XS Top Cowl
2) 8M0145995 DECAL 175 HP
3) 8M0153042 DECAL Mercury, Silver
4) 8M0142198 DECAL SET 175 HP
5) 8M0043707 DECAL M-Icon, 53mm Red Front
6) 8M0085373 DECAL M-Icon, 60mm Red Rear
7) 8M0142187 DECAL SET Pro XS Lower Cowl

8) 8M0187221 DECAL 3D Circles, Black
9) 8M0187223 DECAL 3D Circles, White

Serial Number: 3B143966 - Model: 11750002A - Model Version: XL PROXS
MERCURY 175XL PXS 4.8" 1.85 175EFI XL PROXS

150 H.P. XR-2 MARATHON MAGNUM (V-6) (1978-1985 COMBINED BOOK) - Cat.# 90-818855

> Mercury Marine [Updated: Nov. 19, 2022] > Outboard > 2 Stroke Carb > V-150 > [4868998 THRU 0A904645] - Cat.# 90-818855
> Mercury Marine [Updated: Jul. 13, 2022] > Outboard > 2 Stroke Carb > V-150 > [4868998 THRU 0A904645] - Cat.# 90-818855
> Mercury Marine [Updated: Jan. 13, 2022] > Outboard > 2 Stroke Carb > V-150 > [4868998 THRU 0A904645] - Cat.# 90-818855
> Mercury Marine [Updated: Apr. 26, 2018] > Outboard > 2 Stroke Carb > V-150 Magnum > [5600162 THRU 0A904645] - Cat.# 90-818855

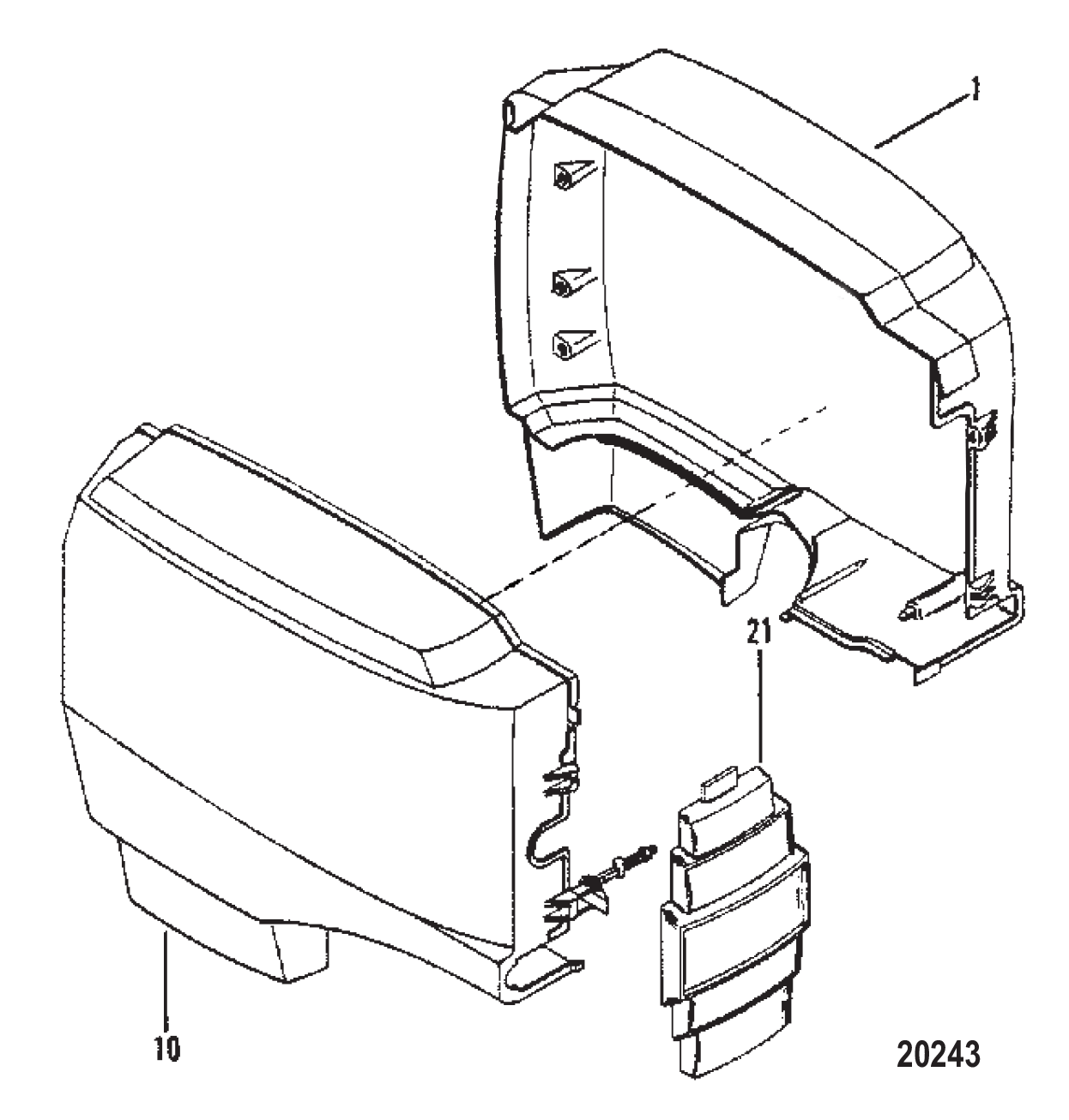

TOP COWL DIAGRAM 20243

20243_x2

1
7620A4 TOP COWL ASSEMBLY (BLACK)
7620A22 TOP COWL ASSEMBLY (GRAY)

10
7619A1 TOP COWL ASSEMBLY (BLACK)
7619A5 TOP COWL ASSEMBLY (GRAY)

21
5399A3 FRONT COVER (BLACK) (USE W/REF.#23)
5399A16 FRONT COVER (GRAY)(USE W/REF. #23)
7532A2 COVER ASSEMBLY Cowl - Front (BLACK) (USE W/O REF. #23)
7532A23 COVER ASSEMBLY Cowl - Front (GRAY) (USE W/O REF. #23)

7620A4, 7620A22, 7619A1, 7619A5, 7532A2, 7532A23, 5399A3, 5399A16
7620A4 7620A22 7619A1 7619A5 7532A2 7532A23 5399A3 5399A16

MERCURY DECALS

13486A86 DECAL SET (BLACK)

MARINER DECALS

86633A80 DECAL SET (Gray-Non Oil Injection) [6616990] & Below
11625A85 DECAL SET (Gray-Non Oil Injection) [6616991] & Up

44225A84 DECAL SET (Gray-Oil Injection) [6616990] & Below
87548A85 DECAL SET (Gray-Oil Injection) [6616991] & Up

Read more: 150 H.P. XR-2 MARATHON MAGNUM (V-6) (1978-1985 COMBINED BOOK) - Cat.# 90-818855

More Articles …

  1. 50/60 EL (3 CYL.) - Cat.# 90-16404
  2. 225 EFI 4-STROKE
  3. 55/60 JET 40/45 (3 CYLINDER) - Cat.# 90-803022
  4. MARINER 115 - ARCHIVE CAT 84980

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.

    90-8M0143239 eng MARCH 2018       © 2018 Mercury Marine      -     Page 1 / 16
