1991 Evinrude 115 hp - E115TLEIE

88/90/100/115, TE 115/TE90, 90/115 Jet

Diagram 434248-04

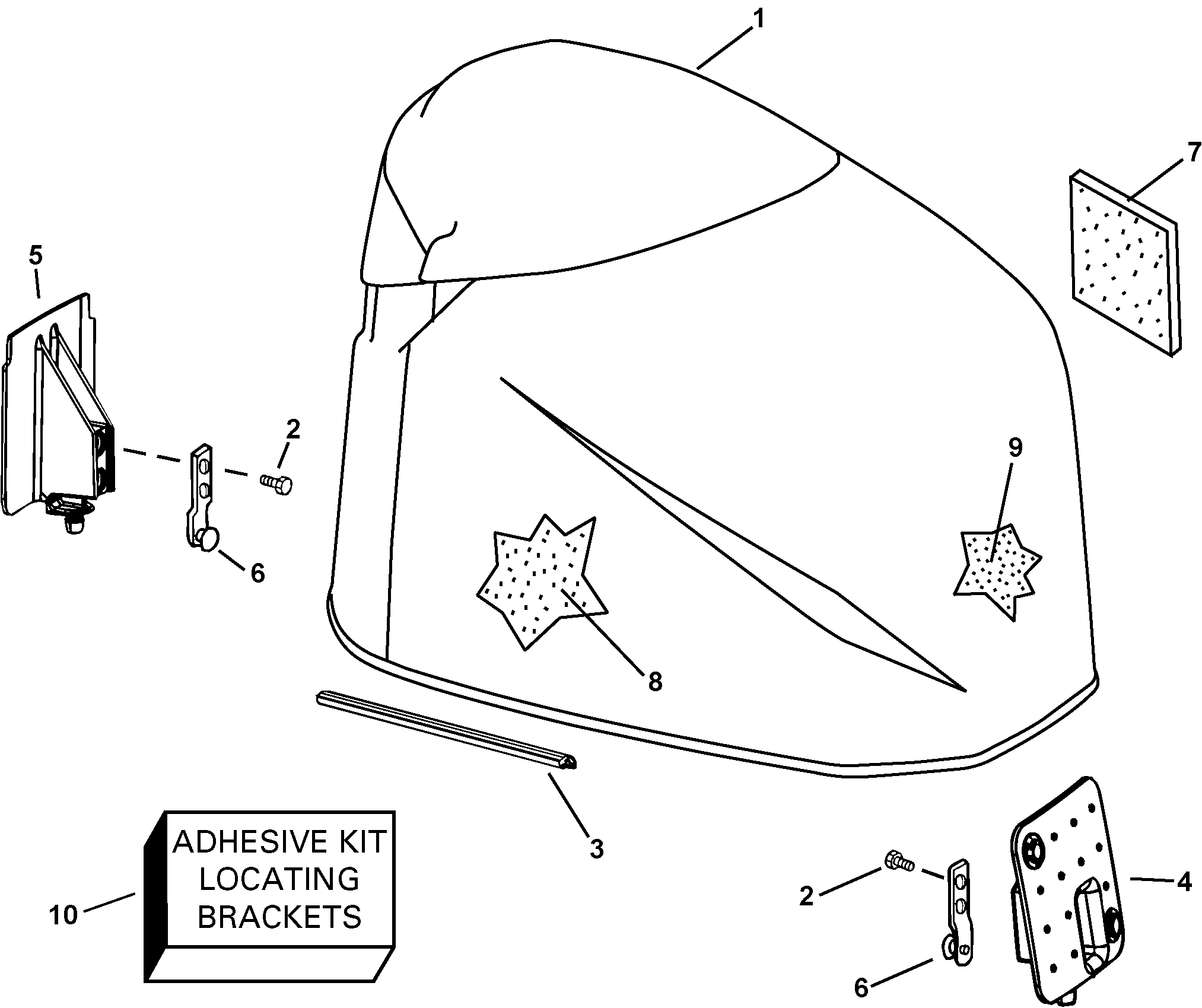

ENGINE COVER - EVINRUDE

1 0283708 ENGINE COVER ASSY., 88 models
1 0283619 ENGINE COVER ASSY., 90 models
1 0282305 ENGINE COVER ASSY., 90 Jet, (65)
1 0284062 ENGINE COVER ASSY. TE90 Models Only
1 0283685 ENGINE COVER ASSY., 100 models
1 0283945 ENGINE COVER ASSY., 115 models
1 0282299 ENGINE COVER ASSY., 115 Jet, (80)
1 0284063 ENGINE COVER ASSY.. TE 115 Models Only

0283708, 0283619, 0282305, 0284062, 0283685, 0283945, 0282299, 0284063
0283708 0283619 0282305 0284062 0283685 0283945 0282299 0284063

ENGINE COVER - JOHNSON
0433887, 0434558, 0433890, 0433889, 0434574, 0434559, 0433892, 0433891, 0434573, 0433888
0433887 0434558 0433890 0433889 0434574 0434559 0433892 0433891 0434573 0433888

EVINRUDE DECALS

27 0283782 DECAL SET, 88 models
27 0283783 DECAL SET, 90/115 models
27 0284273 DECAL SET, 90/115. TE 115 Models Only TE90 Models Only
27 0284274 DECAL SET, 90/115 Jet
27 0283784 DECAL SET, 100

PLATES AND APPLIQUES MADE AS DECALS

21 0211371 PLATE, Front & rear, 88 models (2 decals)
21 0211241 PLATE, Front, 90/115 models, except Jet
21 0211703 PLATE, Front, 90/115 Jet
21 0211580 PLATE, Front. TE90 Models Only
21 0211581 PLATE, Front. TE 115 Models Only

24 0210311 APPLIQUE, V-4 100
25 0210305 APPLIQUE, Ev., 100

1988 Johnson 14 hp VJ14RCCS
1989 Johnson 14 hp VJ14RCEC

ENGINE COVER Diagram 432214-04

0283491 ENGINE COVER ASSEMBLY, Evinrude models
0432071 ENGINE COVER ASSEMBLY, Johnson models

0283491, 0432071
0283491 0432071

OUTBOARD DECALS

0283514 DECAL SET, Ev. models
0432082 DECAL SET, Jo. models

PAINT CHART

1996 Evinrude 15 hp  FourStroke- E15FREDR

ENGINE COVER - EVINRUDE Diagram 438194-02A

0284098 ENGINE COVER ASSY.. 9.9 Rope Models Blue
0284647 ENGINE COVER ASSY.. 9.9 Electric Models White
0284099 ENGINE COVER ASSY.. 15 Models White
0284707 ENGINE COVER ASSY.. 15 Models Blue
0284901 ENGINE COVER ASSY.. E10FRL Only
0284851 ENGINE COVER ASSY., Cranberry. L10FREL Only
0438865 ENGINE COVER ASSY.. No Decals. Use with Decal Set Listed for Lund Red, Green, and Blue Models.

0284098, 0284647, 0284099, 0284707, 0284901, 0284851, 0438865
0284098 0284647 0284099 0284707 0284901 0284851 0438865

ENGINE COVER - JOHNSON
0434889, 0436885, 0434890, 0437255, 0437967, 0437828, 0438865
0434889 0436885 0434890 0437255 0437967 0437828 0438865

EVINRUDE DECALS

5 0341125 LENS, Four stroke

11 0212497 LENS, Ev., port & stbd.. 9.9 Rope Models 15 Models Blue

15 0284820 DECAL SET. 9.9 Rope Models Blue
15 0284822 DECAL SET. 9.9 Electric Models White E10FRL Only
15 0284823 DECAL SET. 15 Models White
15 0284821 DECAL SET. 15 Models Blue
15 0284859 DECAL SET, Cranberry. L10FREL Only
15 0284967 DECAL SET, Red. L10FREL Only
15 0284968 DECAL SET, Green. L10FREL Only
15 0284969 DECAL SET, Blue. L10FREL Only

EVINRUDE ENGINE COVER DIAGRAM 438192-02A

0284795 ENGINE COVER ASSY.. 9.9 & 10SEL Models
0284796 ENGINE COVER ASSY.. 15 Models

0284795, 0284796
0284795 0284796

Johnson Engine cover Assy 9.9/10/15 Models
0437619, 0435236, 0437182, 0435237, 0435238
0437619 0435236 0437182 0435237 0435238

Evinrude Decals

14 0212497 LENS, Ev., port & stbd.. 9.9 & 10SEL Models 15 Models (2 decals)
15 0284817 DECAL SET. 9.9 & 10SEL Models
15 0284819 DECAL SET. 15 Models
