1991 Johnson 90 hp J90TLAIE

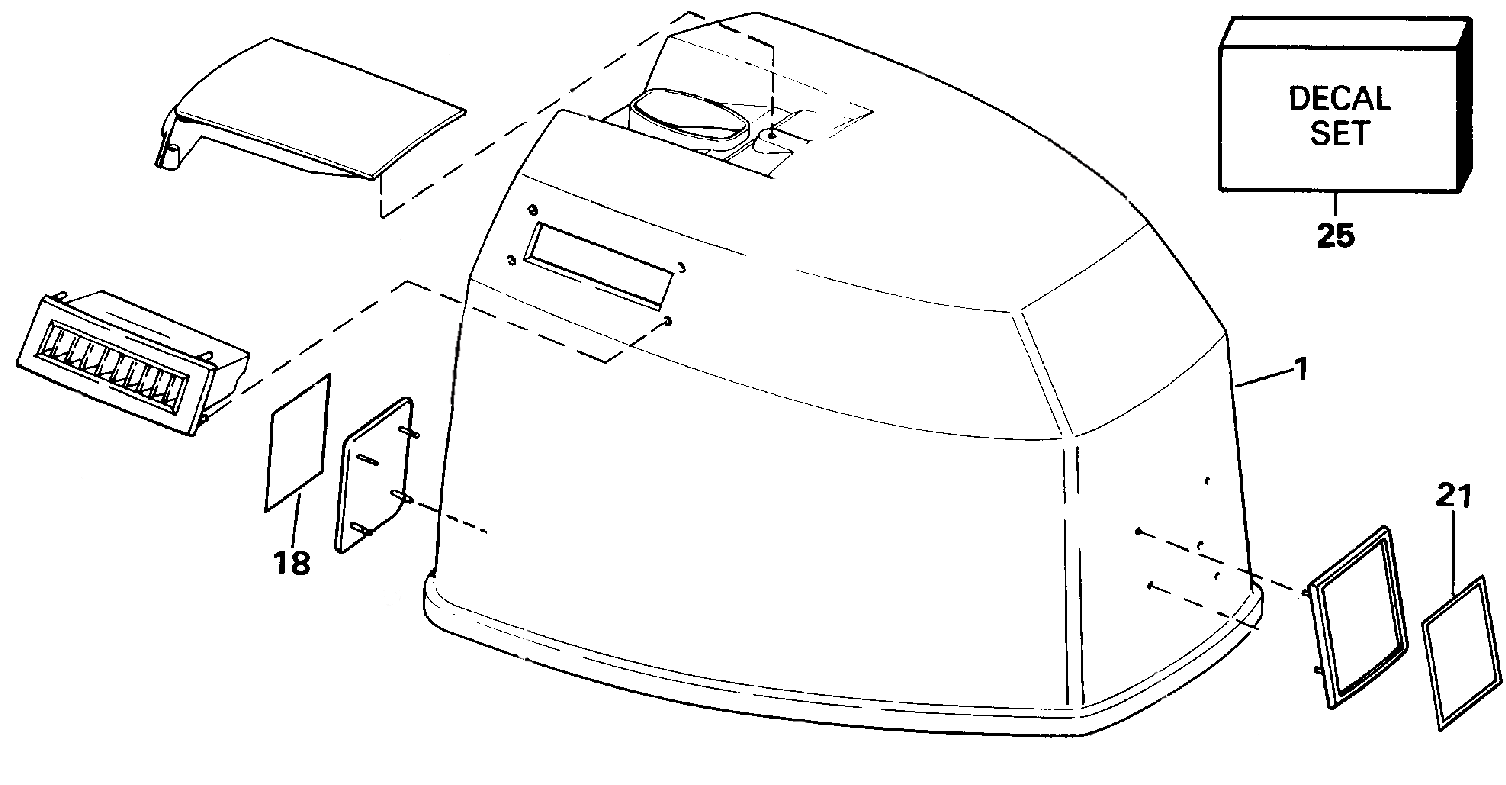

Johnson ENGINE COVER ASSY.

Diagram 434248-05

1 0433887 ENGINE COVER ASSY., 88

1 0434558 ENGINE COVER ASSY., 90. TJ90 Models Only

1 0433890 ENGINE COVER ASSY., 90. Metallic Gray

1 0433889 ENGINE COVER ASSY., 90. White

1 0434574 ENGINE COVER ASSY., 90 Jet, (65)

1 0434559 ENGINE COVER ASSY., 115. TJ115 Models Only

1 0433892 ENGINE COVER ASSY., 115. Metallic Gray

1 0433891 ENGINE COVER ASSY., 115. White

1 0434573 ENGINE COVER ASSY., 115 Jet, (80)

1 0433888 ENGINE COVER ASSY., 100

Aplique decals

18 0335263 PLATE, Rear, 88 models

21 0335942 PLATE, Frame, front. TJ90 Models Only

21 0335944 PLATE, Frame, front. TJ115 Models Only

Johnson Decals

25 0433650 DECAL SET, 88 models

25 0435358 DECAL SET, 90 models

25 0435360 DECAL SET, 90 Jet

25 0435362 DECAL SET, 115 models

25 0435359 DECAL SET, 90, 115. TJ115 Models Only TJ90 Models Only (Tracker Johnson)

25 0435361 DECAL SET, 100 models

 This 0435358 DECAL SET, 90 models is used on these models

JOHNSON 1991 J100STLEIE.

JOHNSON 1991 J115JLEIE, J115MLEIE, J115TLAIE, J115TLEIE, J115TXEIE ENGINE COVER - JOHNSON

JOHNSON 1991 J88MSLEIM.

JOHNSON 1991 J90JLEIE, J90TLAIE, J90TLEIE.

JOHNSON 1991 TJ115TLEIE, TJ90TLEIE.

JOHNSON 1991 VJ100SLEIE, VJ115TLAIE, VJ115TLEIE, VJ115TXEIE, VJ90MLEIE, VJ90TLAIE, VJ90TLEIE.

1977 Evinrude 85/115 - Power Tilt & Trim (140)

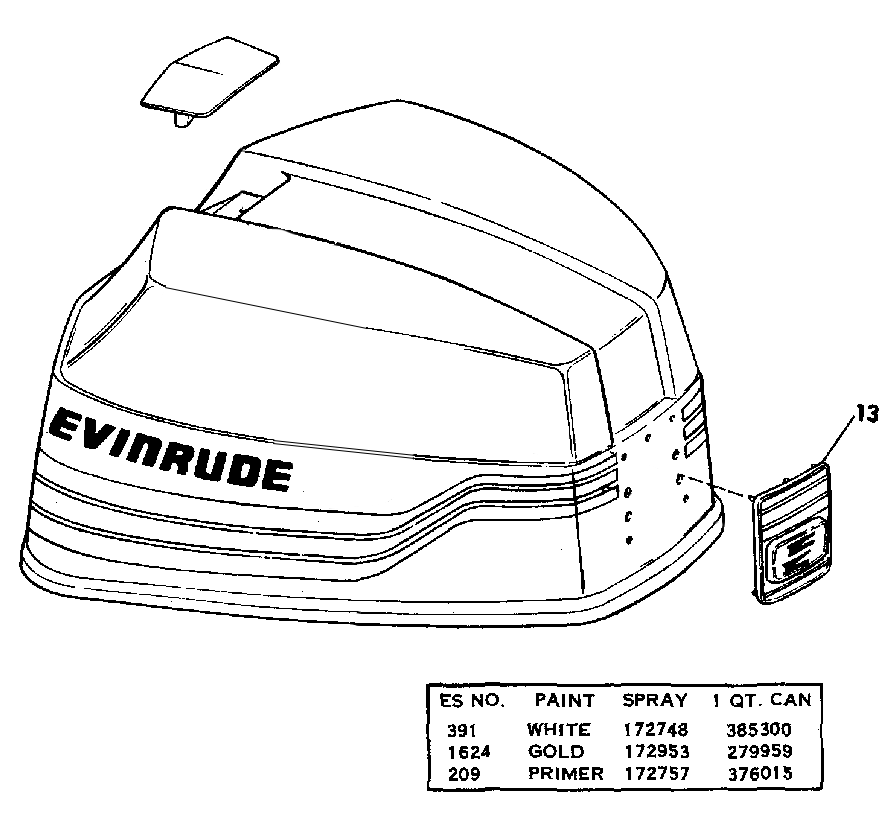

MOTOR COVER
Diagram 281057-02

0279977 MOTOR COVER ASSY.,85 hp.
0279978 MOTOR COVER ASSY.,115 hp.

13
0207784 APPLIQUE,Front

Evinrude Decals

0281078 DECAL SET,85 hp only. Used only on Models without Power Tilt & Trim

0281079 DECAL SET,85 hp only. Used only on models with Power Tilt & Trim

0281080 DECAL SET,115 hp only. Used only on Models without Power Tilt & Trim

0281081 DECAL SET,115 hp only. Used only on models with Power Tilt & Trim

Used on these models:

EVINRUDE 1977 115790S MOTOR COVER

EVINRUDE 1977 115793S MOTOR COVER

EVINRUDE 1977 115799S MOTOR COVER *

EVINRUDE 1977 85790S MOTOR COVER

EVINRUDE 1977 85793S MOTOR COVER

EVINRUDE 1977 85799S MOTOR COVER

EVINRUDE 1977 140740S MOTOR COVER

EVINRUDE 1977 140743S MOTOR COVER

EVINRUDE 1977 140783S MOTOR COVER

1977 Evinrude 115 outboard. Model#115799S - Serial #J0004540

E225FCXSRB
E225FHLSRM

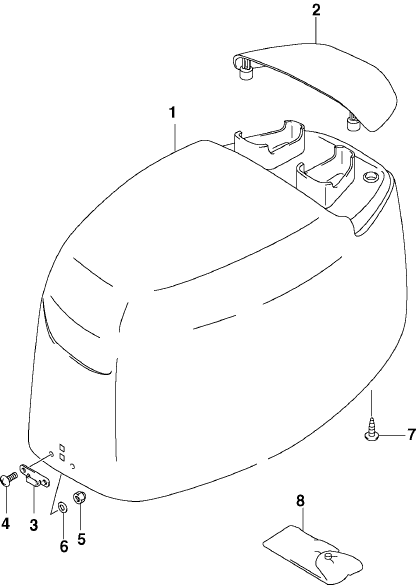

ENGINE COVER - HOOD -  TOP COWL COWLING

DIAGRAM EPC3413

1
0285613 ENGINE COVER Assy, "WHITE”, New P/N for 2004 - (0285595 : Replaced by 0285613) [2004-2005 / 200 225 250]
0285625 ENGINE COVER Assy, "BLUE"., New P/N for 2004
0285624 ENGINE COVER Assy, "BLUE". FHL, FHX Models only; New P/N for 2004

0285613, 0285625, 0285624
0285613 0285625 0285624

0285595, 5004956, 0285607 (2003 Evinrude Ficht Ram)
0285595 5004956 0285607

0285613, 0285625, 0285624, 0285595, 5004956, 0285607
0285613 0285625 0285624 0285595 5004956 0285607

EVINRUDE DECALS WHITE MODELS

Diagram EPC3412

1) 0215287 "BOMBARDIER" - Front/Rear. Included with "ENGINE COVER Assy" (2 Decals)
2) 0215275 "EVINRUDE" - Port/Stbd. Included with "ENGINE COVER Assy" (2 Decals)
3) 0215278 STRIPE - Stbd.
4) 0215277 STRIPE - Port.

5) 0215554 "DIRECT INJECTION" Port/Stbd. , New P/N for 2004 (2 Decals)

6) 0215280 "EVINRUDE" - Rear.
7) 0215279 "EVINRUDE" - Front.

8) 0215281 "200" - Front
11) 0215282 "200" - Rear

9) 0215283 "225" - Front
12) 0215284 "225" - Rear

10) 0215285 "250" - Front
13) 0215286 "250" - Rear

14) 0351237 "SALTWATER EDITION" - Stbd. New P/N for 2004
15) 0351222 "SALTWATER EDITION" - Port. New P/N for 2004

16) 0215558 "EVINRUDE EU2006". New P/N for 2004

EVINRUDE FLAG DECALS WHITE MODELS

Diagram EPC3647

1) 0776293 Decal Set, Flag - (200 /225/250)

EVINRUDE DECALS BLUE MODELS

Diagram EPC3411

1) 0215238 "BOMBARDIER" - Front/Rear.  - (2 Decals)
2) 0215237 "EVINRUDE" - Port/Stbd. - (2 Decals)
3) 0215241 STRIPE - Stbd.
4) 0215242 STRIPE - Port.

5) 0215555 "DIRECT INJECTION" Port/Stbd. , New P/N for 2004- (2 Decals)

6) 0215244 "EVINRUDE" - Rear.
7) 0215243 "EVINRUDE" - Front.

EVINRUDE FLAG DECALS BLUE MODELS

Diagram EPC3646

1) 0776290 Decal Set, Flag
2) 0215320 *Decal, Flag - Port
3) 0215319 *Decal, Flag - Port
4) 0215317 *BOMBARDIER - front/rear - (2 Decals)
5) 0215556 *DIRECT INJECTION - (2 Decals)

EVINRUDE 2004: E200FCXSOE, E200FCXSRB, E200FHLSOR, E200FHLSRC, E200FPLSOE, E200FPLSRB, E200FPXSOE, E200FPXSRB, E200FSLSOE, E200FSLSRB.
EVINRUDE 2005: E200FCXSOE, E200FHLSOR, E200FPLSOE, E200FPXSOE, E200FSLSOE.

EVINRUDE 2004: E225FCXSOE, E225FCXSRB, E225FCZSOE, E225FCZSRB, E225FHLSOB, E225FHLSRM, E225FHXSOC, E225FHXSRS, E225FPLSOE, E225FPLSRB, E225FPXSOE, E225FPXSRB, E225FPZSOE, E225FPZSRB.
EVINRUDE 2005: E225FCXSOE, E225FCZSOE, E225FHLSOB, E225FHXSOC, E225FPLSOE, E225FPXSOE, E225FPZSOE.

EVINRUDE 2004: E250FCXSOB, E250FCXSRM, E250FCZSOB, E250FCZSRM, E250FPLSOM, E250FPLSRA, E250FPXSOB, E250FPXSRM, E250FPZSOB, E250FPZSRM.
EVINRUDE 2005: E250FCXSOB, E250FCZSOB, E250FPLSOM, E250FPXSOB, E250FPZSOB.

1999 Johnson 225 hp H.O.

Model: J225HPLEEN

20

DECAL SET 5000467 200PL

DECAL SET 5000468 200PX, CX

DECAL SET 5000471 225PX, CX

DECAL SET 5000473 250

DECAL SET 5000529 225HPL

DECAL SET 5000472 225PL

5000415 ENGINE COVER ASSY. "B", "C", "S" SUFFIX MODELS ONLY

5000500 ENGINE COVER ASSY. "N" SUFFIX MODELS ONLY (SILVER 200 225 250)
