ENGINE COVER - JOHNSON

Diagram 432895-05

ENGINE COVER - JOHNSON

1
0398809 ENGINE COVER ASSY., 88
0433123 ENGINE COVER ASSY., 90. TJ90 Models Only
0432573 ENGINE COVER ASSY., 90. Metallic Gray
0432464 ENGINE COVER ASSY., 90. White
0433124 ENGINE COVER ASSY., 110. TJ110 Models Only
0432574 ENGINE COVER ASSY., 110. Metallic Gray
0432463 ENGINE COVER ASSY., 110. White
0433023 ENGINE COVER ASSY., 100STL

0398809, 0433123, 0432573, 0432464, 0433124, 0432574, 0432463, 0433023
0398809 0433123 0432573 0432464 0433124 0432574 0432463 0433023

EVINRUDE ENGINE COVER ENGINE COVER ASSY:
0283708 (88 models)
0283619 (90 models)
0283766 (TE90 Models Only)
0283685 (100STL)
0283620 (110 models)
0283767 (TE110 Models Only)

0283708, 0283619, 0283766, 0283685, 0283620, 0283767
0283708 0283619 0283766 0283685 0283620 0283767

Johnson Outboard Decals

25 0433146 DECAL SET, 88 models
25 0433147 DECAL SET, 90 models
25 0433148 DECAL SET, 110 models
25 0433207 DECAL SET, 90, 110.
     Use 0434045 on phase III styling on Johnson 90 hp Tracker models.
     Use 0434046 on 1989 Johnson 110 hp tracker models with phase 1 styling.
25 0433149 DECAL SET, 100STL models

18 0334224 APPLIQUE, Rear, 88 models
18 0334565 PLATE, Rear, 90 models
18 0334564 PLATE, Rear, 110 models

21 0334563 PLATE, Applique front, 88/90/110
21 0335059 PLATE, Applique, front. TJ90 Models Only
21 0335068 PLATE, Applique, front. TJ110 Models Only
21 0334224 PLATE, Applique, front & rear, 88

Exhaust Housing Stripe

36 0210769 DECAL, Exh. hsg., Ev., 88 models
36 0211388 DECAL, Exh. hsg., Ev., 90/110
36 0332731 DECAL, Exh. hsg., Jo., 90/110

1989 Johnson 110 HP models:
J110MLCEM 1989
J110TLAEM 1989
J110TLCEM 1989
J110TXCEM 1989
TJ110TLCEM 1989
TJ110TXCEM 1989

This Johnson 0433148 DECAL SET, 110 models fits the following models and components:
88 HP: VJ88MSLCER, J88MSLCER
90 HP: J90TLAEM, J90TLCEM, TJ90TLCEM 1989
100 hp: J100STLCEM
110 hp: J110MLCEM, J110TLAEM, J110TLCEM, J110TXCEM, TJ110TLCEM, TJ110TXCEM

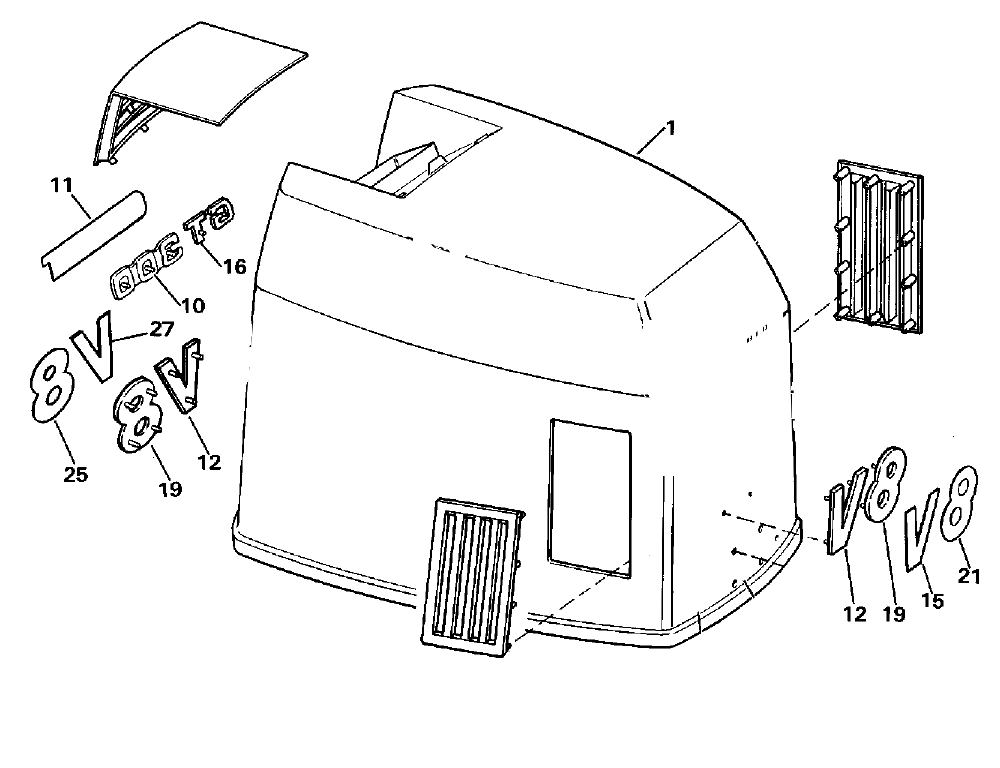

ENGINE COVER - JOHNSON 300 MODELS

1 0432726 ENGINE COVER ASSY. Standard Rotation White Cover
1 0432725 ENGINE COVER ASSY. Standard Rotation Metallic Gray Cover
1 0432727 ENGINE COVER ASSY. Counter Rotation White Cover

ENGINE COVER - EVINRUDE 300 MODELS
0283665-0283981, 0283666-0283982

0432726, 0432725, 0432727 - 0283665, 0283666
0432726 0432725 0432727 - 0283665 0283666

Johnson Decals

0433141 DECAL SET

10 0334172 APPLIQUE, 300 rear
11 0334784 PLATE, Rear (VRO)
12 0330086 APPLIQUE, V, front & rear (2x Vs)

15 0334785 PLATE, V, front (V)
16 0330076 APPLIQUE, Rear (GT)

19 0330088 APPLIQUE, Front & rear (2x 8s)

21 0334783 PLATE, Applique front (8)

25 0334783 PLATE, Rear (8)
27 0334785 PLATE, Rear (V)

1989 Johnson 300 HP - J300PLCEM - Ser. No.: G02318943
Engine: 1989 Johnson GT 300 V8

TJ40ELENJ 1992 - J40RLETB 1993

ENGINE COVER - JOHNSON 25-40 - ELECTRIC START

DIAGRAM 435871-05

1 0435158 ENGINE COVER ASSY.. 40EC - 40EL - 40TL - 40TEC - 40TEL - 40TTL
1 0434556 ENGINE COVER ASSY.. TJ40EL

0435158, 0434556, 0435160, 0435161,
0284137, 0284060, 0284138, 0284186

0435158 0434556 0435160 0435161
0284137 0284060 0284138 0284186

Johnson Decals

23 0435625 DECAL SET. 40EC - 40EL - 40TL 40TEC - 40TEL - 40TTL
23 0435313 DECAL SET. TJ40EL

7 0337665 PLATE, Rear. 40EC - 40EL - 40TL 40TEC - 40TEL - 40TTL
7 0336667 PLATE, Rear. TJ40EL

20 0337653 PLATE, Applique. 40EC - 40EL - 40TL 40TEC - 40TEL - 40TTL
20 0335755 PLATE, Applique. TJ40EL

ENGINE COVER - JOHNSON 50 - ELECTRIC START

DIAGRAM 435871-05

1 0435160 ENGINE COVER ASSY.. 50BE - 50BEL - 50TL 50TEL
1 0435161 ENGINE COVER ASSY.. 50JE

0435158, 0434556, 0435160, 0435161,
0284137, 0284060, 0284138, 0284186

0435158 0434556 0435160 0435161
0284137 0284060 0284138 0284186

Johnson Decals

23 0435625 DECAL SET. 50BE - 50BEL - 50TL 50TEL
23 0435629 DECAL SET. 50JE

7 0337661 PLATE, Rear. 50BE - 50BEL - 50TL 50TEL
7 0337665 PLATE, Rear. 50JE

20 0337653 PLATE, Applique. 50BE - 50BEL - 50TL 50TEL
20 0337663 PLATE, Applique. 50JE

ENGINE COVER - JOHNSON ROPE START ONLY

DIAGRAM 435871-09

1 0435157 ENGINE COVER ASSY.Johnson
1 0284134 ENGINE COVER ASSY.EVINRUDE

0435157, 0284134
0435157 0284134

22 0435624 DECAL SET

Read more: 1992-1993 Johnson 25-40/50/Rope Start

1991 Evinrude 115 hp - E115TLEIE

88/90/100/115, TE 115/TE90, 90/115 Jet

Diagram 434248-04

ENGINE COVER - EVINRUDE

1 0283708 ENGINE COVER ASSY., 88 models
1 0283619 ENGINE COVER ASSY., 90 models
1 0282305 ENGINE COVER ASSY., 90 Jet, (65)
1 0284062 ENGINE COVER ASSY. TE90 Models Only
1 0283685 ENGINE COVER ASSY., 100 models
1 0283945 ENGINE COVER ASSY., 115 models
1 0282299 ENGINE COVER ASSY., 115 Jet, (80)
1 0284063 ENGINE COVER ASSY.. TE 115 Models Only

0283708, 0283619, 0282305, 0284062, 0283685, 0283945, 0282299, 0284063
0283708 0283619 0282305 0284062 0283685 0283945 0282299 0284063

ENGINE COVER - JOHNSON
0433887, 0434558, 0433890, 0433889, 0434574, 0434559, 0433892, 0433891, 0434573, 0433888
0433887 0434558 0433890 0433889 0434574 0434559 0433892 0433891 0434573 0433888

EVINRUDE DECALS

27 0283782 DECAL SET, 88 models
27 0283783 DECAL SET, 90/115 models
27 0284273 DECAL SET, 90/115. TE 115 Models Only TE90 Models Only
27 0284274 DECAL SET, 90/115 Jet
27 0283784 DECAL SET, 100

PLATES AND APPLIQUES MADE AS DECALS

21 0211371 PLATE, Front & rear, 88 models (2 decals)
21 0211241 PLATE, Front, 90/115 models, except Jet
21 0211703 PLATE, Front, 90/115 Jet
21 0211580 PLATE, Front. TE90 Models Only
21 0211581 PLATE, Front. TE 115 Models Only

24 0210311 APPLIQUE, V-4 100
25 0210305 APPLIQUE, Ev., 100
