ENGINE COVER - JOHNSON Diagram 435887-06

1 0435970 ENGINE COVER ASSY.. 150EL, 150EXA, 150NXA
1 0435169 ENGINE COVER ASSY.. 150GL
1 0435964 ENGINE COVER ASSY.. 150NXE, 150EXE
1 0434670 ENGINE COVER ASSY.. TJ150GL
1 0435165 ENGINE COVER ASSY.. 150JL
1 0435167 ENGINE COVER ASSY.. 150ELA
1 0435965 ENGINE COVER ASSY.. 175EXE, 175NXE
1 0435171 ENGINE COVER ASSY.. 175GL
1 0435971 ENGINE COVER ASSY.. 175NXA, 175EXA

0435970, 0435169, 0435964, 0434670, 0435165, 0435167, 0435965, 0435171, 0435971
0435970 0435169 0435964 0434670 0435165 0435167 0435965 0435171 0435971

ENGINE COVER - EVINRUDE Diagram 435887-05
1 0284446 ENGINE COVER ASSY.. 150EL,150EXA,150NXA
1 0284440 ENGINE COVER ASSY.. 150EXE,150NXE
1 0284208 ENGINE COVER ASSY.. 150JL
1 0284197 ENGINE COVER ASSY.. 150GL
1 0284199 ENGINE COVER ASSY.. 175GL
1 0284070 ENGINE COVER ASSY.. TE150GL
1 0284441 ENGINE COVER ASSY.. 175EXE,175NXE
1 0284447 ENGINE COVER ASSY.. 175NXA,175EXA

0284446, 0284440, 0284208, 0284197, 0284199, 0284070, 0284441, 0284447
0284446 0284440 0284208 0284197 0284199 0284070 0284441 0284447

ENGINE COVER - QUIET RIDER Diagram 435887-38
0435944 ENGINE COVER ASSY.

0435944

JOHNSON DECALS

9 0337719 APPLIQUE, Counter rotating. 150EL, 150EXA, 150NXA 175NXA, 175EXA

9 0336817 APPLIQUE. TJ150GL
14 0435247 DECAL SET. TJ150GL

11 0337724 APPLIQUE, V6, front. 150GL 175EXE, 175NXE
14 0435648 DECAL SET. 150GL
14 0436321 DECAL SET. 175EXE, 175NXE

13 0337719 APPLIQUE, Rear. 175NXA, 175EXA
14 0435650 DECAL SET. 175NXA, 175EXA

14 0435645 DECAL SET. 150EL, 150EXA, 150NXA
14 0436320 DECAL SET. 150NXE, 150EXE
14 0435647 DECAL SET. 150JL
14 0435646 DECAL SET. 150ELA

14 0435651 DECAL SET. 175GL

Read more: 1993 Johnson 150  HP J150EXETR

Johnson 1996 88/90/115 80JET
BJ115TLEDA
HJ115TXADA
J115TLEDA
J115TXADA

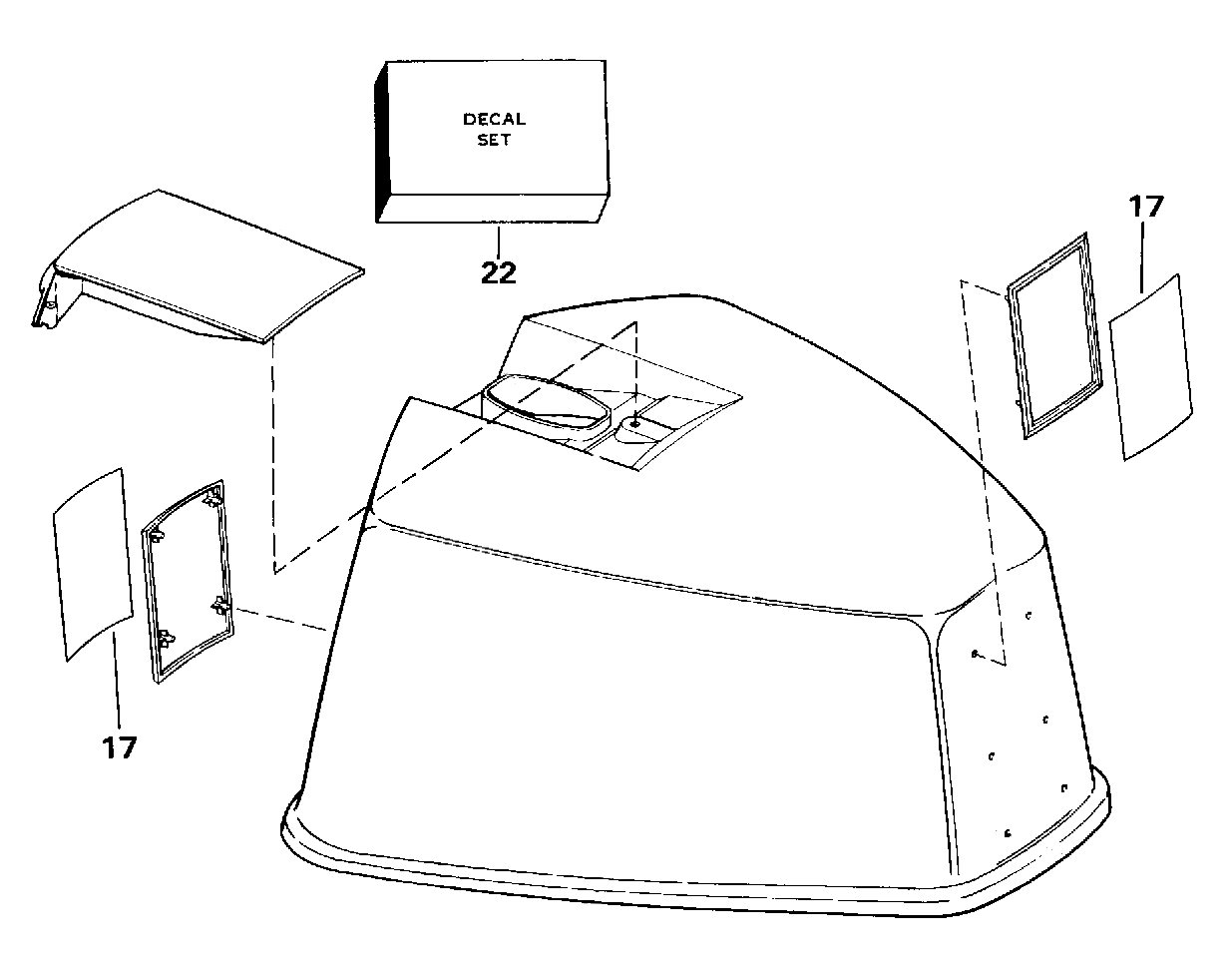

ENGINE COVER - JOHNSON Diagram 438214-03A

1 0434916 ENGINE COVER ASSY., 88. White Engine Cover
1 0437258 ENGINE COVER ASSY., 88. Smoke Engine Cover
1 0436148 ENGINE COVER ASSY., 90. White Engine Cover
1 0436518 ENGINE COVER ASSY., 90. Smoke Engine Cover
1 0436149 ENGINE COVER ASSY., 115. White Engine Cover
1 0436519 ENGINE COVER ASSY., 115. Smoke Engine Cover
1 0436581 ENGINE COVER ASSY., 115 Jet, (80)

ENGINE COVER - EVINRUDE
1 0284718 ENGINE COVER ASSY., 88 models
1 0284738 ENGINE COVER ASSY., 90 models
1 0284739 ENGINE COVER ASSY., 115
1 0284726 ENGINE COVER ASSY., 115 Jet, (80)

0434916, 0437258, 0436148, 0436518, 0436149, 0436519, 0436581,
0284718, 0284738, 0284739, 0284726,
0434916 0437258 0436148 0436518 0436149 0436519 0436581
0284718 0284738 0284739 0284726

JOHNSON DECALS

21 0340592 APPLIQUE, Johnson (2 decals)
10 0340603 APPLIQUE, Johnson logo (2 decals)

22 0437124 DECAL SET, 90/115, 80 Jet. Smoke Engine Cover
17 0340597 APPLIQUE, 90 (2 decals)
17 0340598 APPLIQUE, 115 (2 decals)
17 0340596 APPLIQUE, 80 (2 decals)

22 0437764 DECAL SET, 88 models. Smoke Engine Cover

13 0331856 FRAME, Front, 88 models
18 0335263 PLATE, Front & rear, 88 models. White Engine Cover (2 decals)
19 0331420 FRAME, Engine cover, 88 models. White Engine Cover

22 0435634 DECAL SET, 88 models. White Engine Cover
22 0436303 DECAL SET, 90 models. White Engine Cover
22 0435638 DECAL SET, 115 models. White Engine Cover

Johnson 1996 90/115 V4 - LOUVER COVERS
BJ115ELEDR
BJ115GLEDR
BJ115SXEDR
HJ115SLEDR
J115ELEDR
J115GLEDR
J115SLEDR
J115SXEDR
SJ115ELEDR

ENGINE COVER - JOHNSON Diagram 438217-03A (PCA 1175G)

1 0436904 ENGINE COVER ASSY.. 90HP Smoke
1 0436871 ENGINE COVER ASSY.. 90HP White
1 0436905 ENGINE COVER ASSY.. 115HP Smoke
1 0436220 ENGINE COVER ASSY.. 115HP White
1 0436873 ENGINE COVER ASSY.. 90SL, SX
1 0436874 ENGINE COVER ASSY.. 115SL, SX
1 0436872 ENGINE COVER ASSY.. 115GL
1 0437829 ENGINE COVER ASSY.. L115GL Red
1 0437830 ENGINE COVER ASSY.. L115GL Green
1 0437831 ENGINE COVER ASSY.. L115GL Blue

ENGINE COVER - EVINRUDE
1 0284741 ENGINE COVER ASSY.. 90EL, EX
1 0284743 ENGINE COVER ASSY.. 115EL
1 0284645 ENGINE COVER ASSY.. 90SL, SX
1 0284646 ENGINE COVER ASSY.. 115SL, SX
1 0284744 ENGINE COVER ASSY.. 115GL
1 0284852 ENGINE COVER ASSY.. L115GL Red
1 0284853 ENGINE COVER ASSY.. L115GL Green
1 0284854 ENGINE COVER ASSY.. L115GL Blue

14 0335301 LOUVER, Port
15 0335302 LOUVER, Starboard

0436904, 0436871, 0436905, 0436220, 0436873, 0436874, 0436872, 0437829, 0437830, 0437831,
0284741, 0284743, 0284645, 0284646, 0284744, 0284852, 0284853, 0284854,
0436904 0436871 0436905 0436220 0436873 0436874 0436872 0437829 0437830 0437831
0284741 0284743 0284645 0284646 0284744 0284852 0284853 0284854

JOHNSON DECALS

20 0340597 LENS, Front & rear, 90. 90HP Smoke (2 decals)
21 0340303 LENS, Port & starboard. 90HP Smoke 115HP Smoke (2 decals)

23 0437163 DECAL SET. 115HP Smoke
20 0340598 LENS, Front & rear, 115. 115HP Smoke (2 decals)

23 0437161 DECAL SET. 90HP White
23 0437162 DECAL SET. 115HP White

23 0437165 DECAL SET. 90SL, SX
23 0437166 DECAL SET. 115SL, SX

23 0437167 DECAL SET. 115GL
23 0437840 DECAL SET. L115GL Red
23 0437841 DECAL SET. L115GL Green
23 0437842 DECAL SET. L115GL Blue

18 0340591 LENS, Johnson, port & stbd.. 90HP Smoke 115HP Smoke 115GL (2 decals)
19 0340671 LENS, Rear, 115. 115GL

11 0340670 LENS, Front, V4. 115GL

Evinrude - AA Models
250 H.O. - (90° V6, 3.4 L) E250HSLAAB

ENGINE COVER

Diagram EPC4028

Includes all decals, except "HP" Decal.
0285734 ENGINE COVER Assembly, Blue - 225 H.O. Used on: 225DHL, 225DHX
0285778 ENGINE COVER Assembly, Blue - 250 H.O. Used on: 250DHL, 250DHX
0285802 ENGINE COVER Assembly, Smoke - 250 H.O. Used on 250HGL, 250HGX
0285735 ENGINE COVER Assembly, White - Standard. Used on: CX, CZ, DCX, DCZ, DHX, DPX, DPZ, DSL, HCX, HSL, HX, PX, PZ, XC
0285736 ENGINE COVER Assembly, White - 225 H.O.Used on: 225HSL
0285779 ENGINE COVER Assembly, White - 250 H.O. Used on 250HSL

1) 0350873 *CAP, Blue
1) 0356860 *CAP, Graphite
1) 0351556 *CAP, White

0285734, 0285778, 0285802, 0285735, 0285736, 0285779, 0350873, 0356860, 0351556
0285734,0285778,0285802,0285735,0285736,0285779,0350873,0356860,0351556
0285734 0285778 0285802 0285735 0285736 0285779 0350873 0356860 0351556

Diagram EPC4450

Evinrude ETEC decals

13) 0215633 EVINRUDE E-TEC, Port - Standard.
14) 0215634 EVINRUDE E-TEC, Starboard - Standard.
17) 0215894 STRIPE, Port.
18) 0215895 STRIPE, Starboard.
1) 0215667 EVINRUDE - Front & Rear. (2 Decals)

0215633, 0215634, 0215894, 0215895, 0215667
0215633,0215634,0215894,0215895,0215667
0215633 0215634 0215894 0215895 0215667

3) 0215283 225 - Front & Rear (2 Decals)
5) 0215285 250 - Front & Rear (2 Decals)
7) 0215785 300 - Front & Rear (2 Decals)

EVINRUDE ETEC HO DECALS

13) 0215866 EVINRUDE E-TEC, Port - H.O.
14) 0215867 EVINRUDE E-TEC, Starboard - H.O.
15) 0215868 H.O. WAVE, Port.
16) 0215869 H.O. WAVE, Starboard.
1) 0215667 EVINRUDE - Front & Rear. (2 Decals)

0215866, 0215867, 0215868, 0215869, 0215667
0215866,0215867,0215868,0215869,0215667
0215866 0215867 0215868 0215869 0215667

2) 0215722 200 H.O. - Front & Rear (2 Decals)
4) 0215810 225 H.O. - Front & Rear (2 Decals)
6) 0215897 250 H.O. - Front & Rear (2 Decals)

OTHER DECALS

8) 0352505 BRP LOGO (2 Decals)
9) 0215896 "APPROVED FOR SALTWATER"
10) 0355633 DECAL, Owner Attention, Air Silencer
11) 0215558 EU 2006 - Lower
12) 0215774 DECAL, Calif - 3 Star.
NS) 0215297 DECAL, Calif - 2 Star.
NS) 0216121 DECAL, Tournament Grade. 250 H.O. Models only.
