E175DPXSUF

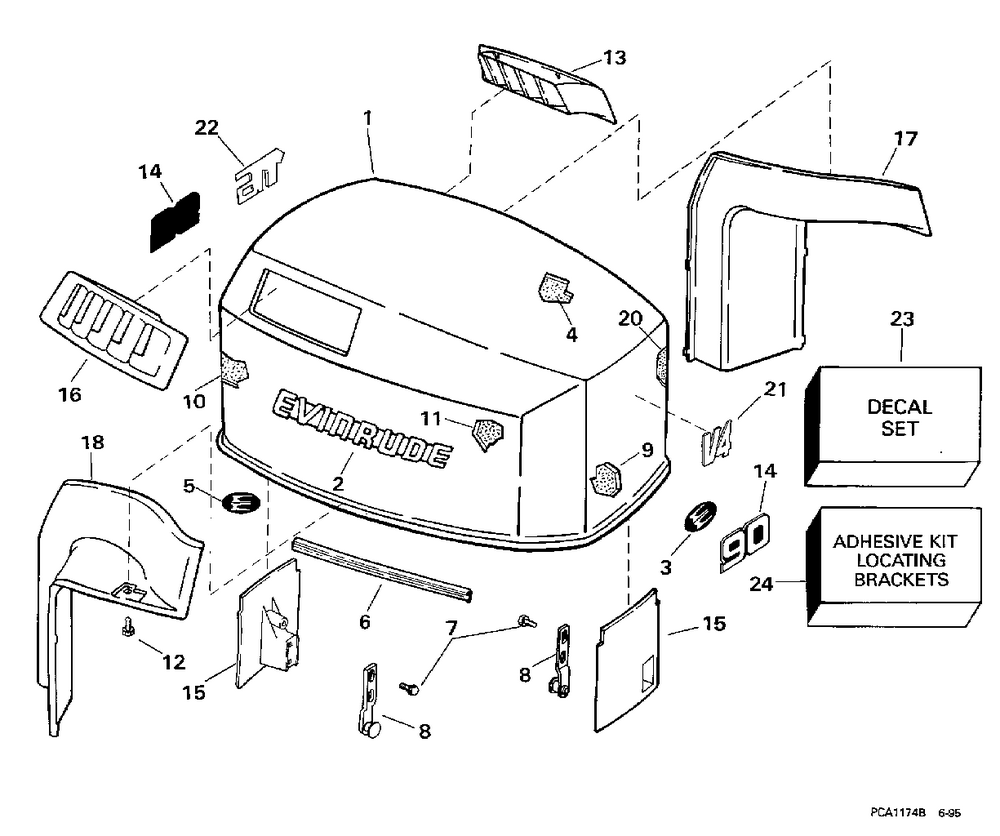

ENGINE COVER DIAGRAM EPC4161

1 0285631 ENGINE COVER Assy, "WHITE"

EVINRUDE DECALS

EVINRUDE DECALS DIAGRAM EPC4143c

1 0215733 EVINRUDE E-TEC - Port
2 0215734 EVINRUDE E-TEC - Stbd
3 0215737 RED STRIPE - Port
4 0215738 RED STRIPE - Stbd
5 0215667 EVINRUDE - Front
5 0215545 EVINRUDE - Rear
6 0215750 175 - Front & Rear 2 Submit
7 0352505 BRP Logo - Front & Rear. 2 Submit
8 0215558 EU 2006 - Lower
9 0351222 SALTWATER EDITION - Lower port
10 0351237 SALTWATER EDITION - Lower stbd
NS 0215774 3-Star

1 0285632 ENGINE COVER Assy, "BLUE" - HL models.

285630 — ENGINE COVER ASSY, "BLUE" PL MODELS.
0285630 - UMC AY 6V6 GE BLU

285632 — ENGINE COVER AY, "BLUE" DHL MODELS ONLY
0285632 - UMC AY,150-HO BLU - Upper Motor Cover Assembly, 150-HO Blu

285631 — ENGINE COVER ASSY, "WHITE"
0285631 - L/P 1152.90

285681 — ENGINE COVER ASSY, "WHITE" HSL MODELS ONLY
0285681 - UMC AY 150HO WHT

EVINRUDE 150hp-200hp Engine Cover 0285632
285630, 0285630, 285632, 0285632, 285631, 0285631, 285681, 0285681,
285630 0285630 285632 0285632 285631 0285631 285681 0285681

2007 150 HP: E150DHLSUC, E150DHLSUF
2008 150 HP: E150DBXSCF, E150DBXSCR, E150DCXSCF, E150DCXSCR, E150DHLSCF, E150DHLSCR, E150DPLSCR, E150DPXSCF, E150DPXSCR, E150DSLSCR, E150HSLSCF, E150HSLSCS
2008 175 HP: E175DCXSCF, E175DCXSCR, E175DPLSCR, E175DPXSCF, E175DPXSCR, E175DSLSCR
2008 200 HP: - (60° V6, 2.6 L): E200DCXSCA, E200DCXSCF, E200DPLSCA, E200DPXSCA, E200DPXSCF, E200DSLSCA

EVINRUDE DECALS USA FLAG

1 0215735 EVINRUDE FLAG - Port. STARS-BL VINTGE
2 0215736 EVINRUDE FLAG - Stbd.
3 0215737 RED STRIPE - Port
4 0215738 RED STRIPE - Stbd
5 0215666 EVINRUDE - Front
5 0215536 EVINRUDE - Rear
6 0215741 E-TEC - Port & Stbd. 2 Submit
7 0215748 150 H.O. - Front & Rear 2 Submit

0215735, 0215736, 0215737, 0215738, 0215666, 0215536, 0215741, 0215748

8 0352505 BRP Logo - Front & Rear.  2 Submit
9 0215558 EU 2006 - Lower
NS 0215774 3-Star.

2007 E150DHLSUC, E150DHLSUF
2008 E150DHLSCF, E150DHLSCR, E150HSLSCF, E150HSLSCS

E75DPLSDA

ENGINE COVER Diagram EPC3669

0285650 ENGINE COVER Assy - BLUE
0285651 ENGINE COVER Assy - WHITE

0285650, 0285651

DECALS BLUE MODELS Diagram EPC3668

1 0215536 EVINRUDE - Front.
1 0215664 EVINRUDE - Rear.
2 0352506 BRP Logo.
3 0215542 EVINRUDE E-TEC - Port.
4 0215541 EVINRUDE E-TEC - Starboard.
5 0215559 STRIPE, Port.
6 0215560 STRIPE, Starboard.
7 0215540 "90" HP Rear
8 0215539 "75" HP Rear
9 0215661 "75" HP Front
10 0215662 "90" HP Front
11 0215558 EVINRUDE "EU" 2006
12 0334435 DECAL, Owner Attn, Air Silencer

Read more: 2006 Evinrude E-TEC 75/90 BLUE MODELS

E50DGTLAGA

01-2_ENGINE COVER diagram EPC3696

1 0285811 ENGINE COVER Assembly, Blue. DP, DT Models
1 0285810 ENGINE COVER Assembly, Blue. DR Models
1 0285812 ENGINE COVER Assembly, White. DS Models
1 0285857 ENGINE COVER Assembly, Graphite. DRG Models
1 0285859 ENGINE COVER Assembly, Graphite. DPG Models
1 0285844 ENGINE COVER Assembly, Blue. DH Models
1 0285845 ENGINE COVER Assembly, White. DH Models
1 0285858 ENGINE COVER Assembly, Graphite. DHG Models

0285811, 0285810, 0285812, 0285857, 0285859, 0285844, 0285845, 0285858
0285811 0285810 0285812 0285857 0285859 0285844 0285845 0285858

01-1_DECALS Diagram EPC4642

1 0216385 EVINRUDE E-TEC - Port & Starboard. Blue Models. 2 Submit
2 0216387 DECAL, Stripe - Port. Blue Models.
3 0216388 DECAL, Stripe - Starboard. Blue Models.

7 0216389 "EVINRUDE 40" HP - Blue (front)
11 0216487 "40" HP - Blue (rear)

9 0216391 "EVINRUDE 50" HP - Blue (front)
13 0216489 "50" HP - Blue (rear)

10 0216392 "EVINRUDE 60" HP - Blue (front)
14 0216490 "60" HP - Blue (rear)

4 0216516 DECAL, Stripe H.O. - Port. Blue H.O. Models.
5 0216517 DECAL, Stripe H.O. - Starboard. Blue H.O. Models.

8 0216384 "EVINRUDE 40 HO" HP - Blue (front)
12 0216488 "40 HO" HP - Blue (rear)

1 0216398 EVINRUDE E-TEC - Port & Starboard. White Models. 2 Submit

2 0216400 DECAL, Stripe - Port. White Models.
3 0216401 DECAL, Stripe - Starboard. White Models.

7 0216393 "EVINRUDE 40" HP - White (front)
11 0216483 "40" HP - White (rear)

9 0216395 "EVINRUDE 50" HP - White (front)
13 0216485 "50" HP - White (rear)

10 0216396 "EVINRUDE 60" HP - White (front)
14 0216486 "60" HP - White (rear)

4 0216513 DECAL, Stripe H.O. - Port. White H.O. Models.
8 0216386 "EVINRUDE 40 HO" HP - White (front)
12 0216484 "40 HO" HP - White (rear)

1 0216702 EVINRUDE E-TEC - Port & Starboard. Graphite Models. 2 Submit
2 0216654 DECAL, Stripe - Port. Graphite Models.
3 0216655 DECAL, Stripe - Starboard. Graphite Models.

7 0216662 "EVINRUDE 40" HP - Graphite (front)
11 0216663 "40" HP - Graphite (rear)

9 0216668 "EVINRUDE 50" HP - Graphite (front)
13 0216669 "50" HP - Graphite (rear)

10 0216670 "EVINRUDE 60" HP - Graphite (front)
14 0216671 "60" HP - Graphite (rear)

4 0216656 DECAL, Stripe H.O. - Port. Graphite H.O. Models.
5 0216657 DECAL, Stripe H.O. - Starboard. Graphite H.O. Models.

8 0216664 "EVINRUDE 40 HO" HP - Graphite (front)
12 0216665 "40 HO" HP - Graphite (rear)

6 0216802 "EVINRUDE 40 Jet" - Graphit (front & rear) 2 Submit

15 0333979 SHIFT, Instruction. DR Models
16 0355633 DECAL, Owner Attention
17 0352506 BRP LOGO. 2 Submit
18 0215558 EVINRUDE "EU" 2006
19 0215774 DECAL, Calif - 3 Star. See Administrative Bulletin 2004-02(A) for order requirements
20 0215896 "APPROVED FOR SALTWATER"
21 0216515 DECAL, "Pontoon Series". Pontoon models

Read more: Evinrude AG Models 40/50/60 40 HO 40 jet
