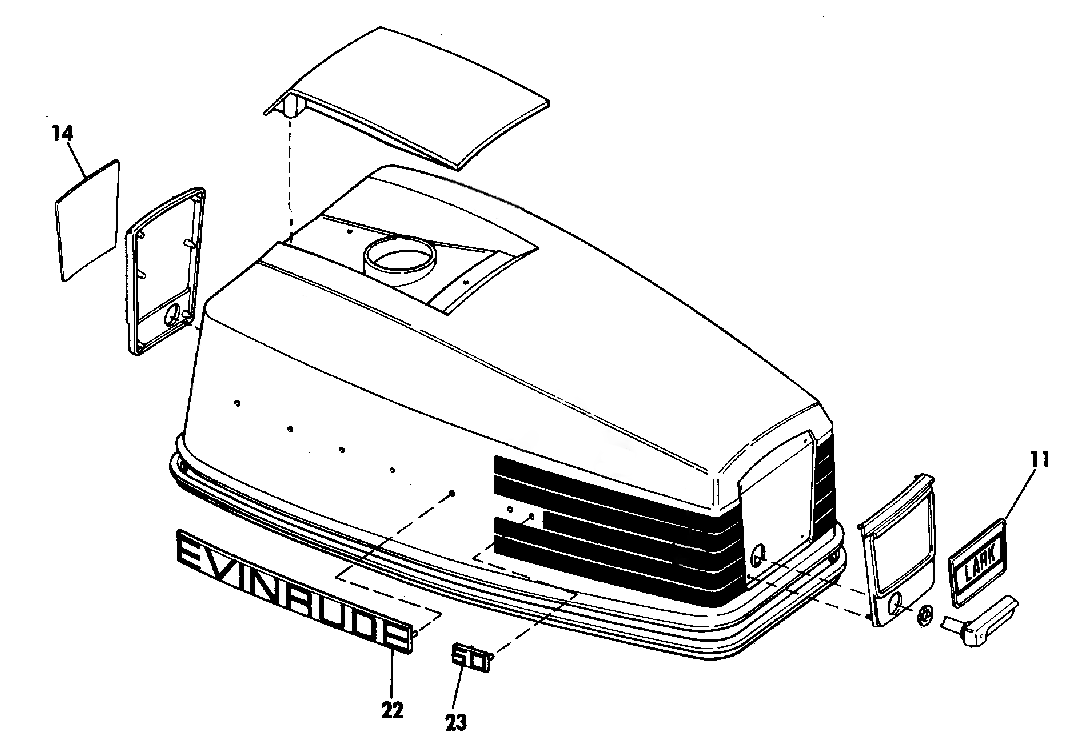

Evinrude - 1973 50 HP
Diagram 279583-02
11 0207021 PLATE, Applique front
14 0207022 PLATE, Applique, rear
22 0207003 APPLIQUE, Sides Order 2
23 0207023 APPLIQUE, Port and stbd
0279589 0279589 DECAL SET. USED ON ROPE START MODELS ONLY
0279590 0279590 DECAL SET. USED ON ELECTRIC START MODELS ONLY
50302R 1973
50303R 1973
50372R 1973
50373R 1973
MOTOR COVER Diagram 390858-04
1 0390298 STARTER HOUSING ASSY.
0390335 DECAL SET. Not Shown
Johnson - Evinrude 75 HP - J75ELCNB 1982
MOTOR COVER - JOHNSON diagram 392979-06
1 0391596 MOTOR COVER ASSEMBLY. 70 MODELS ONLY
1 0391597 MOTOR COVER ASSEMBLY. 75 MODELS ONLY MODELS WITH "J" SERIAL NUMBER PREFIX
0391596, 0391597, 0281780, 0281779
0391596 0391597 0281780 0281779
19 0393086 APPLIQUE & PLATE. 70 MODELS ONLY
392385 0392385 DECAL SET. 70 MODELS ONLY Not Shown 75 MODELS ONLY MODELS WITH "J" SERIAL NUMBER PREFIX
19 0393087 APPLIQUE & PLATE. 75 MODELS ONLY MODELS WITH "J" SERIAL NUMBER PREFIX
392386 0392386 DECAL SET. 75 MODELS ONLY MODELS WITH "J" SERIAL NUMBER PREFIX Not Shown 75 MODELS ONLYMODELS WITH "J" SERIAL NUMBER PREFIX
MOTOR COVER - EVINRUDE diagram 392979-04
1 0281780 MOTOR COVER ASSEMBLY. USED ON 70 MODELS
1 0281779 MOTOR COVER ASSEMBLY. USED ON 75 MODELS MODELS WITH "J" SERIAL NUMBER PREFIX
0391596, 0391597, 0281780, 0281779
0391596 0391597 0281780 0281779
281866 0281866 DECAL SET. Not Shown USED ON 70 MODELS USED ON 75 MODELSMODELS WITH "J" SERIAL NUMBER PREFIX
20 0209458 PLATE, Applique, front. USED ON 70 MODELS
21 0209463 APPLIQUE, Front. USED ON 70 MODELS
281868 0281868 DECAL SET. Not Shown USED ON 75 MODELS MODELS WITH "J" SERIAL NUMBER PREFIX USED ON 75 MODELSMODELS WITH "J" SERIAL NUMBER PREFIX
18 0209350 APPLIQUE, Port & starboard. USED ON 75 MODELS MODELS WITH "J" SERIAL NUMBER PREFIX - ORDER 2
19 0209351 APPLIQUE, PORT & STARBOARD. USED ON 75 MODELS MODELS WITH "J" SERIAL NUMBER PREFIX- ORDER 2
20 0209344 PLATE, Applique, front. USED ON 75 MODELS MODELS WITH "J" SERIAL NUMBER PREFIX
21 0209355 APPLIQUE, Motor cover front. USED ON 75 MODELS MODELS WITH "J" SERIAL NUMBER PREFIX
Evinrude - EN > AF Models > 115 - (60° V4) > E115DSLAFB
01-2_ENGINE COVER Diagram EPC4330
0285815 ENGINE COVER, Blue – 90 H.O., 115 H.O.
0285816 ENGINE COVER, White – 90 H.O., 115 H.O.
0285817 ENGINE COVER, Blue – 115, 130.
0285818 ENGINE COVER, White – 115, 130.
0285861 ENGINE COVER, Graphite – 90 H.O., 115 H.O.
0285862 ENGINE COVER, Graphite – 115, 130
01-1_DECALS Diagram EPC4644
EVINRUDE BLUE MODELS
1 0216438 EVINRUDE E–TEC – Port & Starboard. Blue Models. Order 2
2 0216378 DECAL, Stripe – Port. Blue Models.
3 0216379 DECAL, Stripe – Starboard. Blue Models.
7 0216405 "EVINRUDE 115" HP – Blue (front)
11 0216411 "115" HP – Blue (rear)
9 0216397 "EVINRUDE 130" HP – Blue (front)
13 0216399 "130" HP – Blue (rear)
4 0216358 DECAL, Stripe HO – Port. Blue Models.
5 0216360 DECAL, Stripe HO – Starboard. Blue Models.
6 0216554 "EVINRUDE 90 HO" – Blue (front)
10 0216552 "90 HO" – Blue (rear)
8 0216415 "EVINRUDE 115 HO" – Blue (front)
12 0216416 "115 HO" HP – Blue (rear)
EVINRUDE WHITE MODELS
1 0216443 EVINRUDE E–TEC – Port & Starboard. White Models. Order 2
2 0216423 DECAL, Stripe – Port. White Models.
3 0216424 DECAL, Stripe – Starboard. White Models.
7 0216425 "EVINRUDE 115" HP – White (front)
11 0216427 "115" HP – White (rear)
9 0216426 "EVINRUDE 130" HP – White (front)
13 0216428 "130" HP – White (rear)
4 0216418 DECAL, Stripe HO – Port. White Models.
5 0216419 DECAL, Stripe HO – Starboard. White Models.
10 0216553 "90 HO" – White (rear)
6 0216555 "EVINRUDE 90 HO" – White (front)
8 0216420 "EVINRUDE 115 HO" – White (front)
12 0216421 "115 HO" HP – White (rear)
EVINRUDE GRAPHITE MODELS
1 0216760 EVINRUDE E–TEC – Port & Starboard, H.O.. Graphite H.O. Models only. Order 2
4 0216677 DECAL, Stripe HO – Port. Graphite Models.
5 0216677 DECAL, Stripe HO – Starboard. Graphite Models.
6 0216681 "EVINRUDE 90 HO" – Graphite (front)
10 0216682 "90 HO" – Graphite (rear)
8 0216683 "EVINRUDE 115 HO" – Graphite (front)
12 0216684 "115 HO" HP – Graphite (rear)
1 0216698 EVINRUDE E–TEC – Port & Starboard. Graphite Models. Order 2
2 0216679 DECAL, Stripe – Port. Graphite Models.
3 0216680 DECAL, Stripe – Starboard. Graphite Models.
7 0216685 "EVINRUDE 115" HP – Graphite (front)
11 0216686 "115" HP – Graphite (rear)
9 0216666 "EVINRUDE 130" HP – Graphite (front)
13 0216667 "130" HP – Graphite (rear)
14 0352505 BRP LOGO. Included with Engine Cover Assembly Order 2
15 0355633 DECAL, Owner Attention.
16 0215558 EVINRUDE "EU" 2006
17 0215774 DECAL, Calif – 3 Star. See Administrative Bulletin 2004–02(A) for order requirements
18 0215896 APPROVED FOR SALTWATER
19 0216515 DECAL, "Pontoon Series". E115SNL only
