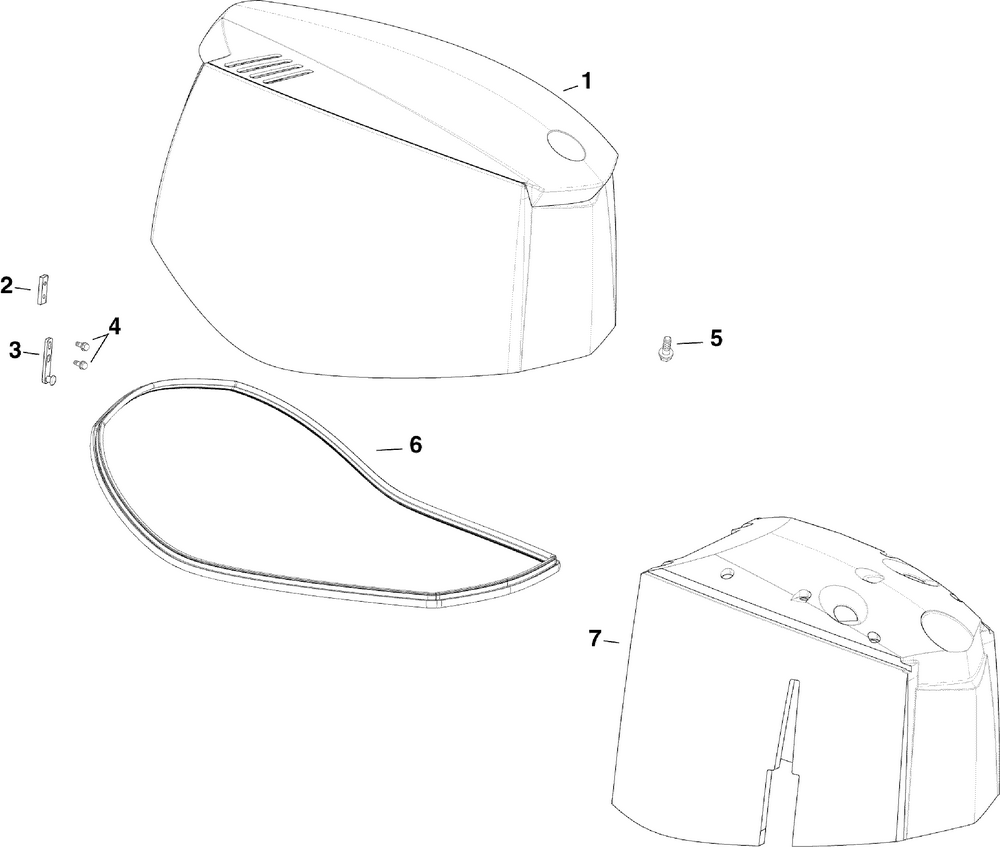

01-2_ENGINE COVER Diagram EPC4330

0285815 ENGINE COVER, Blue – 90 H.O., 115 H.O.
0285816 ENGINE COVER, White – 90 H.O., 115 H.O.
0285817 ENGINE COVER, Blue – 115, 130.
0285818 ENGINE COVER, White – 115, 130.
0285861 ENGINE COVER, Graphite – 90 H.O., 115 H.O.
0285862 ENGINE COVER, Graphite – 115, 130

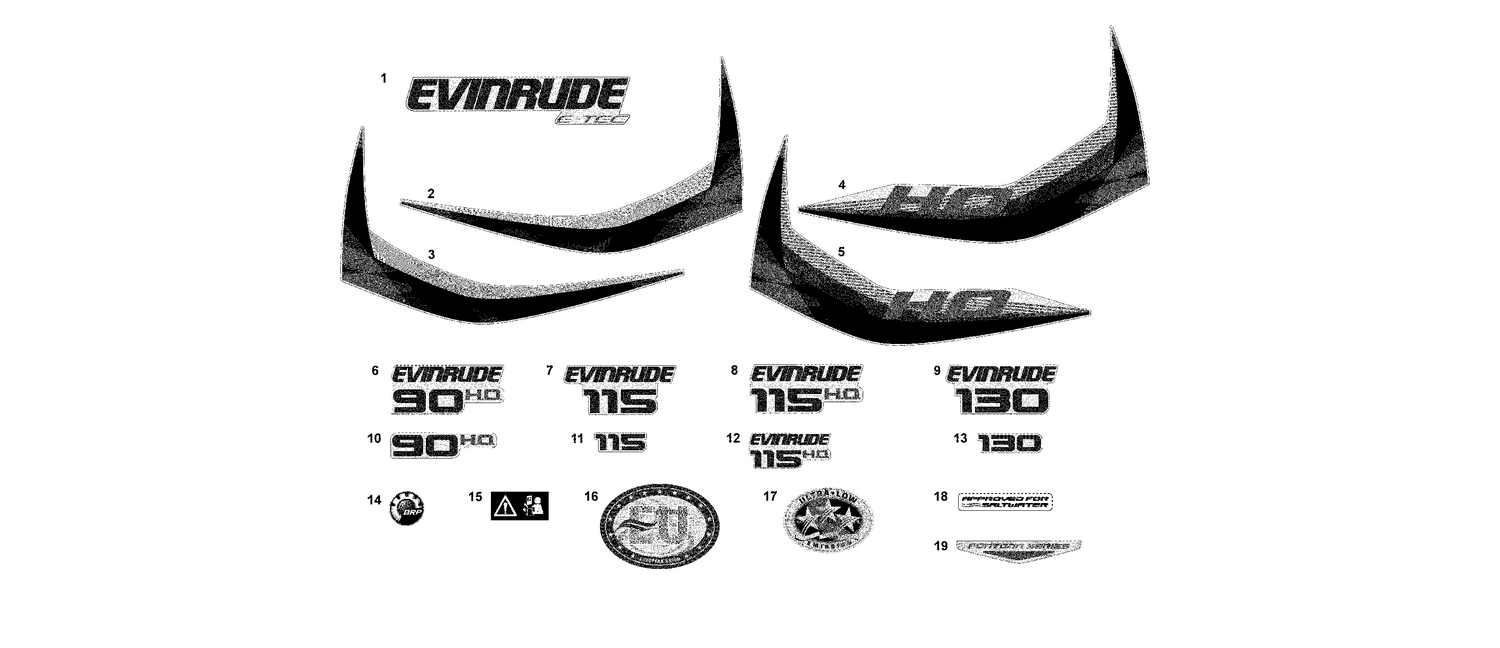

01-1_DECALS Diagram EPC4644

EVINRUDE BLUE MODELS
1 0216438 EVINRUDE E–TEC – Port & Starboard. Blue Models. Order 2
2 0216378 DECAL, Stripe – Port. Blue Models.
3 0216379 DECAL, Stripe – Starboard. Blue Models.
7 0216405 "EVINRUDE 115" HP – Blue (front)
11 0216411 "115" HP – Blue (rear)
9 0216397 "EVINRUDE 130" HP – Blue (front)
13 0216399 "130" HP – Blue (rear)

4 0216358 DECAL, Stripe HO – Port. Blue Models.
5 0216360 DECAL, Stripe HO – Starboard. Blue Models.
6 0216554 "EVINRUDE 90 HO" – Blue (front)
10 0216552 "90 HO" – Blue (rear)
8 0216415 "EVINRUDE 115 HO" – Blue (front)
12 0216416 "115 HO" HP – Blue (rear)

EVINRUDE WHITE MODELS
1 0216443 EVINRUDE E–TEC – Port & Starboard. White Models. Order 2
2 0216423 DECAL, Stripe – Port. White Models.
3 0216424 DECAL, Stripe – Starboard. White Models.
7 0216425 "EVINRUDE 115" HP – White (front)
11 0216427 "115" HP – White (rear)
9 0216426 "EVINRUDE 130" HP – White (front)
13 0216428 "130" HP – White (rear)

4 0216418 DECAL, Stripe HO – Port. White Models.
5 0216419 DECAL, Stripe HO – Starboard. White Models.
10 0216553 "90 HO" – White (rear)
6 0216555 "EVINRUDE 90 HO" – White (front)
8 0216420 "EVINRUDE 115 HO" – White (front)
12 0216421 "115 HO" HP – White (rear)

EVINRUDE GRAPHITE MODELS
1 0216760 EVINRUDE E–TEC – Port & Starboard, H.O.. Graphite H.O. Models only. Order 2
4 0216677 DECAL, Stripe HO – Port. Graphite Models.
5 0216677 DECAL, Stripe HO – Starboard. Graphite Models.
6 0216681 "EVINRUDE 90 HO" – Graphite (front)
10 0216682 "90 HO" – Graphite (rear)
8 0216683 "EVINRUDE 115 HO" – Graphite (front)
12 0216684 "115 HO" HP – Graphite (rear)

1 0216698 EVINRUDE E–TEC – Port & Starboard. Graphite Models. Order 2
2 0216679 DECAL, Stripe – Port. Graphite Models.
3 0216680 DECAL, Stripe – Starboard. Graphite Models.
7 0216685 "EVINRUDE 115" HP – Graphite (front)
11 0216686 "115" HP – Graphite (rear)
9 0216666 "EVINRUDE 130" HP – Graphite (front)
13 0216667 "130" HP – Graphite (rear)


14 0352505 BRP LOGO. Included with Engine Cover Assembly Order 2
15 0355633 DECAL, Owner Attention.
16 0215558 EVINRUDE "EU" 2006
17 0215774 DECAL, Calif – 3 Star. See Administrative Bulletin 2004–02(A) for order requirements
18 0215896 APPROVED FOR SALTWATER
19 0216515 DECAL, "Pontoon Series". E115SNL only

Read more: (2018) Evinrude - AF Models (60° V4) 90/115/HO - 115/130 HP

ENGINE COVER - EVINRUDE  DIAGRAM 432233-04

1 0283262 ENGINE COVER ASSY., 88 models
1 0283098 ENGINE COVER ASSY., 90 models
1 0283677 ENGINE COVER ASSY., 100STL
1 0283099 ENGINE COVER ASSY., 110 models

0283262, 0283098, 0283677, 0283099, 0398809, 0397820, 0397821, 0432747

EVINRUDE DECALS

88 HP
25 0283348 DECAL SET, 88 models
21 0210917 PLATE, Front & rear, 88 models - ORDER 2

90 HP/110 HP
25 0283349 DECAL SET, 90/110 models
19 0210324 APPLIQUE, Engine cover, rear, 90 models
21 0210747 PLATE, Applique front, 90/110 models
18 0210640 APPLIQUE, Engine cover, rear, 110 models

90 HP 0283349, 0210747, 0210324

100HP
25 0283710 DECAL SET, 100STL

123 0210708 DECAL, Ex. hsg. Ev.
123 0332731 DECAL, Ex hsg. Jo.

1987 EVINRUDE 90 HP E90MLCUR, E90TLCUR
1987 EVINRUDE 110 E110MLCUR, E110TLCUR, E110TXCUR

1997 88 AND 100 ARE NOT THE USING THE SAME COWL -  Look for the specific cowl and model number.

1988 EVINRUDE 88 HP E88MSLCCC, VE88MSLCCC
1988 EVINRUDE 90 HP E90TLCCA
1988 EVINRUDE 110 HP E110MLCCA, E110TLCCA, E110TXCCA
1988 EVINRUDE 100 HP E100STLCCA 1988

ENGINE COVER - JOHNSON DIAGRAM 432233-05

1 0398809 ENGINE COVER ASSY., 88 models
1 0397820 ENGINE COVER ASSY., 90 models
1 0397821 ENGINE COVER ASSY., 110 models
1 0432747 ENGINE COVER ASSY., 100STL

0398809, 0397820, 0397821, 0432747, 0283262, 0283098, 0283677, 0283099,

JOHNSON DECALS

25 0398996 DECAL SET, 88 models
18 0333611 APPLIQUE, Rear, 88 models

25 0398997 DECAL SET, 90 models
18 0332798 PLATE, Rear, 90 models

25 0398998 DECAL SET, 110 models
18 0332799 PLATE, Rear, 110 models

25 0432944 DECAL SET, 100STL models

21 0332795 PLATE, Applique front

J150GLEIS 1991

ENGINE COVER - EVINRUDE

ENGINE COVER - EVINRUDE

1 0284083 ENGINE COVER ASSY.. 150EL, 150EX
1 0284084 ENGINE COVER ASSY.. 175EX
1 0284087 ENGINE COVER ASSY.. 150NX
1 0284085 ENGINE COVER ASSY.. 150GL
1 0284086 ENGINE COVER ASSY.. 175GL
1 0284070 ENGINE COVER ASSY.. TE150GL

0284083, 0284084, 0284087, 0284085, 0284086, 0284070

2 0211688 APPLIQUE, Evinrude Order 2
3 0336176 APPLIQUE, Counter rotation

13 0336817 APPLIQUE. TE150GL
14 0284286 DECAL SET. 150EL, 150EX 150NX 150GL
14 0284287 DECAL SET. TE150GL
14 0284288 DECAL SET. 175EX 175GL

ENGINE COVER - JOHNSON

1 0434718 ENGINE COVER ASSY.. 150EL, EX
1 0434721 ENGINE COVER ASSY.. 150GL
1 0434723 ENGINE COVER ASSY.. 150NX
1 0434719 ENGINE COVER ASSY.. 175EX
1 0434722 ENGINE COVER ASSY.. 175GL
1 0434720 ENGINE COVER ASSY.. 150ELA
1 0434670 ENGINE COVER ASSY.. TJ150GL

0434718, 0434721, 0434723, 0434719, 0434722, 0434720, 0434670

11 0435245 DECAL SET. 150EL, EX 150NX
11 0435246 DECAL SET. 150GL 150ELA
11 0435247 DECAL SET. TJ150GL
11 0435248 DECAL SET. 175EX
11 0435249 DECAL SET. 175GL

1985 EVINRUDE - V4 120/140

E120TLCOS, E120TXCOS
E140TLCOS , E140TXCOS

ENGINE COVER - EVINRUDE

1 0282456 ENGINE COVER ASSY., 120
1 0282173 ENGINE COVER ASSY., 140

13 0210163 APPLIQUE, Front
21 0210162 APPLIQUE, Rear, 120
21 0209793 APPLIQUE, Rear, 140
22 0209795 APPLIQUE, Evinrude, stbd.
24 0209799 PLATE, Applique, front

26 0282445 DECAL SET

1985 Johnson - V4 120/140

J120TLCOS, J120TXCOS
J140TLCOS, J140TXCOS

ENGINE COVER - JOHNSON

1 0394478 ENGINE COVER ASSY., 120
1 0393598 ENGINE COVER ASSY., 140

13 0329854 APPLIQUE, Front
20 0330378 PLATE, Applique, front, 120
20 0328673 PLATE, Applique, front, 140
21 0328674 APPLIQUE, Engine cover, rear
22 0328675 PLATE, Rear

24 0393695 DECAL SET
