Johnson - 2000 115

Engine Cover Diagrama epc0451

1 5001188 ENGINE COVER ASSY. - Z,W,T. 90PL ONLY, 115PL ONLY, 115JPL ONLY (Gray-Red)
1 5001091 ENGINE COVER ASSY. - Y,V. 90SPL, 90PX ONLY, 115SPL, 115PX ONLY
1 5001380 ENGINE COVER ASSY. - X,U. 90VL, 90VX ONLY, 115VL. 115VX ONLY

18 0346706 *DECAL, Sides - Z,W,T. 90PL ONLY, 115PL ONLY, 115JPL ONLY
17 0346690 *DECAL, Rear - Z. 90PL ONLY
19 0346707 *DECAL, Front - Z. 90PL ONLY

19 0346708 *DECAL, Front - W. 115PL ONLY
17 0346961 *DECAL, Rear - W. 115PL ONLY

18 0346476 *DECAL, Sides -Y,X,V,U. 90SPL, 90PX ONLY, 90VL, 90VX ONLY, 115SPL, 115PX ONLY, 115VL. 115VX ONLY
17 0346475 *DECAL, Rear - Y,X. 90SPL, 90PX ONLY, 90VL, 90VX ONLY
19 0346477 *DECAL, Front - Y,X. 90SPL, 90PX ONLY, 90VL, 90VX ONLY

17 0346480 *DECAL, Rear - V,U. 115SPL, 115PX ONLY, 115VL. 115VX ONLY
19 0346481 *DECAL, Front - V,U. 115SPL, 115PX ONLY, 115VL. 115VX ONLY

17 0346696 *DECAL, Rear - T. 115JPL ONLY
19 0346695 *DECAL, Front - T. 115JPL ONLY

20 0346478 *LENS, Port
21 0346479 *LENS, Starboard

Read more: Johnson - 2000 90/115 HP 2-STROKE

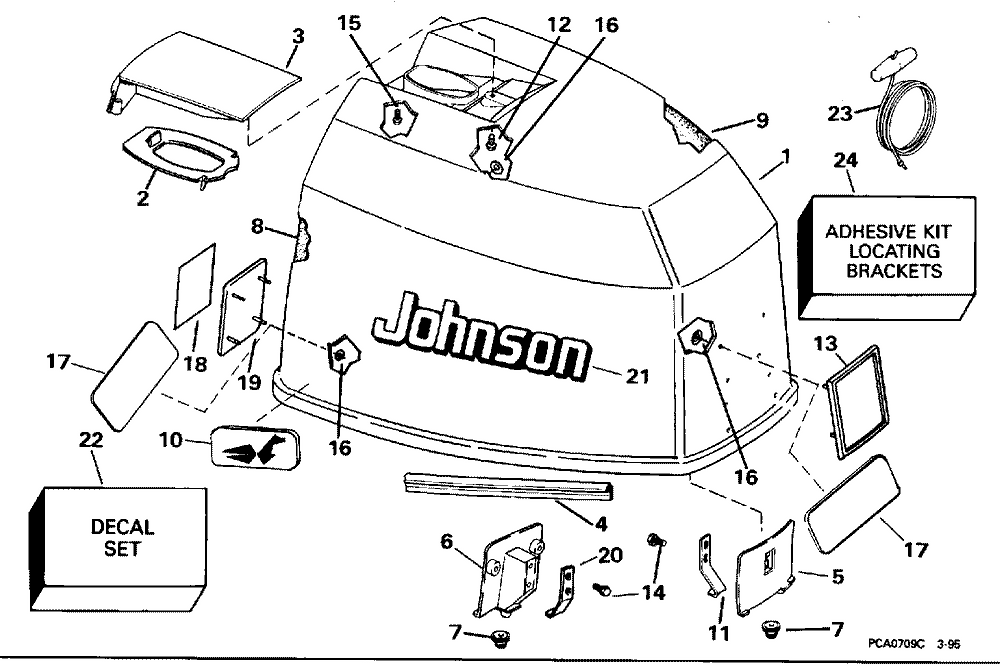

ENGINE COVER - JOHNSON DIAGRAM 438703-03A

0438319 MOTOR COVER ASSY. J25RM, J25RML, J25TK, J25TKL
0437365 MOTOR COVER ASSY. BJ25AR, BJ25ARL
0438320 MOTOR COVER ASSY. J25KL, J25QL
0437366 MOTOR COVER ASSY. BJ25K, BJ25KL, BJ25QL
0437360 MOTOR COVER ASSY. BJ35AR, BJ35ARL, HJ35RML
0438322 MOTOR COVER ASSY. J35KL, J35QL
0437363 MOTOR COVER ASSY. BJ35K, BJ35KL, BJ35QL
0438321 MOTOR COVER ASSY. J35RML, J35TKL

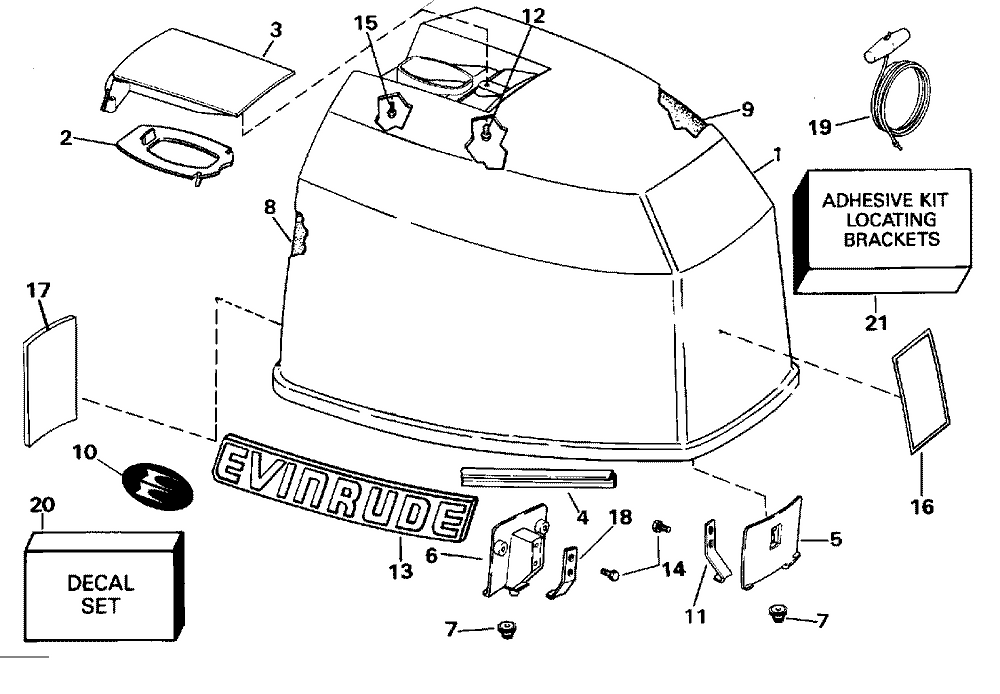

ENGINE COVER - EVINRUDE

0284848 MOTOR COVER E25RM, E25RML, E25TK, E25TKL
0284768 MOTOR COVER BE25AR, BE25ARL
0284849 MOTOR COVER E25KL, E25QL
0284769 MOTOR COVER BE25K, BE25KL, BE25QL
0284783 MOTOR COVER BE35AR, HE35RML, BE35ARL
0284767 MOTOR COVER E35KL, E35QL
0284785 MOTOR COVER BE35K, BE35KL, BE35QL
0284764 MOTOR COVER E35RML, E35TKL

0438319, 0437365, 0438320, 0437366, 0437360, 0438322, 0437363, 0438321
0284848, 0284768, 0284849, 0284769, 0284783, 0284767, 0284785, 0284764
0438319 0437365 0438320 0437366 0437360 0438322 0437363 0438321
0284848 0284768 0284849 0284769 0284783 0284767 0284785 0284764

JOHNSON DECALS

5) 0341988 LENS, Jo.,. BJ25AR, BJ25ARL BJ25K, BJ25KL, BJ25QL BJ35AR, BJ35ARL, HJ35RML BJ35K, BJ35KL, BJ35QL

8) 0438444 DECAL SET. J25RM, J25RML, J25TK, J25TKL J25KL, J25QL
8) 0437890 DECAL SET. BJ25AR, BJ25ARL BJ25K, BJ25KL, BJ25QL
8) 0437892 DECAL SET. BJ35AR, BJ35ARL, HJ35RML BJ35K, BJ35KL, BJ35QL (ENDEAVOUR)
8) 0438445 DECAL SET. J35KL, J35QL J35RML, J35TKL

Read more: 1997-1998-1999 JOHNSON 25/35 HP - 2 STROKE 3 CYL

E88MSLCUS
1987 ENGINE COVER - EVINRUDE Diagram 398856-03

1988 ENGINE COVER - EVINRUDE Diagram 432233-04

0283262 ENGINE COVER ASSY., Evinrude

0283677 ENGINE COVER ASSY., 100STL
0283098 ENGINE COVER ASSY., 90 models
0283099 ENGINE COVER ASSY., 110 models

ENGINE COVER - JOHNSON

0398809 ENGINE COVER ASSY., Johnson
0397820 ENGINE COVER ASSY., 90 models
0397821 ENGINE COVER ASSY., 110 models
0432747 ENGINE COVER ASSY., 100STL

0283262, 0283677, 0283098, 0283099, 0398809, 0397820, 0397821, 0432747
0283262 0283677 0283098 0283099 0398809 0397820 0397821 0432747

EVINRUDE DECALS

17) 0210917 PLATE, Front & Rear
22) 0283348 DECAL SET, Evinrude

PAINT CHART

Read more: 1987-1988 88hp Evinrude SPL

ENGINE COVER -- JOHNSON - Diagram 439298-03A PCA0847C 3-95

0438324 ENGINE COVER ASSY.. 20SR Only
0438326 ENGINE COVER ASSY.. 25BA, 25BAL, 25RD, 25R, 25RL
0438328 ENGINE COVER ASSY.. 30BA, 30BAL
0438330 ENGINE COVER ASSY.. 25JR Only

0438324, 0438326, 0438328, 0438330
0438324 0438326 0438328 0438330

Johnson Decals

19 0438437 DECAL SET

6   0343188 PLATE, Frame, front. 20SR Only
18 0343189 PLATE, Frame, rear. 20SR Only

6   0343185 PLATE, Frame, front. 25JR Only
18 0343186 PLATE, Frame, rear. 25JR Only

6   0343190 PLATE, Frame, front. 25BA, 25BAL, 25RD, 25R, 25RL
18 0343191 PLATE, Frame, rear. 25BA, 25BAL, 25RD, 25R, 25RL

6   0343192 PLATE, Frame, front. 30BA, 30BAL
18 0343193 PLATE, Frame, rear. 30BA, 30BAL

Paint Diagram 439298-00B
