> Mercury Marine [Updated: Nov. 1, 2021] > Outboard > 2 Stroke DFI (OptiMax) > V-115 DFI (2.5L) > [0G960500 THRU 0T178499] - USA - Cat.# 90-80350200
> Mercury Marine [Updated: Mar. 14, 2018] > Outboard > 2 Stroke DFI (OptiMax) > V-135 DFI (2.5L) > [0G960500 THRU 0T178499] - USA - Cat.# 90-80350200 > Service/Support Material

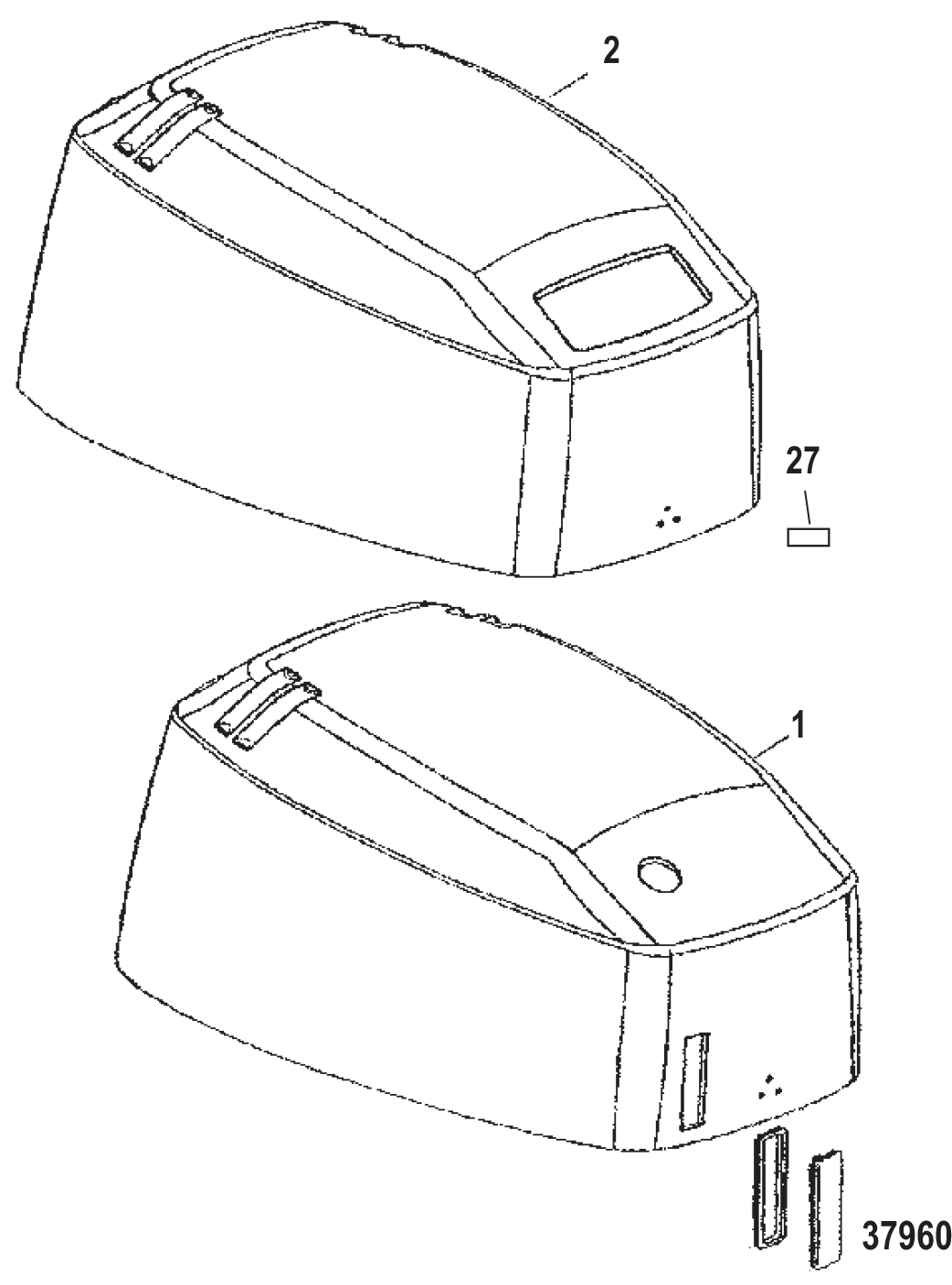

TOP COWL DIAGRAM 9210

1

852552T3 TOP COWL ASSEMBLY (BLACK)  Supersedes: 852552A3
852552T4  TOP COWL ASSEMBLY (SILVER) Supersedes: 852552A4

852552T3, 852552A3, 852552T4, 852552A4
852552T3 852552A3 852552T4 852552A4

MERCURY DECALS

804685A00 DECAL SET (BLACK 115 LONG)
804686A00 DECAL SET (BLACK 115 XLONG/SALTWATER)

854291A00 DECAL SET (BLACK 135 LONG)
854291A04 DECAL SET

854292A00 DECAL SET (BLACK 135 XL/CXL)
854292A04 DECAL SET

854293A00 DECAL SET (BLACK 150 LONG)
854294A06 DECAL SET

854294A00 DECAL SET (BLACK 150 XL/CXL)
854294A04 DECAL SET

MARINER DECALS

804683A00 DECAL SET (GRAY 115 LONG)
804684A00 DECAL SET (GRAY 115 XLONG/SALTWATER)

854295A98 DECAL SET (GRAY 135 LONG)
854295A03 DECAL SET

854296A99 DECAL SET (GRAY 135 XL/CXL)
854295A03 DECAL SET

854297A98 DECAL SET (GRAY 150 LONG)
854297A03 DECAL SET

854298A99 DECAL SET (GRAY 150 XL/CXL)
854297A03 DECAL SET

NITRO DECALS

804682A00 DECAL SET (TRACKER 115)
803988A99 DECAL SET (TRACKER 135)
802643A98 DECAL SET (TRACKER 150)

OTHER DECALS

804657A00 DECAL EPA Label Information (2000)
27 NSS NOT SOLD SEPARATE Decal-Counter Rotation
28 NSS NOT SOLD SEPARATE Decal-Break In

Serial Number: 0T145865 - Model: 1135473WY - Model Version: L SW
MERCURY DFI OPTIMAX SALTWATER 135DFI L SW
MERCURY 2000 135DFI 115/135/150 DFI (2.5L)

Serial Number: 0T066984 - Model: 1115473WT - Model Version: 115DFI L
MERCURY 2000 DFI OPTIMAX NITRO TRACKER 115DFI L

Serial Number:
0T066984
2000
115L OPTI
Max RPM 5250
HP 115 KW 86
LB 440 KG 205
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Made in USA
CE [99]

> Mercury Marine [Updated: Mar. 6, 2018] > Outboard > 2 Stroke Carb > 80, 800 (4 CYL.) > [5582562 THRU 6432900] - USA - Cat.# 90-90672 > MISCELLANEOUS PARTS/ACCESSORIES

TOP COWL AND SUPPORT BRACKETS DIAGRAM 39903

1) 5999 COWL TOP (WITHOUT DECALS) [USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657] & Below
1) 7934 TOP COWL ASSEMBLY (WITHOUT DECALS) [USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658] & Up

COWLING AND FRONT COVER DIAGRAM 39904

1) 5642A8 COVER ASSEMBLY Cowl - Front (W/O DECALS) [USA-5824647/Australia- 8070909 Belgium- 9299905/Canada-7169657] & Below

1) 7927A8 FRONT COVER ASSEMBLY (W/O DECALS) [USA-5824648/Australia- 8070910/Belgium- 9299906/Canada-7169658] & Up

12) 3248A16 WRAP AROUND COWL ASSEMBLY (WITHOUT DECALS)

TOP COWL PART NUMBERS: 5999, 7934, 5642A8, 7927A8, 3248A16.

MERCURY DECALS

93152A81 DECAL SET

MERCURY 80 HP MODELS
1980 : 1080500, 1080520, 1080620.
1982 1080502, 1080522, 1080622.
1983 1080523, 1080623.

> Mercury Marine [Updated: Feb. 28, 2018] > Outboard > 2 Stroke Carb > 40 MXL MARATHON > [0N037781 THRU 0N056164] - Cat.# 90-80263898 > Service/Support Material

Top Cowl Diagram 5767

853778A3 TOP COWL ASSEMBLY (Black-Electric 40)
853778A4 TOP COWL ASSEMBLY (Silver-Electric 40)
853778A13 TOP COWL ASSEMBLY (Black-Electric-Un-Decaled)
853778A14 TOP COWL ASSEMBLY (Silver-Electric-Un-Decaled)
853778A7 TOP COWL ASSEMBLY (Black-Manual 40)
853778A8 TOP COWL ASSEMBLY (Silver-Manual 40)
853778A11 TOP COWL ASSEMBLY (Black-Manual-Un-Decaled)
853778A12 TOP COWL ASSEMBLY (Silver-Manual-Un-Decaled)

853778A3, 853778A4, 853778A13, 853778A14, 853778A7, 853778A8, 853778A11, 853778A12.

***Nissan - Tohatsu Top Cowl

Mercury Decals

855973A98 DECAL SET (40 Black Lightning)
856927 DECAL SET (40 Black Lightning XR)(Sheet of 4 Decals)
877864A00 DECAL SET (40 Black Lightning XR)(2000)
892639A04 DECAL SET (SeaPro 40)

Mariner Decals

855975A98 DECAL SET (40 Gray Lightning)(1998-2000)
856926 DECAL SET (40 Gray Lightning XR)(Sheet of 4 Decals)(1998-2000)

855975A01 DECAL SET (All Gray 40)(2001/2002)
855975A03 DECAL SET (Gray 40)(2003 and Above)
888722A03 DECAL SET (Gray 40 Lightning)(2003 and Above)
858842001 DECAL Gang Run (Marathon 40)

Other Decals

(50)(Decals not required-Military Only)

87819110 DECAL Shift (F-N-R) (Gray)
85926610 DECAL Shift (F-N-R) (Black)

> Mercury Marine [Updated: Apr. 29, 2023] > Outboard > 2 Stroke DFI (OptiMax) > 200 HP 6 CYL (3.0L) > [0T801000 THRU 1B417701] - USA - Cat.# 90-803485004
> Mercury Marine [Updated: Feb. 15, 2020] > Outboard > 2 Stroke DFI (OptiMax) > 200 (DFI) 3.0L > [0T801000 THRU 1B417701] - USA - Cat.# 90-803485004
> Mercury Marine [Updated: Feb. 22, 2018] > Outboard > 2 Stroke DFI (OptiMax) > 200 (DFI) 3.0L > [0T801000 THRU 1B417701] - USA - Cat.# 90-803485004

Top Cowl Diagram 1330

881288T1 TOP COWL ASSEMBLY (Black)
+ 8M0059965 COWL-TOP-BLACK
881288T2 TOP COWL ASSEMBLY (Silver)
+ 8M0059966 COWL-TOP-SILVER

OTHER TOP COWLS

881288T62 TOP COWL ASSEMBLY (Black) Includes All Decals Except Horsepower
881288T67 TOP COWL ASSEMBLY (Black) (250 EU) Includes All Decals Except Horsepower
881288T65 TOP COWL ASSEMBLY (Silver) Includes All Decals Except Horsepower
881288T66 TOP COWL ASSEMBLY (Black) (200 PRO XS) Includes All Decals Except Horsepower
8M0075369 TOP COWL ASSEMBLY Mercury, Without decals
8M0075370 TOP COWL ASSEMBLY Mercury, Without decals 250 EU
8M0075371 TOP COWL ASSEMBLY Mariner, Without decals
8M0075372 TOP COWL ASSEMBLY Mercury, Without decals ProXS

881288T1, 8M0059965, 881288T2, 8M0059966, 881288T62, 881288T67, 881288T65, 881288T66, 8M0075369, 8M0075370, 8M0075371, 8M0075372
881288T1 8M0059965 881288T2 8M0059966 881288T62 881288T67 881288T65 881288T66 8M0075369 8M0075370 8M0075371 8M0075372

22 NSS NOT SOLD SEPARATE Decal- Break-In
23 NSS NOT SOLD SEPARATE Decal- Counter Rotation

MERCURY DECALS

855410A04 DECAL SET (200)(Mercury/Tracker)(Red)
+ 8M0065127 DECAL SET
++ 8M0099561 DECAL SET-MERCURY

855412A04 DECAL SET (200)(Mercury Saltwater)(Blue)
+ 8M0065131  DECAL SET
++ 8M0099562 DECAL SET-MERCURY

855405A04 DECAL SET (225)(Mercury/Tracker)(Red)
+ 8M0065127 DECAL SET
++ 8M0099561 DECAL SET-MERCURY

855408A04 DECAL SET (225)(Mercury Saltwater)(Blue)
+ 8M0065131  DECAL SET
++ 8M0099562 DECAL SET-MERCURY

855412A06 DECAL SET-MERCURY - (200)(All 2006 Models)

855408A06 DECAL SET (225)(All 2006 Models)

MARINER DECALS

855413A03 DECAL SET (200)(Mariner)

855409A03 DECAL SET (225)(Mariner)
+ 8M0065129 DECAL SET

Serial Number: 0T931324 - Model: 1225D93CY - Model Version: XXL DIG SW
2004 MERCURY 3.0L DFI OPTI DIGITAL SALT 225DFI XXL DIG SW

Serial Number: 1B372751 - Model: 1200D84FY - Model Version:CXL DIG SW
2006 MERCURY 3.0L DFI OPTIMAX DIGITAL SALT 200DFI CXL DIG SW

2003 MERCURY 225 HP: 1225E73AD, 1225E73AE, 1225E83AC, 1225E83AE, 1225E83AY, 1225E84AC, 1225E84AE, 1225E84AY, 1225E93AC, 1225E93AE, 1225E93AY, 1225E94AC, 1225E94AE, 1225E94AY, 7225E73MD, 7225E83MY, 7225E84MY.
2004 MERCURY 200 HP: 1200D73CD, 1200D73CE, 1200D73CT, 1200D83CC, 1200D83CD, 1200D83CE, 1200D83CY, 1200D84CC, 1200D84CE, 1200D84CY, 1200D93CY, 1200D94CY, 7200D73RD, 7200D83RY.
2004 MERCURY 225 HP: 1225D73CD, 1225D73CE, 1225D73CT, 1225D83CC, 1225D83CD, 1225D83CE, 1225D83CY, 1225D84CC, 1225D84CE, 1225D84CY, 1225D93CC, 1225D93CY, 1225D94CC, 1225D94CY, 1225E73CD, 1225E73CE, 1225E84CC, 1225E84CE, 1225E84CY, 1225E94CC, 1225E94CY, 7225D83RY, 7225E73RD, 7225E84RY.
2005 MERCURY 200 HP: 1200D73DD, 1200D73DT, 1200D83DC, 1200D83DD, 1200D83DY, 1200D84DC, 1200D84DY, 1200E73DD, 1200E83DC, 1200E83DY, 1200E84DC, 1200E84DY, 7200D73TD, 7200D83TY.
2005 MERCURY 225 HP: 1225D73DD, 1225D73DT, 1225D83DC, 1225D83DD, 1225D83DY, 1225D84DC, 1225D84DY, 1225D93DC, 1225D93DY, 1225D94DC, 1225D94DY, 1225E73DD, 1225E83DC, 1225E83DD, 1225E83DY, 1225E84DC, 1225E84DY, 1225E93DC, 1225E93DY, 1225E94DC, 1225E94DY, 7225D73TD, 7225D83TY.
2006 MERCURY 200 HP: 1200D73FT, 1200D73FY, 1200D83FC, 1200D83FY, 1200D84FC, 1200D84FY, 1200E73FY, 1200E83FC, 1200E83FY, 1200E84FC, 1200E84FY, 7200D73UY, 7200D83UY.
2006 MERCURY 225 HP: 1225D73FT, 1225D73FY, 1225D83FC, 1225D83FY, 1225D84FC, 1225D84FY, 1225D93FC, 1225D93FY, 1225D94FC, 1225D94FY, 1225E73FY, 1225E83FC, 1225E83FY, 1225E84FC, 1225E84FY, 1225E93FC, 1225E93FY, 1225E94FC, 1225E94FY, 7225D73UY, 7225D83UY.

Serial Number: 1B386276 - Model: 1200D84FY - Model Version: CXL DIG SW
2006 MERCURY 3.0L DFI OPTIMAX DIGITAL SALT 200DFI CXL DIG SW

Serial Number: 1B388587 - Model: 1200D83FY - Model Version: XL SW
MERCURY 3.0L DFI OPTIMAX SALTWATER 200DFI XL SW
