> Mercury Marine [Updated: May. 11, 2023] > Outboard > Force > 35 H.P. (1988) > [0C357F8B & Up] - USA - Cat.# 90-FOB4191

ENGIN COVER Diagram 48461

FS684712 COVER ASSEMBLY (UNPAINTED)
+ 819748T6 COWL ASSY-BASIC
F2C683712 COVER ASSEMBLY (PAINTED W/DECALS)

FS684712 , 819748T6, F2C683712
FS684712  819748T6 F2C683712

FORCE DECALS

2 0037 F683892 DECAL FRONT

3 0000 F685387-1 DECAL US MARINE - Order 2
+ F685387-2 DECAL

4 0037 F683396-1 DECAL STARBOARD SIDE
4 0037 F683397-1 DECAL PORT SIDE

5 0000 F643386 DECAL "35", REAR
+ F685387-2 DECAL-35

6 0000 F663366 MEDALLION Force (FORCE) - Order 2
+ 819169 MEDALLION

12 0037 F683528 DECAL REAR

 > Mercury Marine [Updated: May. 8, 2023] > Outboard > 2 Stroke Carb > 60 (3 CYL.) > [0G290585 THRU 0G589999] - USA - Cat.# 90-81735296

COWLING Diagram 38114

813010A8 TOP COWL ASSEMBLY (BLACK) ELECTRIC
+ 8M0107016 COWL-TOP, BLACK

813010A14 TOP COWL ASSEMBLY (SILVER) ELECTRIC
813010A13 TOP COWL ASSEMBLY (GRAPHITE GRAY) ELECTRIC
+ 813010T14 TOP COWL ASSEMBLY Silver-Electric

816534A8 TOP COWL ASSEMBLY (BLACK) MANUAL
+ 8M0107142 COWL-TOP, BLACK
816534A14 TOP COWL ASSEMBLY (SILVER) MANUAL
+ 816534T14 TOP COWL ASSEMBLY Silver-Manual

813010A8, 8M0107016,  813010A14 , 813010A13, 813010T14 , 816534A8, 8M0107142, 816534A14, 816534T14,
813010A8 8M0107016  813010A14 813010A13 813010T14  816534A8 8M0107142 816534A14 816534T14

MERCURY DECALS

816939A96 DECAL SET (BLACK 50)

811212A96 DECAL SET (BLACK 60)
830163A96 DECAL SET (BLACK 60 PONTOON/BIG FOOT)
826313A95 DECAL SET (BLACK SEAPRO 60)
824097A95 DECAL SET (BLACK FORMULA 60)

821573A95 DECAL SET (BLACK 55)
821424A95 DECAL SET (GRAY 55)

826325A96 DECAL SET (BLACK - JET 45)

MARINER DECALS

816940A94 DECAL SET (GRAY 50) [USA-0G437999/BEL-9926999] & Below
816940A97 DECAL SET (GRAY 50) [USA-0G438000/BEL-9927000] & Up

811211A94 DECAL SET (GRAY 60/BIGFOOT/BEACHING/PONTOON) [USA-0G437999/BEL-9926999] & Below
811211A97 DECAL SET (GRAY 60/BIGFOOT/BEACHING/PONTOON) [USA-0G438000/BEL-9927000] & Up

826326A95 DECAL SET (GRAY - JET 45) [USA-0G437999/BEL-9926999] & Below
826326A97 DECAL SET (GRAY - JET 45) [USA-0G438000/BEL-9927000] & Up

13361A95 DECAL SET (MARATHON 60)
824098A95 DECAL SET (GRAY 60 MAGNUM III)

TRACKER DECALS

824733A94 DECAL SET (TRACKER) [0G290584] & Below
824733A96 DECAL SET (Tracker 60) [0G290585] & Up
831846A97 DECAL SET (Tracker Bigfoot 60)

 > Mercury Marine [Updated: Apr. 11, 2023] > Outboard > 2 Stroke Carb > 650 (3 CYL.) > ARCHIVE CAT 65151

MERC 650 (3 CYLINDER)
SERIAL NUMBER
650 (3 CYL.) . . . . . . . . .USA 3547987 THRU 4382056
650 (3 CYL.) . . . . . . . . .CAN 7013633 THRU 7073472
650 (3 CYL.) . . . . . . . . .8006640 THRU 8042349
650 (3 CYL.) . . . . . . . . .BEL 9020074 THRU 9112988

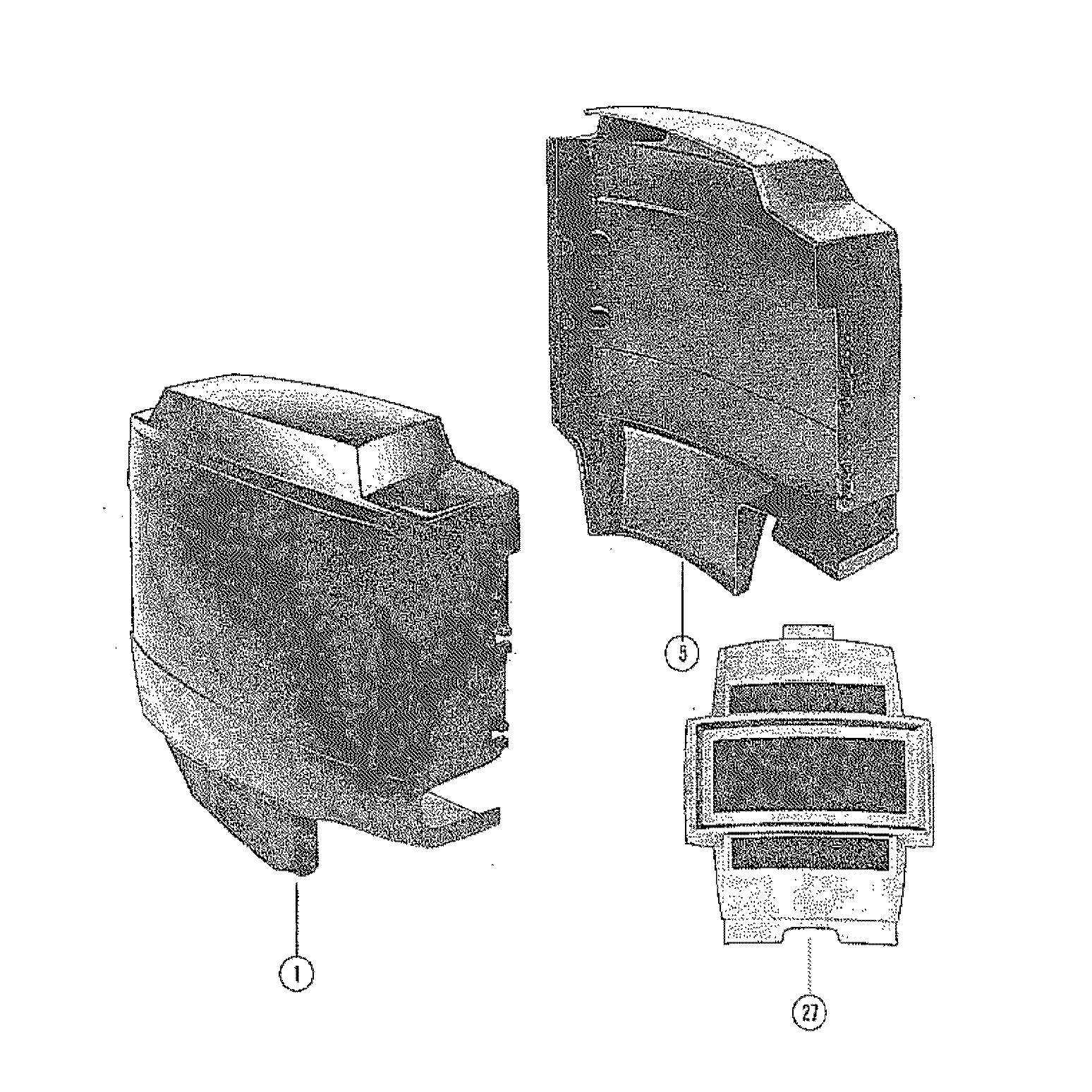

COWLING AND FRONT COVER Diagram

1) 2142-4538A4 COWL ASSEMBLY (STARBOARD)
5) 2141-4537A4 COWL ASSEMBLY (PORT)
27) 2143-4552A2 COWL FRONT COVER ASSEMBLY UNITED STATES 4136684 AND BELOW AUSTRALIA 8029189 AND BELOW BELGIUM 9082138 AND BELOW CANADA 7051132 AND BELOW
27) 2143-5689A2 COWL FRONT COVER ASSEMBLY UNITED STATES 4136685 AND UP AUSTRALIA 8029190 AND UP BELGIUM 9082139 AND UP CANADA 7051133 AND UP

2142-4538A4, 2141-4537A4, 2143-4552A2, 2143-5689A2, 4538A4, 4537A4, 4552A2, 5689A2,
2142-4538A4 2141-4537A4 2143-4552A2 2143-5689A2 4538A4 4537A4 4552A2 5689A2

- 37-61301A73 DECAL SET (1973) UNITED STATES 3807832 AND BELOW AUSTRALIA 8015539 AND BELOW BELGIUM 9046298 AND BELOW CANADA 7029947 AND BELOW
- 37-65860A74 DECAL SET (1974) UNITED STATES 3807833 THRU 4136684 AUSTRALIA 8015540 THRU 8029189 BELGIUM 9046299 THRU 9082138 CANADA 7029948 THRU 7051132
- 37-69564A75 DECAL SET (1975) UNITED STATES 4136685 AND UP AUSTRALIA 8029190 AND UP BELGIUM 9082139 AND UP CANADA 7051133 AND UP

 > Mercury Marine [Updated: Apr. 1, 2023] > Outboard > 2 Stroke Carb > 40, 400, 402 (2 CYL.) > ARCHIVE CAT 56971 > MERC 400

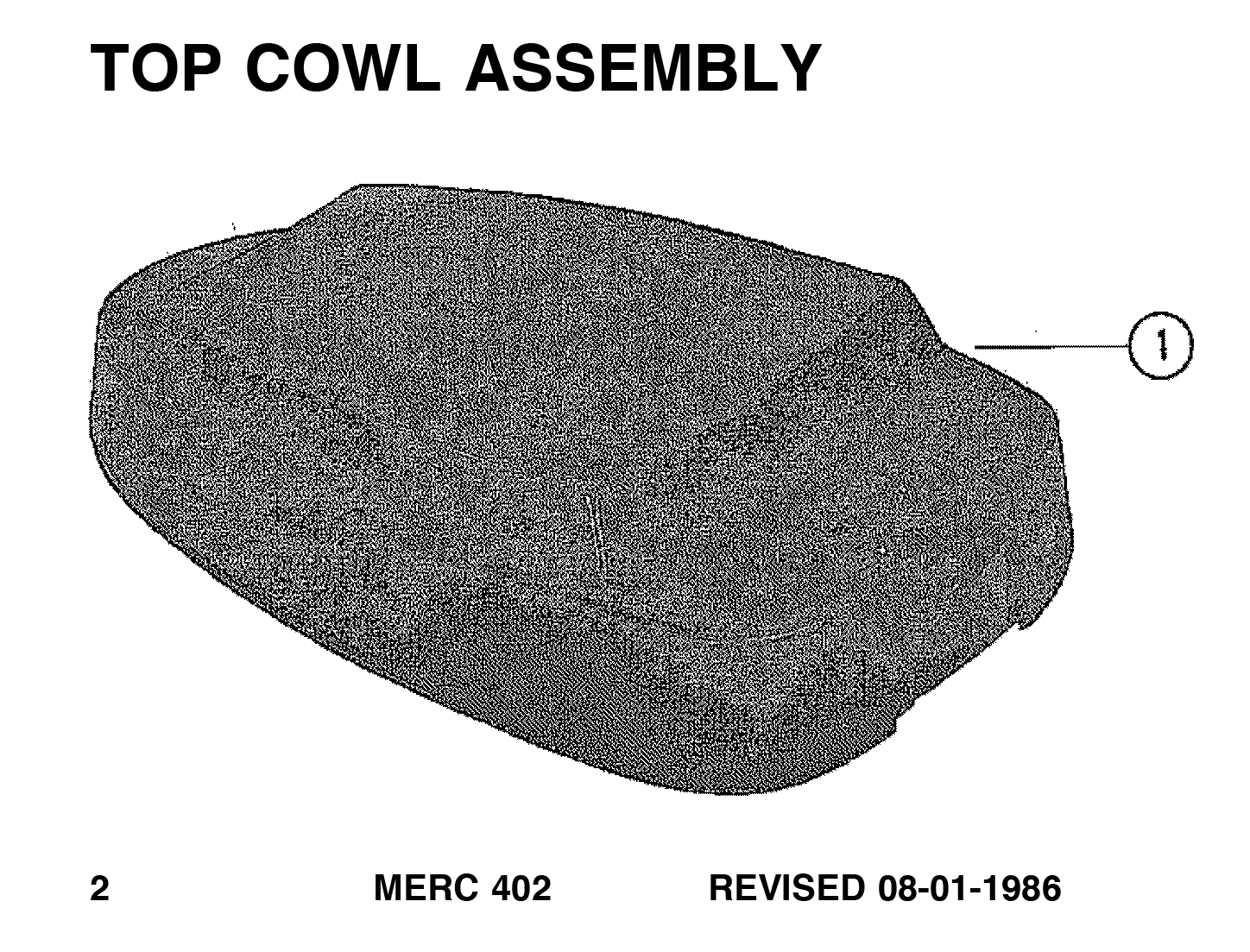

TOP COWL, SUPPORT BRACKETS AND STARTER ASSEMBLY

1 2138-3879A2 TOP COWL ASSEMBLY SERIAL 00000000-02979678

COWLING AND FRONT COVER

1 2135-2682A8 COWL FRONT COVER ASSEMBLY
1 2135-2682A8 COWL FRONT COVER ASSEMBLY

2138-3879A2, 2138-3879A2, 2135-2682A8, 2135-2682A8, 21383879A2, 21383879A2, 21352682A8, 21352682A8, 3879A2, 3879A2, 2682A8, 2682A8,
2138-3879A2 2138-3879A2 2135-2682A8 2135-2682A8 21383879A2 21383879A2 21352682A8 21352682A8 3879A2 3879A2 2682A8 2682A8

- 37- 56813A1 DECAL SET (MERC 400) SERIAL 00000000-02979678 (1970)
- 37- 56813A2 DECAL SET (MERC 400) SERIAL 03043031-09999999 (1971)
