> Mercury Marine [Updated: Sep. 22, 2022] > Outboard > 2 Stroke Carb > 80, 800 (4 CYL.) > ARCHIVE CAT 79166

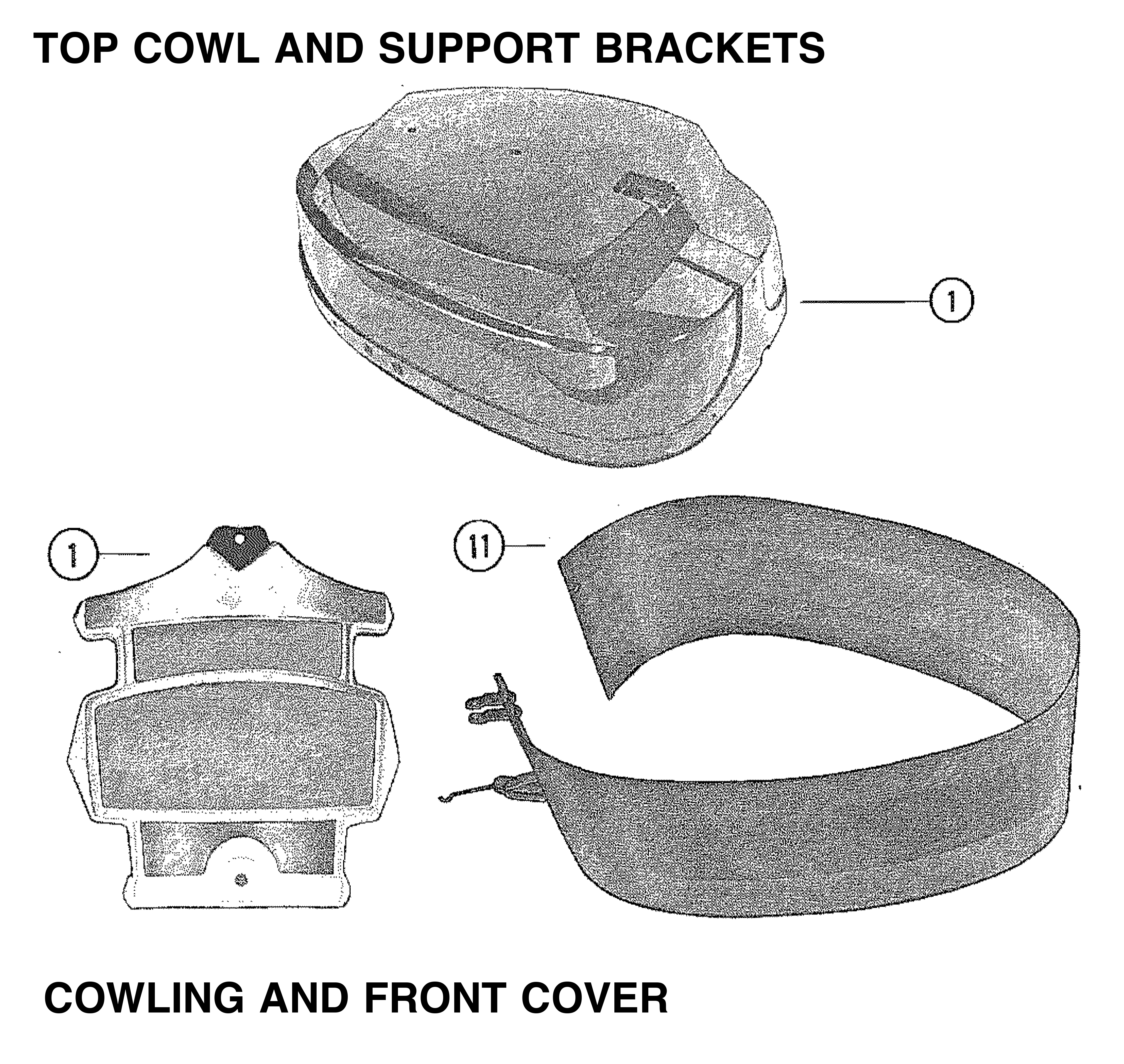

TOP COWL AND SUPPORT BRACKETS
1) 2114-5999   COWL, TOP (WITHOUT DECALS)

COWLING AND FRONT COVER
1)  2104-5642A8 COWL FRONT COVER ASSEMBLY (WITHOUT DECALS)
11) 2119-3248A16 WRAP AROUND COWL ASSEMBLY (WITHOUT DECALS)

2114-5999, 2104-5642A8, 2119-3248A16

37- 78596A78 DECAL SET - SERIAL GROUP #1
37- 86429A79 DECAL SET - SERIAL GROUP #2

MERC 80
SERIAL NUMBER
800 (4 CYL. ), 80 (4 CYL.) . . . . . . . . . . . . . . . . . . . . . . . . . USA 4831999 THRU 5582561
800 (4 CYL. ), 80 (4 CYL.) . . . . . . . . . . . . . . . . . . . . . . . . . CAN 7110998 THRU 7146212
800 (4 CYL. ), 80 (4 CYL.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8050200 THRU 8067014
800 (4 CYL. ), 80 (4 CYL.) . . . . . . . . . . . . . . . . . . . . . . . . . BEL 9177626 THRU 9256130

Australia A8061823

1979 80 hp
Model | Version
1080509 E
1080529 EL

> Mercury Marine [Updated: Sep. 19, 2022] > Outboard > 2 Stroke Carb > 200, 20 > ARCHIVE CAT 65145

MERC 200

SERIAL NUMBER
200 . . . . . . . . . . . USA 3537531 THRU 4709592
200 . . . . . . . . . . . CAN 7012358 THRU 7098522
200 . . . . . . . . . . . . . . .8006265 THRU 8045198
200 . . . . . . . . . . . .BEL 9016254 THRU 9157229

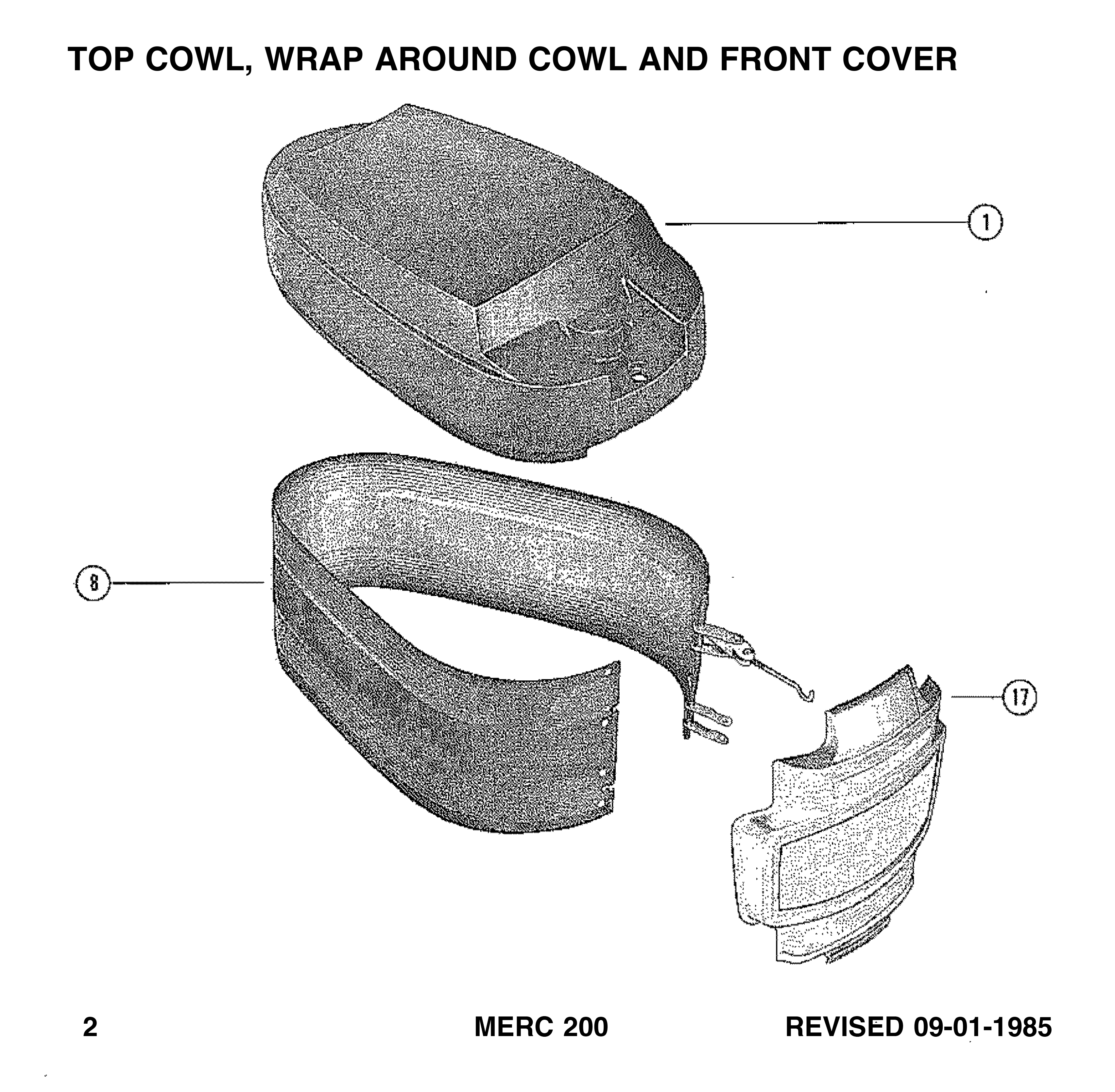

1) 2130- 4361A2 TOP COWL ASSEMBLY
8)  2133- 2706A5 WRAP AROUND COWL ASSEMBLY, COMPLETE
17)  2127- 2666A8 FRONT COVER ASSEMBLY, COMPLETE  - UNITED STATES 4102789 AND BELOW AUSTRALIA 8026164 AND BELOW  BELGIUM 9070128 AND BELOW  CANADA 7044782 AND BELOW
17)  2127- 5669A2 FRONT COVER ASSEMBLY, COMPLETE  - UNITED STATES 4102790 AND UP AUSTRALIA 8026165 AND UP BELGIUM 9070129 AND UP CANADA 7044783 AND UP

4361A2, 2706A5, 2666A8, 5669A2

MERCURY DECALS

37-61000A73 DECAL SET (ENGINE) UNITED STATES 3755884 AND BELOW AUSTRALIA 8013704 AND BELOW BELGIUM 9032083 AND BELOW CANADA 7024647 AND BELOW
37-65840A74 DECAL SET (ENGINE) UNITED STATES 3755885 THRU 4102789 AUSTRALIA 8013705 THRU 8026164 BELGIUM 9032084 THRU 9070128 CANADA 7024648 THRU 7044782
37-70165A75 DECAL SET (ENGINE) UNITED STATES 4102790 THRU 4351589 AUSTRALIA 8026165 THRU 8036049 BELGIUM 9070129 THRU 9104813 CANADA 7044783 THRU 7067847
37-73933A76 DECAL SET (ENGINE) UNITED STATES 4351590 THRU 4580036 AUSTRALIA 8036050 THRU 8043124 BELGIUM 9104814 THRU 9137349 CANADA 7067848 THRU 7089697
37-73933A77 DECAL SET (ENGINE) UNITED STATES 4580037 AND UP AUSTRALIA 8043125 AND UP BELGIUM 9137350 AND UP CANADA 7089698 AND UP

> Mercury Marine [Updated: Sep. 17, 2022] > Sterndrive > Engines - Gas > 8.1L (496 CU IN) V8 GM > 496 MAG (Base Model) > [0W650000 THRU 1A066165] - Cat.# 90-881784004

Sterndrive - Engines - Gas - 8.1L (496 CU IN) V8 GM - 496 MAG (Base Model)/(H.O. Model) - [0W650000 THRU 1A066165] - Cat.# 90-881784004

PASTE MODEL DESCRIPTION PERFPROTECH here - Cat.# PASTE CATALOG NUMBER HERE

Engine cover DIAGRAM 34389

1 862365 COVER Engine

3 863306 DECAL Base
3 863307 DECAL High Output
4 863313 DECAL Specification (Base)
4 863316 DECAL Specification (High Output)
5 863748 DECAL Mercury

Service and Support Material
865748 DECAL Belt Route
866759 DECAL 496 Base
866760 DECAL 496 HO
866761 DECAL Seacore Logo
864346 DECAL Flush Operation

Read more: 496 MAG (Base Model)/(H.O. Model) - Cat.# 90-881784004

> Mercury Marine [Updated: Sep. 6, 2022] > Outboard > 2 Stroke Carb > SST 120 / S2000 > [0D030200 & Up] - USA - Cat.# 90-817087R2

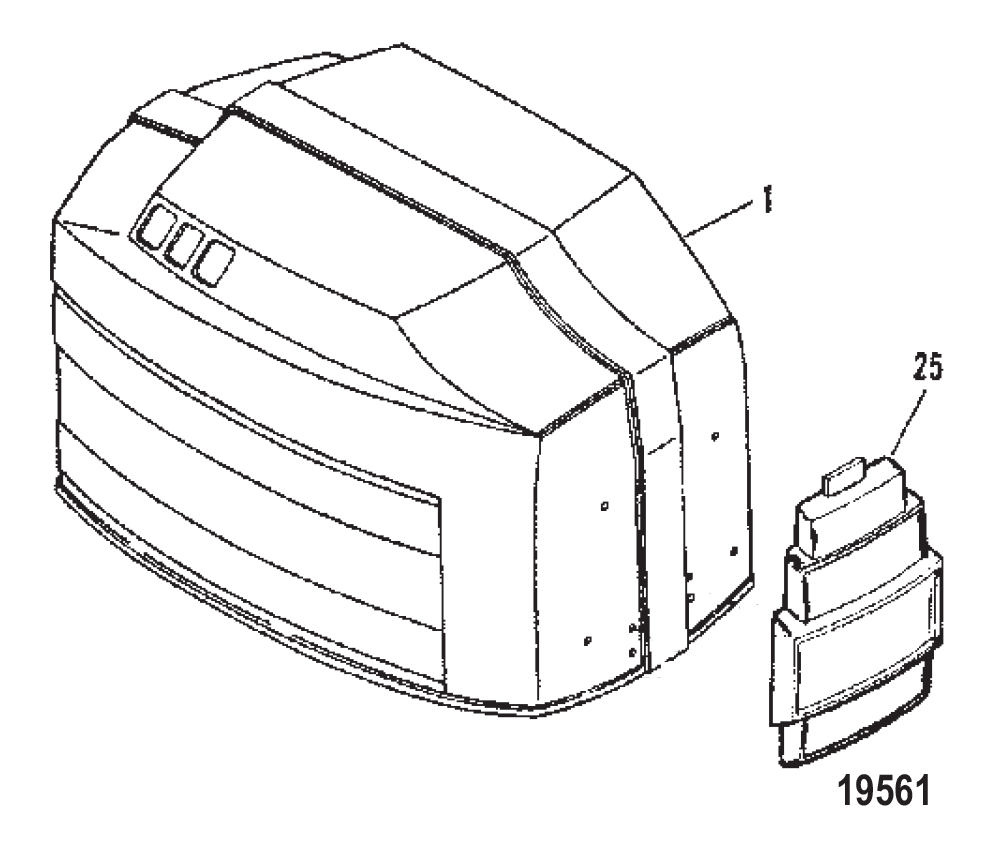

COWLS DIAGRAM 30498

1) 817704A31 TOP COWL ASSEMBLY
+ 8M0084538 COWL-TOP BLACK
2) 817706A3 FRONT COVER

817704A31, 8M0084538, 817706A3,
817704A31 8M0084538 817706A3
FIT OTHERS:: 817704A24, 817704A25, 817706A4, 817704A22, 817704A23,

MERCURY RACING DECALS

849850A1 DECAL SET BASIC (1998-1999)
849850A4 DECAL SET PATCH (1998-1999)

849850A1, 849850A4,
849850A1 849850A4

840323A3 DECAL SET BASIC (2000)
+ 8M0050503 DECAL SET
840323A13 DECAL SET PATCH (2000)

840323A3, 8M0050503, 840323A13,
840323A3 8M0050503 840323A13

Read more: 2 Stroke Carb - SST 120 / S2000 - HIGH PERFORMANCE - Cat.# 90-817087R2
