> Mercury Marine [Updated: Oct. 6, 2021] > Sterndrive > Drives > M8 Drive > [0M964870 & Up] - Cat.# 90-8M0056798

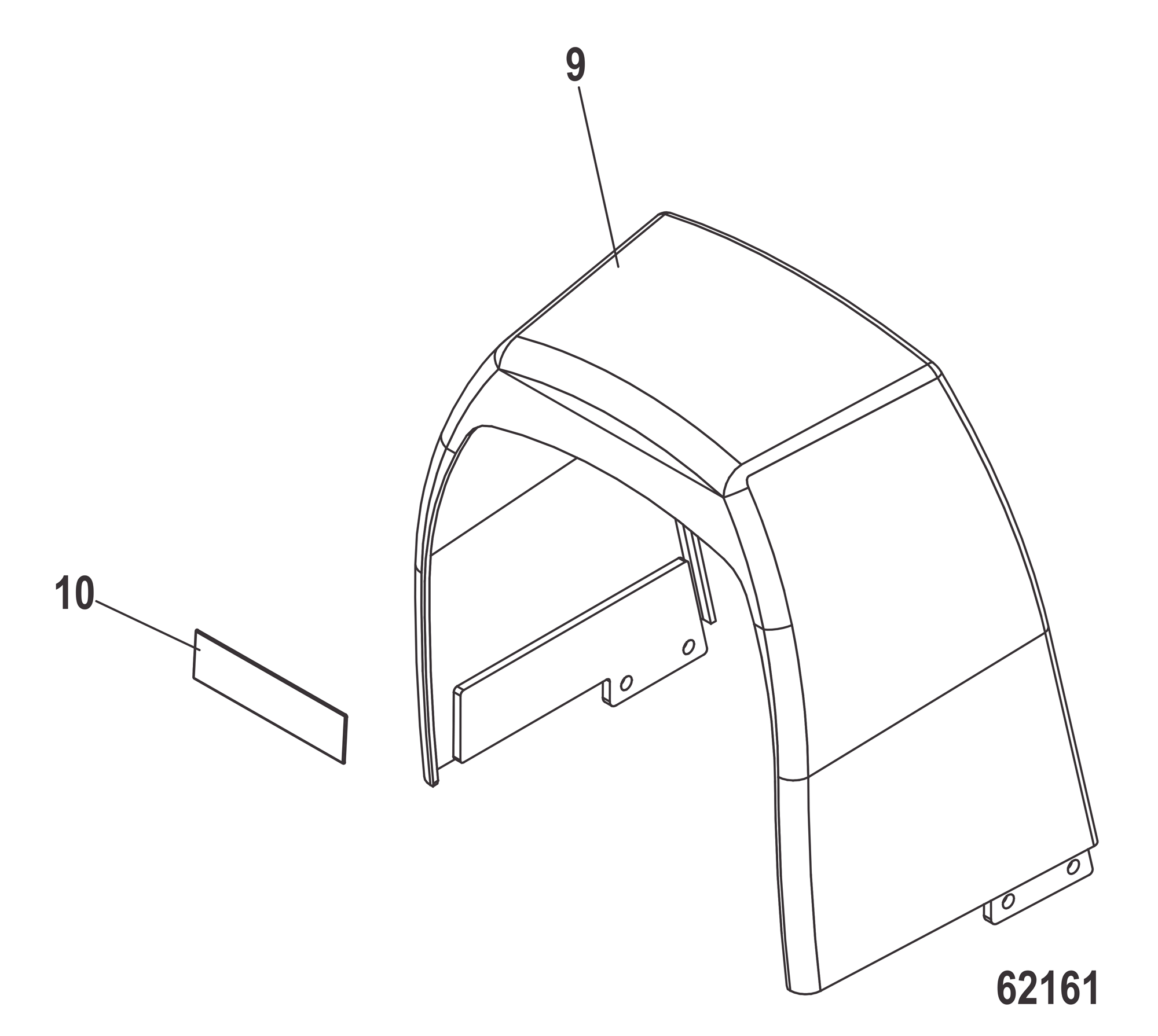

Transom Plate Inner and Outer Cowl Diagram 62161

9 8M0050504 COWL ASSEMBLY Transom

10 8M0048295 DECAL M Series
10 8M0121133 DECAL Mercury
10 8M8020346 DECAL NXT

Upper Housing Assembly Diagram 57400

4 8M8025198 UPPER HOUSING ASSEMBLY

11 8M0048296 DECAL M8 Drive ORDER 2
11 8M0121129 DECAL M-Icon Large Race [0M975591] & Up ORDER 2

8M0121133 8M0048296 8M0121129
8M0121133, 8M0048296, 8M0121129,

> Mercury Marine [Updated: Oct. 1, 2021] > Sterndrive > Drives > SSM VI > [ALL & Up] - USA - Cat.# 90-853693

Gimbal Housing Assy Close Couple, (Wet and Dry Sump) Diagram 5598

1 0000 846817A1 PLATE ASSEMBLY Outer

8 847333 EMBLEM MerCruiser - Early Models
8 0037 840359 DECAL Mercury Racing [0M965835] & Below
8 0037 8M0048257 DECAL Mercury Racing [0M965836] & Up

Gimbal Housing Assy Driveline, (Wet and Dry Sump) Diagram 5596

1 846604A1 PLATE ASSEMBLY Outer

8 847333 EMBLEM MerCruiser Early Models
8 0037 840359 DECAL Mercury Racing [0M965835] & Below
8 0037 8M0048257 DECAL Mercury Racing [0M965836] & Up

Inner Transom Plate Dry Sump Six Diagram 5595

1 840358A1 PLATE ASSEMBLY Inner Transom

2 0037 840359 DECAL Mercury Racing [0M965835] & Below
2 0037 8M0048257 DECAL Mercury Racing [0M965836] & Up

Inner Transom Plate Wet-Sump SSM VI and VII (Pre-1998) Diagram 5594

12 0000 849182A1 PLATE ASSEMBLY Inner Transom - Design II

13 0037 840359 DECAL Mercury Racing [0M965835] & Below
13 0037 8M0048257 DECAL Mercury Racing [8M965836] & Up
17 0037 840165 DECAL Oil Filling Instructions
18 0037 849347 DECAL Drive Oil Level

U Joint Housing Dry Sump Six/NXT6 SSM Diagram 40557

1 3524 848236A23 HOUSING ASSEMBLY Driveshaft

7 0037 840359 DECAL Mercury Racing [0M965835] & Below - Order 2
7 8M0048257 DECAL Mercury Racing [0M965836] & Up - Order 2

U Joint Housing Wet Sump SSM VI (Early Style Pre-1998) Diagram 5585

1 3522 846303A1 HOUSING ASSEMBLY Driveshaft

6 0037 846655 DECAL (Warning)
8 847333 EMBLEM MerCruiser

U Joint Housing Wet Sump SSM VI (Late Style Pre-1998) Diagram 5586

1 3524 848236A13 HOUSING ASSEMBLY Driveshaft
6 847333 EMBLEM MerCruiser - Order 2

U Joint Housing Wet Sump SSM VII (Pre-1998) Diagram 5587

1 3524 847212A12 HOUSING ASSEMBLY Driveshaft
6 847333 EMBLEM MerCruiser - Order 2

Paint Color Chart (Dry Sump)

• Dandy Candy Red Metallic -   PPG DEL FLEET # FDGH77111 -    Primer DP90LF - Catalyst DP401LF
• Red Non-Metallic -                PPG DEL FLEET # FDGH707710 -  Primer DP90LF - Catalyst DP401LF
• Joyze Poypole Metallic -         PPG DEL FLEET # FDGH502416 -  Primer DP90LF - Catalyst DP401LF
• Hulkin Green Pearl -              PPG DEL FLEET # FDGH918116 -  Primer DP48LF - Catalyst DP401LF
• Fire Orange -                        PPG DEL FLEET # FDGH915041 -  Primer DP48LF - Catalyst DP401LF
• Nanner Yellow -                     PPG DEL FLEET # FDGH915040 -  Primer DP48LF - Catalyst DP401LF
• Slate Gray Metallic -               PPG DEL FLEET # FDGH303310 -  Primer DP40LF - Catalyst DP401LF
• Raven Black Non-Metallic -      PPG DEL FLEET # FDGH9000 -     Primer DP90LF - Catalyst DP401LF
• Super Silver Metallic -             PPG DEL FLEET # FDGH301810 - Primer DP40LF - Catalyst DP401LF
• Mercury Racing Blue Metallic - PPG DEL FLEET # FDGH19281 -    Primer DP90LF - Catalyst DP401LF
• Bling-Bling Black Metallic -      PPG DEL FLEET # FBC918828 -    Primer DP90LF - Catalyst DP401LF
• Soft White -                           PPG DEL FLEET # FDGH92115 -   Primer DP48LF - Catalyst DP401LF

Read more: Sterndrive - Drives - SSM SIX/NXT1 SSM/SSM SEVEN/DRY SUMP SIX [ALL & Up] - USA - Cat.# 90-853693

> Mercury Marine [Updated: Oct. 1, 2021] > Sterndrive > Drives > M6 Drive > [0M976346 & Up] - Cat.# 90-8M0135527

Transom Plate Inner and Outer Cowl Diagram 62161

9 0000 8M0050504 COWL ASSEMBLY Transom

10 0037 8M0048295 DECAL M Series
10 0037 8M0121133 DECAL Mercury
10 0037 8M8020346 DECAL NXT

Upper Housing Assembly 64104

4 1500 8M0084530 HOUSING ASSEMBLY Driveshaft

26 0037 8M0121129 DECAL M-Icon Large Race (near 70mm)
27 0037 8M0121134 DECAL M6 ORDER 2

> Mercury Marine [Updated: Sep. 21, 2021] > Outboard > 4 Stroke > 275 HP Verado 6 CYL > [1B381712 THRU 1B517433] - USA - Cat.# 90-896280007

TOP COWL DIAGRAM 1122

1 885355T03 TOP COWL ASSEMBLY (Mercury)
+ 8M0049999 ORD 100-8M0063711
++ 8M0063711 TOP COWL, MERCURY

1 885355T02 TOP COWL ASSEMBLY (Mariner)
+ 8M0050000 COWL-TOP MARINER

2 885354T CAP Air Dam (Mercury)
+ 885354T01 CAP Air Dam - Mercury, Black

2 895838T CAP Air Dam (Mariner)
+ 895838T01 CAP Air Dam - Mariner

MERCURY DECALS

892564A05 DECAL SET (Mercury 200)
859271A05 DECAL SET (Mercury 225)
895252A05 DECAL SET (Mercury 250)
895253A05 DECAL SET (Mercury 275)

MARINER DECALS

892571A07 DECAL SET (Mariner 200)
892871A07 DECAL SET (Mariner 225)
895254A07 DECAL SET (Mariner 250)
895255A07 DECAL SET (Mariner 275)

OTHER DECALS

895282A06 DECAL EPA Label Information

Read more: 200/225/250/275 HP 4S Verado L6 6 CYL - Cat.# 90-896280007
