> Mercury Marine [Updated: Sep. 21, 2021] > Outboard > 4 Stroke > 275 HP Verado 6 CYL > [1B381712 THRU 1B517433] - USA - Cat.# 90-896280007

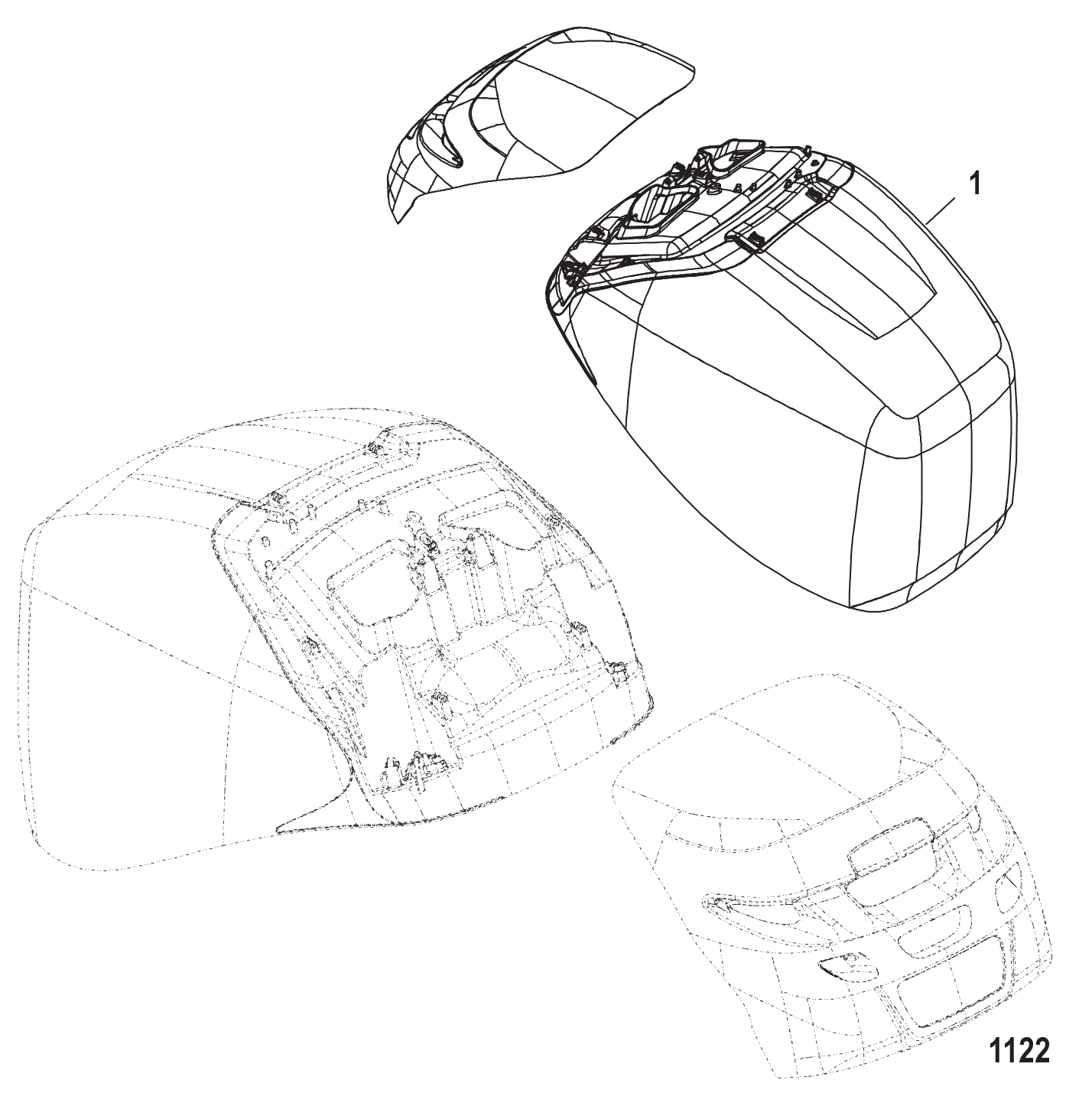

TOP COWL DIAGRAM 1122

1 885355T03 TOP COWL ASSEMBLY (Mercury)
+ 8M0049999 ORD 100-8M0063711
++ 8M0063711 TOP COWL, MERCURY

1 885355T02 TOP COWL ASSEMBLY (Mariner)
+ 8M0050000 COWL-TOP MARINER

2 885354T CAP Air Dam (Mercury)
+ 885354T01 CAP Air Dam - Mercury, Black

2 895838T CAP Air Dam (Mariner)
+ 895838T01 CAP Air Dam - Mariner

MERCURY DECALS

892564A05 DECAL SET (Mercury 200)
859271A05 DECAL SET (Mercury 225)
895252A05 DECAL SET (Mercury 250)
895253A05 DECAL SET (Mercury 275)

MARINER DECALS

892571A07 DECAL SET (Mariner 200)
892871A07 DECAL SET (Mariner 225)
895254A07 DECAL SET (Mariner 250)
895255A07 DECAL SET (Mariner 275)

OTHER DECALS

895282A06 DECAL EPA Label Information

Read more: 200/225/250/275 HP 4S Verado L6 6 CYL - Cat.# 90-896280007

 > Mercury Marine [Updated: Aug. 17, 2021] > Outboard > 2 Stroke DFI (OptiMax) > 175 PROXS (2.5L) > [1B516339 THRU 2B535624] - Cat.# 90-898101926

TOP COWL DIAGRAM 2113

1

883013T03 TOP COWL ASSEMBLY Includes all Decals except Horsepower [1B934545] & Below
8M0070603 TOP COWL ASSEMBLY Includes all Decals except Horsepower [1B934546] & Up
8M0083588 TOP COWL
8M0075373 TOP COWL ASSEMBLY Mercury, Without decals
8M0075375 TOP COWL ASSEMBLY Mariner, Without decals

883013T03, 8M0070603, 8M0083588, 8M0075373, 8M0075375
883013T03 8M0070603 8M0083588 8M0075373 8M0075375

MERCURY DECALS

897136A07 DECAL SET ProXS, HP decal not included [1B934545] & Below
892565003 DECAL Horsepower (150) [1B934545] & Below
+ 8M0061183 DECAL, 150

892565004 DECAL Horsepower (175) [1B934544] & Below

8M0073124 DECAL SET ProXS, HP Decal not included [1B934546] & Up
+ 8M0083587 DECAL SET

8M0065744 DECAL Horsepower (150) [1B934546] & Up

8M0065745 DECAL Horsepower (175) [1B934545] & Up

OTHER DECALS

8M0043699 DECAL M-ICON Red, 66mm
8M0043700 M-ICON Red, 39mm [1B934546] & Up
23 Decal-Counter Rotation
24 Decal-Break-In
- DECAL, EPA (2009 & Up)

879147A21 DECAL EPA Label Information (2007)
804657A08 DECAL EPA Label Information (2008)

- NSS NOT SOLD SEPARATE DECAL, EPA (2009 & Up) Contact Mercury Marine Warranty Administration for Replacement (Service Bulletin 2009-18)

> Mercury Marine [Updated: Aug. 10, 2021] > Outboard > 4 Stroke > 40 HP EFI 3 CYL > [1C456300 & Up] - Cat.# 90-8M0118805

Top Cowl DIAGRAM 28547

1 8M0118164 TOP COWL ASSEMBLY Mercury 30/40 HP, Non Decaled
1 8M0118166 TOP COWL ASSEMBLY Mariner 30/40 HP, Non Decaled

2 8M0118170 CAP Air Dam - Mercury
+ 8M0159887 CAP Air Dam - Mercury
2 8M0118172 CAP Air Dam - Mariner

Decals - Top Cowl DIAGRAM 69051

1 8M0098329 DECAL SET ME 30HP 3CYL
2 8M0098328 DECAL SET ME 40HP 3CYL
+ 8M0114997 DECAL SET ME 30-40 HP 4S

3 8M0114997 DECAL SET ME 30-40 HP 4S [1C573699] & Below
4 8M0156747 DECAL SET ME 30-60 HP 4S [1C573700] & Up
5 8M0063347 DECAL Rear, 30
6 8M0063348 DECAL Rear, 40
7 8M0043702 DECAL M-Icon, 53mm Black
8 8M0063345 DECAL Lenz
9 8M0088310 DECAL Command Thrust
10 8M0063358 DECAL Lenz
11 8M0063354 DECAL Jet Drive
12 8M0043701 M-ICON 39MM - Small Rear
13 8M0056643 DECAL Read Manual
14 8M0105187 DECAL Tiller Handle Tiller Models Only
15 8M0159886 DECAL Lenz, Mercury
16 8M0180070 DECAL
16 8M0098330 DECAL SET MA 30HP 3CYL
17 8M0044755 DECAL Rear, 30
18 8M0109251 DECAL Lenz, Mariner
19 883532A08 DECAL SET MA 40HP 3CYL
20 8M0012388 DECAL Rear, 40

Read more: 30/40 JET EFI (3 CYL.)(4-STROKE)- Cat.# 90-8M0118805

> Mercury Marine [Updated: Aug. 2, 2021] > Sterndrive > Drives > ALPHA ONE (GEN.II) > 1991-1995  [0D469859 THRU 0F679999] - Cat.# 90-81818391

Drive Shaft Housing And Drive Shaft Diagram 13836

10

817387A91 DECAL SET

11

13722A11 DECAL SET Engine Model (2.5L/3.0L)
13722A13 DECAL SET Engine Model (4.3L/4.3L-LX/5.0L/5.0LLX/5.7L)

Read more: MERCRUISER ALPHA ONE (GEN.II) 1991-1995 0D469859 THRU 0F679999 - Cat.# 90-81818391
