> Mercury Marine [Updated: May. 28, 2021] > Sterndrive > Drives > BRAVO THREE > [0W250000 & Up] - Cat.# 90-880951002


MERCRUISER Decal Sets

881755A04 DECAL SET Bravo-I
+ 881755A05 DECAL SET
881758A04 DECAL SET Bravo-II
+ 881758A05 DECAL SET
881760A04 DECAL SET Bravo-III
+ 881760A05 DECAL SET

898290A07 DECAL SET Bravo-I (SEACORE)
+ 898290A14 DECAL SET
898290A04 DECAL SET Bravo-II (SEACORE)
+ 898290A15 DECAL SET
898290A01 DECAL SET Bravo-III (SEACORE)
+ 898290A16 DECAL SET

Read more: BRAVO I-II-III - Cat.# 90-880951002

> Mercury Marine [Updated: Feb. 14, 2022] > Outboard > 2 Stroke Carb > 90 (3 CYL.) > [0A996142 THRU 0B240450] - USA - Cat.# 90-13725
> Mercury Marine [Updated: May. 25, 2021] > Outboard > 2 Stroke Carb > 80 (3 CYL.) > [0A996142 THRU 0B240450] - USA - Cat.# 90-13725

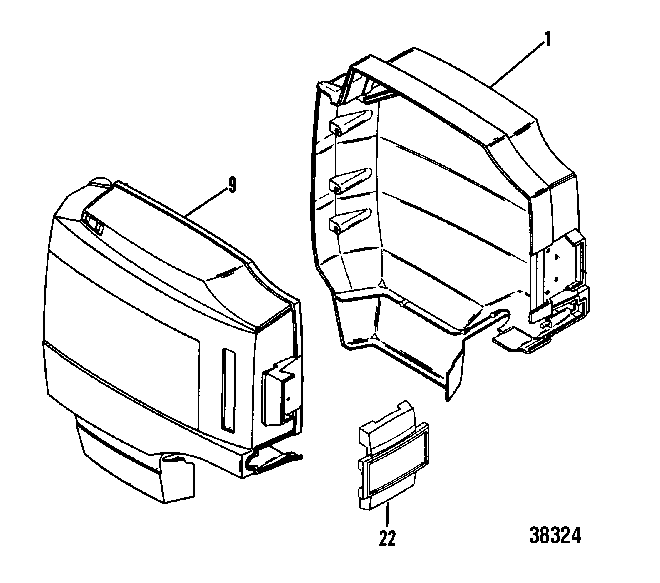

COWLS AND FRONT COVER DIAGRAM 38324

1 9006A2 TOP COWL ASSEMBLY PORT (MERCURY)
1 9006A3 TOP COWL ASSEMBLY PORT (MARINER)

9 9070A1 COWL ASSEMBLY STARBOARD (MERCURY)
9 9070A2 COWL ASSEMBLY STARBOARD (MARINER)
9 9005A1 COWL ASSEMBLY STARBOARD (MERCURY)(HANDLE MODELS)
9 9005A2 COWL ASSEMBLY STARBOARD (MARINER)(HANDLE MODELS)

22 43138A2 COVER ASSEMBLY MERCURY
22 43138A3 COVER ASSEMBLY MARINER

9006A2, 9006A3, 9070A1, 9070A2, 9005A1, 9005A2, 43138A2, 43138A3
9006A2 9006A3 9070A1 9070A2 9005A1 9005A2 43138A2 43138A3

MERCURY DECALS

43529A86 DECAL SET (MERCURY 70)
+ 43529A89 DECAL SET

13020A87 DECAL SET (MERCURY 75) HANDLE
+ 810457A90 DECAL SET

13488A86 DECAL SET (MERCURY 80)
+ 13488A89 DECAL SET

12565A87 DECAL SET (MERCURY 90)
+ 12565A89 DECAL SET

MARINER DECALS

43575A87 DECAL SET (MARINER 75)
+ 815628A92 DECAL SET

43601A87 DECAL SET (MARINER 75)

11623A87 DECAL SET (MARINER 90)
+ 815628A92 DECAL SET

Read more: 70/75/80/90 HP (3 CYLINDER) - Cat.# 90-13725

> Mercury Marine [Updated: May. 25, 2021] > Outboard > 4 Stroke > 300 HP 4.6L V8 > [2B529482 & Up] - USA - Cat.# 90-8M0142572

TOP COWL DIAGRAM 68739

8M0142172 TOP COWL ASSEMBLY Black
+ 8M0182323 COWL TOP BLACK
8M0142174 TOP COWL ASSEMBLY Cold Fusion
8M0142175 TOP COWL ASSEMBLY Warm Fusion
8M0142176 TOP COWL ASSEMBLY Pearl Fusion
8M0142177 TOP COWL ASSEMBLY Decaled without Horsepower SeaPro

8M0142172, 8M0182323, 8M0142174, 8M0142175, 8M0142176, 8M0142177
8M0142172 8M0182323 8M0142174 8M0142175 8M0142176 8M0142177

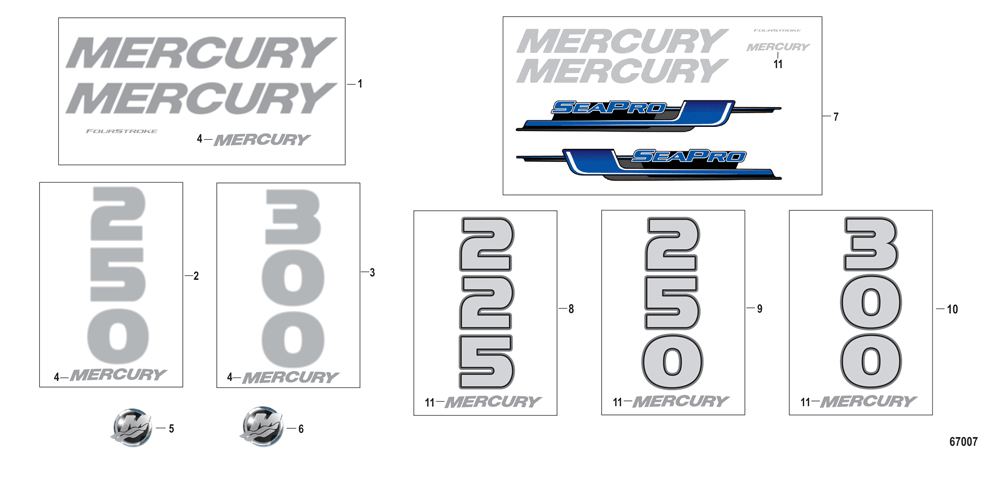

DECALS Diagram 67007

1 8M0142184 DECAL SET Mercury
2 8M0142192 DECAL 250 HP
3 8M0142193 DECAL 300 HP
4 8M0153042 DECAL Mercury, Silver
5 8M0043705 DECAL M-Icon, 60 MM Black Front (Mercury and SeaPro)
6 8M0043703 DECAL M-Icon, 66 MM, Black Rear (Mercury and SeaPro)
7 8M0142185 DECAL SET Sea Pro
8 8M0142195 DECAL 225 HP SeaPro
9 8M0142196 DECAL 250 HP SeaPro
10 8M0142197 DECAL 300 HP SeaPro
11 8M0153042 DECAL Mercury, Silver

Read more: 225/250/300 HP 4.6L V8 SEA PRO - Cat.# 90-8M0142572

> Mercury Marine [Updated: May. 19, 2021] > Outboard > 2 Stroke EFI > 2.4 L (EFI) > ARCHIVE CAT 14372 > 2.4L EFI BASS/OFFSHORE

SERIAL NUMBER
MERC/MAR 2.4L (EFI) . . . . . . . . . . . . . .0A168044 THRU 0B290009

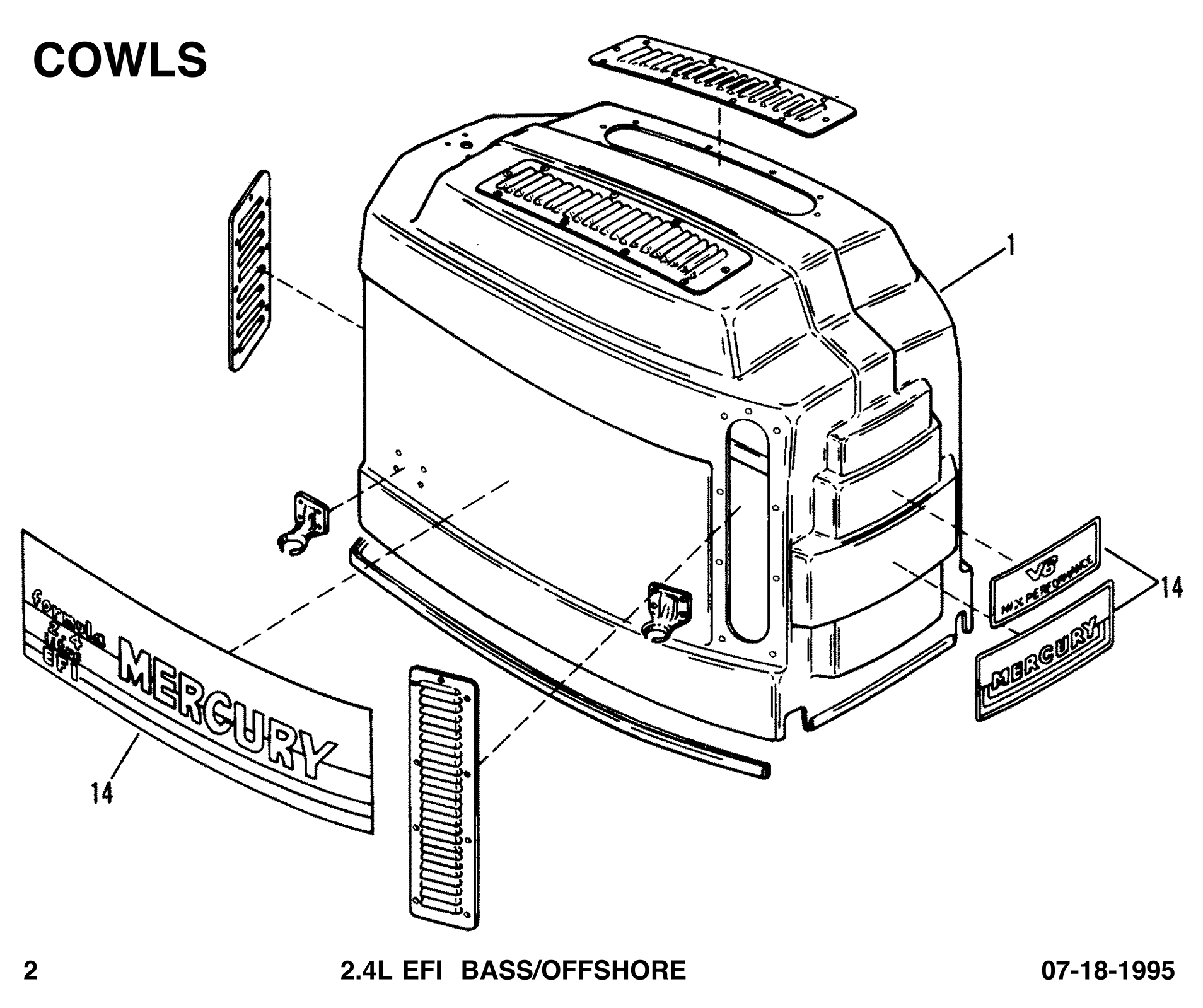

COWLS Diagram 14372 P2-4

1 6539A15 TOP COWL ASSEMBLY

14 91879A1 DECAL SET

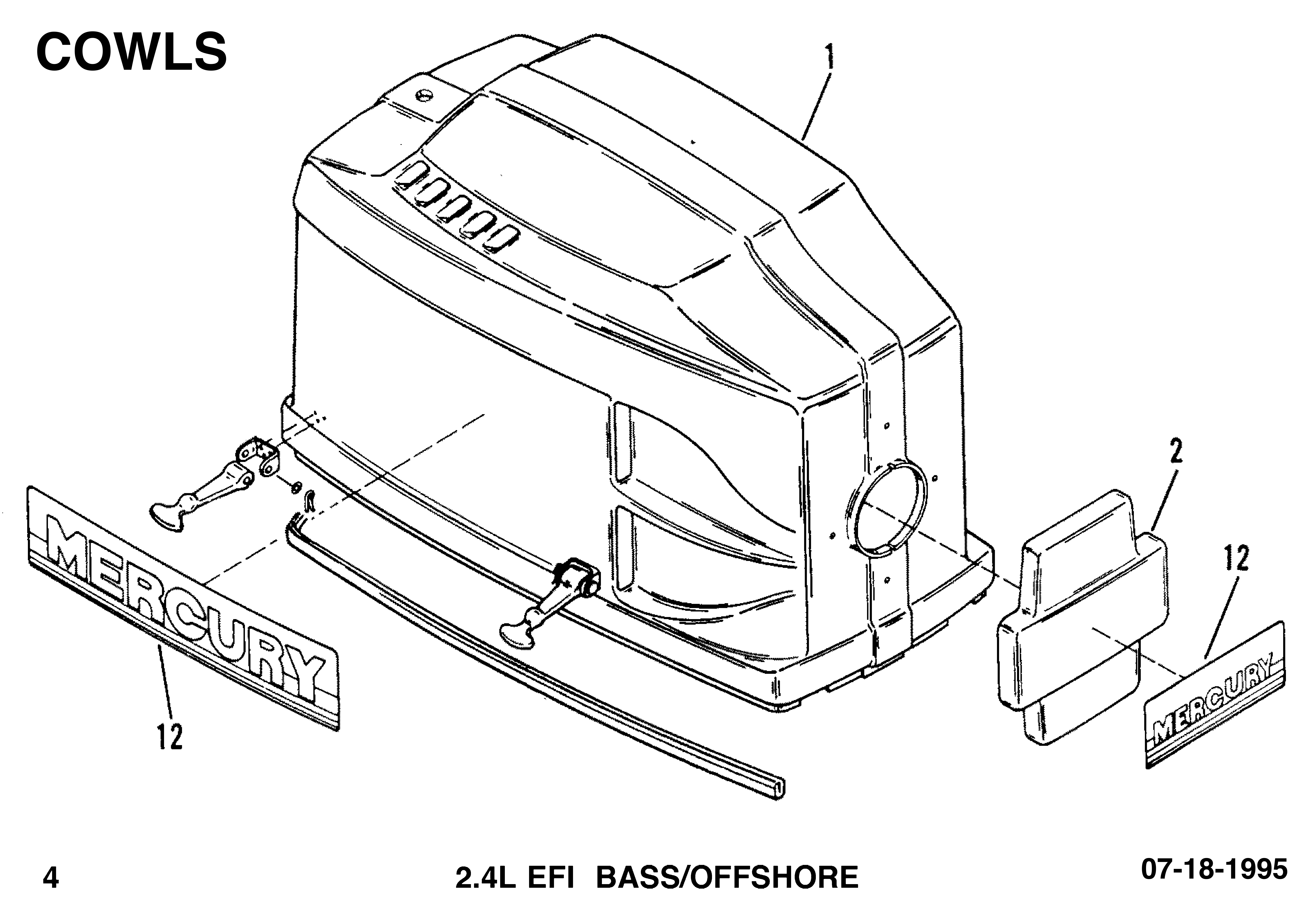

COWLS Diagram P4-6

1 9442A4 TOP COWL ASSEMBLY
2 14410A1 FRONT COVER

12 13813A5 DECAL SET
