> Mercury Marine [Updated: Jan. 16, 2020] > Outboard > 4 Stroke > 50 EFI (4 CYL.)(4-STROKE) > [1C453840 & Up] - USA - Cat.# 90-8M0118807

Top Cowl DIAGRAM 28547

8M0118165 TOP COWL ASSEMBLY Mercury, Non Decaled
8M0118167 TOP COWL ASSEMBLY Mariner, Non Decaled
8M0118170 CAP Air Dam - Mercury Comes with Decal
+ 8M0159887 CAP AIR DAM MERC
8M0118172 CAP Air Dam - Mariner Comes with Decal

8M0118165, 8M0118167, 8M0118170, 8M0159887, 8M0118172,
8M0118165 8M0118167 8M0118170 8M0159887 8M0118172

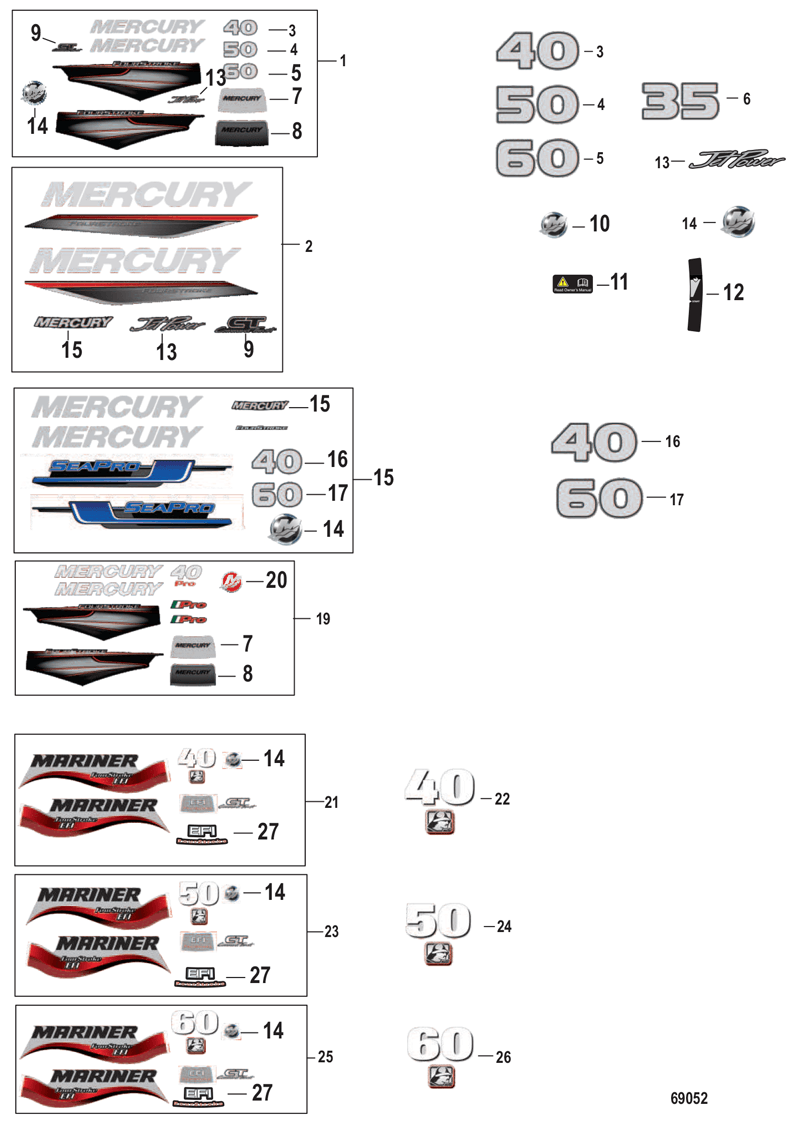

Decals - Top Cowl Diagram 69052

MERCURY DECALS

1) 8M0107467 DECAL SET ME 40-60HP 4S 4CYL [1C453840] THRU [1C573809] (2013-2018)
7) 8M0063345 DECAL Lenz
8) 8M0063358 DECAL Lenz
9) 8M0088310 DECAL Command Thrust

2) 8M0156747 DECAL SET ME 30-60 HP 4S [1C573810] & Up (2019-2020)
15) 8M0159886 DECAL Lenz, Mercury
3) 8M0063348 DECAL Rear, 40
4) 8M0063349 DECAL Rear - 50
5) 8M0063350 DECAL Rear - 60

6) 8M0154663 DECAL Rear, 35
13) 8M0063354 DECAL Jet Drive

10) 8M0043701 M-ICON 39MM - Small
14) 8M0043702 DECAL M-Icon, 53mm Black

11) 8M0056643 DECAL Read Manual
12) 8M0105187 DECAL Tiller Handle

16) 8M0118181 DECAL SET Mercury, SeaPro (2013-2020)
17) 8M0063348 DECAL Rear, 40 SeaPro
18) 8M0063350 DECAL Rear - 60 SeaPro

19) 8M0118535 DECAL SET Mercury 40 Pro Italy Pro (2013-2020)
20) 8M0043707 DECAL M-Icon, 53mm Red

MARINER DECALS

21) 8M0098299 DECAL SET MA 40EFI 4CYL 4S
22) 8M0012388 DECAL Rear, 40

23) 8M0098300 DECAL SET MA 50EFI 4CYL 4S
24) 8M0012389 DECAL Rear - 50

25) 8M0098301 DECAL SET MA 60EFI 4CYL 4S
26) 8M0012390 DECAL Rear - 60

27) 8M0109251 DECAL Lenz, Mariner

Read more: 40/50/60 EFI SEA PRO - 35 JET (4 CYL.)(4-STROKE) - Cat.# 90-8M0118807

> Mercury Marine [Updated: Jan. 14, 2020] > Outboard > 4 Stroke > 40 Carb (3 CYL.)(4-STROKE) > [1C018826 & Up] - Cat.# 90-803941008

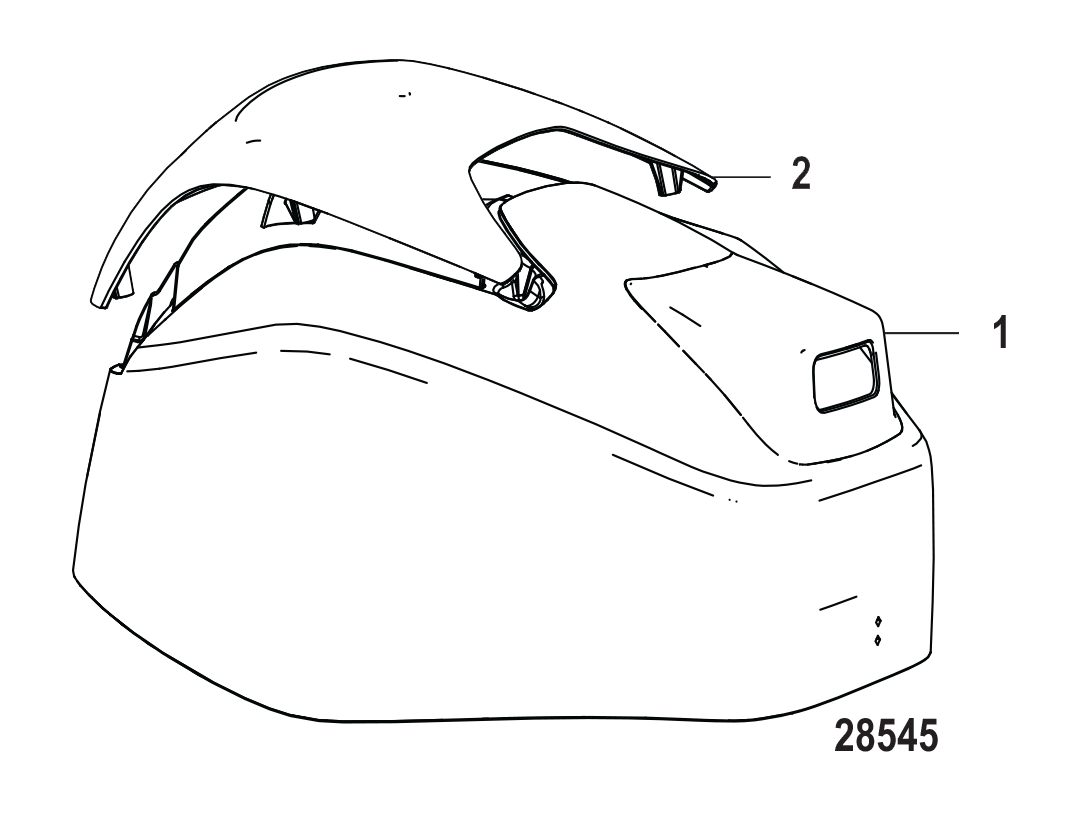

Top Cowl Diagram 28545

834785T41 TOP COWL ASSEMBLY Mercury [1C453639] & Below
8M0118168 TOP COWL ASSEMBLY Mercury, Non Decaled [1C453640] & Up
834785T43 TOP COWL ASSEMBLY Mariner [1C453639] & Below
8M0118169 TOP COWL ASSEMBLY Mariner, Non Decaled [1C453640] & Up

834785T41, 8M0118168, 834785T43, 8M0118169
834785T41 8M0118168 834785T43 8M0118169

879147T12 CAP Air Dam - Mercury [1C453639] & Below
8M0118170 CAP Air Dam - Mercury [1C453640] & Up
879147T13 CAP Air Dam - Mariner [1C453639] & Below
8M0118172 CAP Air Dam - Mariner [1C453640] & Up

879147T12, 8M0118170, 879147T13, 8M0118172
879147T12 8M0118170 879147T13 8M0118172

Decals - Top Cowl Diagram 69110

MERCURY DECALS

1) 803641A08 DECAL SET Mercury [1C018826] THRU [1C193075]
+ 8M0114767 DECAL SET Mercury [1C193076] & Up
2) 8M0043702 DECAL M-Icon, 53mm Black

3) 8M0114767 DECAL SET Mercury [1C193076] & Up
4) 8M0043703 DECAL M-Icon, 66 MM, Black
5) 8M0044902 DECAL 30 [1C193075] & Below
6) 896856002 DECAL 40 [1C193075] & Below
7) 896856003 DECAL Rear - 50 [1C193075] & Below

8) 8M0071110 DECAL SET Mercury 40hp [1C193076] THRU [1C262469]
9) 8M0063345 DECAL Lenz

10) 8M0098328 DECAL SET ME 40HP 3CYL [1C262470] & Up
   + 8M0114997 DECAL SET ME 30-40 HP 4S
11) 8M0063348 DECAL Rear, 40 [1C193076] & Up
12) 8M0088310 DECAL Command Thrust
13) 8M0063353 DECAL Bigfoot [1C018826] THRU [1C193076]

14) 8M0114997 DECAL SET ME 30-40 HP 4S [1C573729] & Below
15) 8M0063358 DECAL Lenz

16) 8M0156747 DECAL SET ME 30-60 HP 4S [1C573730] & Up
17) 8M0063354 DECAL Jet Drive
18) 8M0043701 M-ICON 39MM - Small Rear
19) 8M0105187 DECAL Tiller Handle Tiller Models Only
20) 8M0056643 DECAL Read Manual
21) 8M0159886 DECAL Lenz, Mercury

MARINER DECALS

22) 803643A08 DECAL SET Mariner
23) 8M0012388 DECAL Rear, 40
24) 8M0109251 DECAL Lenz, Mariner

> Mercury Marine [Updated: Apr. 6, 2022] > Outboard > 4 Stroke > 40 HP EFI 3 CYL > [1C000001 THRU 1C043416] - Cat.# 90-883943007
> Mercury Marine [Updated: Jan. 14, 2020] > Outboard > 4 Stroke > 40 EFI (3 CYL.)(4-STROKE) > [0P401000 THRU 0P515896] - Belgium - Cat.# 90-883943007

TOP COWL DIAGRAM  1747

834785T22 TOP COWL ASSEMBLY Black
834785T16 TOP COWL ASSEMBLY Silver
+ 834785T8 TOP COWL ASSEMBLY

834785T22, 834785T16, 834785T8
834785T22 834785T16 834785T8

MERCURY DECALS

883524A06 DECAL SET (Mercury)
+ 8M0114767 DECAL SET Mercury

MARINER DECALS

883532A03 DECAL SET (Mariner)

OTHER DECALS
884387 DECAL Bodensee
827887 DECAL Unleaded Fuel - Bodensee
883927A06 DECAL EPA Label Information

Read more: 40 EFI (3 CYLINDER) 4-STROKE - Cat.# 90-883943007

> Mercury Marine [Updated: Jan. 7, 2020] > Outboard > 2 Stroke Carb > 50, 500 (4 CYL.) > ARCHIVE CAT 74962

MERC 50 SERIAL NUMBER
500, 50 . . . . . . . . . . . USA 4357640 THRU 5531629
500, 50 . . . . . . . . . . . CAN 7068998 THRU 7143687
500, 50 . . . . . . . . . . . 8030090 THRU 8063984
500, 50 . . . . . . . . . . . BEL 9107214 THRU 9248005

TOP COWL ASSEMBLY DIAGRAM 74962-2
1) 2153-5992 TOP COWL (MANUAL)
    2153-6055 TOP COL (ELECTRIC)

COWLING AND FRONT COVER DIAGRAM 74962-8
1) 2104-5642A5 COWL FRONT COVER ASSEMBLY
                         UNITED STATES 4357640 THRU 4576236
                         AUSTRALIA 8030090 THRU 8042649
                         BELGIUM 9107214 THRU 9136249
                         CANADA 7068998 THRU 7088597
   2104-5642A13 COWL FRONT COVER ASSEMBLY
                         UNITED STATES 4576237 AND UP
                         AUSTRALIA 8042650 AND UP
                         BELGIUM 9136250 AND UP
                         CANADA 7088598 AND UP
10) 2118-3247A3 WRAP AROUND COWL ASSEMBLY

5992, 6055, 5642A5, 5642A13, 3247A3,
5992 6055 5642A5 5642A13 3247A3

MERCURY DECALS

37-73295A76 DECAL SET - SERIAL GROUP #1
37-73295A77 DECAL SET - SERIAL GROUP #9
37-78590A78 DECAL SET - SERIAL GROUP #10
37-86425A79 DECAL SET - SERIAL GROUP #11
