Mercury Outboard Decals

150/175/200 (EFI) - Cat.# 90-81741896

> Mercury Marine [Updated: Feb. 17, 2024] > Outboard > 2 Stroke EFI > V-200 (EFI) > [0G303046 THRU 0G760299] - USA - Cat.# 90-81741896
> Mercury Marine [Updated: Jun. 5, 2023]  > Outboard > 2 Stroke EFI > V-150 (EFI) > [0G303046 THRU 0G760299] - USA - Cat.# 90-81741896
> Mercury Marine [Updated: March. 31, 2020] > Outboard > 2 Stroke DFI > V-150 (EFI) > [0G303046 THRU 0G760299] - USA - Cat.# 90-81741896

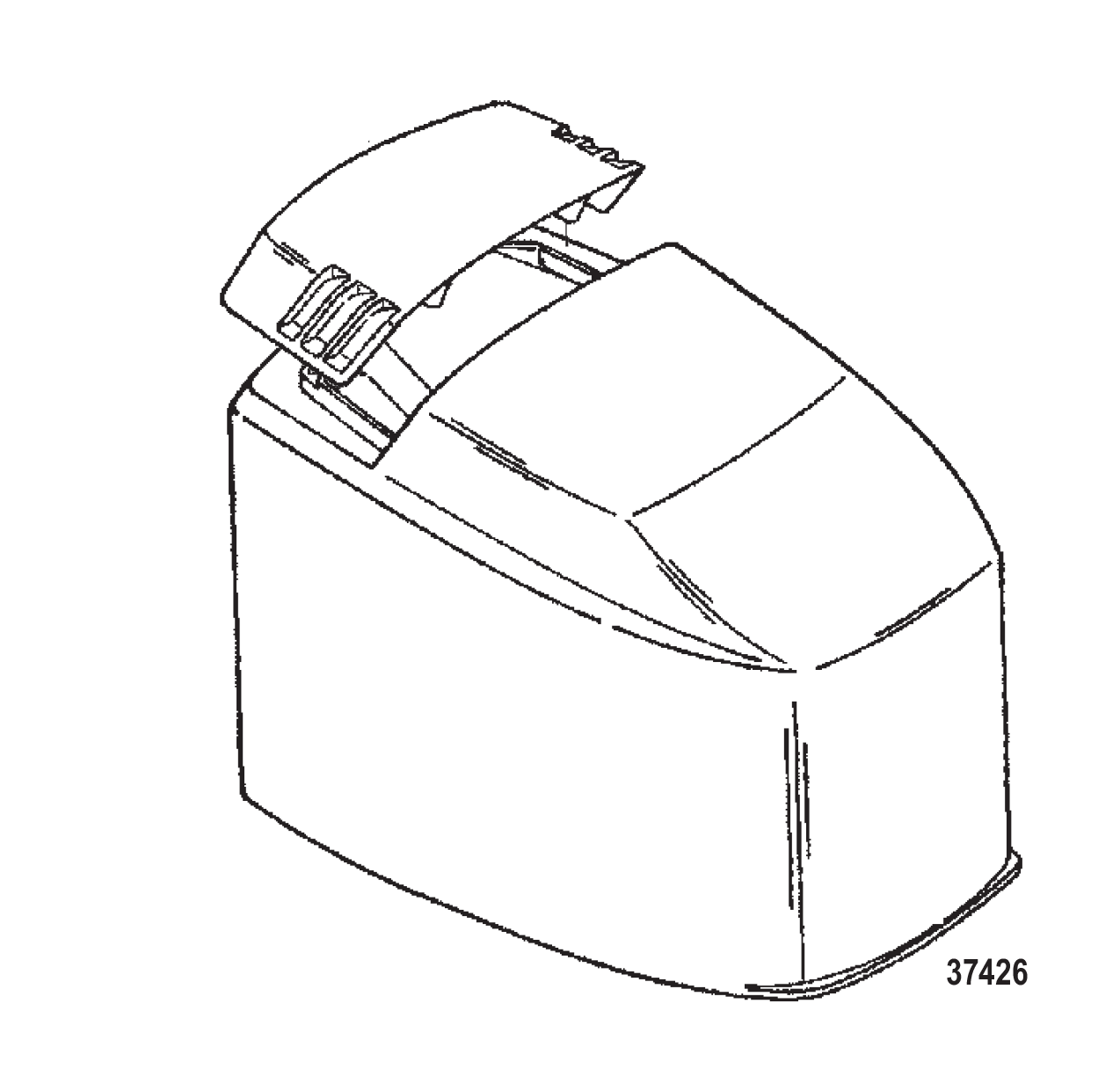

TOP COWL DIAGRAM 37426

827328A7 TOP COWL ASSEMBLY Black
827328T7 TOP COWL ASSEMBLY Black

827328A8 TOP COWL ASSEMBLY Silver
827328T8 TOP COWL ASSEMBLY Silver

827328A9 TOP COWL ASSEMBLY (TRACKER)

827328A7, 827328T7, 827328A8, 827328T8, 827328A9
827328A7 827328T7 827328A8 827328T8 827328A9



MERCURY DECALS

808553A96 DECAL SET (BLACK 150 LONG)
+ 808553A00 DECAL SET
++ 8M0114985 DECAL-SERVICE KIT

809689A96 DECAL SET (BLACK 150 XL/CXL)
+ 804696A03 DECAL SET
++ 8M0114998 DECAL-SERVICE KIT

808559A96 DECAL SET (BLACK 175 LONG XRI)

855418A97 DECAL SET (BLACK 175 XL)
+ 809688A00 DECAL SET

808554A96 DECAL SET (BLACK 200 LONG)
+ 812563A00 DECAL SET

808558A96 DECAL SET (BLACK 200 XL/CXL)
+ 808562A03 DECAL SET
++ 8M0114998 DECAL-SERVICE KIT


MARINER DECALS

813033A96 DECAL SET (GRAY 150 LONG)[0G437999] & Below
+ 813033A03 DECAL SET
++ 809706A03 DECAL SET
809706A96 DECAL SET (GRAY 150 XL/CXL)[0G437999] & Below
+809706A03 DECAL SET
808557A96 DECAL SET (GRAY 175 MAGNUM)[0G437999] & Below
+808557A01 DECALS SET
808556A96 DECAL SET (GRAY 200 LONG)[0G437999] & Below
+808556A03 DECAL SET
808561A96 DECAL SET (GRAY 200 XL/CXL)[0G437999] & Below
+808561A03 DECAL SET

813033A97 DECAL SET (GRAY 150 LONG)[0G438000] & Up *
+ 813033A03 DECAL SET
++ 809706A03 DECAL SET
809706A97 DECAL SET (GRAY 150 XL/CXL)[0G438000] & Up
+ 809706A03 DECAL SET
808557A97 DECAL SET (GRAY 175 MAGNUM)[0G438000] & Up
+ 808557A01 DECALS SET
855419A97 DECAL SET (GRAY 175 XL) ALSO [0G438000] & Up
+ 855419A00 DECAL SET
808556A97 DECAL SET (GRAY 200 LONG) ALSO [0G438000] & Up
+ 808556A03 DECAL SET
808561A97 DECAL SET (GRAY 200 XL/CXL)[0G438000] & Up
+ 808561A03 DECAL SET

824911A25 DECAL Striping (ROLL OF 25 FT. - NEED 6 FT.) [0G438000] & Up

TRACKER DECALS

808591A96 DECAL SET (150) TRACKER BY MERCURY
808680A96 DECAL SET (175) TRACKER BY MERCURY
808621A96 DECAL SET (200) TRACKER BY MERCURY

808602A96 DECAL SET (150) TRACKER MY MARINER
808652A96 DECAL SET (175) TRACKER MY MARINER

Read more: 150/175/200 (EFI) - Cat.# 90-81741896

2 Stroke Carb - V-200 - Cat.# 90-814180

> Mercury Marine [Updated: Jan. 31, 2020] > Outboard > 2 Stroke Carb > V-200 > [0C100861 THRU 0C291519] - USA - Cat.# 90-814180

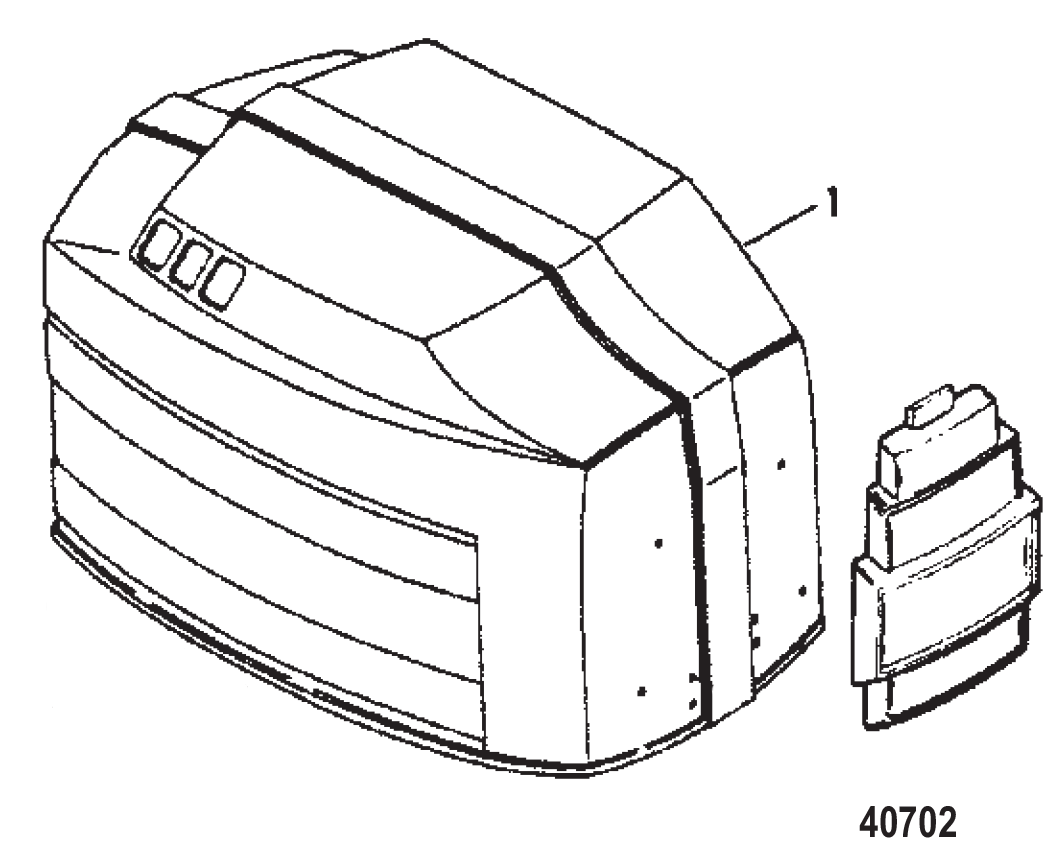

TOP COWL DIAGRAM 40702


9742A57 TOP COWL ASSEMBLY (BLACK)
+ 9742T88 TOP COWL ASSY BLK
9742A58 TOP COWL ASSEMBLY (GRAY)
+ 9743T11 TOP COWL


9742A57, 9742T88, 9742A58, 9743T11
9742A57 9742T88 9742A58 9743T11

MERCURY DECALS

812563A94 DECAL SET (BLACK-200 LONG)
808562A94 DECAL SET (BLACK-200XL/CXL)



MARINER DECALS

813038A89 DECAL SET (RED/ORANGE) (GRAY)
+ 813038A90 DECAL SET
813038A90 DECAL SET (SILVER) (GRAY)

Serial Number: 0C101307 - Model: 7200412PD - Model Version: L
MARINER 2.4L 200 L
1989 MARINER 200 H.P. (V-6)

40/50/60 EFI SEA PRO - 35 JET (4 CYL.)(4-STROKE) - Cat.# 90-8M0118807

> Mercury Marine [Updated: Jan. 16, 2020] > Outboard > 4 Stroke > 50 EFI (4 CYL.)(4-STROKE) > [1C453840 & Up] - USA - Cat.# 90-8M0118807

Top Cowl DIAGRAM 28547

8M0118165 TOP COWL ASSEMBLY Mercury, Non Decaled
8M0118167 TOP COWL ASSEMBLY Mariner, Non Decaled
8M0118170 CAP Air Dam - Mercury Comes with Decal
+ 8M0159887 CAP AIR DAM MERC
8M0118172 CAP Air Dam - Mariner Comes with Decal

8M0118165, 8M0118167, 8M0118170, 8M0159887, 8M0118172,
8M0118165 8M0118167 8M0118170 8M0159887 8M0118172



Decals - Top Cowl Diagram 69052

MERCURY DECALS

1) 8M0107467 DECAL SET ME 40-60HP 4S 4CYL [1C453840] THRU [1C573809] (2013-2018)
7) 8M0063345 DECAL Lenz
8) 8M0063358 DECAL Lenz
9) 8M0088310 DECAL Command Thrust

2) 8M0156747 DECAL SET ME 30-60 HP 4S [1C573810] & Up (2019-2020)
15) 8M0159886 DECAL Lenz, Mercury
3) 8M0063348 DECAL Rear, 40
4) 8M0063349 DECAL Rear - 50
5) 8M0063350 DECAL Rear - 60

6) 8M0154663 DECAL Rear, 35
13) 8M0063354 DECAL Jet Drive

10) 8M0043701 M-ICON 39MM - Small
14) 8M0043702 DECAL M-Icon, 53mm Black

11) 8M0056643 DECAL Read Manual
12) 8M0105187 DECAL Tiller Handle

16) 8M0118181 DECAL SET Mercury, SeaPro (2013-2020)
17) 8M0063348 DECAL Rear, 40 SeaPro
18) 8M0063350 DECAL Rear - 60 SeaPro

19) 8M0118535 DECAL SET Mercury 40 Pro Italy Pro (2013-2020)
20) 8M0043707 DECAL M-Icon, 53mm Red

MARINER DECALS

21) 8M0098299 DECAL SET MA 40EFI 4CYL 4S
22) 8M0012388 DECAL Rear, 40

23) 8M0098300 DECAL SET MA 50EFI 4CYL 4S
24) 8M0012389 DECAL Rear - 50

25) 8M0098301 DECAL SET MA 60EFI 4CYL 4S
26) 8M0012390 DECAL Rear - 60

27) 8M0109251 DECAL Lenz, Mariner

Read more: 40/50/60 EFI SEA PRO - 35 JET (4 CYL.)(4-STROKE) - Cat.# 90-8M0118807

4 Stroke 40 Carb (3 CYL.)(4-STROKE) - Cat.# 90-803941008

> Mercury Marine [Updated: Jan. 14, 2020] > Outboard > 4 Stroke > 40 Carb (3 CYL.)(4-STROKE) > [1C018826 & Up] - Cat.# 90-803941008

Top Cowl Diagram 28545

834785T41 TOP COWL ASSEMBLY Mercury [1C453639] & Below
8M0118168 TOP COWL ASSEMBLY Mercury, Non Decaled [1C453640] & Up
834785T43 TOP COWL ASSEMBLY Mariner [1C453639] & Below
8M0118169 TOP COWL ASSEMBLY Mariner, Non Decaled [1C453640] & Up

834785T41, 8M0118168, 834785T43, 8M0118169
834785T41 8M0118168 834785T43 8M0118169

879147T12 CAP Air Dam - Mercury [1C453639] & Below
8M0118170 CAP Air Dam - Mercury [1C453640] & Up
879147T13 CAP Air Dam - Mariner [1C453639] & Below
8M0118172 CAP Air Dam - Mariner [1C453640] & Up

879147T12, 8M0118170, 879147T13, 8M0118172
879147T12 8M0118170 879147T13 8M0118172



Decals - Top Cowl Diagram 69110

MERCURY DECALS

1) 803641A08 DECAL SET Mercury [1C018826] THRU [1C193075]
+ 8M0114767 DECAL SET Mercury [1C193076] & Up
2) 8M0043702 DECAL M-Icon, 53mm Black

3) 8M0114767 DECAL SET Mercury [1C193076] & Up
4) 8M0043703 DECAL M-Icon, 66 MM, Black
5) 8M0044902 DECAL 30 [1C193075] & Below
6) 896856002 DECAL 40 [1C193075] & Below
7) 896856003 DECAL Rear - 50 [1C193075] & Below

8) 8M0071110 DECAL SET Mercury 40hp [1C193076] THRU [1C262469]
9) 8M0063345 DECAL Lenz

10) 8M0098328 DECAL SET ME 40HP 3CYL [1C262470] & Up
   + 8M0114997 DECAL SET ME 30-40 HP 4S
11) 8M0063348 DECAL Rear, 40 [1C193076] & Up
12) 8M0088310 DECAL Command Thrust
13) 8M0063353 DECAL Bigfoot [1C018826] THRU [1C193076]

14) 8M0114997 DECAL SET ME 30-40 HP 4S [1C573729] & Below
15) 8M0063358 DECAL Lenz

16) 8M0156747 DECAL SET ME 30-60 HP 4S [1C573730] & Up
17) 8M0063354 DECAL Jet Drive
18) 8M0043701 M-ICON 39MM - Small Rear
19) 8M0105187 DECAL Tiller Handle Tiller Models Only
20) 8M0056643 DECAL Read Manual
21) 8M0159886 DECAL Lenz, Mercury


MARINER DECALS

22) 803643A08 DECAL SET Mariner
23) 8M0012388 DECAL Rear, 40
24) 8M0109251 DECAL Lenz, Mariner
