30 H.P.
SERIAL NUMBER
30 (1982) . . . . . . . . . . . . . 307B2E
30 (1982) . . . . . . . . . . . . . 307H2E

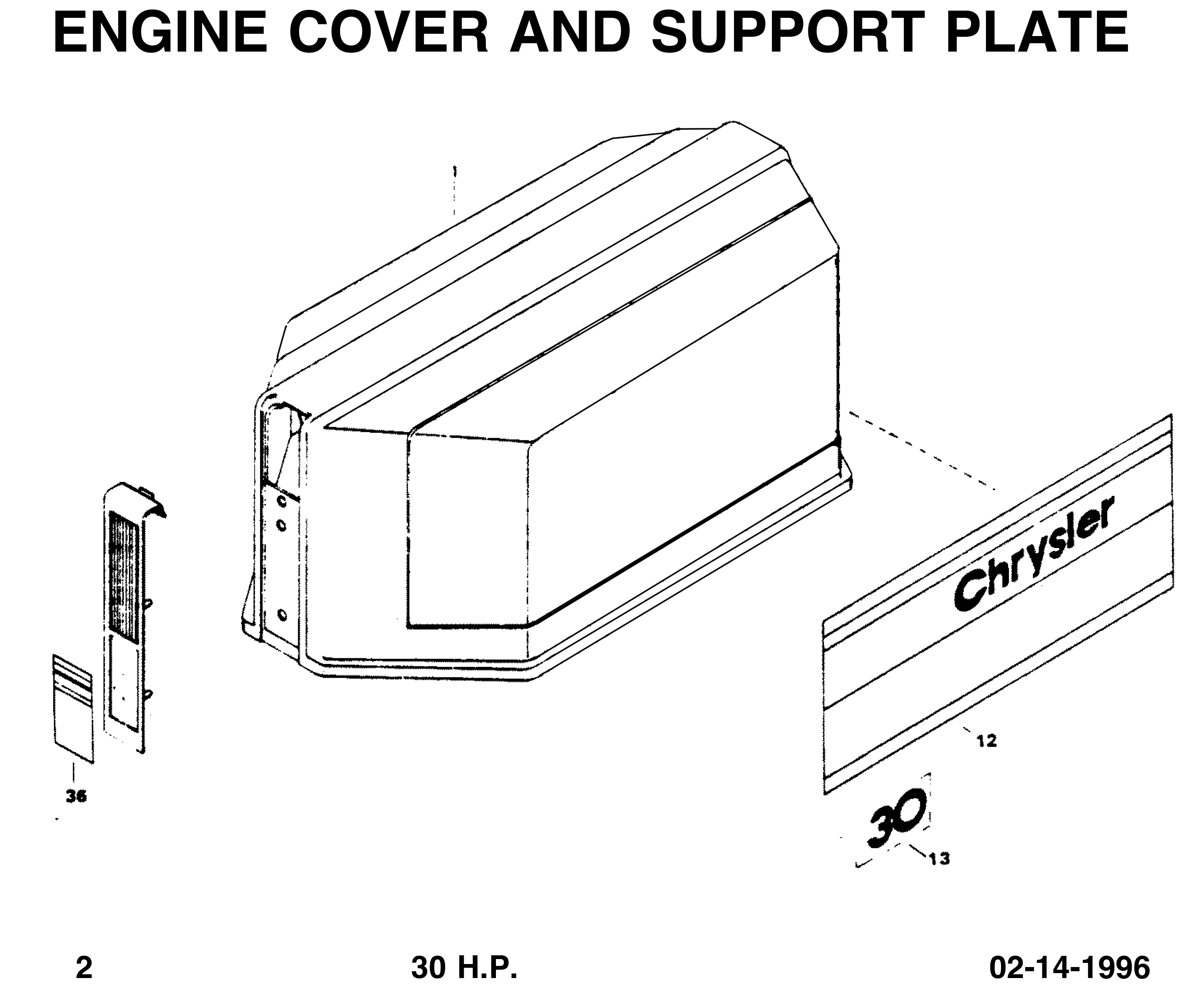

ENGINE COVER AND SUPPORT PLATE DIAGRAM - FOB3776-P4-P2

1 818015A1 ENGINE COVER W/ILLUS. 9, 10, 11 AND 38 ORIGINAL FORCE P/N S 529712-1
1 2C603712 ENGINE COVER COMPLETE.

818015A1, 2C603712
818015A1 2C603712

12 FA603397 DECAL, ENGINE COVER - PORT W/LITERATURE
12 FA603396 DECAL, ENGINE COVER - STARBOARD W/LITERATURE
13 FA604386 DECAL, NUMERAL 30 W/LITERATURE (2 Decals)

36 FA603892 DECAL, ENGINE COVER FRONT W/LITERATURE

ELECTRIC STARTER
FC513390 DECAL STARTER - CANADA (NOT SHOWN)
36 F510374-1 DECAL, CIRCUIT BREAKER - U.S.A.
36 FC510374 DECAL, CIRCUIT BREAKER - CANADA

ELECTRICAL COMPONENTS
40 F529398 DECAL, WIRING - U.S.A.
40 FC529398 DECAL, WIRING - CANADA

SWIVEL BRACKET GROUP
43 F529390-1 DECAL, REVERSE LOCK - USA

FUEL TANK AND LINE
FC409398 DECAL, TOTE TANK - CANADA (NOT SHOWN)

ACCESSORIES
F5H131 PORT SIDE DECAL KIT CONVERTS 5H130 CONTROL BOX TO PORT SIDE MOUNTING.

Read more: 1982 Outboard | Chrysler 30 HP - ARCHIVE CAT FOB3776

> Mercury Marine [Updated: Jul. 5, 2022] > Outboard > 4 Stroke > 300R HP 4.6L V8 AMS Racing > [1E081459 & Up] - USA - Cat.# 90-8M0177033
> Mercury Marine [Updated: May. 24, 2022] > Outboard > 4 Stroke > 300R HP 4.6L V8 AMS Racing > [1E081459 & Up] - USA - Cat.# 90-8M0177033



8M0182331 TOP COWL ASSEMBLY Black, Decaled without Accent Panel Decal Set
8M0177060 TOP COWL ASSEMBLY Cold Fusion, Decaled without Accent Panel Decal Set

and others 8M0143491, 8M0143492, 8M0142173, 8M0182329, 8M0142172, 8M0142174, 8M0142175, 8M0142176, 8M0142177, 8M0159576, 8M0159577,

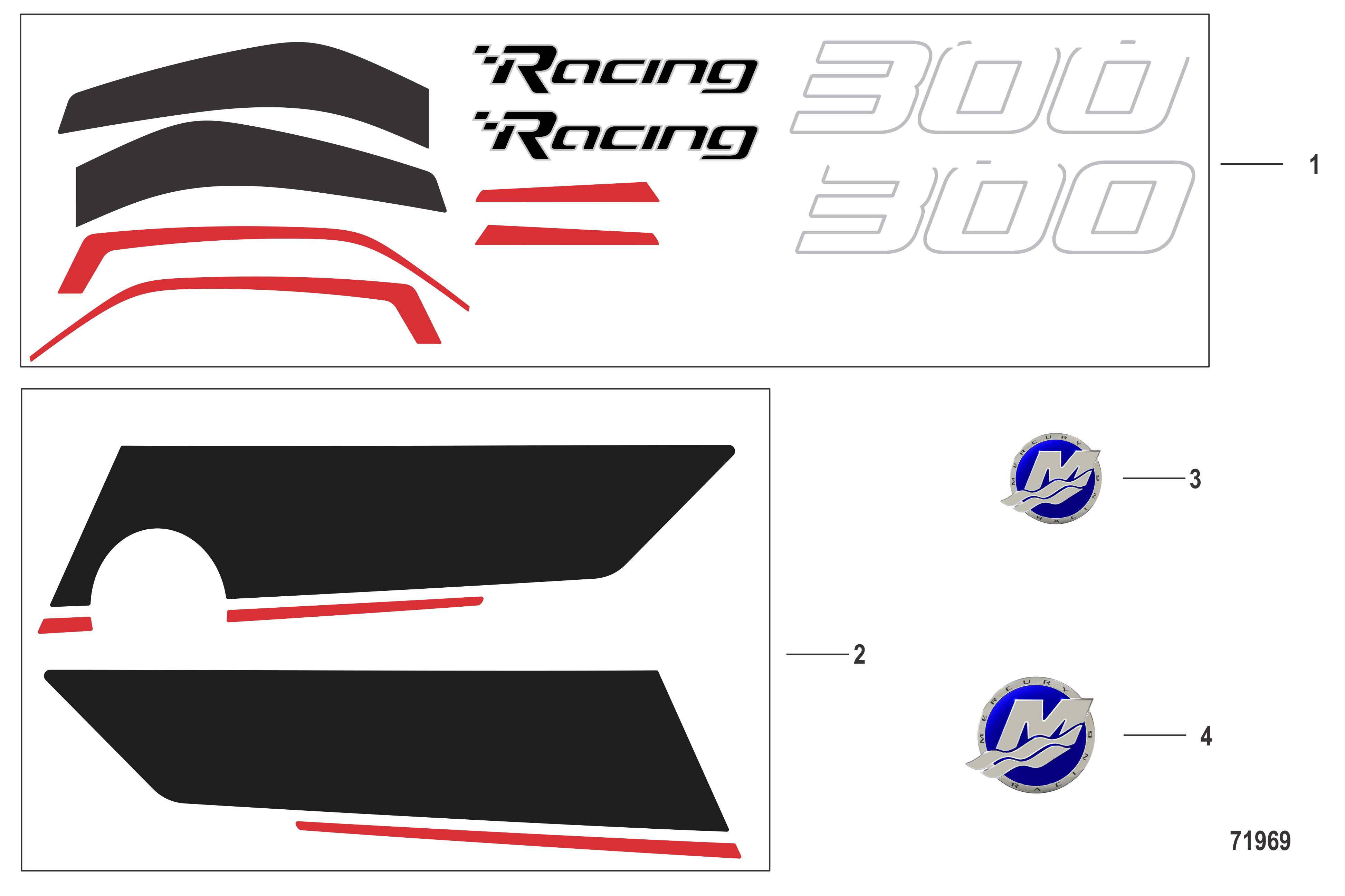

MERCURY DECALS diagram 71969

1) 0037 8M0145974 DECAL SET Top Cowl 300R
2) 0037 8M0143773 DECAL SET Lower Cowl
3) 0037 8M0151525 DECAL MICON 53 MM, Racing
4) 0037 8M0080153 DECAL M-ICON 66 MM Racing

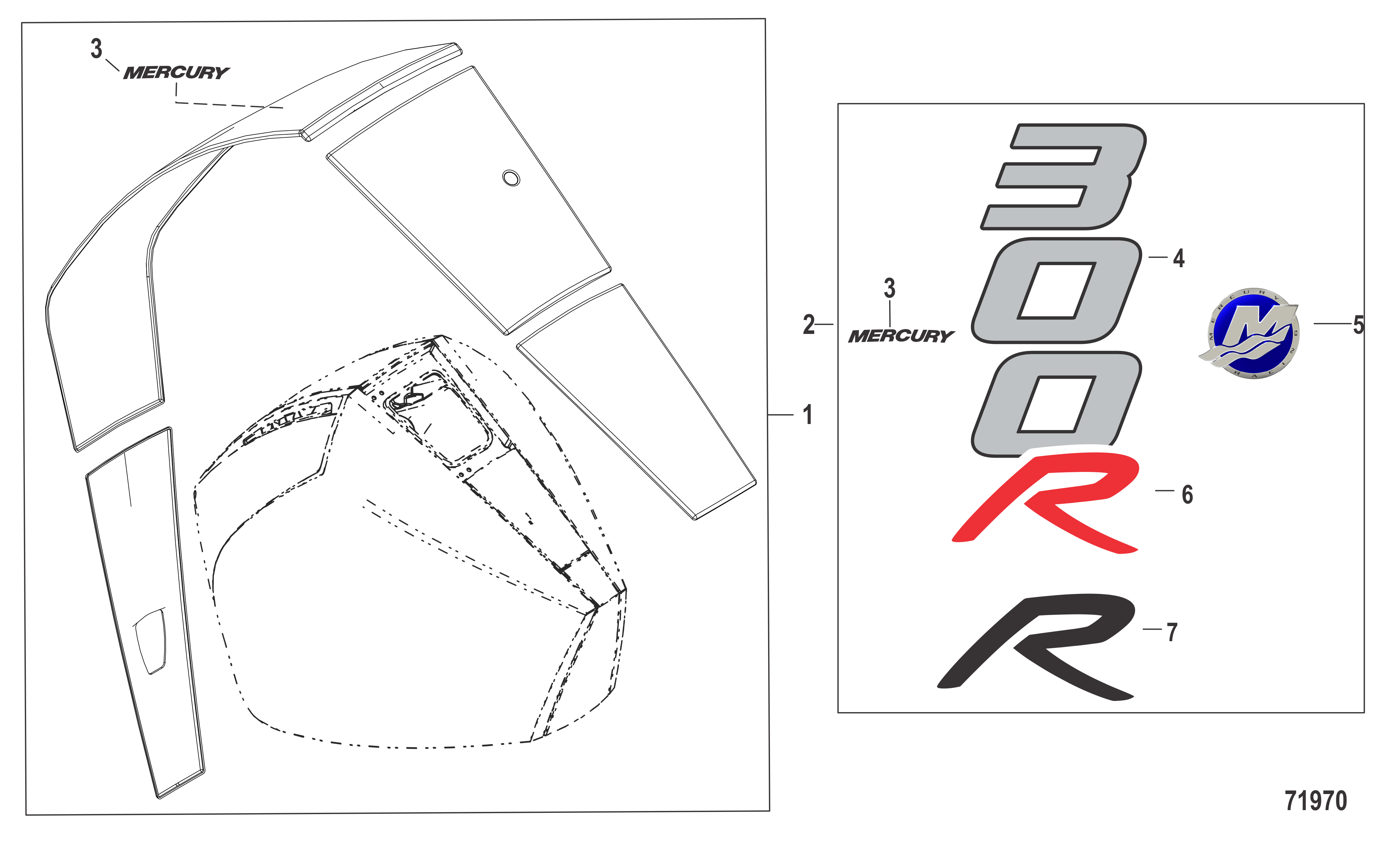

Accent Panel Diagram 71970

1 8M0147687 ACCENT COWL ASSEMBLY Devils Eye Red
1 8M0147684 ACCENT COWL ASSEMBLY Graphite Grey

1 8M0147685 ACCENT COWL ASSEMBLY Ready to Paint
+ 8M0192256 ACCENT PNL PAINT

1 8M0172910 ACCENT COWL ASSEMBLY Carbon Fiber (Non-Decaled) MUST ORDER DECAL SET

8M0147687, 8M0147684, 8M0147685, 8M0192256, 8M0172910

Decals

2 8M0159922 DECAL SET Accent Panel, 300R
3 8M0149565 DECAL Mercury, Black Devil Eye Red or Graphite Grey
3 8M0147920 DECAL Mercury, Silver Carbon Fiber
4 8M0149567 DECAL Rear, 300 HP
5 8M0080153 DECAL M-ICON 66 MM Racing
6 8M0149566 DECAL Red, R Graphite Grey or Carbon Fiber
7 8M0149568 DECAL Black, R Devils Eye Red

Installation instructions V8 Accent panels

Read more: 300R HP 4.6L V8 AMS Racing

 > Mercury Marine [Updated: May. 20, 2022] > Outboard > 2 Stroke DFI (OptiMax) > 200 (DFI) > [0G760300 THRU 0G960499] - USA - Cat.# 90-803485

TOP COWL DIAGRAM 34836

850299T1 TOP COWL ASSEMBLY Black

850299T2 TOP COWL ASSEMBLY Silver

850299T1, 850299T2
850299T1 850299T2

MERCURY DECALS

855405A98 DECAL SET (BLACK LONG) 225
855408A99 DECAL SET (BLACK XL/XXL/CXL/CXXL) 225
+ 855405A00 DECAL SET (BLACK-RED)(225)
++ 8M0065126 DECAL SET
+++ 8M0099561 DECAL SET-MERCURY

855410A98 DECAL SET (BLACK LONG) 200
+ 855410A00 DECAL SET
++ 8M0099561 DECAL SET-MERCURY

855412A99 DECAL SET (BLACK XL/XXL/CXL/CXXL) 200
+ 855412A00 DECAL SET
++ 8M0099562 DECAL SET

MARINER DECALS

855409A98 DECAL SET (GRAY LONG) 225
855411A99 DECAL SET (GRAY XL/XXL/CXL/CXXL) 225
+ 855409A03 DECAL SET
++ 8M0065129 DECAL SET

 855413A98 DECAL SET (GRAY LONG) 200
855414A99 DECAL SET (GRAY XL/XXL/CXL/CXXL) 200
+ 855413A03 DECAL SET

TRACKER DECALS

802641A98 DECAL SET (BLACK 225) TRACKER
802642A98 DECAL SET (BLACK 200) TRACKER

802644A98 DECAL SET (GRAY 225) TRACKER
802645A98 DECAL SET (GRAY 200) TRACKER

OTHER DECALS

85698514 DECAL EPA Label Information
+ 856985A14 REF OB SB 09-18

21) Decal - Counter Rotation (Left Hand)
21) Decal - Counter Rotation (Right Hand)
22) Decal - Break In

Read more: 200/225 (3.0L DFI) - Cat.# 90-803485

> Mercury Marine [Updated: Apr. 29, 2022] > Outboard > 2 Stroke Carb > XR-4 / MAGNUM II > [0B242885 THRU 0C100860] - USA - Cat.# 90-18739

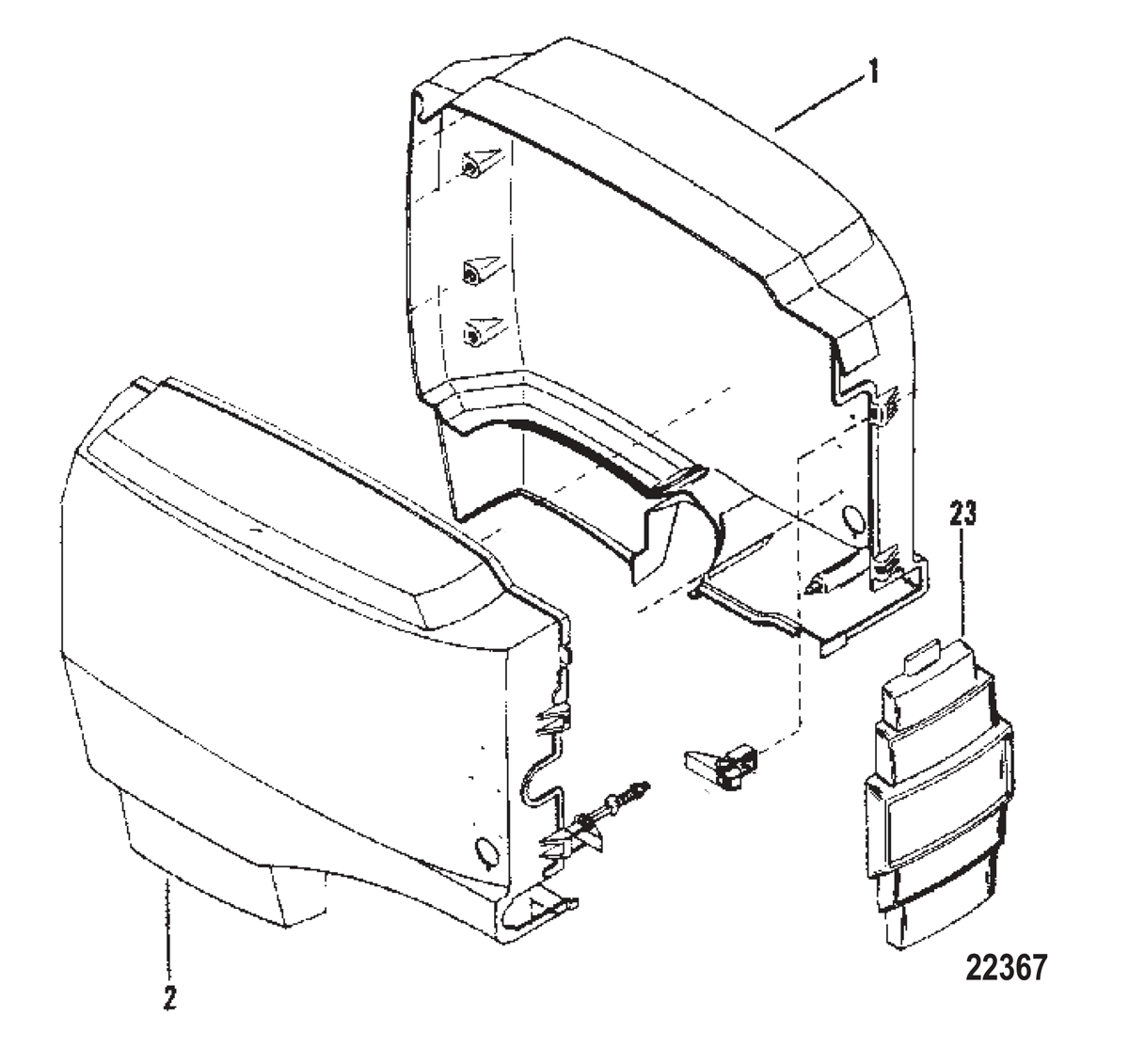

COWLS AND FRONT COVER DIAGRAM 22367

1 7620A27 TOP COWL ASSEMBLY PORT (BLACK)
1 7620A28 TOP COWL ASSEMBLY PORT (GRAY)
2 7619A6 TOP COWL ASSEMBLY STARBOARD (BLACK)
2 7619A7 TOP COWL ASSEMBLY STARBOARD (GRAY)

23 7532A2 COVER ASSEMBLY Cowl - Front (BLACK)
23 7532A23 COVER ASSEMBLY Cowl - Front (GRAY)

7620A27, 7620A28, 7619A6, 7619A7, 7532A2, 7532A23
7620A27 7620A28 7619A6 7619A7 7532A2 7532A23

MERCURY DECALS
17813A88 DECAL SET (BLACK)

MARINER DECALS
11625A88 DECAL SET (GRAY)

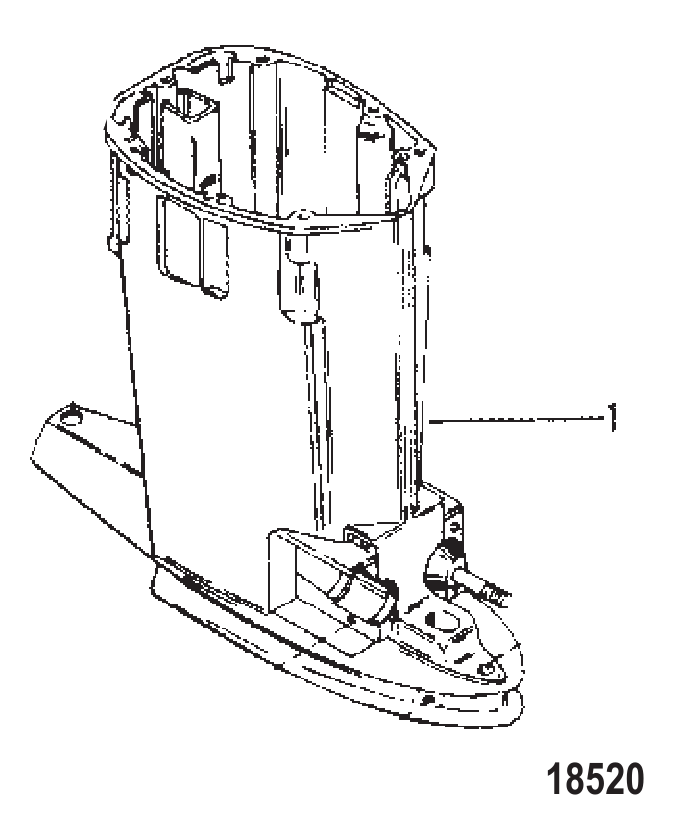

DRIVESHAFT HOUSING AND EXHAUST TUBE Diagram 18520

1) 8343A7 HOUSING ASSEMBLY Driveshaft (BLACK)
1) 8343A8 HOUSING ASSEMBLY Driveshaft (GRAY)

8343A7, 8343A8,
8343A7 8343A8

Read more: 2 Stroke Carb XR-4 / 150 MAGNUM II - Cat.# 90-18739
