2002 DF 50QHLK2 Beginning VIN# 05001F-251001 Engine Cover (Model :10-)

DIAGRAM MTg5NTYy-0177d187

1. 61400-88800-0EP COVER SET, ENGINE

SUZUKI DECALS

9-2. 61453-88L01 STRIPE, ENGINE COVER PORT
9-1. 61443-88L01 STRIPE, ENGINE COVER STBD
10. 61446-87L10 DECAL, EFI
11. 68111-18G20 EMBLEM (S)
12. 61422-88L01 MARK, EMBLEM FRONT (40)
13. 61422-88L1 MARK, EMBLEM FRONT (50)
14. 61422-88L21 MARK, EMBLEM FRONT (60)
15. 61435-88L01 MARK, EMBLEM REAR (40)
16. 61435-88L11 MARK, EMBLEM REAR (50)
17. 61435-88L21 MARK, EMBLEM REAR (60)
18. 61458-99E31 LABEL, ENGINE COVER

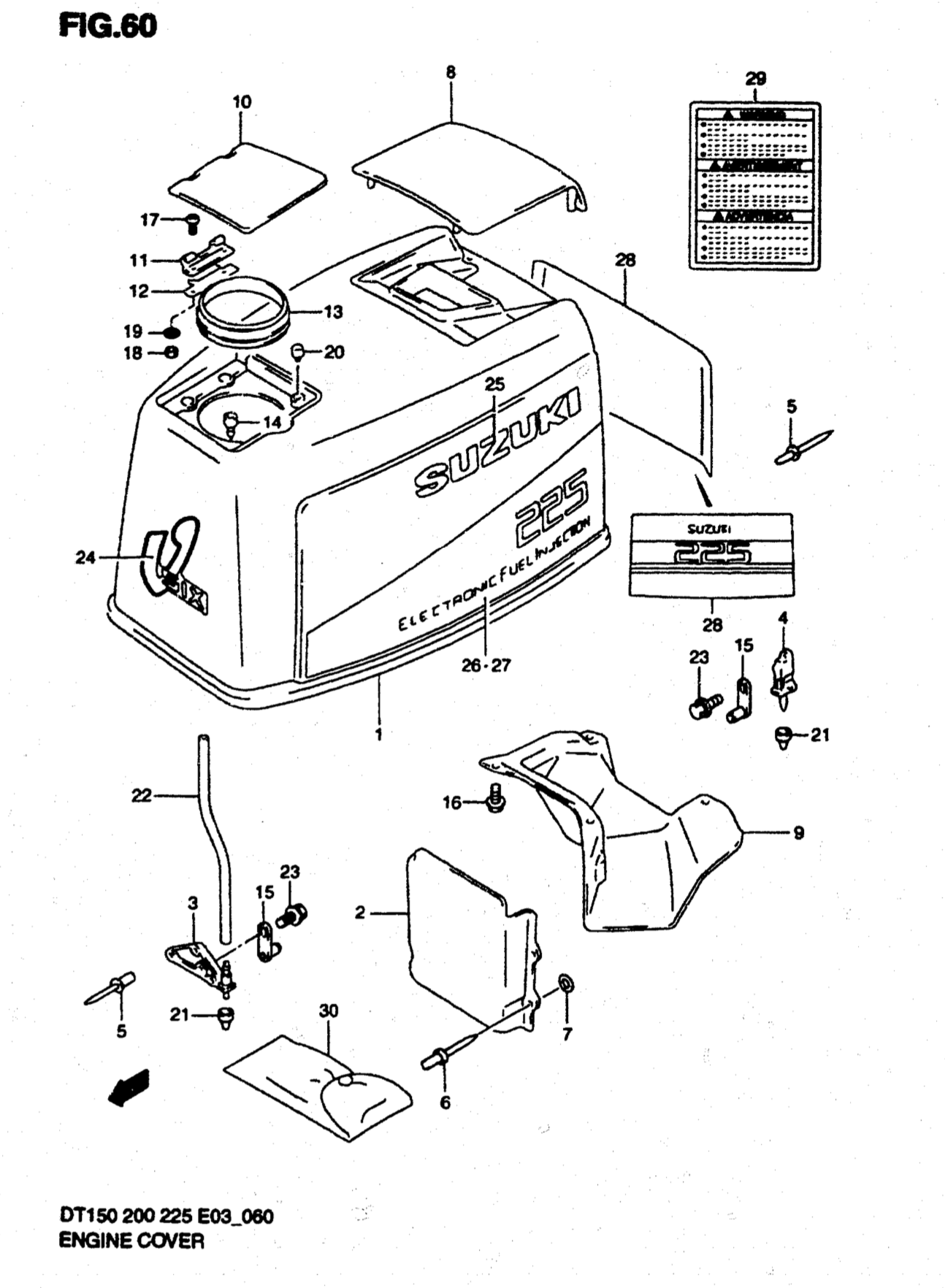

DT 225TCXGK2 Beginning VIN# 22501G-251001 > Engine Cover (DT225,225G)

ENGINE COVER
61410-87862-0ED COVER SET, ENGINE

5-1 COVER, ENGINE HOLDER REAR  61141-87D00-0ED
5-2 COVER, ENGINE HOLDER REAR  61141-87D00-0EP *{MODEL:02,03}*

61410-87862-0ED, 61141-87D00-0ED, 61141-87D00-0EP
61410-87862-0ED 61141-87D00-0ED 61141-87D00-0EP

SUZUKI DECALS

24.MARK, EMBLEM FR  61422-92E20-A8M
25.MARK, SUZUKI  68111-42031-1RR
26.DECAL, STBD  61443-92E30
27.DECAL, PORT  61453-92E30
28.DECAL, REAR  61463-92E30
29. MARK, SAFETY WARNING 61581-98620

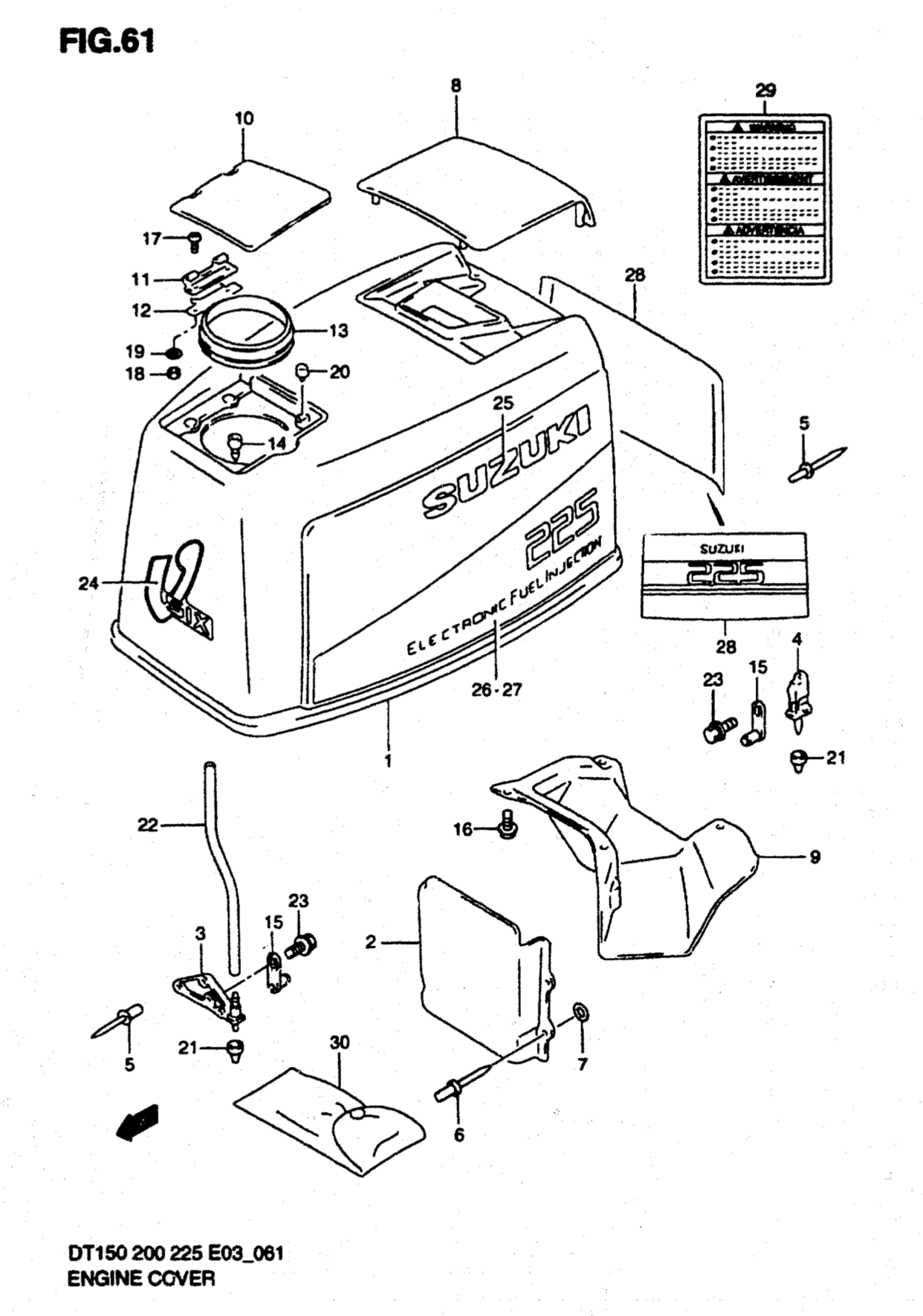

DT 225TCXGK2 Beginning VIN# 22501G-251001 > Engine Cover (DT225/DT225G Model:2002,2003)

ENGINE COVER
61420-87820-0EP COVER SET, ENGINE (DT225/DT225G Model:2002,2003)

SUZUKI DECALS

24. MARK, EMBLEM FR  61422-92E30
25. MARK, SUZUKI  68111-42031-1RR
26. DECAL, STBD 61443-92E50
27. DECAL, PORT 61453-92E50
28. DECAL, REAR 61463-92E50
29. MARK, SAFETY WARNING 61581-98620

41-2. DECAL,LOWER COVER PORT  *{MODEL:02,03}* 61231-92E30
41-1.  DECAL,LOWER COVER STBD *{MODEL:02,03}* 61221-92E30
46. DECAL SET *{OPT ~MODEL:01}* 61240-92E20-A8L

61422-92E30, 68111-42031-1RR, 61443-92E50, 61453-92E50, 61463-92E50, 61581-98620, 61231-92E30, 61221-92E30, 61240-92E20-A8L
61422-92E30 68111-42031-1RR 61443-92E50 61453-92E50 61463-92E50 61581-98620 61231-92E30 61221-92E30 61240-92E20-A8L

Suzuki DF 300AP Parts Listings - 2014
S/N 30002P-410001 to 30002P-41XXXX

ENGINE COVER
Diagram df250a_300a-02-fig034
Fig. 34 - ENGINE COVER

1-1 61400-98Y61-0EP Engine Cover Set
1-2 61400-98Y71-Y5S Engine Cover Set White
2-1 61431-98J10-0EP ▪ Top Cover
2-2 61431-98J10-Y5S ▪ Top Cover White

61400-98Y61-0EP, 61400-98Y71-Y5S, 61431-98J10-0EP, 61431-98J10-Y5S
61400-98Y61-0EP 61400-98Y71-Y5S 61431-98J10-0EP 61431-98J10-Y5S

Suzuki Decals

White Models
28-2 61443-93J40 ▪ Engine Cover Starboard Stripe White
29-2 61453-93J40 ▪ Engine Cover Port Stripe White
30-2 61446-93J40 ▪ EFI & VVT Decal White
31-2 61422-98J20 Front Emblem Mark (300) White
32-2 61435-98J20 Rear Emblem Mark (300) White
35-2 61473-98J10 Decal (S.S.R.) White
37-2 61446-96J30 Decal (S.P.C.) White

Black Models
28-1 61443-93J32 ▪ Engine Cover Starboard Stripe
29-1 61453-93J32 ▪ Engine Cover Port Stripe
30-1 61446-93J32 ▪ EFI & VVT Decal
31-1 61422-98J12 Front Emblem Mark (300)
32-1 61435-98J12 Rear Emblem Mark (300)
35-1 61473-98J00 Decal (S.S.R.)
37-1 61446-96J20 Decal (S.P.C.)

Other Decals
19 77811-54GC0-0PG ▪ Chrome S Emblem
34 61471-98J00 Lean Burn Decal
33 61458-99E60 Engine Cover Label

Model Year: 1994
Starting Serial No.: 02507-461001
Model Designation:
DT 25MCSR
DT 25MCLR
DT 25CESR
DT 25CELR
DT 25CRSR
DT 25CRLR

Suzuki DT 25C - (1994 to 1997)
Fig. 26 - Engine Cover

1) 61420-95844-0ED Engine Cover (94-97)

Also:

1) 61410-95D03-0ED Engine Cover (89-93)
1) 61420-95860-0ED Engine Cover (98-00)

61420-95844-0ED, 61410-95D03-0ED, 61420-95860-0ED,
61420-95844-0ED 61410-95D03-0ED 61420-95860-0ED

SUZUKI DECALS

15) 61440-91D00 Engine Cover Stripe Set
16) 68181-33C20-1RR Suzuki Emblem
17) 21131-96010 Clutch Shift Mark
19) 61435-95D51 Rear Emblem Mark 25 HP
20) 61581-98620 Engine Cover Label
21) 61582-98100 Warning Mark
