115 (6 CYL.) - ARCHIVE CAT 63296

> Mercury Marine [Updated: Jul. 18, 2018] > Outboard > 2 Stroke Carb > 115 (6 CYL.) > ARCHIVE CAT 63296

TOP COWL AND SUPPORT BRACKETS Diagram 40750

1
2114-3806 COWL, TOP (USA-4394236/Australia-8027439/Canada-7075522 and below)
2114-5999 COWL, TOP (USA-4394237/Canada-7075523 and above)

COWLING AND FRONT COVER Diagram 40751


1)
2113-2663A18 COVER ASSEMBLY, Cowl - Front (USA-4112634/Australia-8027114/Canada-7047257 and below)
2113-5631A 1 COVER ASSEMBLY, Cowl - Front (USA-4112635/Australia-8027115/Canada-7047258 thru USA-4310784/Australia-8027439/Canada-7075522)
2113-5631A 4 COVER ASSEMBLY, Cowl - Front (USA-4310785/Canada-7075523 and above)

11) 2136-4660A 4 WRAP AROUND COWL ASSEMBLY





3806, 5999, 2663A18, 5631A1, 5631A4, 4660A4
3806 5999 2663A18 5631A1 5631A4 4660A4

MERCURY DECALS

60893A73 DECAL SET (USA-3761034/Australia-8014004/Canada-7025597 and below)
66323A74 DECAL SET (USA-3761035/Australia-8014005/Canada-7025598 thru USA-4112634/Australia-8037114/Canada-7047257)
69770A75 DECAL SET (USA-4112635/Australia-8027115/Canada-7047258 thru USA-4310784/Australia-8027439/Canada-7075522)
73889A76 DECAL SET (USA-4310785/Canada-7075523 thru USA-4567951/ Canada-7087422)
73889A77 DECAL SET (USA-4567952/Canada-7087423 and above)

OTHER DECALS

HYDRAULIC PUMP AND CONTROL PANEL

6) 37-55901 DECAL, INSTRUCTION

TOP COWL AND SUPPORT BRACKETS

17)
37-60204 DECAL, TIMING (USA-3761034/Australia-8014004/Canada-7025597 and below)
37-65601 DECAL, TIMING (USA-3761035/Australia-8014005/Canada-7025598 thru USA-4394236/Australia-8027439/Canada-7075522)
37-73291 DECAL, TIMING (FLYWHEEL) (USA-4394237/Canada-7075523 and above)



FORCE SEARS 9.9 GAMEFISHER Cat.# 90-855600

 > Mercury Marine [Updated: Aug. 16, 2018] > Outboard > Sears > 9.9 HP > [225.591990 225.591980 THRU 225.591980] - Belgium - Cat.# 90-855600 > COWL ASSEMBLY TOP AND BOTTOM



COWL ASSEMBLY TOP AND BOTTOM

820154A9 TOP COWL ASSEMBLY (WITH DECALS) (PAINTED)
820154A8 TOP COWL ASSEMBLY (WITHOUT DECALS) (PAINTED)

820154A9, 820154A8
820154A9 820154A8



SEARS GAMEFISHER DECALS

10) 82634213 DECAL (REAR)
11) 82634211 DECAL (STARBOARD)
11) 82634212 DECAL (PORT)
12) 82408812 DECAL Shift
13) 8263425 DECAL (FRONT)-Starter Instructions
14) 835495A3 BOTTOM COWL ASSEMBLY (Painted)

31) 85557736 DECAL EPA Label Information (Applied Inside The Top Cowl)

Mark & K Series (pre 1960) - MARK 30 - ARCHIVE CAT 90-25739

> Mercury Marine [Updated: May. 1, 2019] > Outboard > Mark & K Series (pre 1960) > MARK 30 > ARCHIVE CAT 25739

MARK 30
MARK 30, 30E . . . . . . . ALL SERIAL NUMBER



TOP COWL AND STARTER ASSEMBLY
p2
101-1024A5 TOP COWL ASSEMBLY (DOES NOT INCLUDE DECALS)
101-1266A2 TOP COWL ASSEMBLY (DOES NOT INCLUDE DECALS)

1024A5, 1266A2
1024A5 1266A2

37-25554 DECAL SET TOP COWL
37-26517 DECAL SET TOP COWL
37-28433 DECAL SET TOP COWL



COWLING AND FRONT COVER
p4
1) 155-1029A2 COWL FRONT COVER ASSEMBLY
1A) 155-1029A3 COWL FRONT COVER ASSEMBLY
2) 26183A EMBLEM COWL FRONT COVER



MERCURY MARK DECALS

25554 DECAL SET (MK30, MK30E, MK30-1, MK30E-1)
26517 DECAL SET (MK30-2, MK30E-2)
28433 DECAL SET (MK30-3)

25554, 26517, 28433
25554 26517 28433

1965 1966 MERC 650 - 90-38767

> Mercury Marine [Updated: Apr. 23, 2019] > Outboard > 2 Stroke Carb > 650 (4 CYL.) > ARCHIVE CAT 34020

90-38767 - MERC 650 (4 CYL.) - SERIAL NUMBER 1765044 THRU 2119748




TOP COWL AND SUPPORT BRACKETS
9) 2114-2455 COWL, TOP

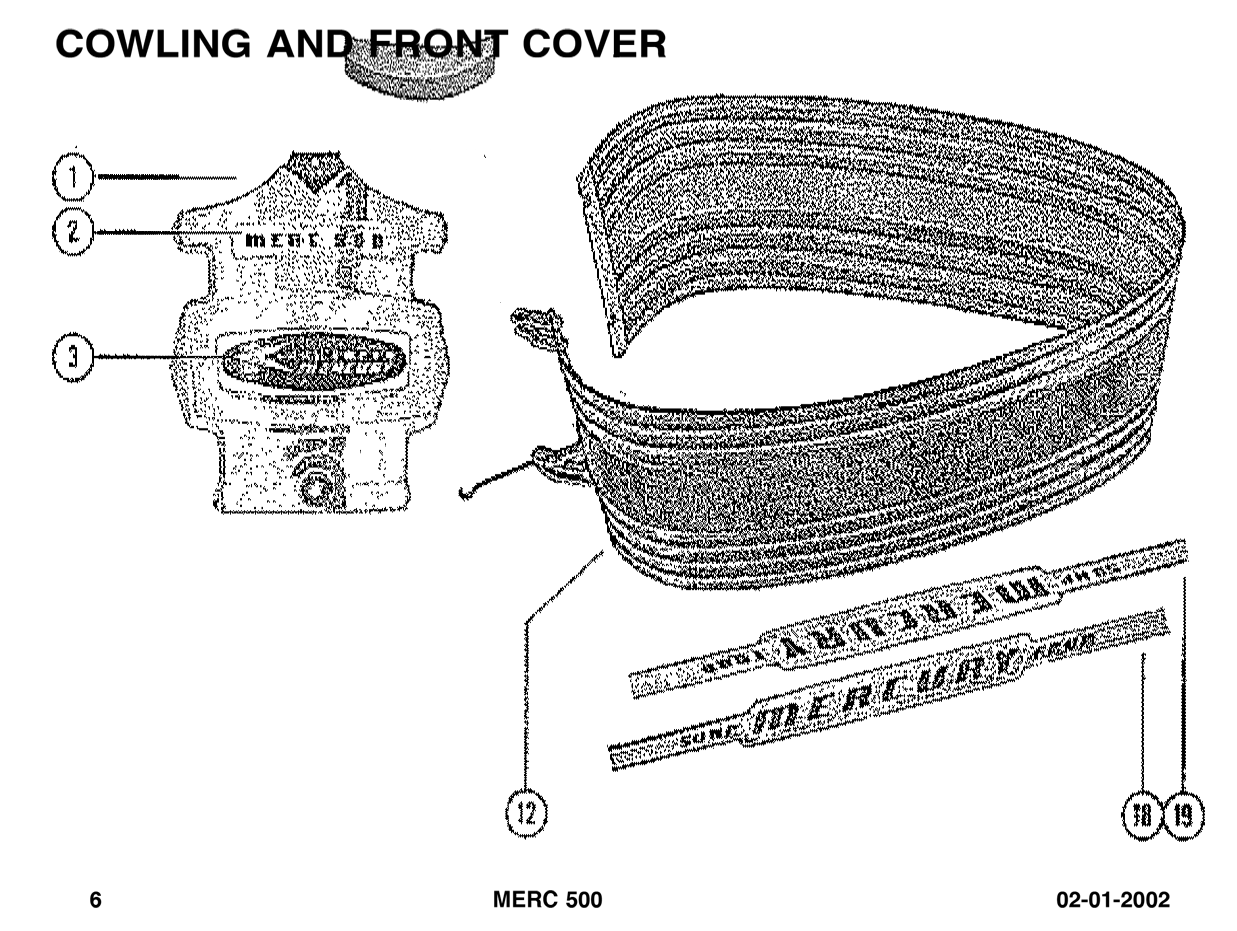

COWLING AND FRONT COVER

1) 2104-2334A4 COWL FRONT COVER ASSEMBLY
1) 2104-2654A1 COWL FRONT COVER ASSEMBLY
12) 2119-2507A2 WRAP AROUND COWL ASSEMBLY
12) 2119-2657A2 WRAP AROUND COWL ASSEMBLY

2455, 2334A4, 2654A1, 2507A2, 2657A2 (65)-
2355A3, 2334A1, 2353A2 (50)

MERCURY DECALS

37-37844A1 DECAL SET (MERC 650E-2)
37-39272A1 DECAL SET (MERC 650E-3)

37844A1, 39272A1
37844A1 39272A1

OTHER DECALS
17) DECAL, TOP COWL SHIELD - "MERC 650"
10) DECAL, TOP COWL - MANUAL STARTING INSTRUCTIONS
2) DECAL, COWL FRONT COVER - "MERC 650" (NOT AS SHOWN)
3) DECAL, FRONT COVER EMBLEM
18) DECAL, WRAP AROUND COWL - STARBOARD -NOT AS SHOWN
19) DECAL, WRAP AROUND COWL - PORT -NOT AS SHOWN
18) DECAL, WRAP AROUND COWL - STARBOARD
19) DECAL, WRAP AROUND COWL - PORT
20) DECAL, WRAP AROUND COWL - REAR

More Articles …

  1. 4 Stroke 40 Carb (3 CYL.)(4-STROKE) - Cat.# 90-803941008
  2. MARINER 90 - ARCHIVE CAT 84979
  3. 200/225 (3.0L DFI)- Cat.# 90-80348501
  4. SEARS GAMEFISHER 5 HP - Cat.# 90-855475

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.
