4 Stroke 40 Carb (3 CYL.)(4-STROKE) - Cat.# 90-803941008

> Mercury Marine [Updated: Jan. 14, 2020] > Outboard > 4 Stroke > 40 Carb (3 CYL.)(4-STROKE) > [1C018826 & Up] - Cat.# 90-803941008

Top Cowl Diagram 28545

834785T41 TOP COWL ASSEMBLY Mercury [1C453639] & Below
8M0118168 TOP COWL ASSEMBLY Mercury, Non Decaled [1C453640] & Up
834785T43 TOP COWL ASSEMBLY Mariner [1C453639] & Below
8M0118169 TOP COWL ASSEMBLY Mariner, Non Decaled [1C453640] & Up

834785T41, 8M0118168, 834785T43, 8M0118169
834785T41 8M0118168 834785T43 8M0118169

879147T12 CAP Air Dam - Mercury [1C453639] & Below
8M0118170 CAP Air Dam - Mercury [1C453640] & Up
879147T13 CAP Air Dam - Mariner [1C453639] & Below
8M0118172 CAP Air Dam - Mariner [1C453640] & Up

879147T12, 8M0118170, 879147T13, 8M0118172
879147T12 8M0118170 879147T13 8M0118172



Decals - Top Cowl Diagram 69110

MERCURY DECALS

1) 803641A08 DECAL SET Mercury [1C018826] THRU [1C193075]
+ 8M0114767 DECAL SET Mercury [1C193076] & Up
2) 8M0043702 DECAL M-Icon, 53mm Black

3) 8M0114767 DECAL SET Mercury [1C193076] & Up
4) 8M0043703 DECAL M-Icon, 66 MM, Black
5) 8M0044902 DECAL 30 [1C193075] & Below
6) 896856002 DECAL 40 [1C193075] & Below
7) 896856003 DECAL Rear - 50 [1C193075] & Below

8) 8M0071110 DECAL SET Mercury 40hp [1C193076] THRU [1C262469]
9) 8M0063345 DECAL Lenz

10) 8M0098328 DECAL SET ME 40HP 3CYL [1C262470] & Up
   + 8M0114997 DECAL SET ME 30-40 HP 4S
11) 8M0063348 DECAL Rear, 40 [1C193076] & Up
12) 8M0088310 DECAL Command Thrust
13) 8M0063353 DECAL Bigfoot [1C018826] THRU [1C193076]

14) 8M0114997 DECAL SET ME 30-40 HP 4S [1C573729] & Below
15) 8M0063358 DECAL Lenz

16) 8M0156747 DECAL SET ME 30-60 HP 4S [1C573730] & Up
17) 8M0063354 DECAL Jet Drive
18) 8M0043701 M-ICON 39MM - Small Rear
19) 8M0105187 DECAL Tiller Handle Tiller Models Only
20) 8M0056643 DECAL Read Manual
21) 8M0159886 DECAL Lenz, Mercury


MARINER DECALS

22) 803643A08 DECAL SET Mariner
23) 8M0012388 DECAL Rear, 40
24) 8M0109251 DECAL Lenz, Mariner

MARINER 90 - ARCHIVE CAT 84979

> Mercury Marine [Updated: Jul. 19, 2018] > Outboard > 2 Stroke Carb > 90, 900 (6 CYL.) > ARCHIVE CAT 84979

90 (6 CYL.) . . .SERIAL NUMBER USA 5721325 THRU 6436122
90 (6 CYL.) . . .SERIAL NUMBER CAN 7190903 THRU 7208847

TOP COWL DIAGRAM

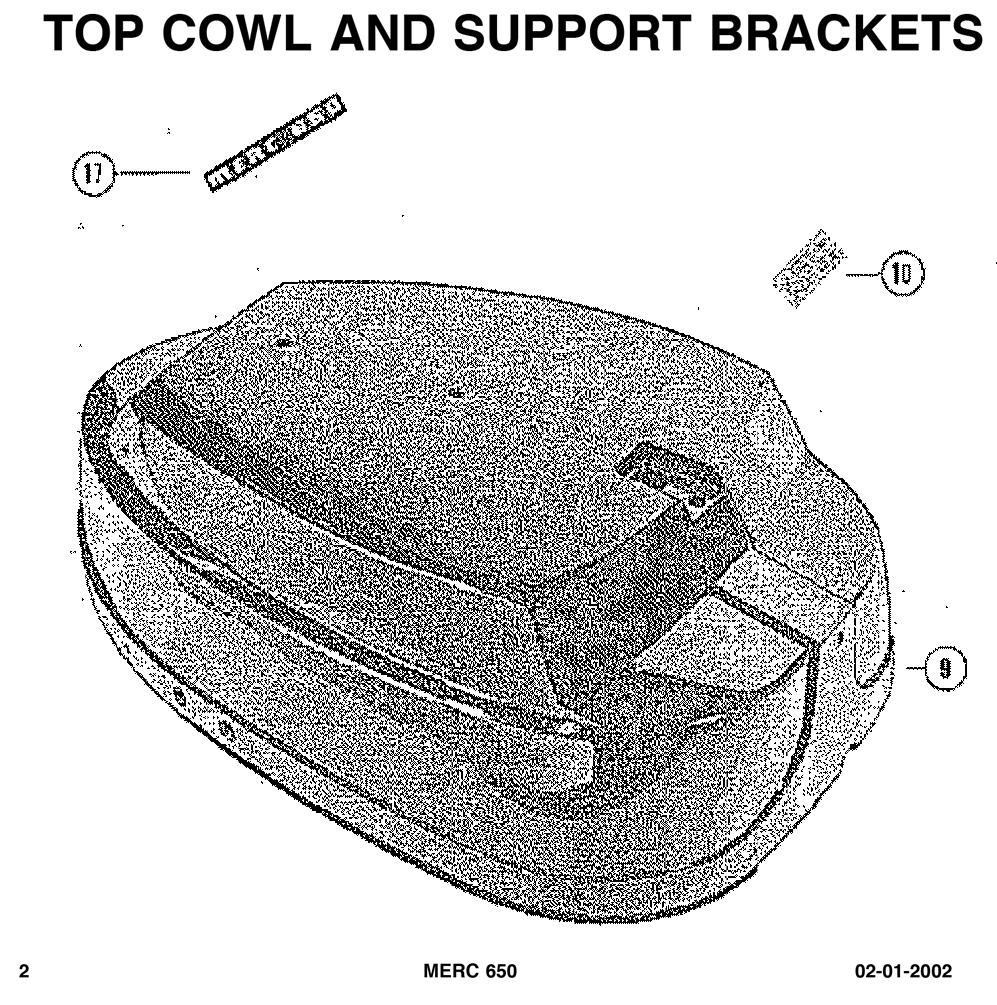

TOP COWL AND SUPPORT BRACKETS Diagram 84979-4
6392 TOP COWL (WITHOUT DECALS)

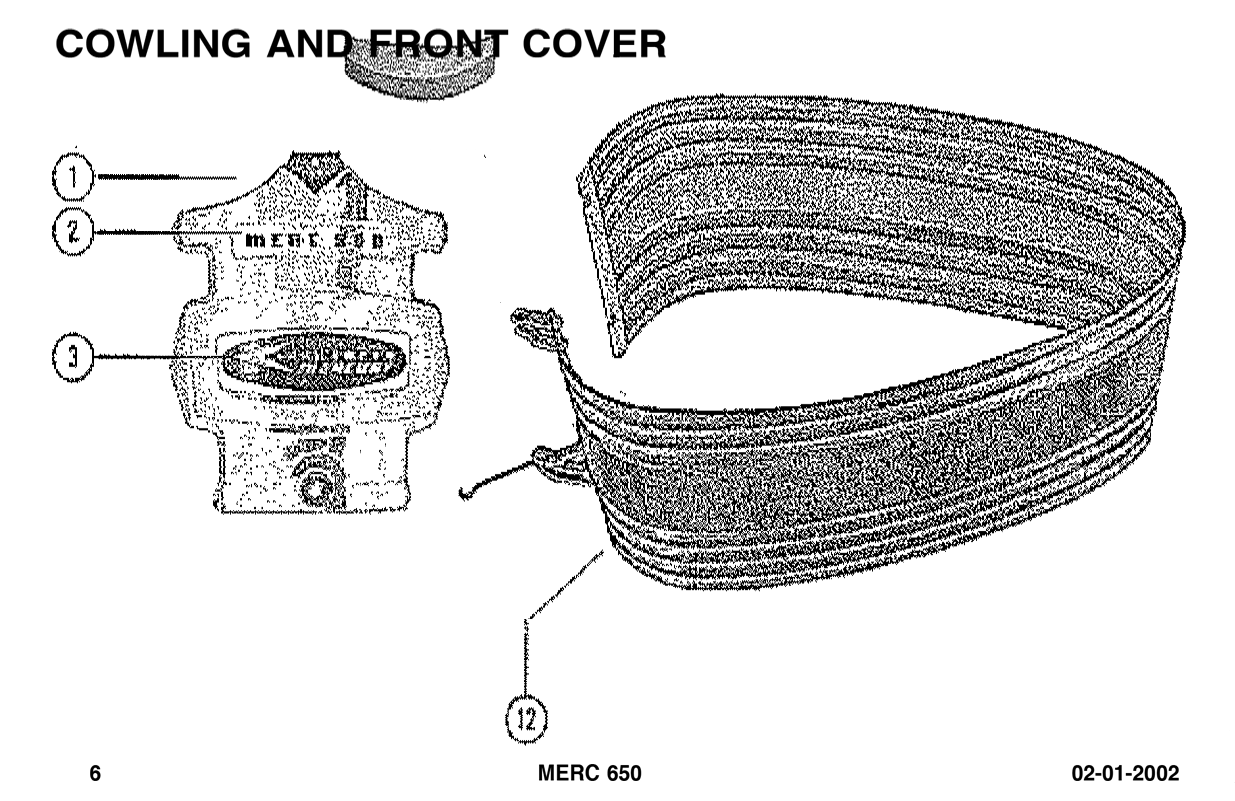

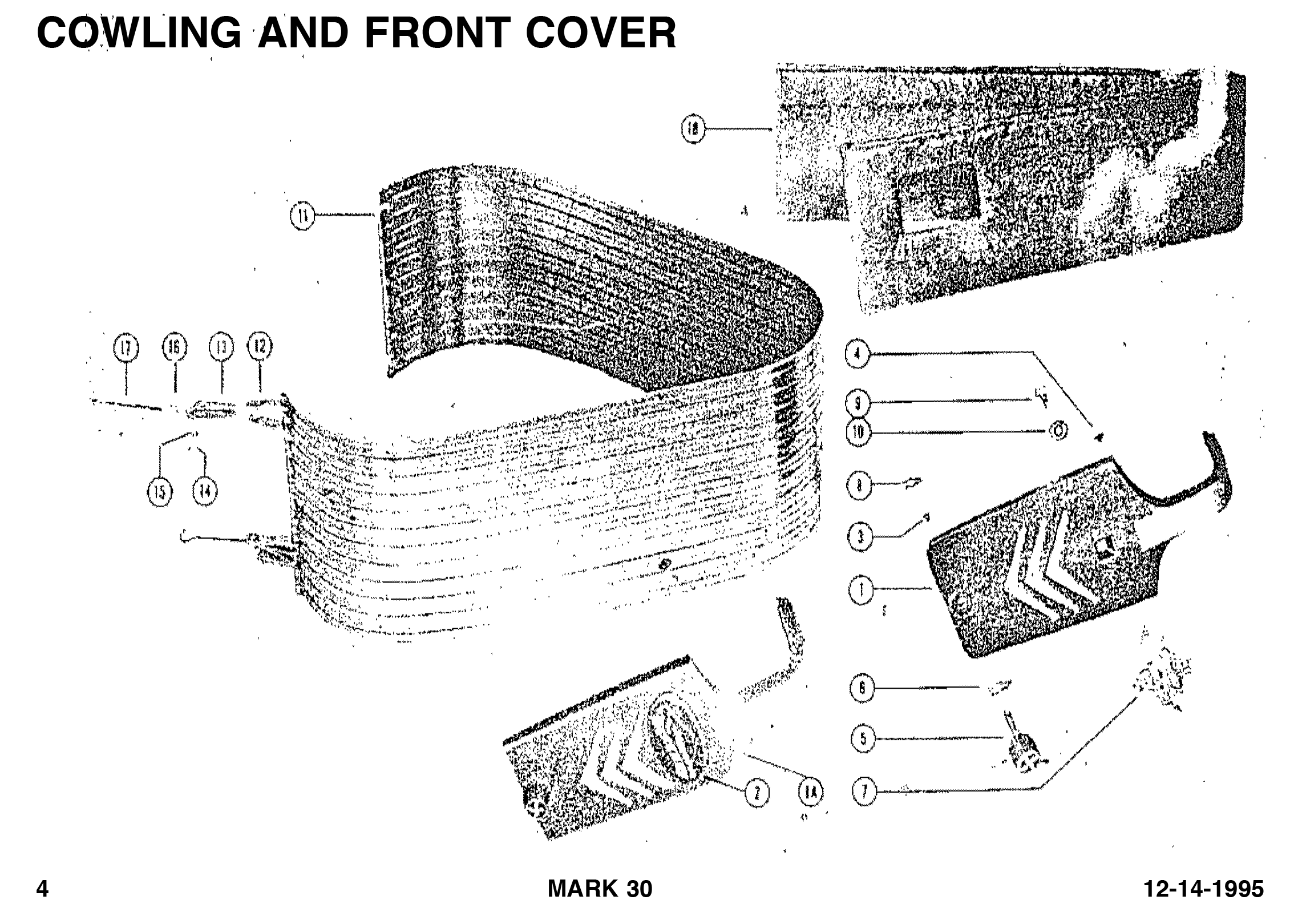

COWLING AND FRONT COVER Diagram 84979-6
1)  6497A2 FRONT COVER ASS’Y (W/O DECALS)
11) 6498A3 WRAP AROUND COWL ASSEMBLY (W/O DECALS)

6392, 6497A2, 6498A3
6392 6497A2 6498A3

MARINER DECALS

87286A79 DECAL SET


Serial Number: 05919060 - Model: 7090620 - Model Version: ELPT
1980 MARINER 90 ELP

200/225 (3.0L DFI)- Cat.# 90-80348501

> Mercury Marine [Updated: Jul. 24, 2018] > Outboard > 2 Stroke DFI (OptiMax) > 225 (DFI) > [0T178500 THRU 0T598999] - USA - Cat.# 90-80348501



TOP COWL DIAGRAM 30394

850299T1 TOP COWL ASSEMBLY Black
850299T2 TOP COWL ASSEMBLY Silver

850299T1, 850299T2
850299T1 850299T2

MERCURY DECALS

855405A00 DECAL SET (225 BLACK) (RED)(2001 AND ABOVE)
855408A00 DECAL SET (225 BLACK) (BLUE)(2001 AND ABOVE)
855410A00 DECAL SET (200 BLACK) (RED)(2001 AND ABOVE)
855412A00 DECAL SET (200 BLACK) (BLUE)(2001 AND ABOVE)



MARINER DECALS

855413A01 DECAL SET (200 GRAY)
855409A01 DECAL SET (225 GRAY)



TRACKER DECALS

802641A98 DECAL SET (225 TRACKER)(2001)
855405A00 DECAL SET (225 TRACKER)(2002)
802642A98 DECAL SET (200 TRACKER)(2001)
855410A00 DECAL SET (200 TRACKER)(2002)


OTHER DECALS

804658A01 DECAL EPA Label Information (2001)(SEE NOTE)
804658A02 DECAL EPA Label Information (2002)(SEE NOTE 1)

23) NSS NOT SOLD SEPARATE DECAL, Counter Rotation (Left Hand)
23) NSS NOT SOLD SEPARATE DECAL, Counter Rotation (Right Hand)
24) NSS NOT SOLD SEPARATE DECAL, Break-in

Read more: 200/225 (3.0L DFI)- Cat.# 90-80348501

SEARS GAMEFISHER 5 HP - Cat.# 90-855475

> Mercury Marine [Updated: Aug. 16, 2018] > Outboard > Sears > 5 HP > [225.597500 & Up] - USA - Cat.# 90-855475

TOP COWL ASSEMBLY
Diagram 36532

820190A9 TOP COWL ASSEMBLY (Painted) (WITH DECALS)
820190A8 TOP COWL ASSEMBLY (Painted) (WITHOUT DECALS)

820190A9, 820190A8
820190A9 820190A8

SEARS GAMEFISHER DECALS

14) 8263414 DECAL (FRONT)-Starting Instructions
15) 2634111 DECAL (REAR)
16) 82634110 DECAL (PORT)
16) 8263419 DECAL (STARBOARD)

18) 85557735 DECAL EPA Label Information (Applied To The Inside Of The Top Cowl)

STEERING HANDLE/TWIST GRIP THROTTLE


23) F712894 DECAL Speed/Shift Indicator


PAINT
82793336 PAINT Damascus Steel Gray 12 Oz. (355 ml) Spray Can
82793337 PAINT Damascus Steel Gray .5 Oz. (15 ml) Brush Bottle
81910712 PAINT Clear Acrylic 12 Oz. (355 ml) Spray CANADA (For Cowl Only)

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.

    90-8M0143239 eng MARCH 2018       © 2018 Mercury Marine      -     Page 1 / 16
